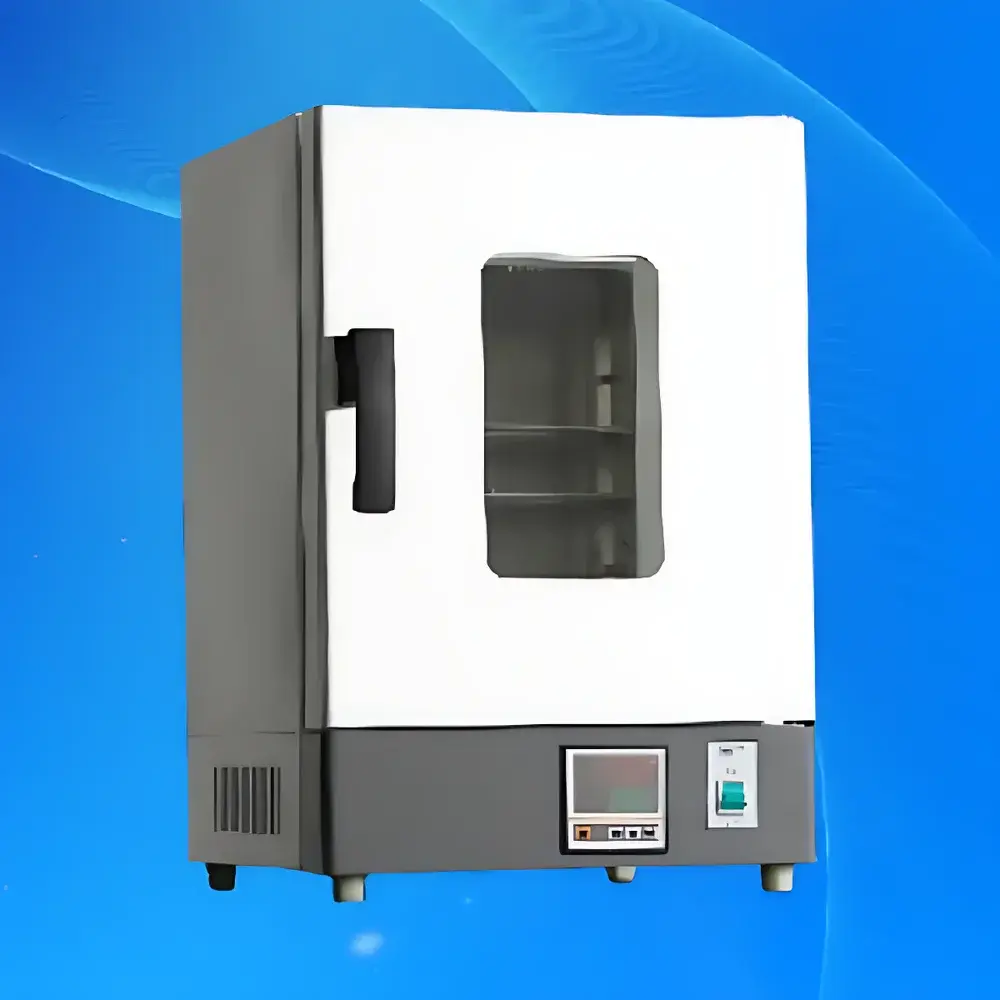

Zuofei DHG-9036A Forced-Air Constant-Temperature Drying Oven

Overview

The Zuofei DHG-9036A is a precision-engineered forced-air constant-temperature drying oven designed for routine and regulated laboratory applications requiring thermal stability, repeatability, and operational safety. It operates on the principle of convection-based heat transfer: a high-temperature-rated centrifugal blower circulates heated air through a unidirectional duct system, ensuring consistent thermal distribution across the chamber volume. This architecture supports critical processes including moisture removal from solid samples, pre-conditioning of analytical standards, sterilization of glassware and tools, wax melting for histology, and thermal aging of polymeric or pharmaceutical excipients. The unit complies with fundamental design expectations for Class II laboratory ovens under ISO 17025-accredited environments and aligns with general Good Laboratory Practice (GLP) requirements for temperature-controlled equipment used in QC/QA workflows.

Key Features

• Microprocessor-based PID temperature controller with dual-line digital display, offering precise setpoint control, real-time chamber temperature readout, and adjustable timer function (1–9999 minutes)
• Robust mirror-finish stainless steel interior chamber—welded via argon arc process for corrosion resistance and ease of decontamination
• Bottom-mounted stainless steel heating elements with optimized thermal mass for stable ramp performance and reduced overshoot
• High-efficiency axial fan rated for continuous operation at 300°C, integrated into a single-channel forced-air circulation path
• High-temperature silicone door gasket engineered for long-term sealing integrity and minimal thermal leakage
• Transparent double-glazed observation window enabling non-intrusive visual monitoring without compromising chamber stability
• Power failure recovery mode: automatically resumes prior setpoint and timer status after mains interruption
• Over-temperature deviation protection circuit—activates audible alarm and cuts heating power if chamber exceeds user-defined safety threshold

Sample Compatibility & Compliance

The DHG-9036A accommodates standard laboratory sample formats including Petri dishes, weighing boats, crucibles, glass vials, aluminum pans, and ceramic tiles—up to five stacked trays (2 standard, 3 optional). Its chamber geometry (30 × 30 × 35 cm) permits uniform exposure of samples up to 31.5 L total volume. Temperature uniformity is validated per ASTM E145-22 Annex A3 methodology using calibrated thermocouples at nine spatial points; certified uniformity of ±2.5% at 100°C meets typical internal validation protocols for non-GMP drying steps. While not intrinsically 21 CFR Part 11 compliant, optional RS485 interface and external data loggers enable traceable temperature recording suitable for GLP audits. Optional independent over-temperature cut-off and SMS alert modules further support risk-mitigated operation in unattended or multi-shift settings.

Software & Data Management

The base unit operates via embedded firmware with no external software dependency. For enhanced data governance, optional interfaces include:

• RS485 serial port supporting Modbus RTU protocol for integration into centralized Lab Information Management Systems (LIMS) or SCADA platforms
• Thermal printer module for hard-copy time-stamped temperature logs (±0.1°C resolution, timestamped per minute)
• Touchscreen multi-segment programmable controller (optional upgrade): enables up to 32-step thermal profiles with ramp/soak control, start delay, auto-shutdown, and graphical temperature curve export via USB
• Audit trail capability—when paired with compliant logging hardware—is configurable to record operator ID, parameter changes, alarm events, and power cycle history in accordance with ALCOA+ principles

Applications

This drying oven serves as a foundational thermal processing tool across multiple disciplines:

• Pharmaceutical QC labs: residual solvent removal from active pharmaceutical ingredients (APIs), moisture content determination per USP <921>, and stability-indicating drying of reference standards
• Materials science: curing of coatings, pre-drying of ceramic green bodies, and thermal conditioning of composites prior to mechanical testing
• Environmental testing: gravimetric analysis of total suspended solids (TSS) and total dissolved solids (TDS) per EPA Method 160.2
• Food & agriculture labs: moisture loss assays for grains, dairy powders, and botanical extracts in compliance with AOAC 950.46
• Histopathology: paraffin wax embedding preparation and instrument drying post-sterilization

FAQ

What is the maximum operating temperature and its certified accuracy?
The DHG-9036A is rated for continuous operation up to 300°C. Temperature accuracy is ±1.0°C (fluctuation) at setpoint, verified using NIST-traceable reference thermometers during factory calibration.
Is the oven suitable for sterilization applications?
It supports dry-heat sterilization cycles (e.g., 160°C for 120 min or 180°C for 30 min) per ISO 15883-5 guidelines, though biological indicator validation is required for formal sterilization claims.
Can the unit be validated for GxP environments?
Yes—when equipped with data logging options and operated under documented IQ/OQ protocols, it supports qualification for non-sterile manufacturing support and analytical lab use under GMP Annex 15 and FDA guidance.
Does the oven meet electrical safety standards for international use?
The unit conforms to GB/T 14710 (Chinese national standard for environmental adaptability of medical electrical equipment) and IEC 61010-1 for laboratory electrical safety. Voltage configuration is fixed at 220 V / 50 Hz; CE marking requires regional adaptation and third-party certification.
How is temperature uniformity verified across the chamber?
Uniformity is measured at nine defined locations (center + eight corners) using calibrated Class A Pt100 sensors per ASTM E145-22. Reported value (±2.5% at 100°C) reflects relative deviation from mean temperature—not absolute error—and is representative of typical loading conditions with standard tray configuration.
