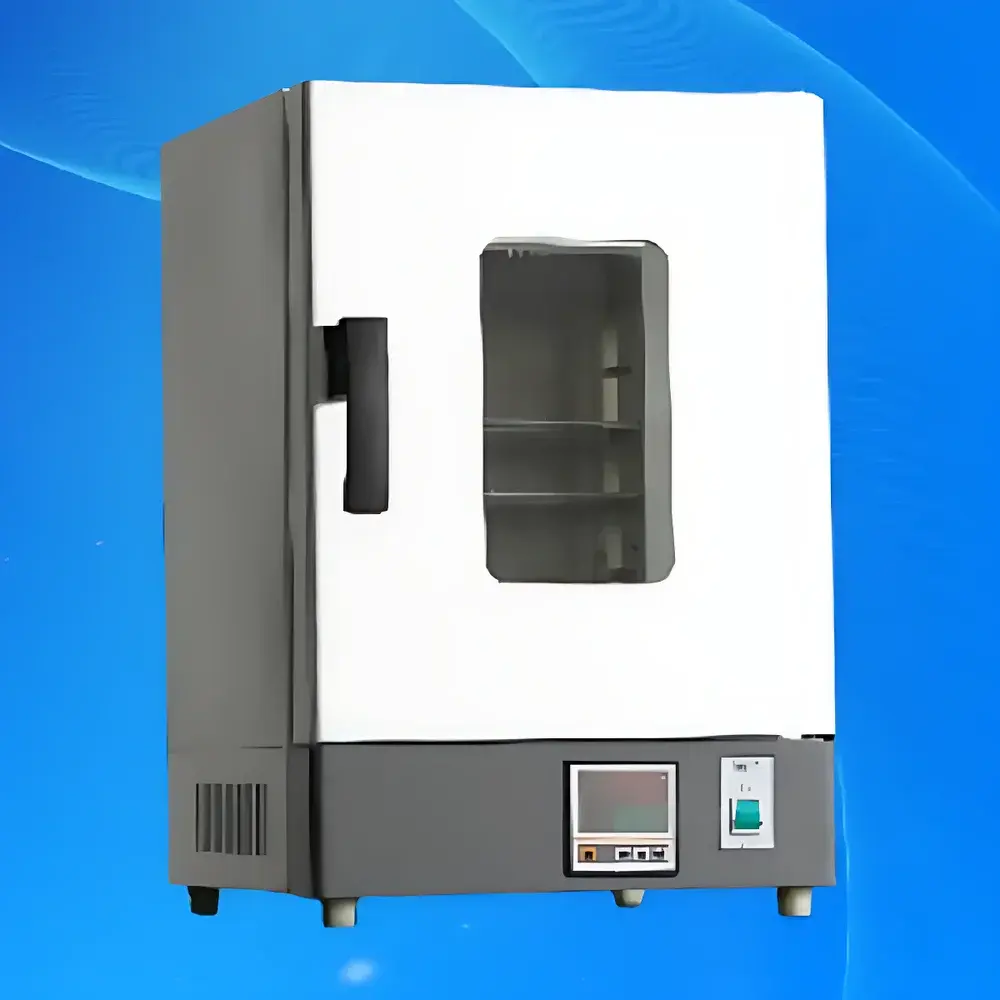

Zuofei DHG-9146A Forced-Air Constant-Temperature Drying Oven

Overview

The Zuofei DHG-9146A is a precision-engineered forced-air constant-temperature drying oven designed for rigorous laboratory and industrial applications requiring stable thermal environments. It operates on the principle of convection-based heat transfer, utilizing a high-reliability centrifugal blower and optimized airflow ducting to ensure uniform thermal distribution across the working chamber. Engineered for reproducible drying, baking, sterilization, and wax melting protocols, the DHG-9146A meets foundational requirements for ISO/IEC 17025-compliant laboratories and supports GLP-aligned experimental workflows. Its robust construction—featuring a mirror-finish stainless steel interior welded via argon arc technology and a cold-rolled steel exterior—ensures long-term corrosion resistance and mechanical stability under repeated thermal cycling.

Key Features

• PID microprocessor-based temperature controller with dual-line digital display, offering precise setpoint control, programmable timer (1–9999 minutes), and audible over-temperature alarm
• Automatic power recovery function: resumes prior operating parameters after unexpected power interruption, preserving experimental continuity and data integrity
• High-efficiency forced-air circulation system with rear-mounted blower and unidirectional air duct design, enhancing thermal homogeneity throughout the chamber
• High-temperature silicone door gasket rated for continuous operation up to 300°C, ensuring consistent sealing performance and extended service life
• Tempered glass observation window enabling real-time visual monitoring without compromising chamber integrity or thermal stability
• Bottom-mounted stainless steel heating elements for rapid thermal response and reduced thermal stratification

Sample Compatibility & Compliance

The DHG-9146A accommodates standard laboratory sample containers—including Petri dishes, weighing boats, crucibles, and glassware—within its 136 L working volume (45 × 55 × 55 cm internal dimensions). Its temperature uniformity of ±2.5% (at 100°C) aligns with ASTM E145–22 Class II oven performance criteria for general-purpose thermal processing. While not certified to IEC 61000-4 electromagnetic compatibility standards out-of-the-box, the unit complies with basic CE safety directives applicable to Class II electrical laboratory equipment. Optional configurations—including independent over-temperature cut-off, RS485 serial interface, and multi-segment programmable controllers—support integration into FDA 21 CFR Part 11–governed environments when paired with validated software platforms and audit-trail-enabled data loggers.

Software & Data Management

The base model features embedded firmware with non-volatile memory for parameter retention and event logging (e.g., temperature deviation alerts, timer completion). Optional upgrades expand data handling capabilities: an RS485 interface enables bidirectional communication with SCADA systems or custom LabVIEW-based acquisition software; a thermal printer module provides hard-copy output of time-stamped temperature profiles; and the optional touchscreen multi-segment programmer supports up to 30 programmable steps—including ramp/soak sequences, automatic start/standby/shutdown scheduling, and real-time curve visualization. All optional digital modules retain full traceability per GLP Annex 11 principles when deployed with appropriate validation documentation and user access controls.

Applications

• Drying moisture-sensitive samples in pharmaceutical QC labs (e.g., active pharmaceutical ingredients, excipients)
• Baking ceramic substrates and electronic components during pre-soldering preparation
• Sterilizing reusable glassware and metal instruments in academic and clinical research settings
• Melting and solidifying paraffin and embedding media in histopathology workflows
• Accelerated aging studies of polymer films and coatings per ISO 4892–2 protocols
• Residual solvent removal from thin-film deposition substrates in materials science laboratories

FAQ

What is the maximum operating temperature and thermal class rating of the DHG-9146A?
The unit is rated for continuous operation up to 300°C and classified as a Class B high-temperature oven per IEC 60519-1 guidelines.
Does the DHG-9146A support regulatory-compliant data archiving?
Yes—when equipped with the RS485 interface and validated third-party data acquisition software, it supports ALCOA+ data integrity principles including attributable, legible, contemporaneous, original, and accurate records.
Can the temperature uniformity be improved beyond ±2.5%?
An optional auxiliary heating module is available, improving uniformity to ≤±2.0% at 150°C per ASTM E145–22 Annex A3 test methodology.
Is the internal chamber accessible for cleaning and maintenance?
The mirror-finish stainless steel interior permits easy wipe-down with ethanol or isopropyl alcohol; all heating elements and fan assemblies are front-accessible via removable service panels.
What ambient conditions must be maintained for optimal performance?
Ambient temperature must remain between +5°C and +40°C, with relative humidity below 80% non-condensing and adequate ventilation to dissipate convective heat from the rear exhaust vent.
