| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | XR20-W |
| Weight | ~1 kg (unit device), <7 kg (full system in Peli™ case) |
| Measurement Accuracy | ±1 arcsecond |
| Power | Rechargeable battery |
| Connectivity | Bluetooth® 4.0 |
| Compatible Laser Interferometers | XL-80 (standard), ML10 (USB interface version forthcoming) |
| Compliance | Fully calibrated and certified per ISO 10360 and ISO 230-4 prior to shipment |
| Software | Renishaw XCalibrator v3.x with ISO 230-4 / ASME B5.54 preconfigured test templates, automatic alignment calibration, GLP-compliant audit trail |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |

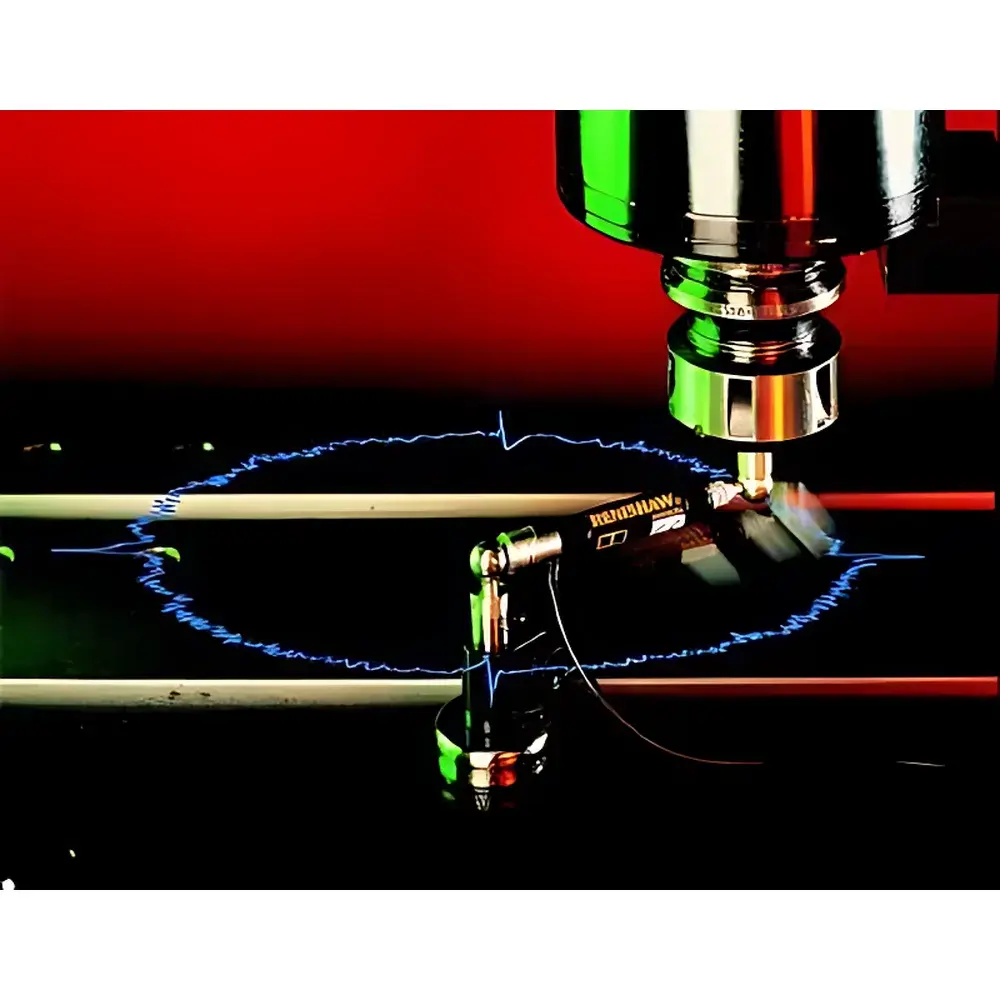

| Model | QC10 |
| Resolution | 0.1 µm |
| Sensor Accuracy | ±0.5 µm at 20 °C |
| Maximum Sampling Rate | 250 Hz |
| Optional Extension Rods | 50 mm, 150 mm, 300 mm |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | XL80 |
| Measurement Speed | up to 4.0 m/s |
| Sampling Rate | up to 50 kHz |
| Linear Accuracy | ±0.5 ppm (0–40 °C) |
| Laser Stabilization Accuracy | ±0.05 ppm |
| Resolution | 0.001 µm |
| Maximum Linear Measurement Range | 80 m |
| Warm-up Time | ~6 minutes |
| Environmental Compensation | via XC-80 sensor (7-second update interval) |
| Wavelength Reference | Stabilized HeNe laser (traceable to SI meter) |
| Optical Compatibility | Fully backward-compatible with ML10 interferometer optics |
| Software | LaserXL™ (step-by-step machine tool verification), QuickViewXL™ (real-time display) |
| Portability | Total system weight <15 kg (laser head + XC-80 + cables + power supply + sensors) |
| tripod weight | 6.2 kg |
| Warranty | 3-year standard, extendable to 5 years |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | XL-80 |
| Measurement Principle | Stabilized HeNe laser interferometry (wavelength 632.991 nm, traceable to SI meter) |
| System Accuracy | ±0.5 ppm (0–40 °C, compensated) |
| Resolution | 0.001 µm |
| Max Linear Velocity | 4.0 m/s |
| Sampling Rate | 50 kHz |
| Measurement Range | 0–80 m |
| Laser Warm-up Time | ~6 min |
| Environmental Compensation | XC-80 sensor (updates compensation every 7 s) |
| Laser Source Stability | ±0.05 ppm |
| Beam Height & Optical Compatibility | Fully compatible with ML10 optics and mounts |
| Software Suite | LaserXL™ (step-by-step metrology workflows), QuickViewXL™ (real-time display) |
| Warranty | 3 years standard, extendable to 5 years |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |

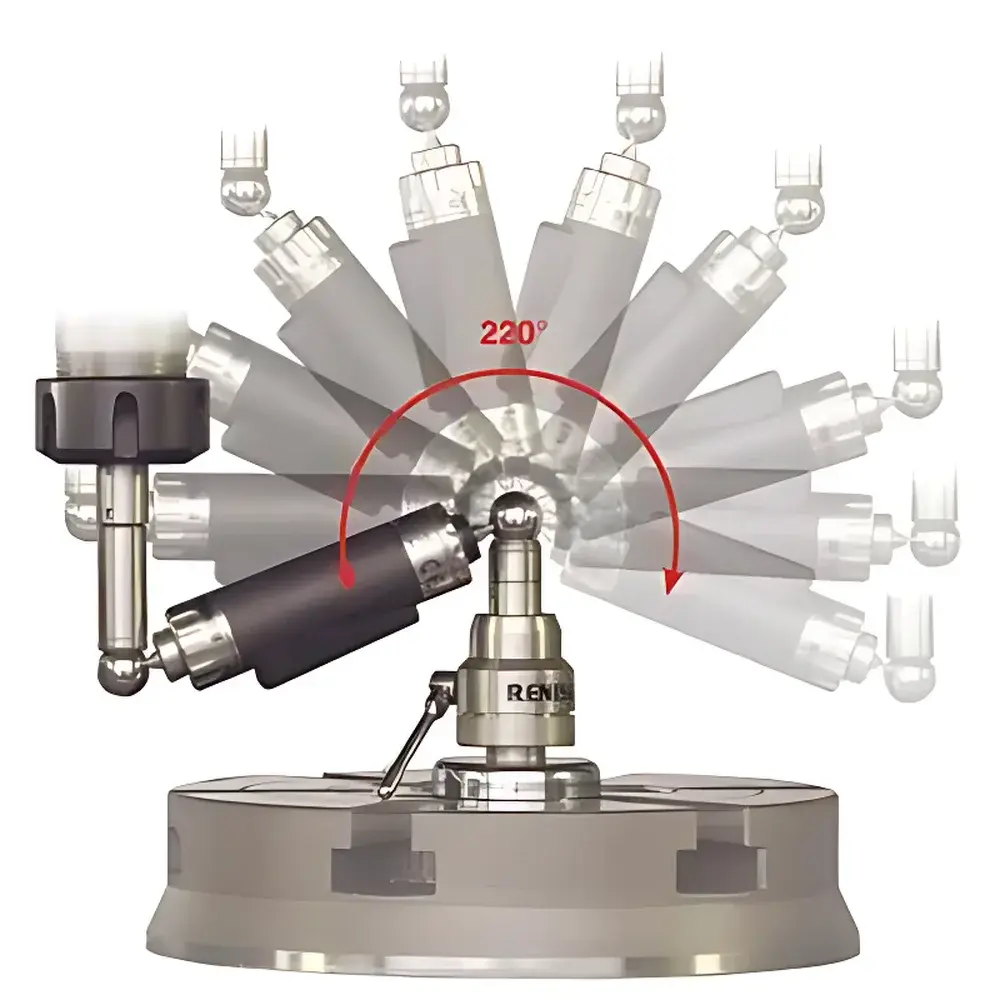

| Model | QC20-W |
| Type | Precision Geometric Measurement Instrument |
| Core Technology | Dual-Point Kinematic Interferometric Displacement Measurement |
| Communication | Bluetooth 5.0 (Class 1, up to 30 m range in line-of-sight) |
| Sensor Principle | Non-contact capacitive linear displacement sensing with integrated thermal compensation |
| Mechanical Design | Telescopic carbon-fiber arm (standard 100 mm–300 mm extension range, ISO 230-4 compliant length stability ±0.1 µm/°C) |
| Compliance | Fully compatible with ISO 230-4:2022, ANSI B5.54-2020, and VDI/VDE 2617 Part 6 |
| Software Platform | Renishaw Ballbar20 v4.x (Windows 10/11, 64-bit), supports FDA 21 CFR Part 11 audit trail, GLP/GMP-compliant report generation, and automated test sequence scripting |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | RX10 |
| Compatible Laser Systems | XL-80 or ML10 Laser Interferometer |
| Angular Accuracy | ≤1 arcsecond (standard), optional 0.5 arcsecond |
| Measurement Cycle Time | ≤25 minutes per full axis check |
| Mounting Orientation | Horizontal, vertical, or inverted |
| Built-in Calibration Routine | Yes |
| Automation Level | Fully motorized axis locking, unlocking, and rotation with auto-alignment and real-time tracking |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |

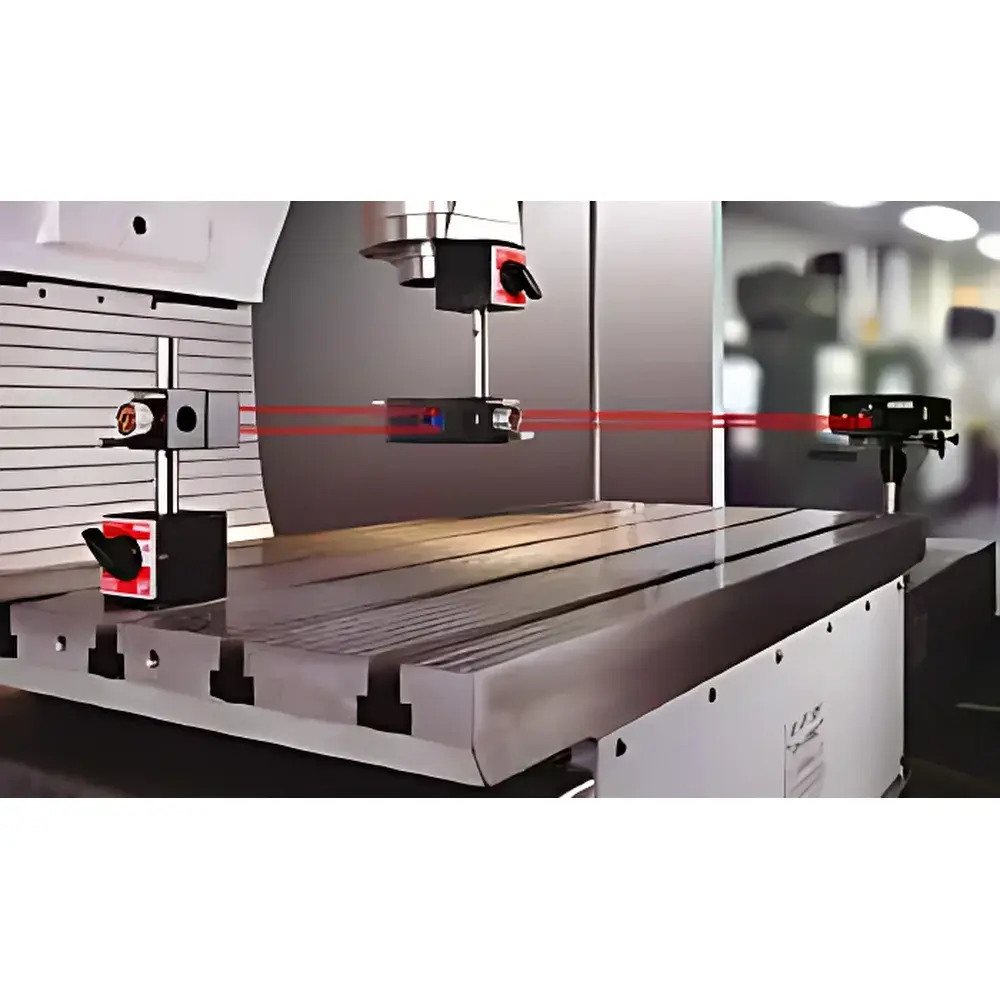

| Model | ML10 Gold |
| Linear Resolution | 0.001 µm |
| Linear Range | 40 m (optional 80 m) |
| Linear Accuracy | ±0.7 ppm |
| Maximum Measurement Speed | 60 m/min |
| Long-Term Frequency Stability | ±0.05 ppm |
| Environmental Compensation | EC10 sensor integrated |
| Software Platform | Laser10 v5.x |
| Compliance Standards | ISO 230-2, VDI/VDE 2617, VDI 3441, ASME B89.1.12, JIS B6330, GB/T 17421.2–2016 |
