| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | Equator™ |
| Type | Comparative Measurement System for Geometric Dimensioning and Tolerancing (GD&T) |
| Structural Principle | Parallel-Kinematic Mechanism with Kinematic Coupling |
| Measurement Method | Relative Comparison Against Master Parts Using Touch-Trigger and High-Speed Scanning Probes |
| Compliance Basis | Traceable to CMM-Calibrated Reference Parts per ISO 10360, ISO 14253, and ASME B89.4.1 |
| Software Platform | MODUS™ Equator (DMIS-compliant), MODUS™ Organiser (Operator Interface) |
| Probe System | Renishaw SP25 Micro-High-Accuracy Scanning Probe with SM25 Modular Styli Exchange |
| Thermal Compensation | Real-Time Re-Zeroing via Master Part Re-Reference |
| Fixture Requirement | ±1 mm Positioning Tolerance |
| Controller | Integrated Industrial PC-Based Equator Controller (No External PC Required) |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | RM44 |
| Housing Material | Stainless Steel |
| Protection Rating | IP67 (IEC 60529) |
| Operating Temperature Range | −40 °C to +85 °C |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Shock Resistance | 100 g (6 ms, half-sine) |
| Vibration Resistance | 10 g (10–2000 Hz, random) |
| Output Interface | Incremental (A/B/Z quadrature), Optional Sinusoidal 1 Vpp or RS422 |
| Maximum Resolution | Up to 131,072 counts/rev (configurable via interpolation) |
| Bearing Type | Dual-sealed, maintenance-free ball bearings |
| Electrical Connection | M12 connector (4-pin or 8-pin, depending on interface) |
| Shaft Configuration | Hollow shaft (standard), solid shaft (optional) |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | RESOLUTE™ |
| Encoder Type | True Absolute, Fine-Pitch Optical Encoder |
| Maximum Rotational Speed | 36,000 rpm |
| Position Resolution | 27-bit (134,217,728 counts/rev) |
| Output Interface | BiSS-C, EnDat 2.2, or proprietary Renishaw serial protocol |
| Contamination Resistance | Engineered for high-dust, oil-mist, and condensation-prone industrial environments |
| Compliance | Designed to support ISO 9001 manufacturing processes |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |

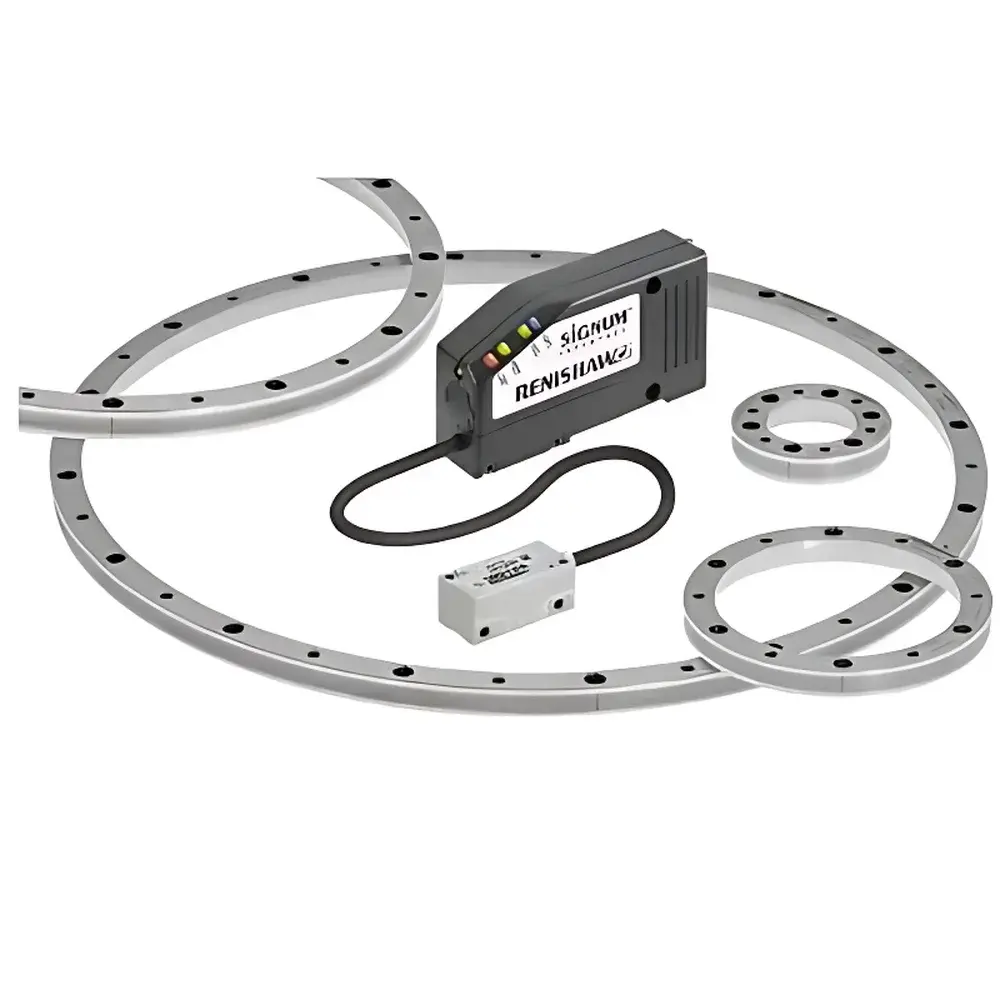

| Model | SiGNUM™ |
| Enclosure Rating | IP64 (SR readhead) |
| Thermal Operating Range | −10 °C to +85 °C |
| Maximum Speed | >3600 rpm (at Ø52 mm) |
| Angular Accuracy | ±0.5 arc seconds |
| Repeatability | 0.02 arc seconds |
| Subdivision Error | <±40 nm |
| Scale Pitch | 20 µm |
| Scale Material | Stainless Steel (RESM ring) |
| Installation Flexibility | Tapered Mounting System |
| Signal Processing | SiGNUM™ Intelligent Interpolation |
| Zero Reference | IN-TRAC™ Bidirectional Optical Reference Marks |
| Compliance | RoHS, CE, UKCA |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | RMB28 |
| Type | Non-contact, Two-part Optical Encoder Module |
| Mounting | OEM-integrated, Direct-mount Design |
| Environmental Rating | IP64 (when fully assembled with compatible readhead and scale) |
| Output Interface | Analog 1 Vpp Sin/Cos or Digital A/B/Z TTL/RS422 (configurable per variant) |
| Typical Scale Pitch | 20 µm |
| Maximum Speed | >3 m/s (dependent on resolution and interface) |
| Operating Temperature | 0 °C to +50 °C |
| Thermal Expansion Coefficient Matching | Optimized for aluminum and stainless steel substrates |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | TONiC™ |
| Maximum Speed | 10 m/s |
| Resolution | down to 5 nm |
| Subdivision Error | < ±30 nm |
| Operating Temperature | up to 70 °C |
| Compliance | RoHS, WEEE |
| Output Options | 1 Vpp analog, digital via 15-pin D-sub connector with diagnostics |
| IN-TRAC™ Reference Mark | Integrated bidirectional optical zero mark |
| Signal Stability | Enhanced by AGC and optical filtering |
| Installation | Tool-less, self-aligning readhead with dual diagnostic LEDs |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | AM4096 |
| Output Interfaces | SSI (12-bit absolute), RS422 (incremental), Analog Linear Voltage, Tacho (speed), UVW (commutation) |
| Zero Position | Infinitely reprogrammable |
| Supply Voltage | 3 V or 5 V selectable |
| Compliance | RoHS-compliant, CE-marked for industrial use |
| Operating Temperature Range | –20 °C to +70 °C |
| Package | QFN-32 |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |
| Model | FASTRACK™ |
| Accuracy | ±5 µm/m |
| Construction | Stainless Steel |
| Mounting Type | Bracket-Mounted |
| Serviceability | Modular, Segment-Replaceable Scale |
| Brand | Renishaw |
|---|---|
| Origin | United Kingdom |

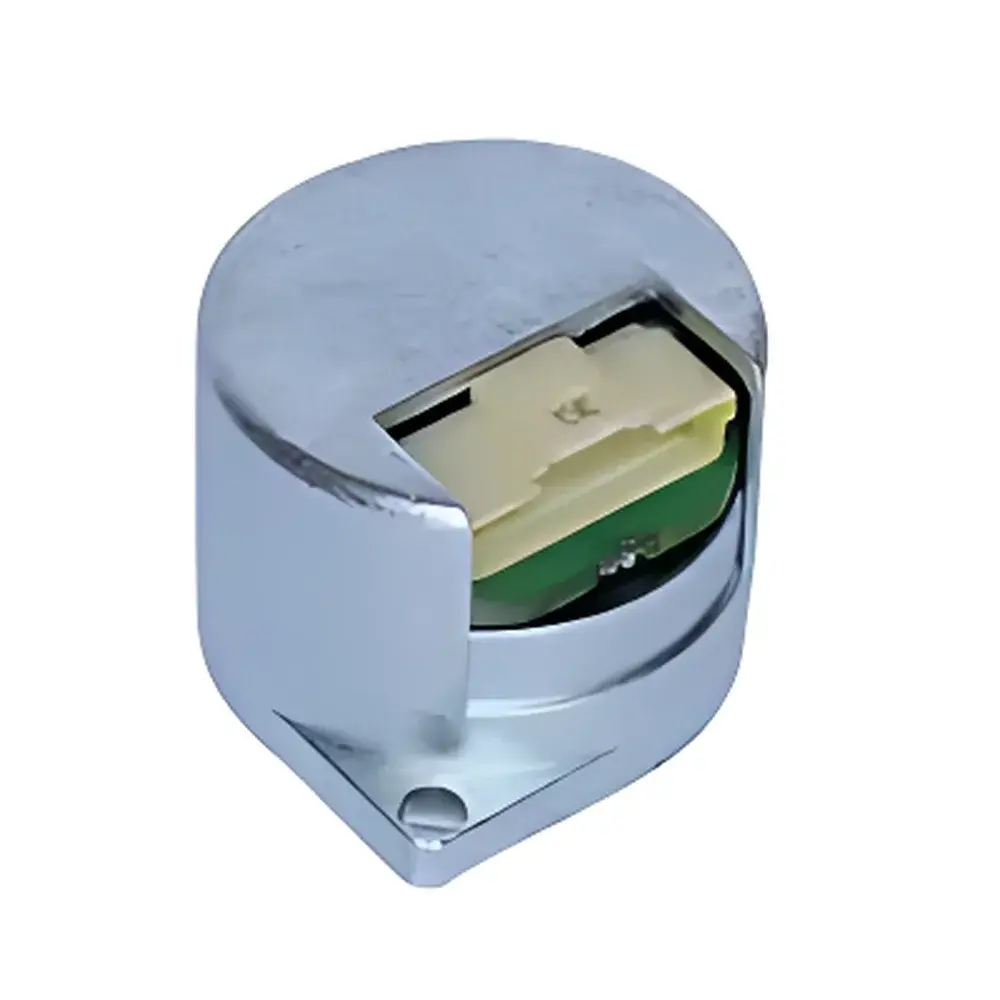

| Model | RMC |
| Output Signals | RS422 differential quadrature (A/B/Z) + commutation (U/V/W) |
| IP Rating | IP67 (standard), optional IP69K |
| Mounting | Hollow-shaft or servo-mount compatible |
| Electrical Interface | 5 VDC or 10–30 VDC supply |
| Operating Temperature | −20 °C to +85 °C |
| Shock Resistance | 100 g, 6 ms (half-sine) |
| Vibration Resistance | 10 g RMS, 10–2000 Hz |
| Compliance | RoHS, CE, UL Recognized (E330024) |
