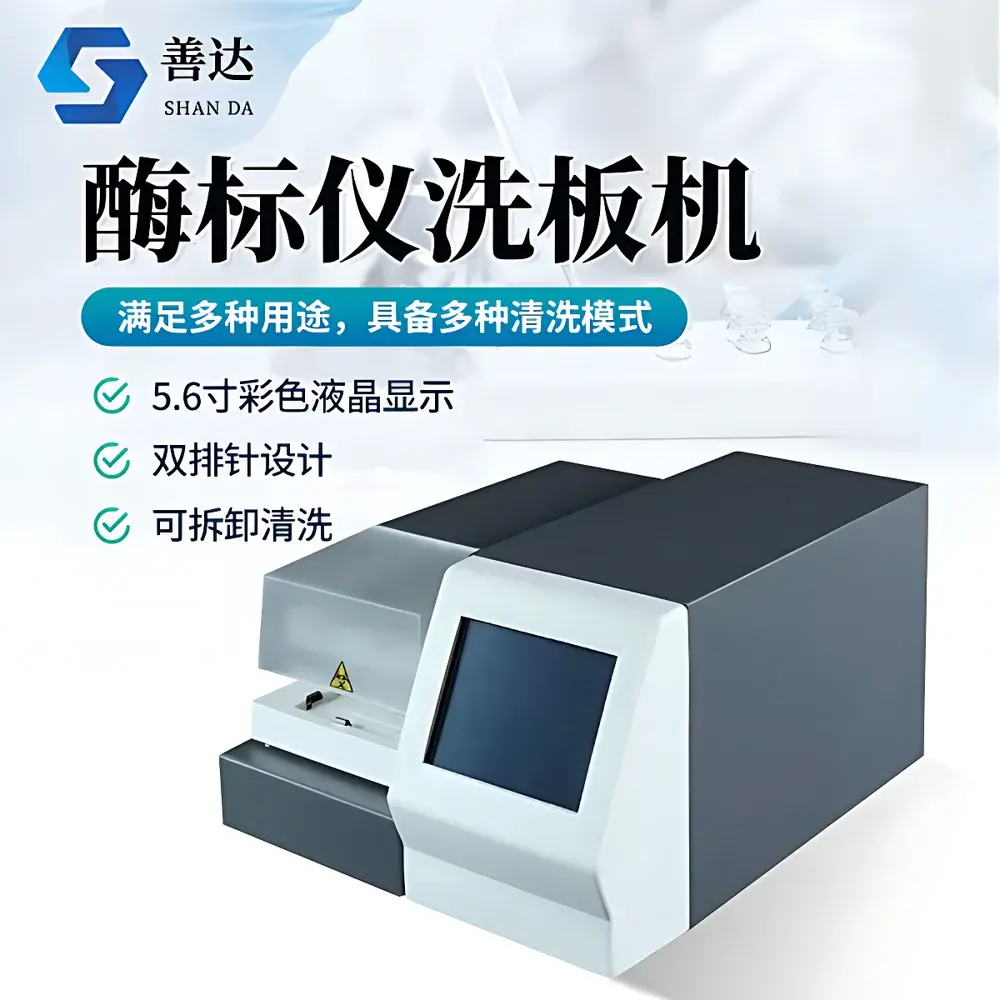

| Brand | Shanda |
|---|---|
| Model | SD-XB |
| Instrument Type | Multi-Function Microplate Washer |
| Wash Head Configuration | 8-channel or 12-channel dual-row removable wash head |
| Wash Fluid Channels | 1 standard (up to 4 optional) |
| Soaking Time Range | 0–24 h (hh:mm:ss adjustable) |
| Wash Cycles | 0–99 |
| Residual Volume per Well | ≤1 µL |
| Plate Compatibility | Standard 96-well flat-bottom, U-bottom, V-bottom, and C-bottom microplates |
| Wash Row Selection | 1–12 rows (including skip-row configuration) |
| Liquid Delivery Pressure | 5 adjustable levels |
| Aspiration/Dispense Time | 0–9 s (extendable) |
| Plate Shaking | 0–24 h (hh:mm:ss), 3 intensity levels |
| Cleaning Modes | Center wash, dual-point wash |
| Program Storage | 200 user-defined protocols + 20 pre-stored plate profiles |
| Liquid Level Monitoring | Waste bottle full-level alarm |
| Display & Interface | 5.6-inch color TFT touchscreen, 7×24 h continuous operation with auto power-saving mode |
| Power Input | AC 100–240 V, 50/60 Hz |
| Dimensions (L×W×H) | 380 × 330 × 222 mm |
| Net Weight | ~9 kg |
| Reagent Bottles | Three 2 L bottles included |
| Brand | Shanda |
|---|---|
| Model | SD-FS800Z |
| Measurement Principle | Closed-path infrared gas analysis (IRGA) with dual-wavelength CO₂ sensor |
| CO₂ Range | 0–2000 ppm |
| CO₂ Resolution | ≤0.1 ppm |
| CO₂ Accuracy | ±1.5% of reading (temperature-compensated) |
| Air Temperature Range | −20 °C to +60 °C |
| Relative Humidity Range | 0–85% RH (non-condensing) |
| Leaf Temperature Sensor | Thermistor, ±0.2 °C accuracy |
| PAR (Photosynthetically Active Radiation) Sensor | Silicon photodiode, 0–3000 µmol·m⁻²·s⁻¹, ±5% |
| Flow Rate Control | Adjustable 0–1.0 L·min⁻¹, stability ±1% FS |
| Power Supply | Rechargeable 8.4 V DC Li-ion battery, 15 h continuous operation (no external light source) |
| Display | 3.5″ TFT color LCD, 800×480 resolution |
| Data Storage | Internal 16 GB flash memory (expandable to 32 GB) |
| Interface | USB 2.0 for data export |
| Dimensions | 260 × 260 × 130 mm |
| Weight | 3.25 kg |
| Leaf Chamber Standard Size | 55 × 20 mm (customizable) |
| Operating Environment | −20 °C to +60 °C, 0–85% RH |
