| Brand | Berthold |
|---|---|
| Origin | Germany |
| Model | LB985 |
| Imaging Modality | Optical Bioluminescence & Fluorescence Imaging |
| Detector | 12-Megapixel Cooled EMCCD (–20 °C operating temperature) |
| Quantum Efficiency Peak | 500–750 nm |
| Imaging Modes | Bioluminescence/Chemiluminescence (LULu), Ultra-Low-Noise CCD (IKLu), Dual-Mode Bioluminescence + Fluorescence (LUFlu) |
| Illumination | LED-based Simulated Sunlight (Top Illumination), Side Illumination Module |
| Sample Stage | Motorized X-Y Translation + 360° Rotational Platform |
| Environmental Control | Integrated Temperature & Humidity Regulation |
| Software | indiGO™ v6.x with Hardware Synchronization, Audit Trail, and GLP-Compliant Data Archiving |
| Brand | Berthold |
|---|---|
| Origin | Germany |

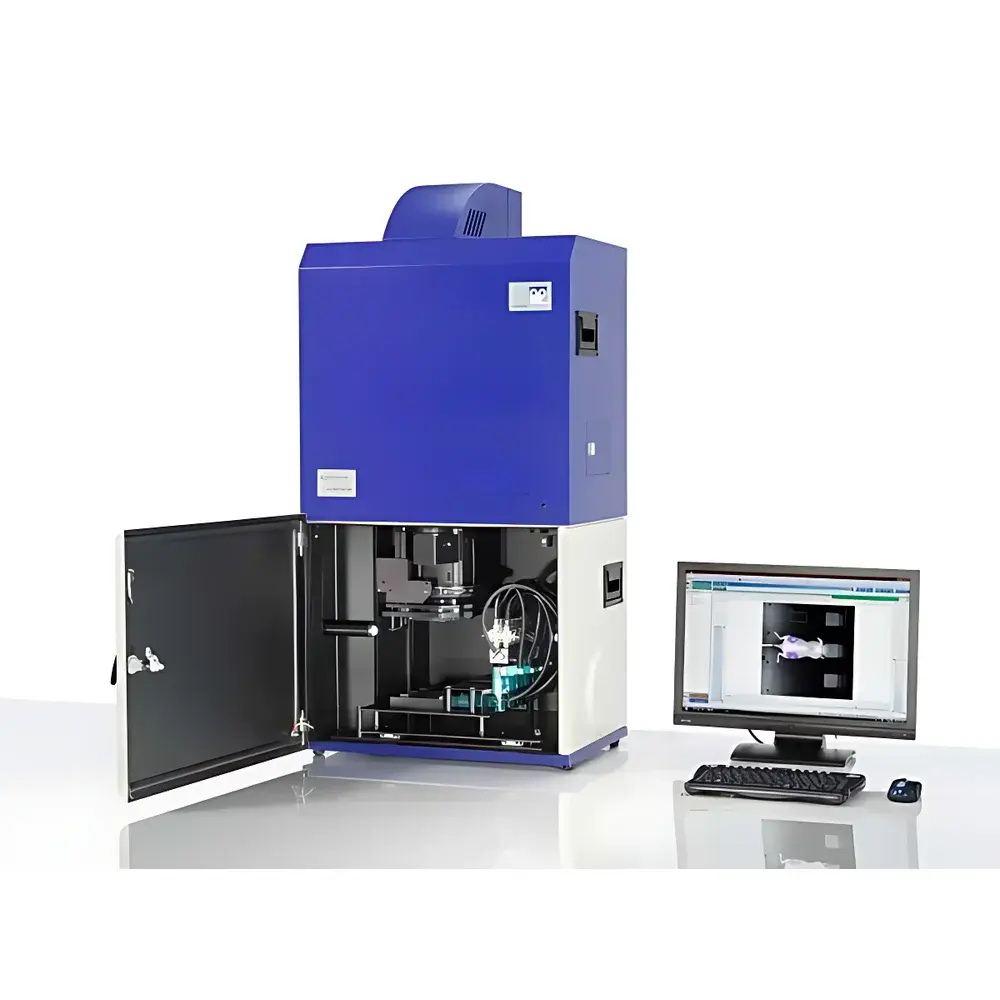

| Model | LB983 |
| Imaging Modality | Bioluminescence & Fluorescence Optical Imaging |
| Camera Type | Cooled Slow-Scan CCD |
| Cooling Method | Peltier (−90 °C typical operating temperature) |
| Spectral Range | 400–900 nm |
| Pixel Resolution | Up to 3.2 MP (NC320 front-illuminated) / 1.0 MP (NC100 back-illuminated) |
| Field of View Adjustment | Motorized vertical camera positioning (35–725 mm travel) |
| Maximum Sample Height | 260 mm |
| Dark Box Light Tightness | < 0.001 lux internal ambient light leakage |
| Calibration | Integrated optical flat-field and intensity reference standard for quantitative cross-experiment comparability |
| PET Integration | MACU interface module with dedicated software synchronization for small-animal PET co-registration |
| Software Platform | IndiGO v5.x with FDA 21 CFR Part 11-compliant audit trail, GLP/GMP-ready reporting modules |
