| Brand | Peiou |
|---|---|
| Origin | Shanghai, China |
| Model | 318W+ |
| Instrument Type | Multifunctional Microplate Washer |
| Wash Head Configuration | 8-channel and 12-channel |
| Washing Modes | Strip Wash and Full-Plate Wash |
| Wash Fluid Reservoirs | Three 2-L Bottles (Waste, Deionized Water, Wash Buffer), Each with Liquid-Level Sensors |
| Soaking Time Range | 0–99 min 99 sec (1-sec increments) |
| Wash Cycles | 1–99 |
| Residual Volume per Well | ≤2 µL |
| Orbital Shaking | Adjustable Speed |
| Dispense Volume per Well | 10–300 µL |
| Dispense Accuracy Repeatability | ≤5% |
| Positive Pressure (Dispense Pump) | 200 kPa |
| Negative Pressure (Aspirate Pump) | 60 kPa |
| Fluid Consumption | ~50 mL per full 96-well plate (wash), ~15 mL (pre-wash) |
| Power Input | 150 VA, AC 110–240 V, 50/60 Hz |
| Display | 240 × 128-dot LCD with Touchscreen Interface |
| Aspiration Speed Settings | 6-step adjustable |
| Aspiration Time | 3–99 sec (1-sec increments) |
| Aspiration Modes | Standard, Two-Point Aspiration, Sweep Aspiration |
| Compatible Plate Formats | U-bottom, V-bottom, Flat-bottom microplates |
| Stored Protocols | Up to 99 user-defined methods |
| Programmable Steps | Dispense, Aspirate, Pause, Shake, Loop — freely sequenced |
| Net Weight | 9.6 kg |
| Dimensions (W × D × H) | 300 × 210 × 350 mm |
| Packaging Dimensions | 510 × 450 × 300 mm |
| Brand | Peiou |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Domestic (China) |

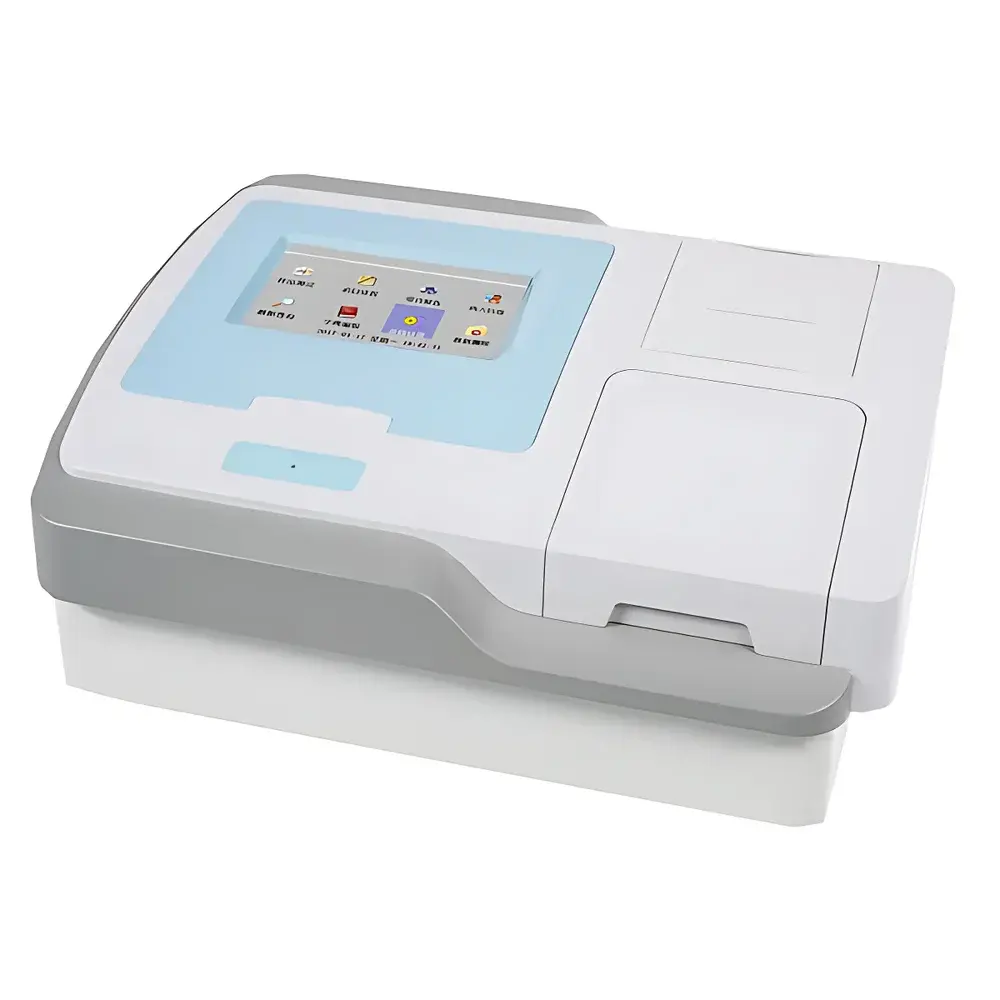

| Model | 318C+ |
| Price Range | USD 4,200–7,000 (FOB) |
| Functionality | Multimode |
| Automation Level | Fully Automated |
| Assay Methods | Absorbance, Coefficient Concentration, Standard Concentration, Linear Standard Curve, Single-Threshold (Pass/Fail), Dual-Threshold (Pass/Borderline/Fail), Categorical Classification, Column Subtraction |
| Curve Fitting | Polynomial, Linear, Log-Log, 4-Parameter Logistic (4PL), 5-Parameter Logistic (5PL) |
| Detector Light Source | Imported Halogen Lamp |
| Wavelength Range | 400–800 nm (Standard Filters: 405, 450, 492, 630 nm |
| Absorbance Range | 0.000–4.000 A |
| Linearity Range | 0.000–4.000 A (R² ≥ 0.999) |
| Measurement Speed | 5 s per 96-well plate (single wavelength), 10 s (dual wavelength) |
| Absorbance Resolution | 0.001 A |
| Photometric Accuracy | ±0.01 A (0 ≤ A < 1.0) |
| Photometric Precision | ≤0.2% CV (0 ≤ A ≤ 1.5) |
| Stability | ±0.003 A over 30 min |
| Plate Agitation | Three-speed orbital shaking (low/medium/high) |
| Onboard Storage | 200 assay protocols + >1,000 full 96-well plate datasets |
| Display | 7-inch TFT LCD touchscreen (Chinese/English UI) |
| Built-in Thermal Printer | 57 mm width |
| Interface | RS-232 (9-pin D-sub), optional USB-to-serial adapter for modern PC integration |
| Dimensions (L×W×H) | 320 × 286 × 170 mm |
| Power Input | AC 100–240 V, 50/60 Hz |
| Power Consumption | ≤90 VA |
