| Brand | ATLANTEK |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | Model 400 |
| Pricing | Available Upon Request |
| Printing Method | Direct Thermal Printing |
| Print Resolution | 300 dpi |
| Print Width | 53 mm |
| Sample Width Capacity | 100 mm |
| Print Head Technology | Thin-Film Resistive (Corner-Type) |
| Print Speed Options | 10 in/s (programmable at three discrete settings) |
| Adjustable Parameters | Print Head Pressure, Print Head Position |
| Interface | RS-232 Serial |
| Power Supply | 115 V / 60 Hz or 220 V / 50 Hz |
| Test Patterns | Checkerboard, Solid Fill, UPC-A Barcode, User-Defined Patterns |
| Test Modes | Dynamic Reaction Sequence (10 energy steps), Full-sequence or single-step execution, repeat counts per step: 1×, 5×, or 10× |
| Brand | KURASHIKI |
|---|---|
| Origin | Japan |
| Model | EST-58-450 |
| Type | 6-DOF Active Vibration Isolation Platform |
| Compliance | Cleanroom-Compatible (ISO Class 5–7), No Compressed Air Required |
| Control Interface | USB 2.0 |
| Display | Integrated LCD for Real-Time Acceleration Time-Waveform & FFT Spectrum |
| Leveling Mode | Motorized Auto-Leveling with Transport Lock Toggle |
| Construction | Sealed Anodized Aluminum Enclosure & Top Plate |

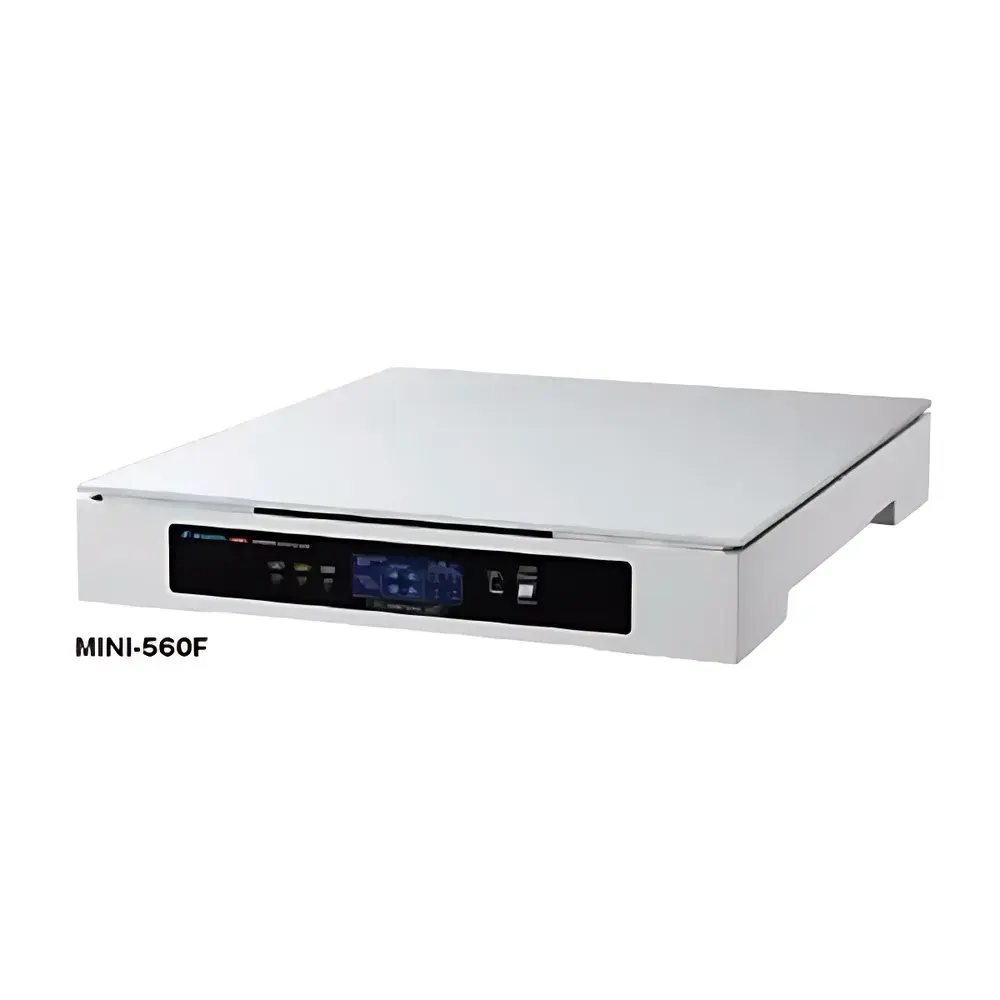

| Brand | KURASHIKI |
|---|---|
| Origin | Japan |
| Model | MINI560F |
| Type | 6-DOF Active Vibration Isolation Platform |
| Design | Compact Desktop Form Factor |
| Compliance | Cleanroom-Compatible (Sealed Aluminum Enclosure, No Compressed Air Required) |
| Control Interface | USB Communication with Real-Time Acceleration Time-Waveform & FFT Spectrum Display |
| Operation Modes | Auto-Leveling Mode / Transport Lock Mode |
| Typical Applications | Atomic Force Microscopy (AFM), Scanning Probe Microscopy (SPM), Laser Confocal Microscopy, Microhardness Testers, Interferometers |
| Brand | ChemInstruments |
|---|---|
| Origin | USA |
| Model | BP-2000 |
| Load Cell Capacity | 25 lbf (standard), optional 2, 5, 10, and 50 lbf |
| Force Resolution | 0.1% of full scale |
| Maximum Test Force | 50 lbf (222.4 N) |
| Test Speed Range | 0.5–25 IPM (1–64 CPM), adjustable in 0.5 IPM increments |
| Data Acquisition Rate | 1,000–5,000 points/second |
| Test Length Range | 0.25–1.5 in (0.5–3.5 cm), adjustable in 0.25 in (0.5 cm) increments |
| Operating Temperature | 0–70 °C (32–150 °F) |
| Power Input | 85–265 VAC, 50/60 Hz |
| Dimensions (H×W×D) | 63 × 46 × 25 cm |
| Weight | 20 kg |
| Display | 5.7-inch integrated touchscreen interface |
| Data Export | USB to EZ Data software |
| Compliance | Designed for TLMI-1G and PSTC test methods |
| Load Cell Options | 2, 5, 10, 25, and 50 lbf capacities available |
