| Brand | Anritsu Meter |
|---|---|
| Origin | Japan |
| Model | HD-1100E / HD-1100K |
| Measurement Range | E-type: −200 to +800°C |
| K-type | −200 to +1370°C |
| Accuracy | ±(0.05% of reading + 0.2°C) at 0°C (0.1°C resolution range) |
| Resolution | 0.1°C (−104.9 to +504.9°C for both E & K), otherwise 1°C |
| Waterproof Rating | IPX5 |
| Display | Large LCD |
| Power | 4 × AA alkaline batteries (300 h typical life) |
| Data Logging | Up to 9999 records, 9 programmable intervals, manual trigger, playback & PC transfer via AMS-100 software |
| Compliance | CE, RoHS |
| Operating Environment | 0–40°C, 0–80% RH (non-condensing) |
| Dimensions | 76 × 167 × 36 mm (W×H×D) |
| Weight | ~350 g (incl. batteries) |
| Input | Single-channel thermocouple (E or K type), integrated cold-junction compensation, max input resistance 500 Ω |
| Sampling Rate | ~300 ms |
| Linearization | Digital, compliant with IEC 60584-1:2013 |
| Brand | Anritsu Meter |
|---|---|
| Origin | Japan |
| Model | HD-1350E / HD-1350K |
| Temperature Range (E-type) | −200 to 800 °C |
| Temperature Range (K-type) | −200 to 1370 °C |
| Resolution | 1 °C or 0.1 °C (auto-switching) |
| Accuracy (0.1 °C mode) | ±(0.05% of reading + 0.2 °C) from 0 °C |
| Reference Junction Compensation Accuracy | ±0.2 °C at 25 °C ±10 °C |
| Sampling Rate | ~300 ms |
| Input | Single-channel thermocouple (E or K standard |
| Display | Backlit LCD |
| Power | 4 × AA alkaline batteries (300 h typical life) or optional AC adapter |
| IP Rating | Waterproof housing (IEC 60529 IP54 equivalent) |
| Compliance | CE, RoHS |
| Dimensions | 76 × 167 × 36 mm (W×H×D, excl. protrusions) |
| Weight | ~350 g (incl. batteries) |
| Brand | Anritsu Meter |
|---|---|
| Origin | Japan |
| Model | HD-1250E / HD-1250K |
| Temperature Range (E-type) | −200 to 800 °C |
| Temperature Range (K-type) | −200 to 1370 °C |
| Accuracy (0 °C, 0.1 °C resolution) | ±(0.05% of reading + 0.2 °C) |
| Accuracy (0 °C, 1 °C resolution) | ±(0.1% of reading + 1 °C) |
| Reference Junction Compensation Accuracy | ±0.2 °C at 25 °C |
| Temperature Coefficient | ±0.01% F.S./°C |
| IP Rating | IPX5 |
| Display | Backlit LCD |
| Power | 4 × AA alkaline batteries (300 h typical life) |
| Dimensions | 76 × 167 × 36 mm (W × H × D) |
| Weight | ~350 g (incl. batteries) |
| Compliance | CE, RoHS |
| Input | Single-channel thermocouple (E or K type), ANP connector |
| Linearization | Digital, compliant with IEC 60584-1:2013 |
| Sampling Rate | ~300 ms |
| Data Logging | Up to 9999 records, programmable interval (9 options), manual trigger, peak/valley hold, playback, PC transfer via AMS-100 software |
| Brand | Anritsu Meter |
|---|---|
| Origin | Japan |

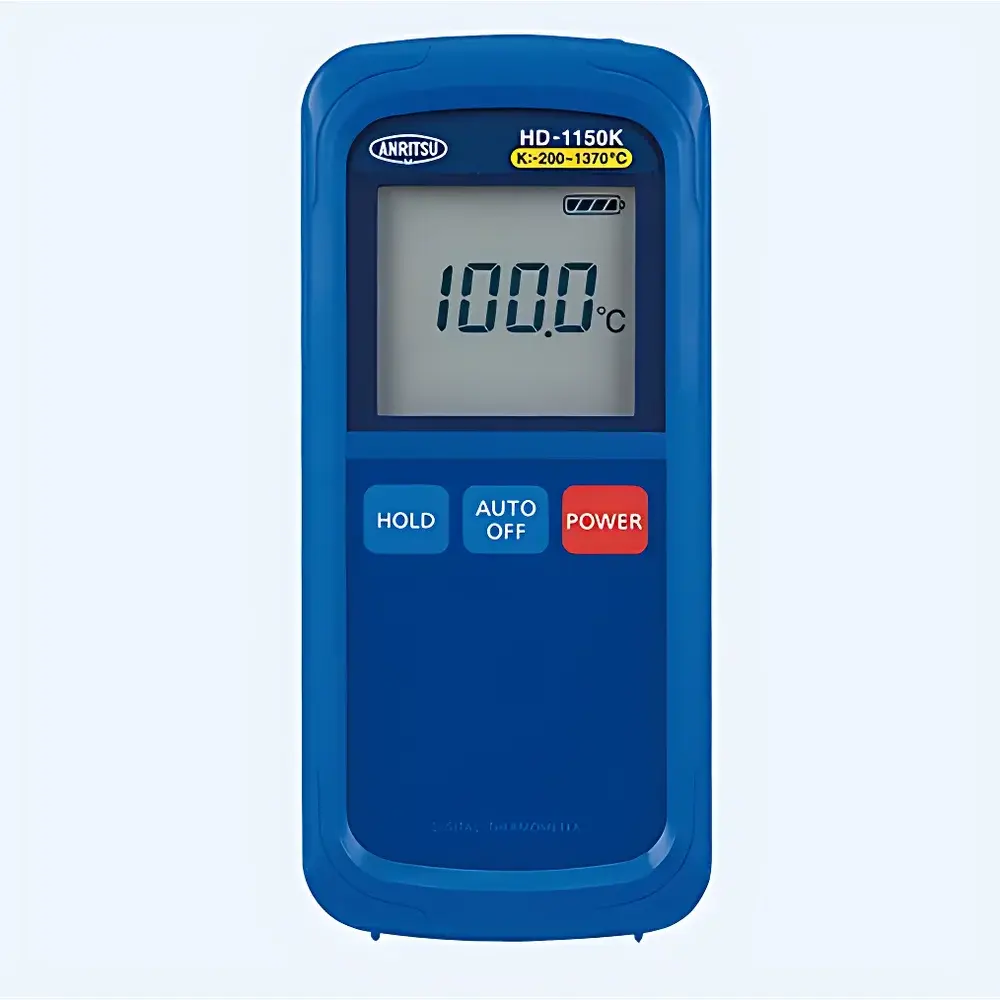

| Model | HD-1150E / HD-1150K |
| Temperature Range (E-type) | −200 to +800 °C |
| Temperature Range (K-type) | −200 to +1370 °C |
| Resolution | 0.1 °C (−104.9 to +504.9 °C), 1 °C elsewhere |
| Accuracy (0.1 °C range, ≥0 °C) | ±(0.05% of reading + 0.2 °C) |
| Accuracy (0.1 °C range, <0 °C) | ±0.5 °C |
| Reference Junction Compensation Accuracy | ±0.2 °C (at 25 °C ±10 °C) |
| IP Rating | IPX5 |
| Display | Backlit LCD |
| Battery Life | Up to 300 hours (4 × AA alkaline) |
| Dimensions | 76 × 167 × 36 mm (W×H×D) |
| Weight | ~350 g (including batteries) |
| Compliance | CE, RoHS, IEC 60584-1:2013 |
| Brand | Anritsu Meter |
|---|---|
| Origin | Japan |
| Model | AP-400 / AP-450 |
| Input Channels | 1 (Thermocouple) |
| Thermocouple Types Supported | AP-400 — E or K only |
| Measurement Range | E: −200 to +800 °C |
| K | −200 to +1370 °C |
| J | −200 to +1100 °C |
| T | −200 to +400 °C |
| R | 0 to +1760 °C |
| Resolution | 0.1 °C (within specified ranges), auto-switches to 1 °C outside |
| Accuracy | ±(0.05% of reading + 0.2 °C) for E/K/J/T at 0–100 °C |
| Reference Junction Compensation Accuracy | ±0.2 °C at 25 ±10 °C |
| Temp. Coefficient | ±0.01% of range per °C outside 25 ±10 °C |
| Operating Environment | 0–40 °C, 0–80% RH (non-condensing) |
| Storage | −20 to +50 °C, 0–85% RH (non-condensing) |
| Sampling Rate | 2 Hz (no print), down to 1 sample/min (interval modes) |
| Battery Life | Up to 120 hours (1-min interval, no print) |
| Power | 4 × AA alkaline batteries (included) or optional AC adapter (AD-100/115/220-500-HR-R) |
| Display | LCD |
| Printer | Thermal line printer, 2.5 mm character height, 37 mm paper width, 1000 lines per roll |
| Memory Capacity | 100 data records |
| Data Output | Absolute timestamp (HH:MM:SS), sequential numbering, batch print |
| Linearization | Digital, compliant with IEC 60584-1:2013 |
| Dimensions | ~68 × 201 × 42 mm (W×H×D, excl. protrusions) |
| Weight | ~350 g (incl. batteries) |
| Backup Power | Rechargeable lithium cell (real-time clock only) |
| Accessories Included | Carrying pouch, 4 × AA alkaline batteries, paper holder, user manual, ACAP4 thermal paper (1 roll), calibration report, registration card |
