BrandLeici
OriginShanghai, China
Manufacturer TypeOriginal Equipment Manufacturer (OEM)
Product CategoryDomestic Industrial Instrument
ModelDDG-5205A
Price RangeUSD 850–1,420 (FOB Shanghai)
Conductivity Range0.000 µS/cm to 10.0 mS/cm (dependent on cell constant: K=0.01 cm⁻¹: 0–20 µS/cm
K=0.1 cm⁻¹1–200 µS/cm
K=1.0 cm⁻¹10–10,000 µS/cm)
Temperature Range−10.0 to 120.0 °C
Temperature Compensation Range5.0 to 60.0 °C (reference temp: 25.0 °C)
Conductivity Resolution0.001 / 0.01 / 0.1 / 1 µS/cm (auto-ranging)
Temperature Resolution0.1 °C
Basic Error±2.0% FS (conductivity), ±0.5 °C (0.0–60.0 °C), ±1.0 °C (outside range)
Repeatability1.0% FS
Electronic Unit Accuracy±1.0% FS (conductivity), ±0.3 °C (temperature)
Drift Stability±0.5% FS/24 h
Enclosure RatingIP65
Power SupplyAC 220 V ±10%, 50 Hz ±1% or DC 24 V ±15%
Dimensions166 × 166 × 110 mm
Weight~2.0 kg
Data Storage400 records with configurable logging interval
OutputIsolated 4–20 mA DC (user-defined upper/lower limits)
Digital InterfaceRS-232 or RS-485 (selectable)
Auto-Cleaning SupportYes
Alarm FunctionsProgrammable high/low limit alerts with relay output
Power Failure ProtectionNon-volatile memory retention
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeici
OriginShanghai, China
Manufacturer TypeManufacturer
Product OriginDomestic (China)
ModelSJG-209
PriceUSD 1,380 (FOB Shanghai)
Resolution0.01 mg/L
Measurement Range(0.0–20.0) mg/L
Repeatability≤ 0.20 mg/L
Stability±0.20 mg/L / 24 h
Temperature Compensation Range(0.0–50.0) °C
Communication InterfaceRS-485
Dimensions166 × 166 × 110 mm
Weight2.5 kg
DO Saturation Range(0.0–200.0) %
Temperature Range(0.0–50.0) °C
DO Accuracy±0.30 mg/L
Saturation Accuracy±10.0 %
Temperature Accuracy±0.2 °C
Output SignalIsolated 4–20 mA DC, max load 600 Ω
Alarm Outputs2 relay outputs (220 V AC, 2.5 A resistive)
Cleaning Control Output1 programmable relay output (220 V AC, 2.5 A)
Data Storage2000 records with timestamp
Enclosure RatingIP65
Power Consumption10 W
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeichi
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Product OriginDomestic (China)

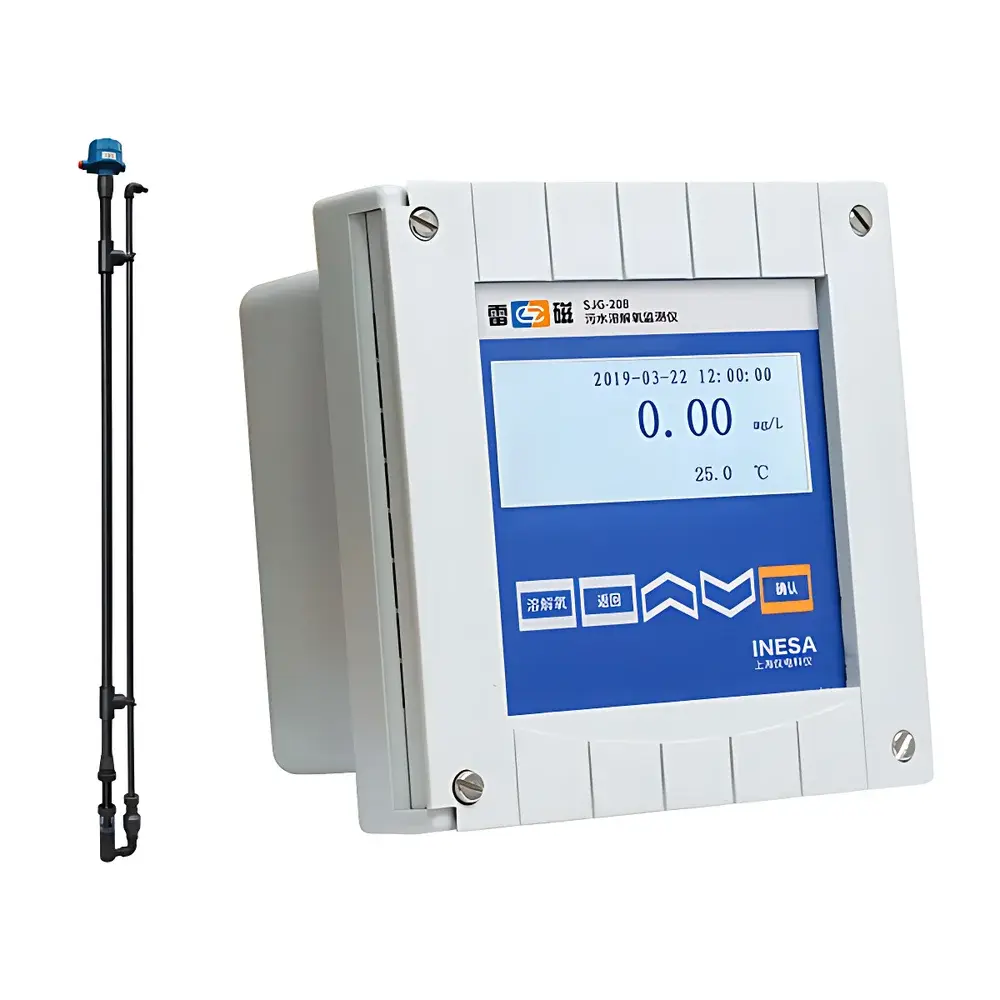

ModelSJG-208
Price RangeUSD 700 – 1,400 (FOB Shanghai)
Resolution0.01 mg/L, 0.1 % saturation, 0.1 °C
Measurement Range(0.0–20.0) mg/L DO, (0.0–200.0) % saturation, (−10.0–120.0) °C
Repeatability≤ 0.20 mg/L
Stability±0.20 mg/L / 24 h
Temperature Compensation Range(−10.0–120.0) °C
Communication InterfaceRS-232 or RS-485 (user-selectable)
Dimensions144 × 144 × 160 mm
Weight2.5 kg
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeici
OriginShanghai, China
Manufacturer TypeOriginal Equipment Manufacturer (OEM)
Product CategoryDomestic
ModelPHGF-46
PricingAvailable Upon Request
Flow Cell ConfigurationsP2N1, P2Y1, P3N1, P3Y1, P4N0, P4Y0, S1N1, S1Y1
Pre-amplifierIntegrated (Y) or Not Integrated (N)
Compatible ElectrodesFG-991A (pH), FG-990 + T-819-A (pH/ORP combo), T-819-A (temperature)
Measuring RangepH 0–14
Sample Temperature Range0–55 °C (standard)
Max Process Pressure0.6 MPa
Housing Material OptionsPVC (A=P), CPVC (A=C), SS304 (A=T), SS316 (A=S)
Flow Cell TypesFT-01 (inline straight), FS-02 (T-fitting), FX-03/FX-04 (angled insertion, FX-04 supports integrated Pt100 temperature sensor)
Inlet/Outlet Connections1", 1/2", 3/4" NPT or BSP
Tubing InletΦ6×1 mm stainless steel or PVDF
Tubing OutletΦ10×1 mm stainless steel or PVDF
Standard Cable Length10 m (custom lengths available on request)
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeici
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelPHG-21C, PHG-21D
Price¥2600
pH Range(0.00–14.00) pH
ORP Range(−1800–+1800) mV
Temperature Range(−10.0–120.0) °C
Resolution0.01 pH / 1 mV / 0.1 °C
Accuracy±0.05 pH / ±10 mV / ±1 °C
Repeatability≤0.02 pH / 3 mV
Electronic Unit Error±0.03 pH ±1 digit / ±1 mV ±1 digit / ±0.3 °C
Stability≤±0.02 pH/24 h
Input Impedance≥1×10¹² Ω
Input Current≤2×10⁻¹² A
Enclosure RatingIP65
Power SupplyAC (220±22) V, (50±1) Hz or DC 24 V
Dimensions144×144×163 mm
Weight2.5 kg
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeici
OriginShanghai, China
ManufacturerLeici (Shanghai Inesa Scientific Instrument Co., Ltd.)

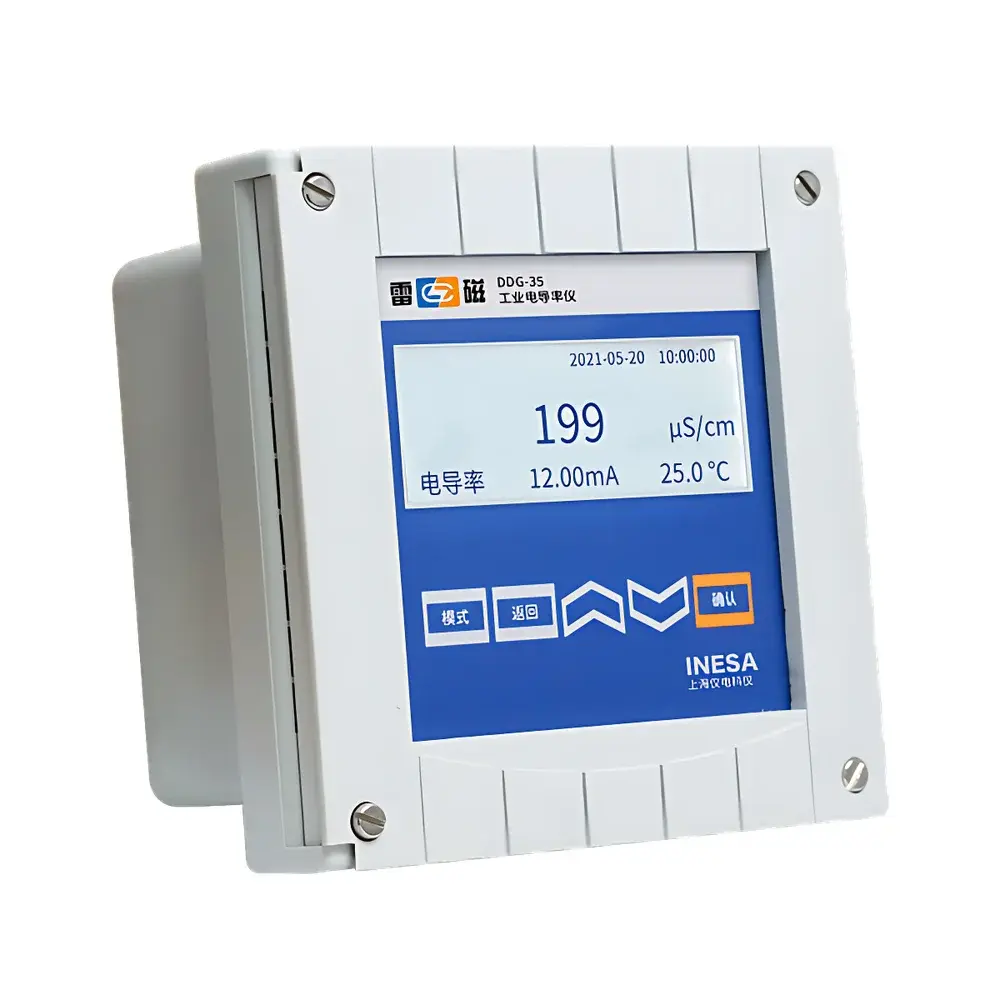

TypeDDG-35
Conductivity Range0.0 µS/cm to 200 mS/cm
Resistivity Range5.00 Ω·cm to 20 MΩ·cm
TDS Range0.0 mg/L to 100 g/L
Salinity Range0.00–8.00 %
Temperature Range−10.0 to 120.0 °C
Basic Instrument Error±2.0 % FS (Conductivity)
Temperature Error±0.5 °C (0.0–60.0 °C), ±1.0 °C (other ranges)
Conductivity Resolution0.001 µS/cm (selectable: 0.001 / 0.01 / 0.1 / 1 µS/cm)
Temperature Resolution0.1 °C
Repeatability1.0 % FS (instrument), 0.3 % FS (electronic unit)
Auto-Temperature Compensation Range−10 to 120 °C
Temp. Coefficient Adjustment0.0–10.0 %/°C
Output SignalsIsolated 4–20 mA DC (configurable span), Isolated RS-485 (Modbus RTU)
Enclosure RatingIP65
Dimensions166 × 166 × 110 mm
Weight2 kg
Standard Sensor Cable Length10 m
Mounting Cutout140 × 140 mm
Power SupplyAC 220 V ±10 %, 50 Hz ±1 %
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeichi
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina
ModelDDG-33
PriceUSD 780 (FOB Shanghai)
Conductivity RangeK=0.01 cm⁻¹: 0–20 µS/cm
K=0.1 cm⁻¹1–200 µS/cm
K=1.0 cm⁻¹10–10,000 µS/cm
Temperature Range−10.0 to 120.0 °C
Basic Instrument Error±2.0% FS (conductivity), ±0.5 °C (0.0–60.0 °C), ±1.0 °C (other)
Resolution0.001/0.01/0.1 µS/cm
Repeatability1.0% FS
Electronic Unit Accuracy±1.0% FS (conductivity), ±0.3 °C (temperature)
Stability±0.5% FS/24 h
Temperature Compensation Range5.0–60.0 °C (reference 25.0 °C)
Enclosure RatingIP65
Power SupplyAC 220 V ±10%, 50 Hz ±1% or DC 24 V
Dimensions166 × 166 × 110 mm
Weight2.0 kg
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeichi
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina

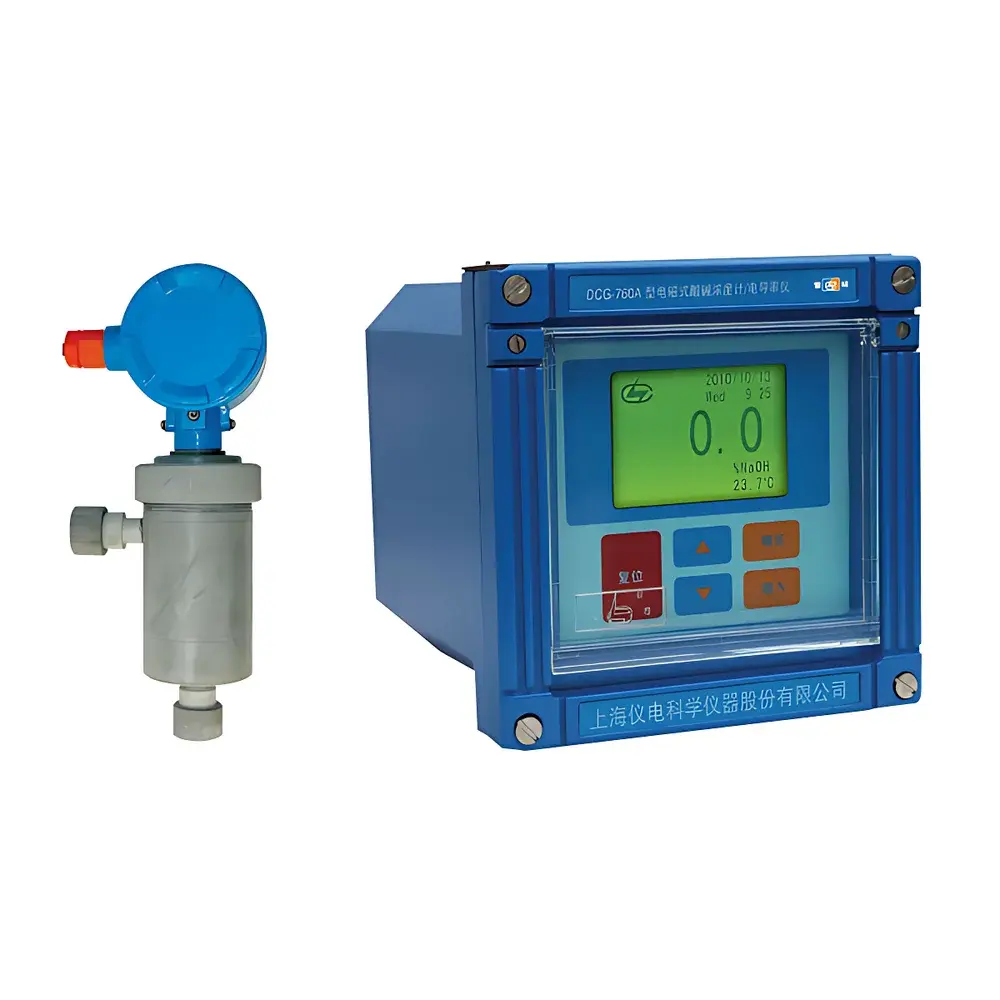

ModelDCG-760A
Price RangeUSD 850–1,420 (FOB)
Conductivity Range0–1000 mS/cm
Temperature Range−10.0 to 120.0 °C
Basic Instrument Error±2.0% FS (Conductivity), ±0.3% HCl/NaOH (Concentration), ±0.5 °C (Temp, 0–60 °C)
Dimensions144 × 144 × 160 mm
Weight~2 kg
IP RatingIP65
OutputIsolated 4–20 mA DC (configurable span)
Temp CompensationAutomatic, 5.0–45.0 °C (ref. 25.0 °C)
Resolution0.1% (conc.), 0.1/1 mS/cm (cond.), 0.1 °C (temp)
Repeatability±0.1% HCl/NaOH
Drift Stability±0.1%/24h (conc.), ±0.5% FS/24h (cond.)
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeici
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina

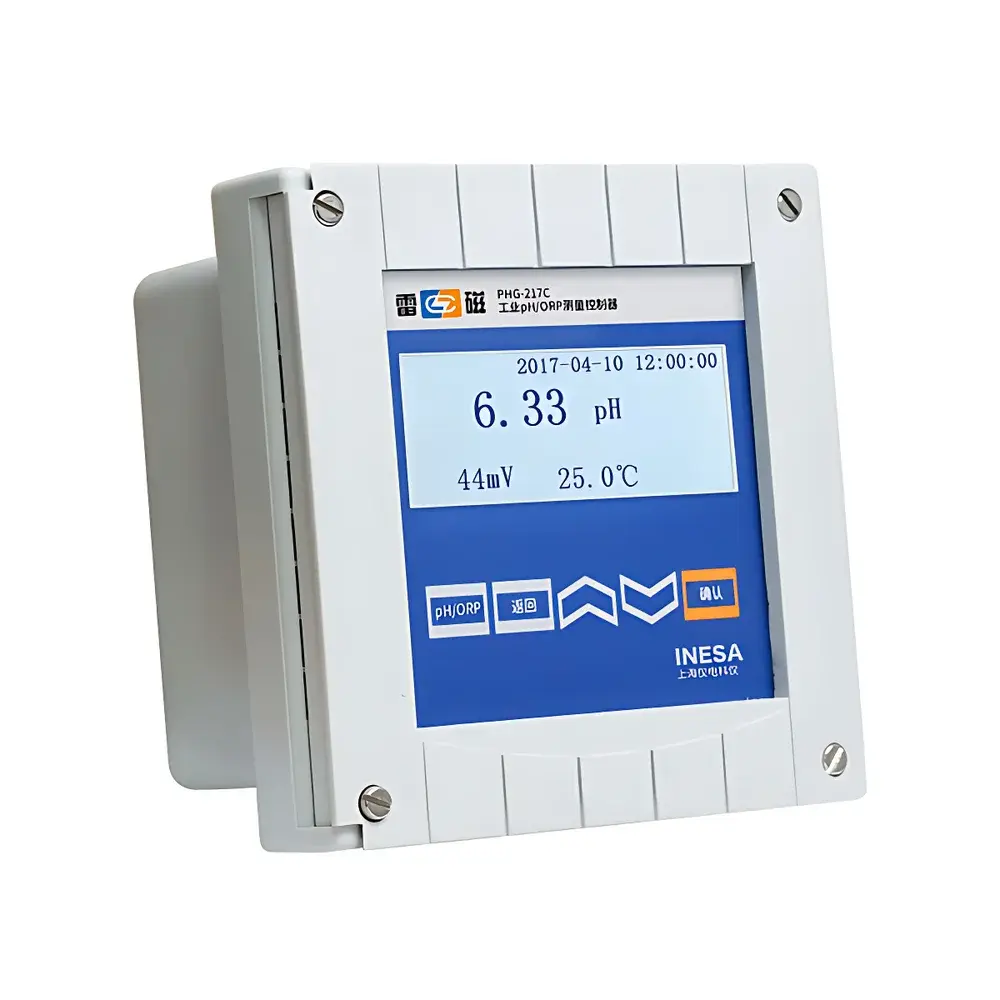

ModelPHG-217C, PHG-217D
Price RangeUSD 850–1,420 (FOB Shanghai)
pH Range0.00–14.00 pH
ORP Range−1800 to +1800 mV
Temperature Range−10.0 to 120.0 °C
pH Resolution0.01 pH
ORP Resolution1 mV
Temperature Resolution0.1 °C
pH Accuracy±0.05 pH ±1 digit
ORP Accuracy±10 mV
Temperature Accuracy±1.0 °C
Electronic Unit pH Accuracy±0.03 pH ±1 digit
Electronic Unit Stability≤±0.02 pH/24 h
Input Impedance≥1 × 10¹² Ω
Input Current≤2 × 10⁻¹² A
OutputIsolated 4–20 mA DC (configurable span), RS-232 or RS-485 (user-selectable), 4 programmable relay outputs
Data Storage400 records with configurable logging interval
Auto CalibrationRecognizes pH 4.00, 6.86, and 9.18 buffers
ATCAutomatic temperature compensation via integrated Pt1000 or external RTD
Enclosure RatingIP65
Power SupplyAC 220 V ±10 %, 50 Hz ±1 %
Dimensions (W×H×D)144 mm × 144 mm × 163 mm
Weight2.5 kg
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeici
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina

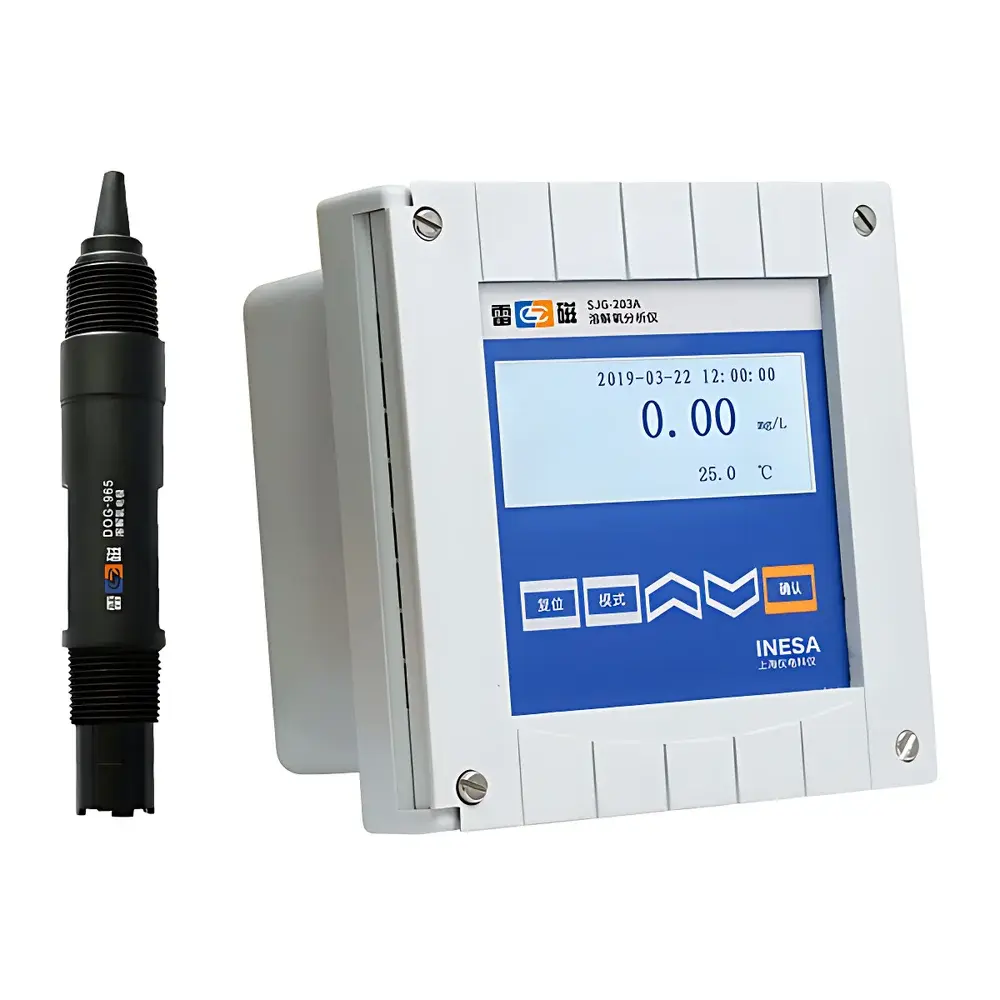

ModelSJG-203A
Price RangeUSD 1–4,999
Resolution0.01 mg/L, 0.1%, 0.1°C
Measurement Range(0.0–20.00) mg/L DO, (0.0–200.0)% saturation
Repeatability≤0.20 mg/L
Stability±0.20 mg/L / 24 h
Temperature Compensation Range(−10.0–120.0)°C
Communication InterfaceRS-232
Dimensions & Weight160 × 160 × 110 mm, 1 kg
Basic Accuracy±0.5 mg/L (DO), ±10.0% (saturation), ±1.0°C (temperature)
Electronic Unit Accuracy±0.20 mg/L (DO), ±5.0% (saturation), ±0.3°C (temperature)
Salt Compensation Range(0.0–50.0) g/L
Salt Compensation Error≤±3%
90% Response Time≤45 s (at 20°C)
Enclosure RatingIP65
Power SupplyAC (220 ± 22) V, (50 ± 1) Hz
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeichi
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Regional ClassificationDomestic (China)
ModelSJG-9435B
Price RangeUSD 1,400–4,200 (FOB Shanghai)
Resolution0.1 µg/L
Measurement Ranges(0–19.9) µg/L, (20–199) µg/L, (0.20–20.00) mg/L
Repeatability±3% FS
Stability±2% FS / 24 h
Temperature Compensation Range(−10.0 to 120.0) °C
Communication InterfaceRS-232
Dimensions160 × 160 × 110 mm
Weight2 kg
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeichi
OriginShanghai, China
Manufacturer TypeManufacturer
Country of OriginChina

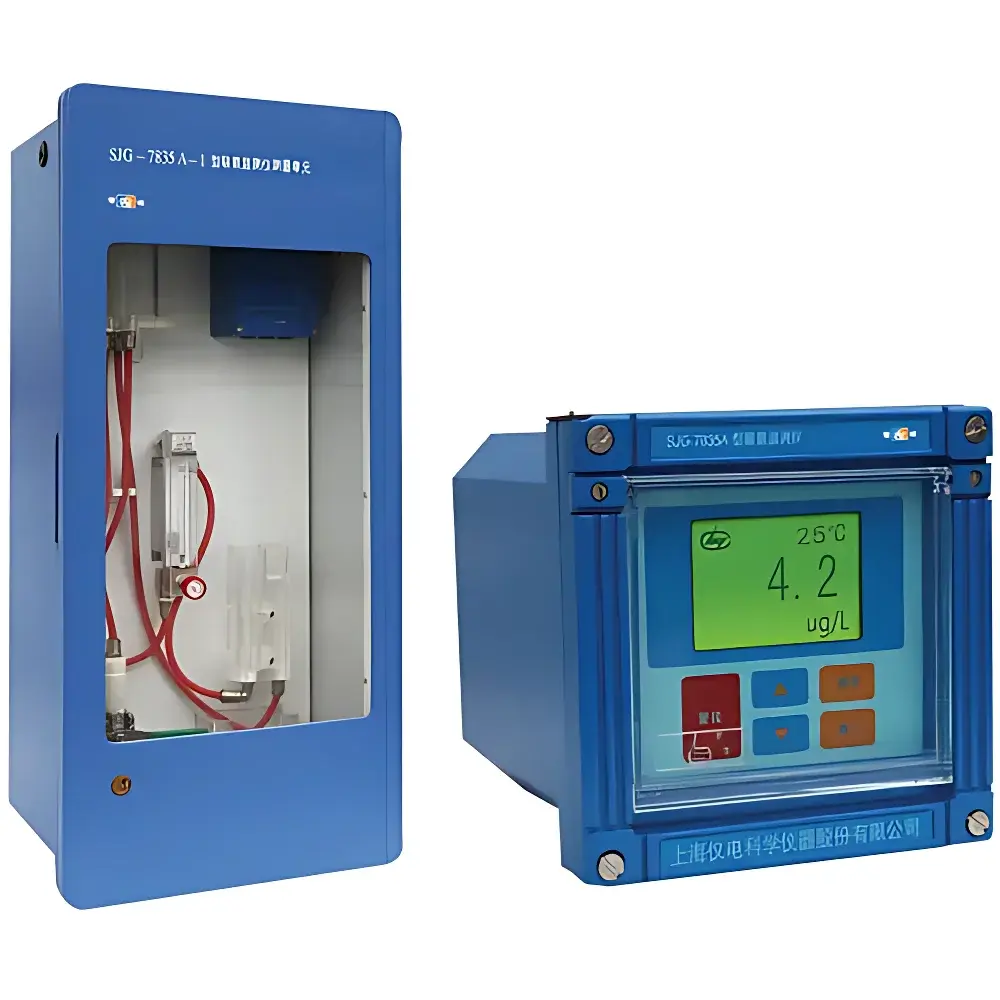

ModelSJG-7835A
PriceUpon Request
Measurement Range (N₂H₄)0–199.9 µg/L
Temperature Range−10.0–120.0 °C
N₂H₄ Resolution0.1 µg/L
Temperature Resolution0.1 °C
Basic Instrument Error (N₂H₄)±5.0 µg/L
Basic Instrument Error (Temperature)±0.5 °C (0.0–60.0 °C), ±1.0 °C (other)
Electronic Unit Error (N₂H₄)±2.0 µg/L
Electronic Unit Error (Temperature)±0.3 °C
Repeatability≤2.5 µg/L
Electronic Unit Stability±2.0 µg/L / 24 h
90% Response Time3 min
Enclosure RatingIP65
Power SupplyAC (220 ± 22) V, (50 ± 0.5) Hz
Dimensions (Electronic Unit)144 × 144 × 150 mm
Weight (Electronic Unit)2 kg
Dimensions (Measurement Unit)224 × 288 × 628 mm
Weight (Measurement Unit)10 kg
OutputIsolated 4–20 mA DC (configurable upper/lower limits)
Communication InterfaceRS-232 or RS-485 (user-selectable)
Auto Temperature CompensationYes
Alarm FunctionProgrammable high/low limit alarm
Power Failure ProtectionYes
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeici
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina

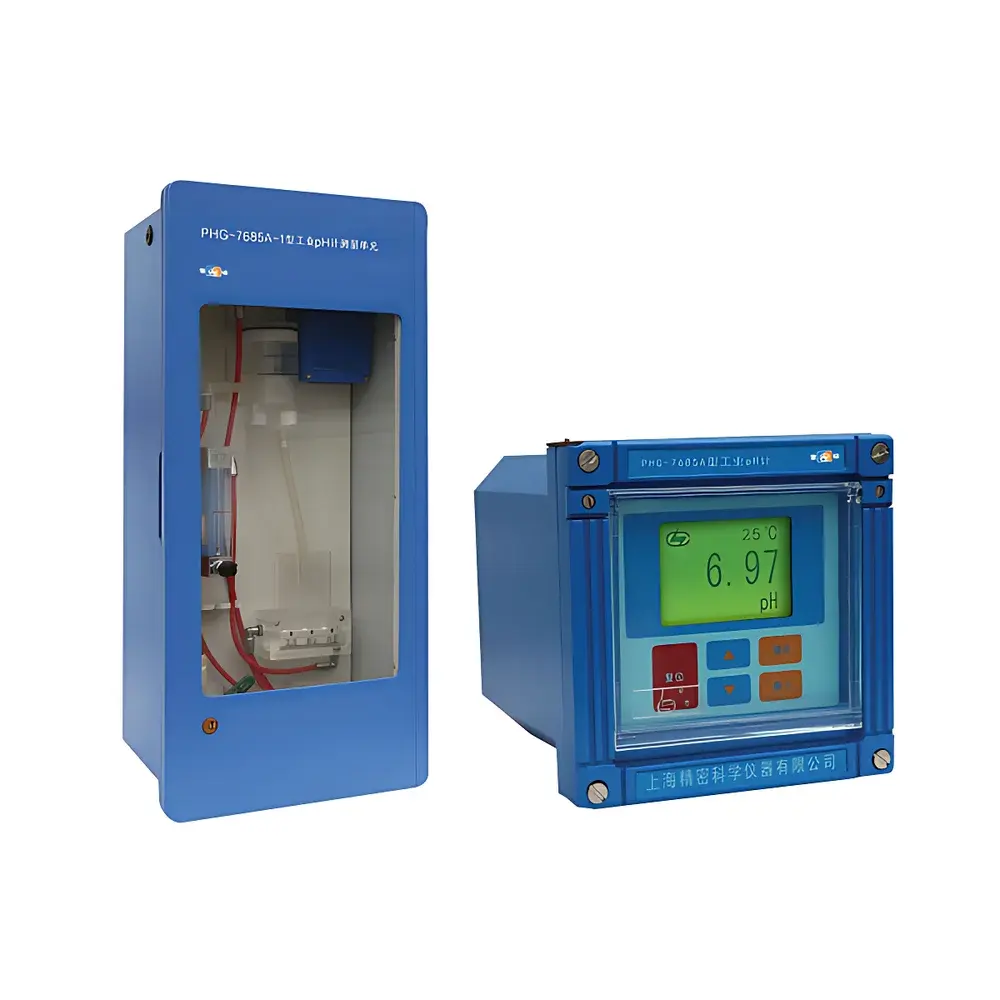

ModelPHG-7685A
Price RangeUSD 1,400 – 4,200 (FOB)
Measurement Range(0.00–14.00) pH
Resolution0.01 pH
Accuracy±0.05 pH ±1 digit
Dimensions628 × 288 × 224 mm
Weight10 kg
Temperature Range−10.0 to 120.0 °C
Temp. Resolution0.1 °C
Temp. Accuracy±0.5 °C (0.0–60.0 °C), ±1.0 °C (other)
Repeatability0.02 pH
Electronic Unit Accuracy±0.03 pH ±1 digit
Drift Stability≤±0.02 pH / 24 h
Input Impedance≥1 × 10¹² Ω
Input Current≤2 × 10⁻¹² A
Enclosure RatingIP65
Power SupplyAC (220 ± 22) V, (50 ± 0.5) Hz
OutputIsolated 4–20 mA DC (configurable pH span), RS-232 or RS-485 (user-selectable)
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeichi
OriginShanghai, China
Manufacturer TypeManufacturer
Country of OriginChina

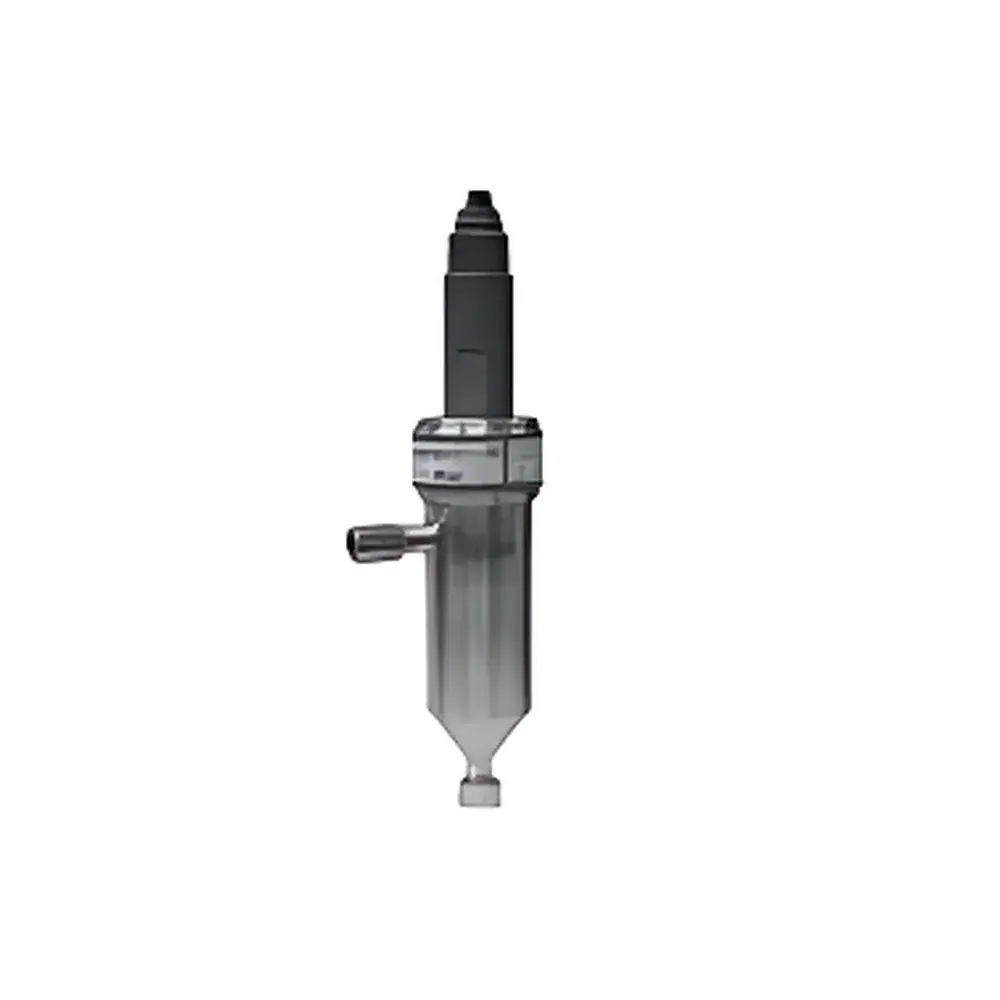

ModelPHGF-28H
PriceUpon Request
pH Range0.00–14.00 pH
ORP Range±1800 mV
Temperature Range−5 to +105 °C
Operating Sample Temp.5–60 °C
Max. Sample Pressure< 0.1 MPa
Sample Flow Rate200 mL/min
Inlet TubingØ6×1 mm stainless steel
Outlet TubingØ10×1 mm stainless steel
Added to wishlistRemoved from wishlist 0
Add to compare
BrandLeichi
OriginShanghai, China
Manufacturer TypeDirect Manufacturer
Country of OriginChina

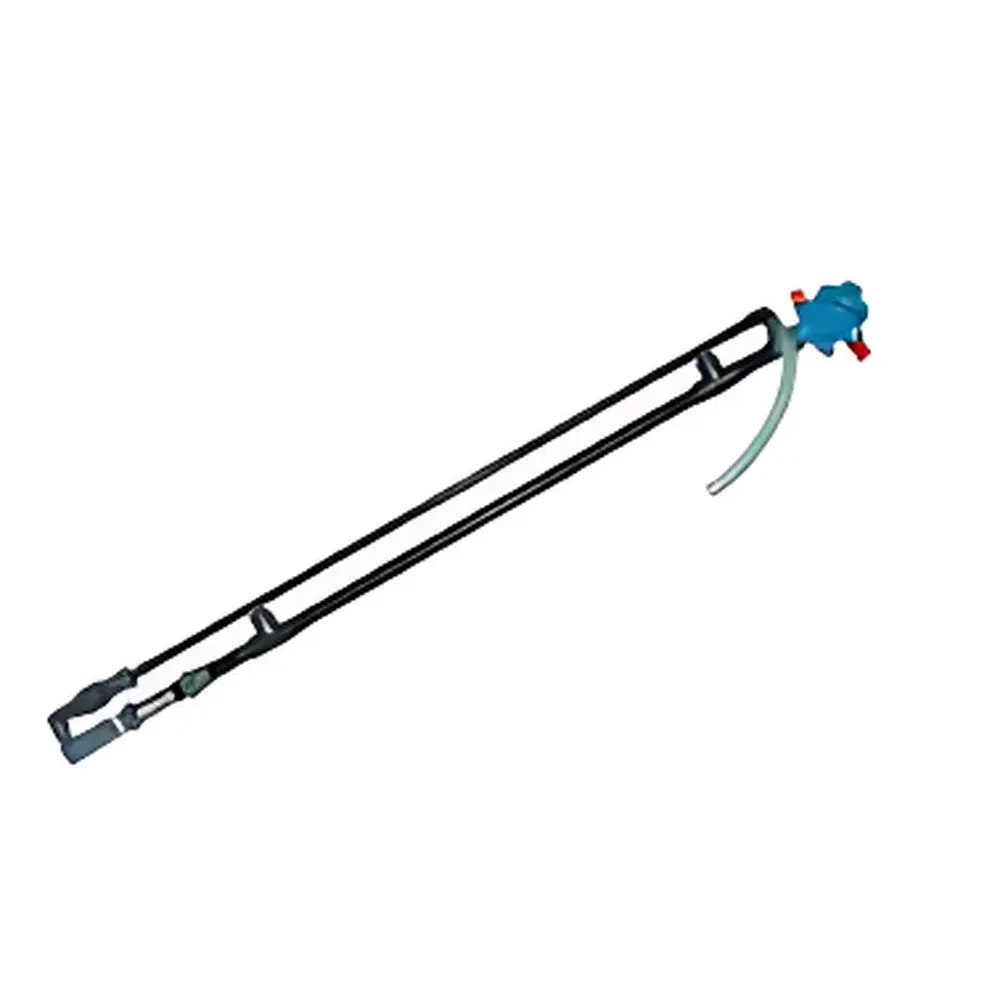

ModelPHGF-43
PricingUpon Request
Housing Material OptionsPVC, CPVC, SS304, SS316
Cleaning FunctionNone or Jet Flush
Pre-amplifierOptional (Integrated or External)
Compatible ElectrodesFG-991 (pH) / ORP-1 (Redox)
Measurement RangepH 0–14
Process Temperature Range5–45 °C
Max. Pressure Rating0.6 MPa
Enclosure ProtectionIP65 (Junction Box or High-Impedance Box)
Submersion Length Options0.5 m, 1.0 m, 1.5 m, 2.0 m, 2.5 m, 3.0 m (User-selectable)
Standard Cable Length20 m (Extended lengths available upon specification)
Show next
InstrumentHive
Logo
Compare items
  • Total (0)
Compare
0
