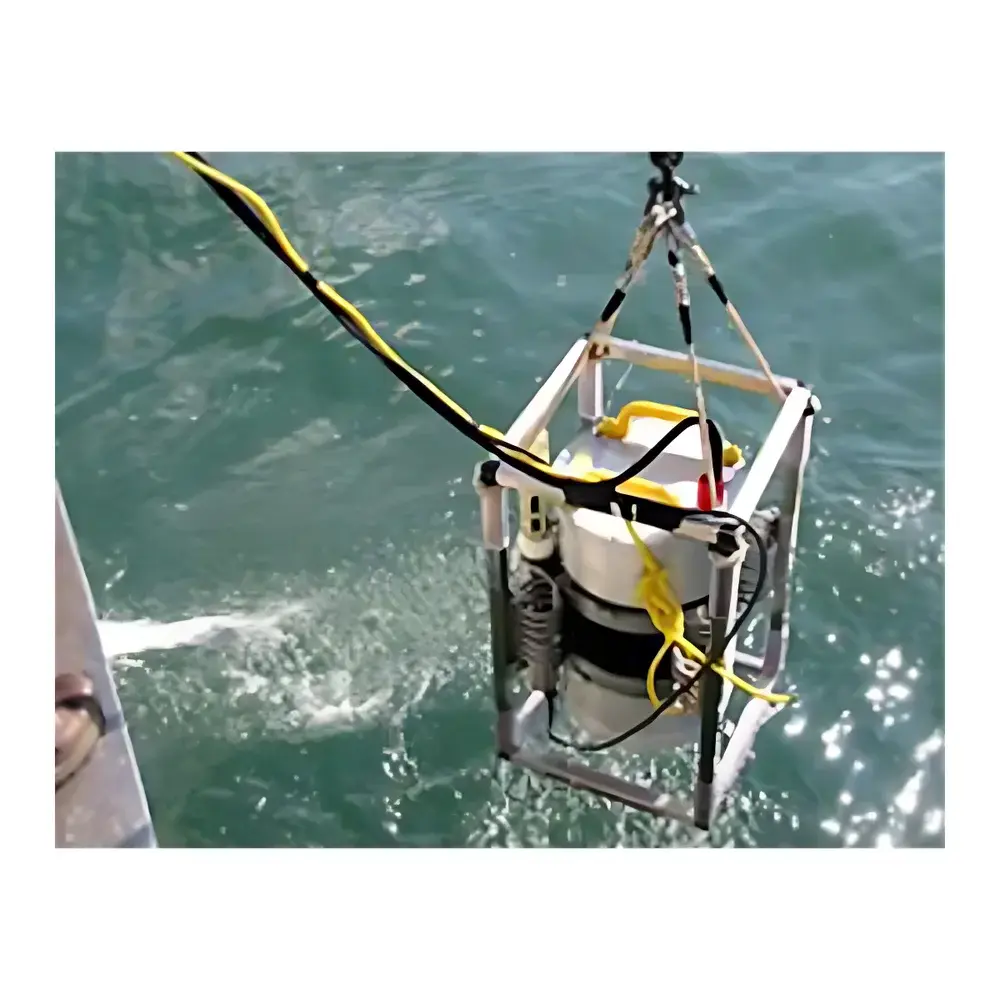

| Brand | CytoBuoy (Netherlands) |
|---|---|
| Origin | Netherlands |
| Model | CytoBuoy |
| Application Platform | Buoy-Integrated Autonomous Monitoring System |
| Detection Principle | Pulse-Shape Analysis (PSA) + High-Speed Flow Imaging Cytometry |
| Optical Channels | FWS, SWS, FLR, FLY, FLO |
| Depth Rating | Up to 20 m (with CytoSub module) |
| Data Transmission | Wireless (GSM/3G/4G, optional satellite) |
| Compliance | Designed for GLP-aligned environmental monitoring workflows |
| Software | CytoUSB (acquisition), CytoClus & EasyClus (batch clustering & morphometric analysis) |
| Particle Size Range | 1–500 µm |
| Measurement Modes | In situ profiling (with CTD), vertical剖面, remote-controlled unattended operation |

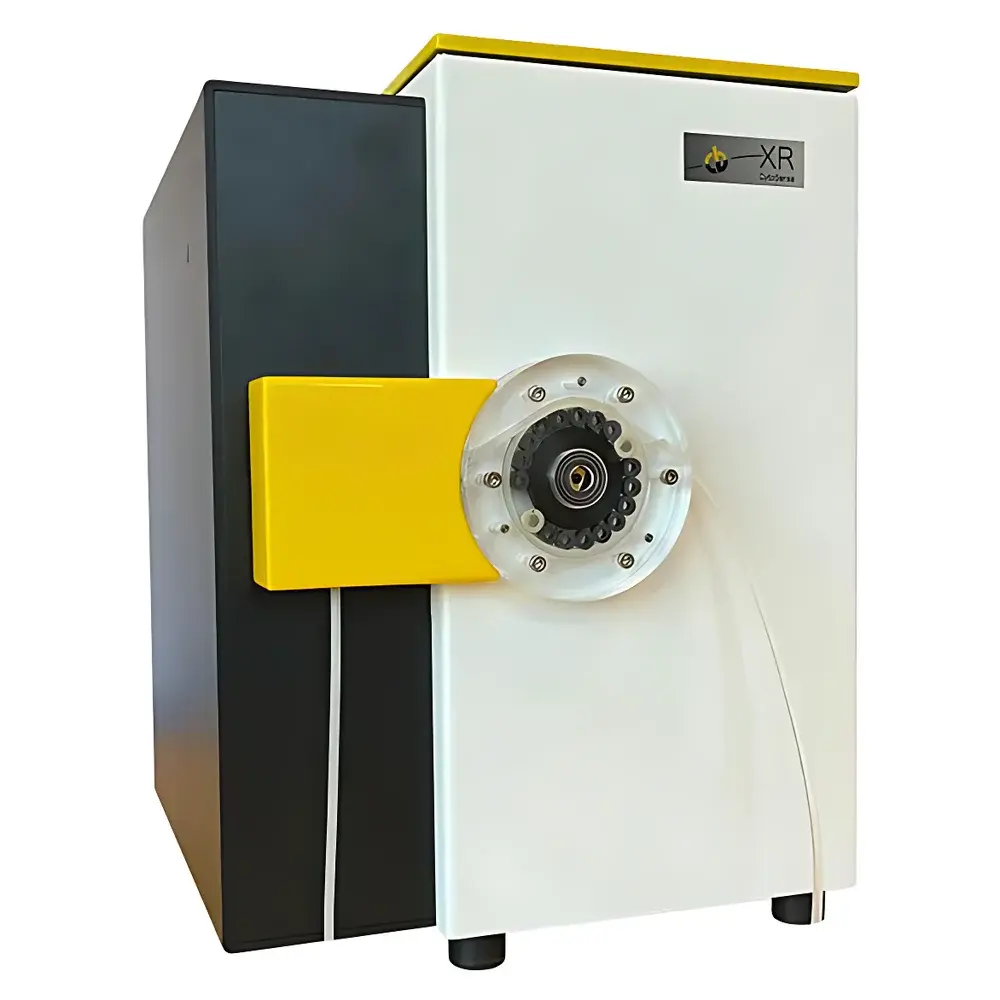

| Brand | CytoBuoy (Netherlands) |
|---|---|
| Origin | Netherlands |
| Model | CytoSense XR |
| Detection Principle | Laser-scanning flow cytometry with hydrodynamic focusing and synchronized high-resolution imaging |
| Particle Size Range | 0.2–700 µm |
| Concentration Range | 10²–10¹¹ particles/L |
| Sheath Fluid System | Closed-loop recirculating |
| Optical Channels | Forward scatter (FWS), red fluorescence (FLRed, ~680 nm), side scatter (optional), multi-wavelength excitation (488 nm standard, optional 532/640 nm) |
| Imaging Mode | Pulse-profile scanning + triggered micrograph acquisition |
| Data Output | Per-particle parameter vectors (size, shape, pigment distribution, internal structure morphology), time-stamped event files, TIFF/JPEG image stacks |
| Compliance | Designed for GLP-compliant environmental monitoring |
