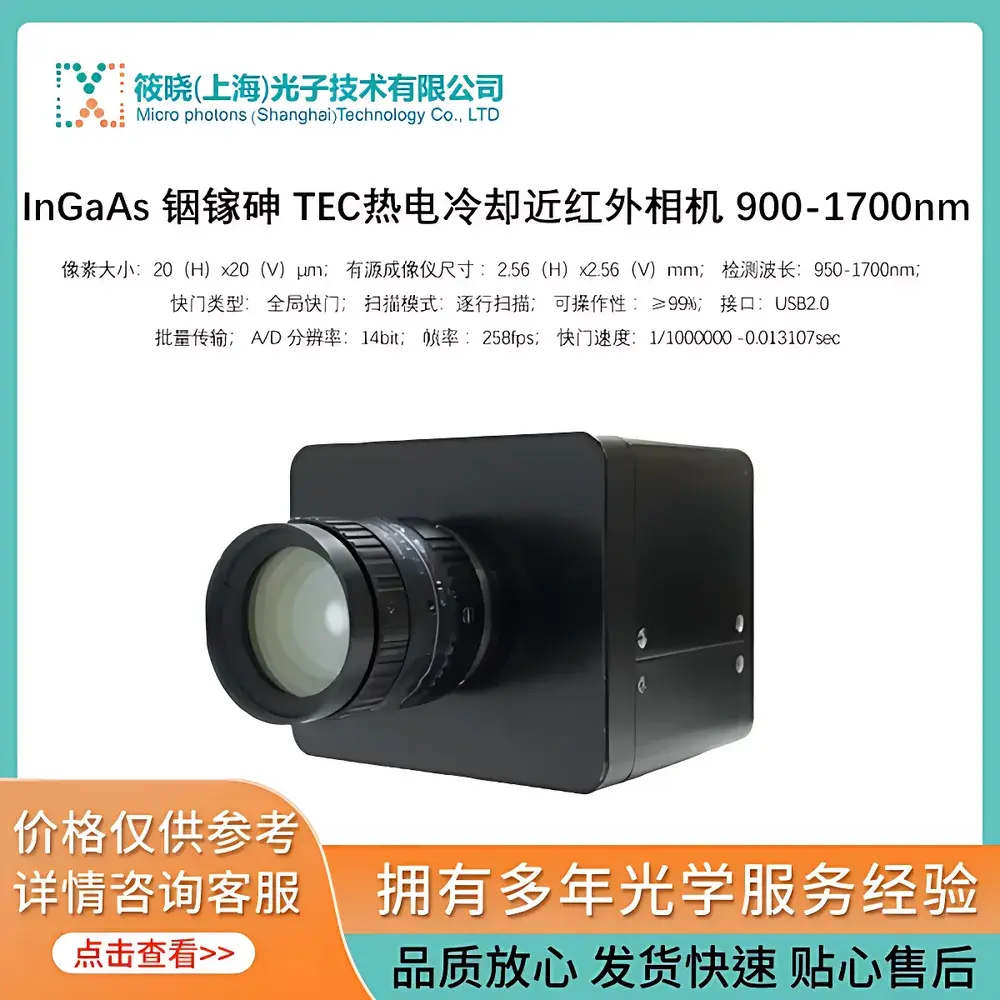

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-0016TNIR-TEC |
| Sensor Format | 128 × 128 InGaAs focal plane array |
| Spectral Range | 900–1700 nm |
| Cooling | Integrated TEC (Thermoelectric Cooler) |
| Detector Type | Solid-state InGaAs photodiode array |
| Compliance | CE, RoHS, JIS C 0950 |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-640P2-THERMO |
| Spectral Range | 8–14 µm |
| Resolution | 640 × 480 pixels |
| Type | Cooled or Uncooled Microbolometer (Inferred from Class & Spec) |
| Compliance | CE, RoHS, JIS C 1609-1 (Thermal Imaging Equipment Standard) |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-008TNIR |
| Sensor Type | InGaAs |
| Spectral Range | 900–1700 nm |
| Resolution | 320(H) × 256(V) |
| Pixel Size | 30 µm × 30 µm |
| Active Imaging Area | 9.6 mm × 7.68 mm |
| Shutter Type | Global Shutter |
| Scan Mode | Progressive Scan |
| Interface | USB 2.0 |
| Frame Rate | 90 fps |
| A/D Resolution | 12-bit |
| Cooling | Uncooled (TEC optional on higher models) |
| Lens Mount | C-Mount |
| Power Supply | DC 12 V |
| Operating Temperature | 0–35 °C |
| Dimensions | 71.6(W) × 61.5(H) × 125(D) mm |
| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-9701UV |
| Sensor Type | CMOS |
| Resolution | 1280 × 1024 |
| Pixel Size | 9.76 µm |
| Spectral Range | 200 nm – 1000 nm |
| Shutter Mode | Rolling Shutter |
| Frame Rate | 30 fps |
| ADC Resolution | 12 bit |
| Exposure Time | 37 µs – 2 s |
| Lens Mount | C-Mount |
| Interface | USB 3.0 |
| Power Supply | 5 VDC |
| Operating Temperature | 0 °C – +35 °C |
| Dimensions (W×H×L) | 50 mm × 47 mm × 42.7 mm |
| Weight | 110 g |

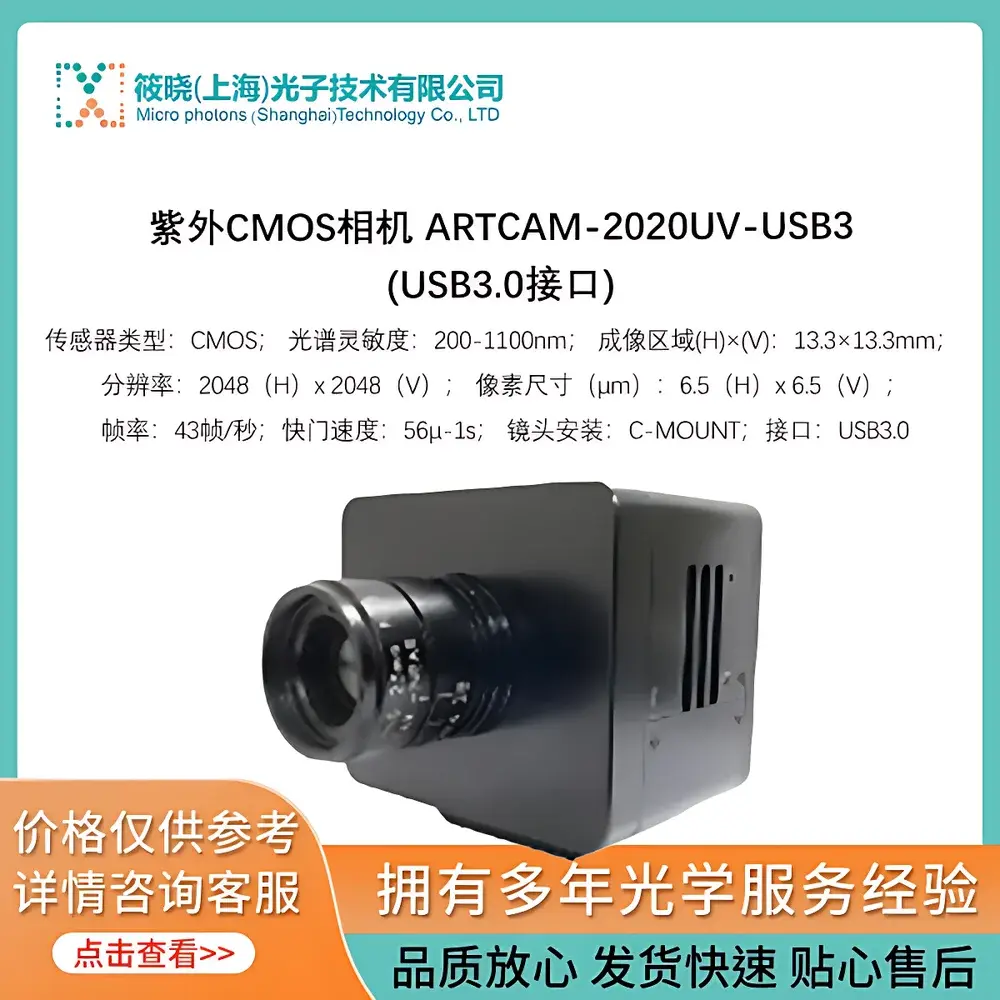

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-2020UV-USB3 |
| Sensor Type | CMOS (GSENSE2020BSI back-illuminated) |
| Spectral Response | 200–1100 nm |
| Resolution | 2048 × 2048 pixels |
| Pixel Size | 6.5 µm × 6.5 µm |
| Imaging Area | 13.3 mm × 13.3 mm |
| Shutter Mode | Rolling shutter with global reset capability |
| Frame Rate | 23 fps |
| Exposure Time | 11.2 µs – 1 s |
| A/D Resolution | 11/12 bits |
| Output Bit Depth | 12-bit |
| Interface | USB 3.0 |
| Lens Mount | C-mount |
| Power Supply | DC 12 V |
| Power Consumption | ~6 W |
| Operating Temperature | 0–35 °C |
| Dimensions (W×H×D) | 71.6 × 61.5 × 51.5 mm |
| Weight | ~240 g |

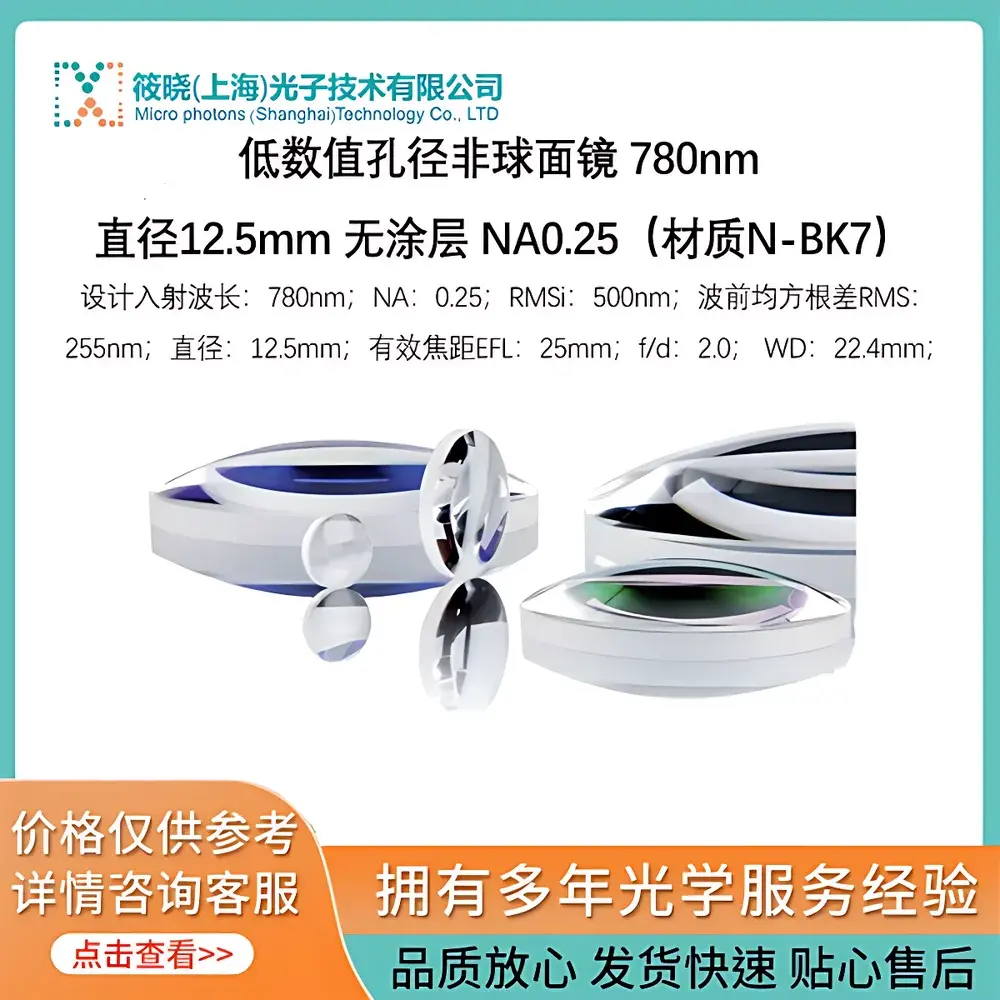

| Brand | Asphericon |
|---|---|
| Origin | Germany |
| Model | ALL12-25-P-U |
| Numerical Aperture (NA) | 0.25 |
| Wavelength Optimization | 780 nm |
| Substrate Material | N-BK7 |
| Diameter | 12.5 mm |
| Effective Focal Length Tolerance | ≤ ±0.1 % |
| Surface Form Error (RMSi) | ≤ 0.1 µm |
| Surface Quality | 60–40 scratch-dig |
| Clear Aperture | ≥ 90 % |
| Coating Options | Standard AR Coatings A (400–600 nm), B (600–1050 nm), C (1000–1600 nm) |
| Laser Induced Damage Threshold (LIDT) | 12 J/cm² @ 100 Hz, 6 ns, 532 nm |
| Mounting | Unmounted (U) |

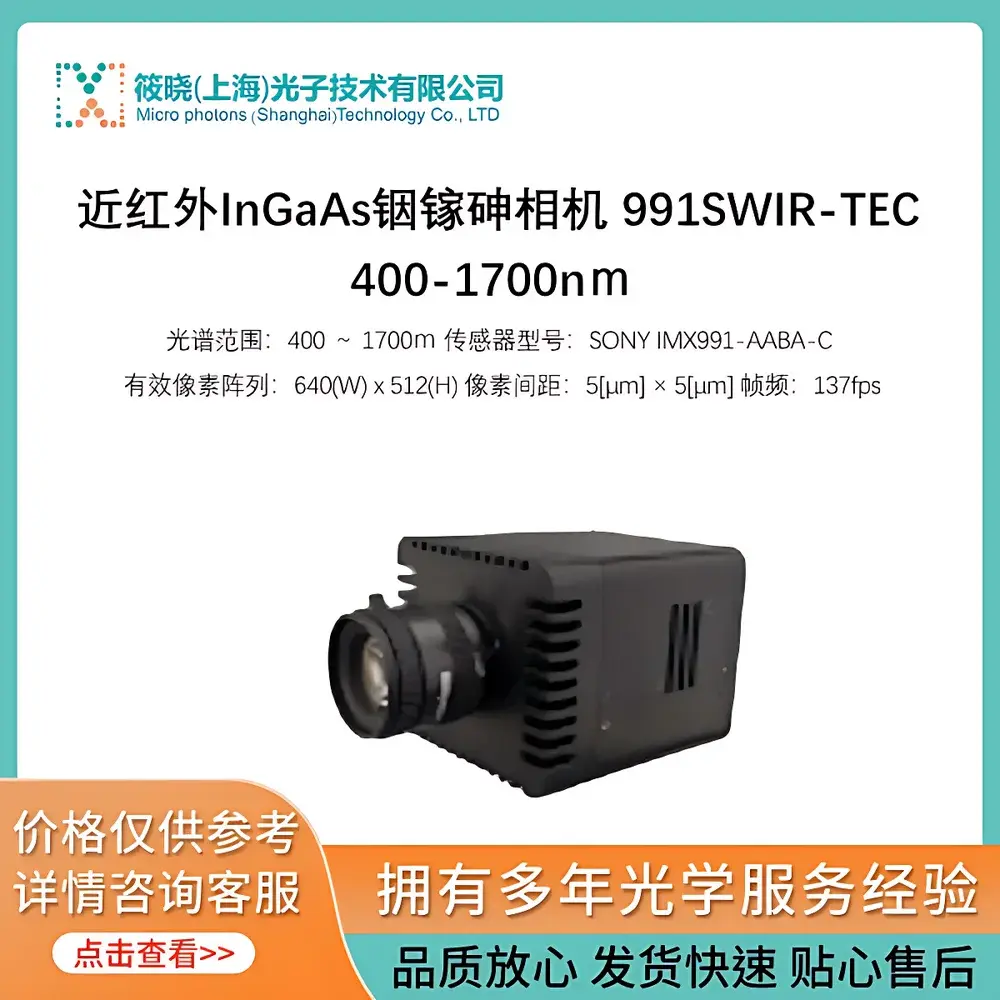

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-991SWIR-TEC |
| Spectral Range | 400–1700 nm |
| Sensor Type | InGaAs (Indium Gallium Arsenide) |
| Cooling | Thermoelectrically Cooled (TEC) |
| Application Domain | SWIR Imaging, Laser Beam Profiling, Optical Metrology, Semiconductor Inspection |

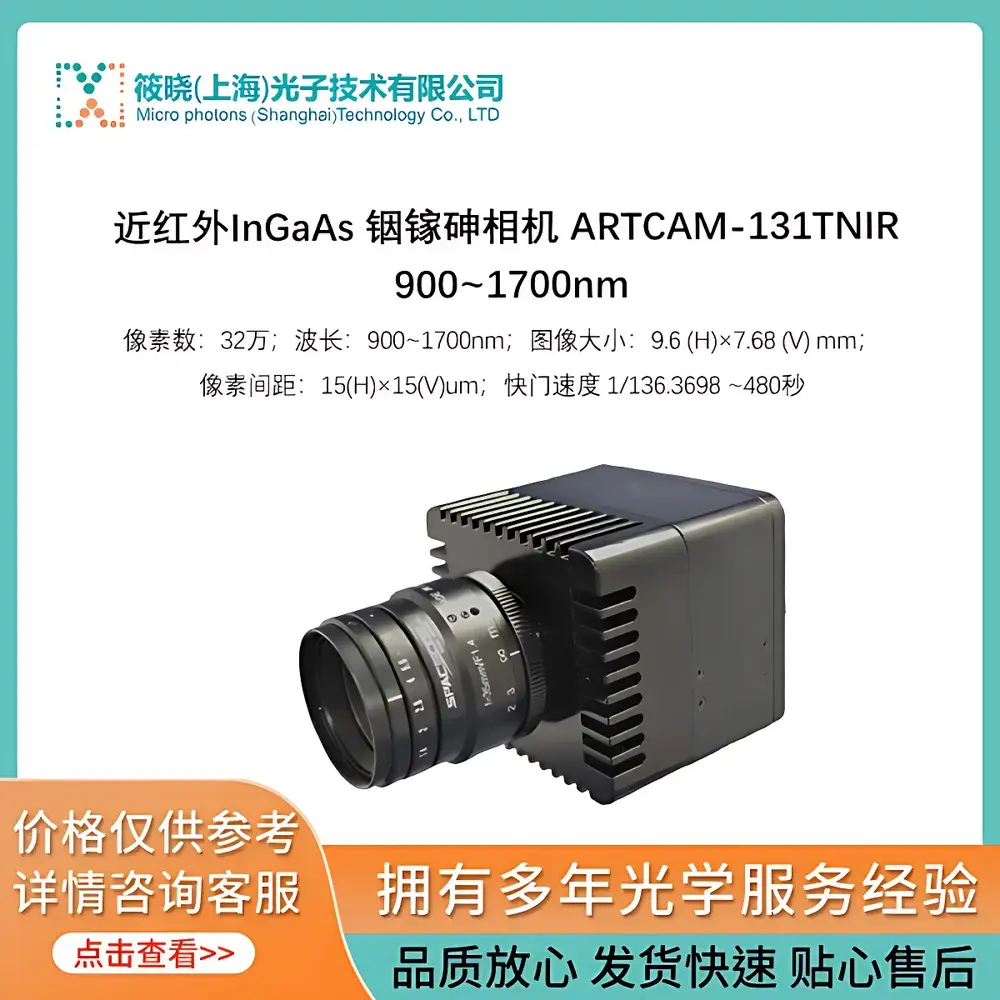

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-131TNIR |
| Spectral Range | 900–1700 nm |
| Sensor Type | InGaAs (Indium Gallium Arsenide) |
| Interface | GigE Vision or USB3 Vision (configurable) |
| Resolution | 640 × 512 pixels |
| Pixel Size | 15 µm |
| Cooling | Thermoelectric (TE) stabilized |
| Dynamic Range | ≥60 dB (typ.) |
| Frame Rate | Up to 120 fps at full resolution |
| Compliance | CE, RoHS, ISO 9001-manufactured |

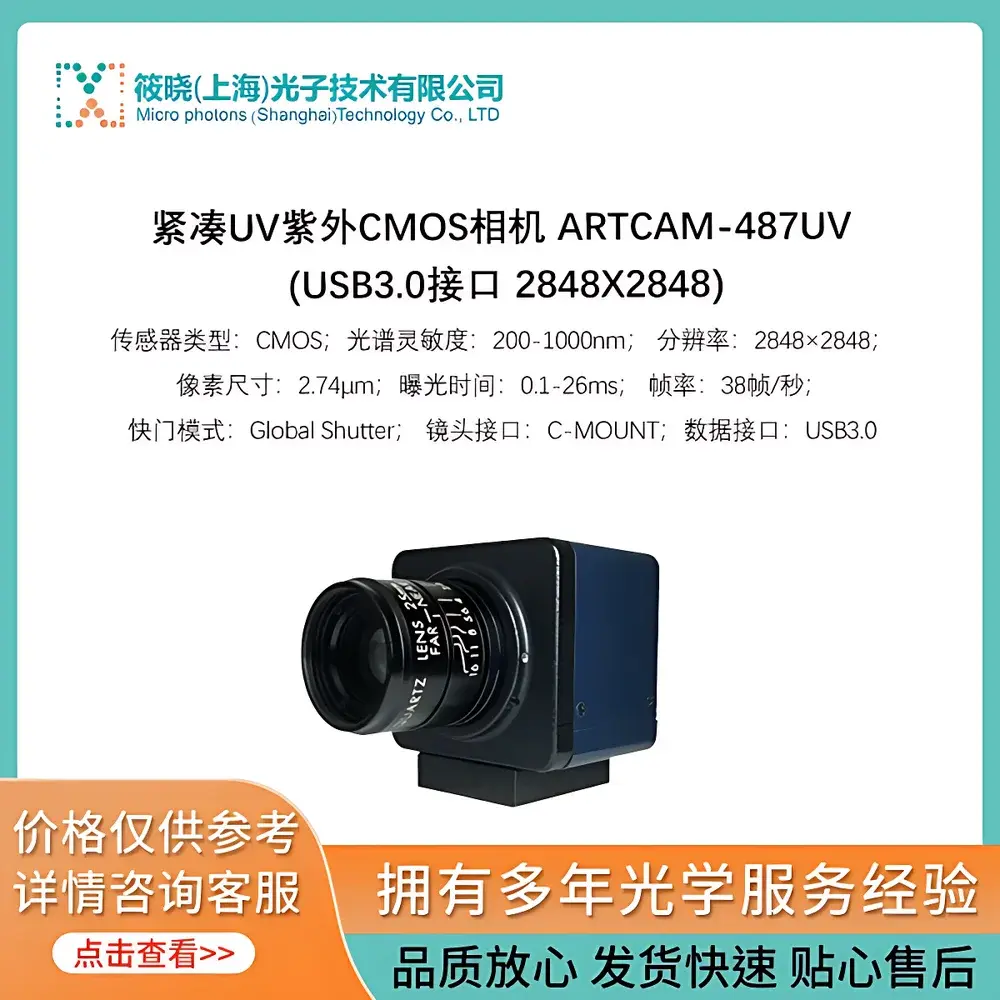

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-487UV |
| Sensor Type | CMOS |
| Resolution | 2848 × 2848 |
| Pixel Size | 2.74 µm |
| Spectral Range | 200 nm – 1000 nm |
| Frame Rate | 38 fps |
| Interface | USB 3.0 |
| Shutter Mode | Global Shutter |
| ADC Resolution | 12 bit |
| Exposure Time | 0.1 ms – 26 ms |
| Lens Mount | C-Mount |
| Power Supply | 5 VDC |
| Operating Temperature | 0 °C – +35 °C |
| Dimensions (W×H×L) | 50 mm × 47 mm × 42.7 mm |
| Weight | 130 g |

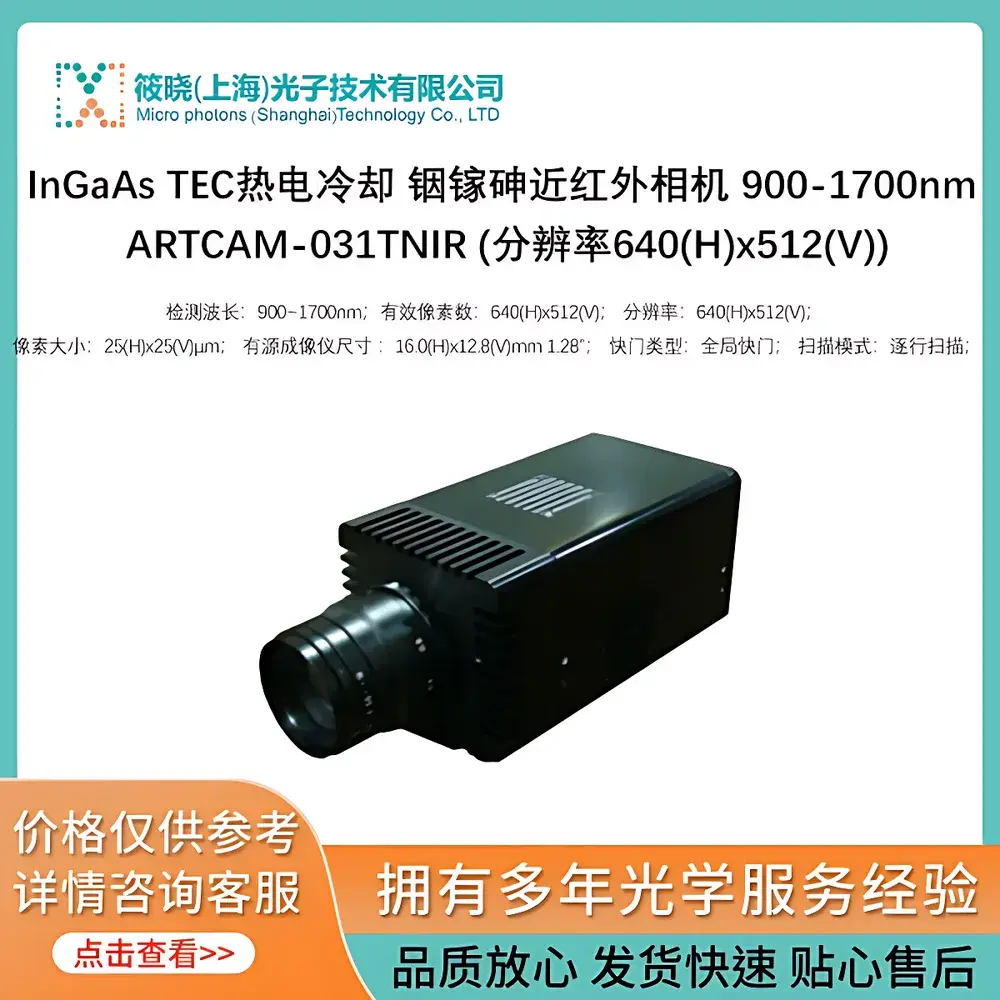

| Brand | Artray |
|---|---|
| Origin | Japan |
| Model | ARTCAM-031TNIR |
| Sensor Type | InGaAs |
| Spectral Range | 900–1700 nm |
| Resolution | 640(H) × 512(V) |
| Pixel Size | 25 µm × 25 µm |
| Active Imaging Area | 16.0 mm × 12.8 mm |
| Shutter Type | Global Shutter |
| Scan Mode | Progressive Scan |
| Interface | USB 2.0 |
| A/D Resolution | 12-bit |
| Frame Rate | 27.4 fps |
| Exposure Time | 5.4 µs – 4.408 s |
| Detectivity | ≥5 × 10¹² Jones |
| Full Well Capacity | High Gain: 118 ke⁻, Low Gain: 1.9 Me⁻ |
| Cooling | Integrated TEC (Thermoelectric Cooler) |
| Lens Mount | C-Mount |
| Power Supply | DC 12 V |
| Power Consumption | <20 W |
| Operating Temperature | 0–35 °C |
| Dimensions | 71.6 × 61.5 × 125 mm |
| Weight | ~400 g |

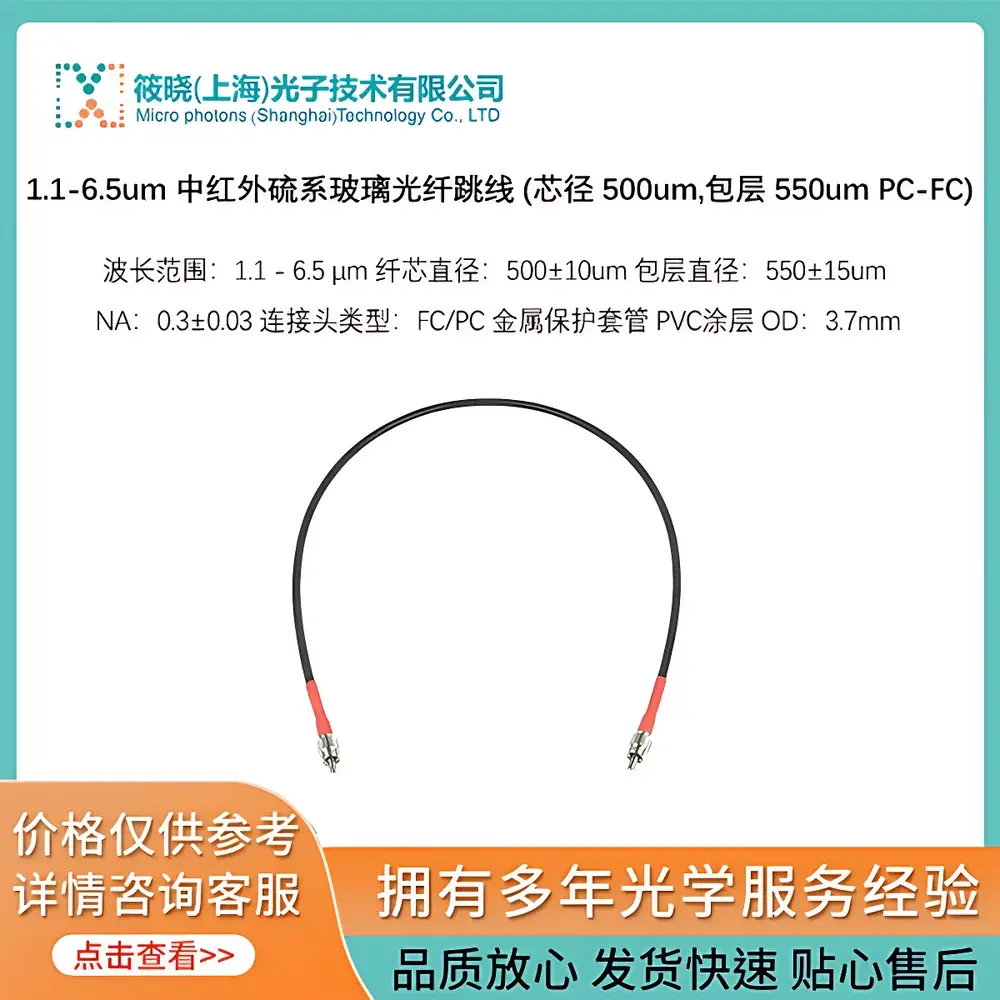

| Brand | art photonics |
|---|---|
| Origin | Germany |
| Fiber Type | Step-index multimode chalcogenide (CIR) glass |
| Wavelength Range | 1.1–6.5 µm |
| Core Diameter | 500 ± 10 µm |
| Cladding Diameter | 550 ± 15 µm |
| Numerical Aperture (NA) | 0.30 ± 0.03 |
| Coating Diameter (dual-polymer) | 700 ± 30 µm |
| Connector Type | FC/PC to FC/PC |
| Protective Jacket | Metal sheath, OD 3.7 mm |
| Length | 1.00 ± 0.05 m |
| Minimum Bend Radius | 100 mm |
| Operating Temperature | –50 °C to +90 °C |
| Attenuation | 0.2–0.3 dB/m (at 2.5–4 µm and 4.5–5 µm) |
| Brand | Alphalas |
|---|---|
| Origin | Germany |
| Model | UPD-35-IR2-FR |
| Spectral Range | 800–1700 nm |
| Photosensitive Material | InGaAs |
| Rise Time | <35 ps |
| Bandwidth | >10 GHz |
| Active Area | 9 µm fiber core |
| Dark Current | 0.3 nA |
| Optical Input | Fiber with FC/APC connector |
| RF Output | SMA |
| Housing | Anodized aluminum |
| Brand | Alphalas |
|---|---|
| Model | UPD-15-IR2-FC |
| Detector Material | InGaAs |
| Spectral Range | 800–1700 nm |
| Rise Time | <15 ps |
| 3-dB Bandwidth | >25 GHz |
| Active Area | Fiber-coupled, 9 µm core |
| Quantum Efficiency @ Peak | 75% |
| NEP | 1.0×10⁻¹⁵ W/√Hz |
| Dark Current | 0.1 nA |
| Optical Input | FC/APC fiber connector |
| RF Output | SMA |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | PULSELAS-A-1064-10W-SF |
| Wavelength | 1064 nm |
| Average Output Power | 10 W |
| Pulse Width (FWHM) | <1 ns (typ.) |
| Repetition Rate | Up to 10 kHz (adjustable) |
| Beam Quality (M²) | 1.01 (ISO 11146) |
| Beam Parameter Product (BPP) | 0.338 mm·mrad |
| Divergence (Full Angle, eff.) | 1.08 mrad |
| Side-Mode Suppression Ratio (SMSR) | >25 dB |
| Long-Term Power Stability (8 h) | <±0.5% RMS |
| Beam Pointing Stability (8 h) | <5 µrad RMS |
| Polarization | Linear, >100:1 |
| Cooling | Water-cooled |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | PULSELAS-P-1064-100 |
| Wavelength | 1064 nm |
| Pulse Width | <1 ns (sub-nanosecond) |
| Peak Power | 100 MW |
| Laser Type | Diode-Pumped Passive Q-Switched Microchip Solid-State Laser |
| Output | TEM₀₀, Polarized, Collimated Free-Space Beam |
| Repetition Rate | Up to 100 kHz (model-dependent) |
| Pulse Energy | Up to 10 µJ (typical at 10 kHz) |
| Beam Diameter | ~0.8 mm (1/e²) |
| Divergence | <2 mrad |
| Cooling | Conductive (thermoelectric or passive) |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Model | MP-532-5W-MM |
| Output Wavelength | 532 nm |
| Output Power | 5 W (CW) |
| Laser Type | Diode-Pumped Solid-State (DPSS), Multi-Longitudinal-Mode |
| Cooling | Water-cooled |
| Beam Diameter (1/e²) | ~1.2 mm |
| Beam Divergence (full angle) | <1.5 mrad |
| Polarization Ratio | >100:1 |
| Power Stability (rms, over 8 h) | <1.5% |
| M² Factor | <1.3 |
| Warm-up Time | <10 min |
| Operating Temperature | 15–30 °C |
| Humidity | <80% RH (non-condensing) |
| Input Power | 220 V AC, 50/60 Hz |
| Dimensions (L×W×H) | 360 × 140 × 120 mm |
| Weight | ~6.5 kg |
| Brand | AlphaLas |
|---|---|
| Origin | Germany |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Optical Instrument |
| Model | PICOPOWER-RG1-1064-10K |
| Laser Type | Diode-Pumped Solid-State (DPSS) Q-Switched Laser |
| Wavelength | 1064 nm |
| Repetition Rate | 10 kHz |
| Pulse Duration | <15 ps |
| Output Configuration | TEM₀₀ |
| Cooling | Air-Cooled |
| Compliance | CE, RoHS, IEC 60825-1:2014 Class 4 Laser Product |
