| Brand | Atik Cameras |
|---|---|
| Sensor | Sony ICX-285 |
| Format | 2/3" |
| Resolution | 1392 × 1040 |
| Effective Pixels | 1.4 MP |
| Pixel Size | 6.45 µm |
| Cooling | Integrated Thermoelectric (TE) to −35 °C |
| Bit Depth | 16-bit |
| Interface | USB 2.0 |
| Filter Wheel Option | Built-in 5-position motorized filter wheel (F-model) |
| Compliance | ISO 9001-certified manufacturing |
| SDK | Full C++ API, .NET wrappers, ImageJ plugin, LabVIEW VIs, Linux & VB drivers |
| Brand | Atik Instruments |
|---|---|
| Sensor Resolution | 2750 × 2205 pixels |
| Sensor Type | Monochrome back-illuminated CCD |
| Pixel Size | 4.54 µm × 4.54 µm |
| Full Well Capacity | ~15,000 e⁻ |
| Read Noise | <9 e⁻ (at 0.1 MHz) |
| Dark Current | <0.001 e⁻/pixel/sec @ −20°C |
| Cooling | Thermoelectric (TE) to −20°C below ambient |
| Interface | USB 2.0 |
| Shutter | Mechanical (optional electronic shutter) |
| Compliance | CE, RoHS |
| Software Support | ASCOM, DirectShow, LabVIEW, MATLAB, Python (via SDK) |

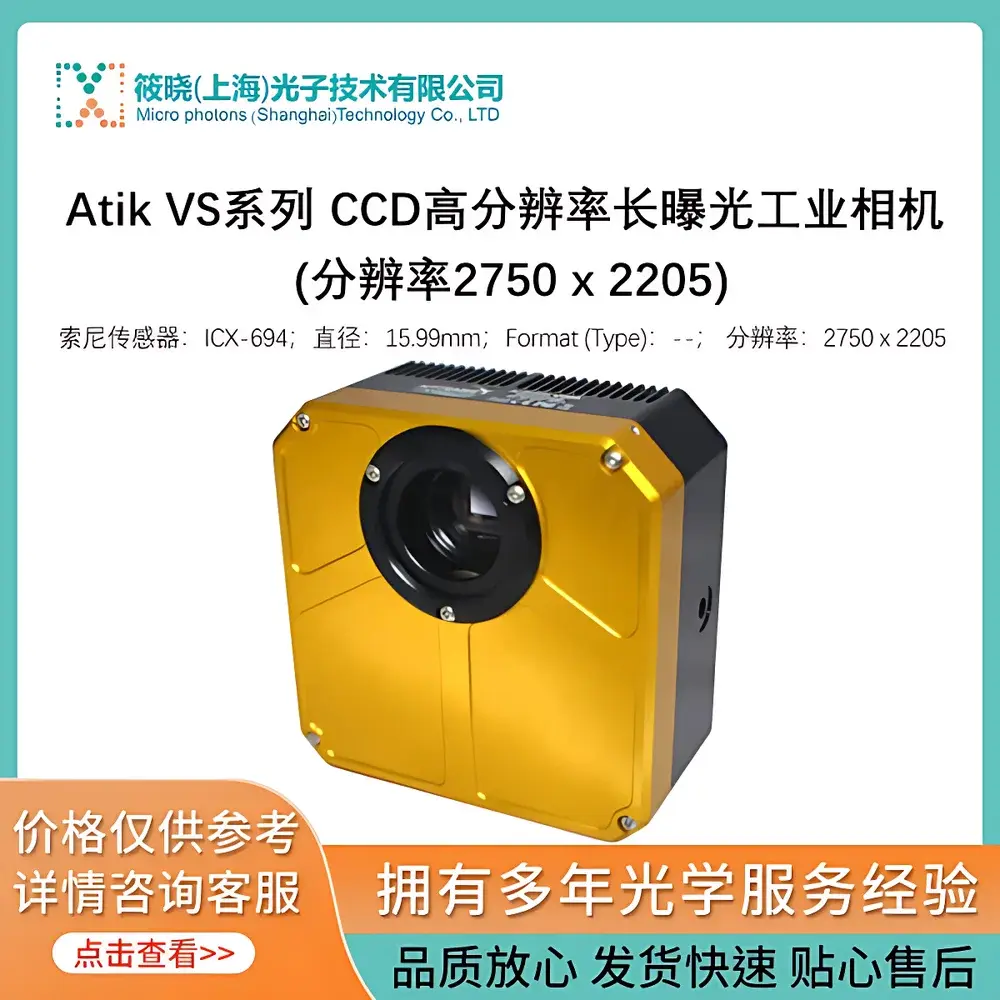

| Brand | Atik Cameras |
|---|---|
| Sensor Type | Sony CCD (ICX-694) |
| Model | VS60-C-F |
| Resolution | 2750 × 2205 |
| Effective Pixels | 6.0 MP |
| Pixel Size | 4.54 µm |
| Color | Yes |
| Filter Wheel | Integrated |
| Sensor Format | 15.99 mm diagonal |
| Mount | C-mount / M42 optional |
| Cooling | Thermoelectric (TE), regulated to −20°C below ambient |
| Read Noise | <9 e⁻ (at 0.1 MHz) |
| Full Well Capacity | ~15,000 e⁻ |
| Interface | USB 2.0 with galvanic isolation |
| Compliance | CE, RoHS, FCC Class B |
| Brand | Microphotons |
|---|---|
| Origin | USA |
| Manufacturer Type | OEM Manufacturer |
| Product Category | Imported Optical Component |
| Model | UV2528B |
| Focal Length | 25.04 mm (at λ = 266 nm) |
| Back Focal Distance | 22.07 mm |
| Aperture Range | f/2.8–f/16 |
| Image Circle Diameter | Ø12.8 mm (1″ format, 9.6 mm × 12.8 mm) |
| Coating | Single-layer MgF₂ anti-reflection coating |
| Mount | C-mount |
| Lens Construction | Multi-element fused silica design optimized for deep-UV transmission |
| Operating Wavelength Range | 200–400 nm (peak transmission ≥85% at 266 nm) |
| Maximum Sensor Compatibility | 1″ (12.8 mm diagonal) |
| Diameter × Length | 30.0 mm × 28.9 mm |
