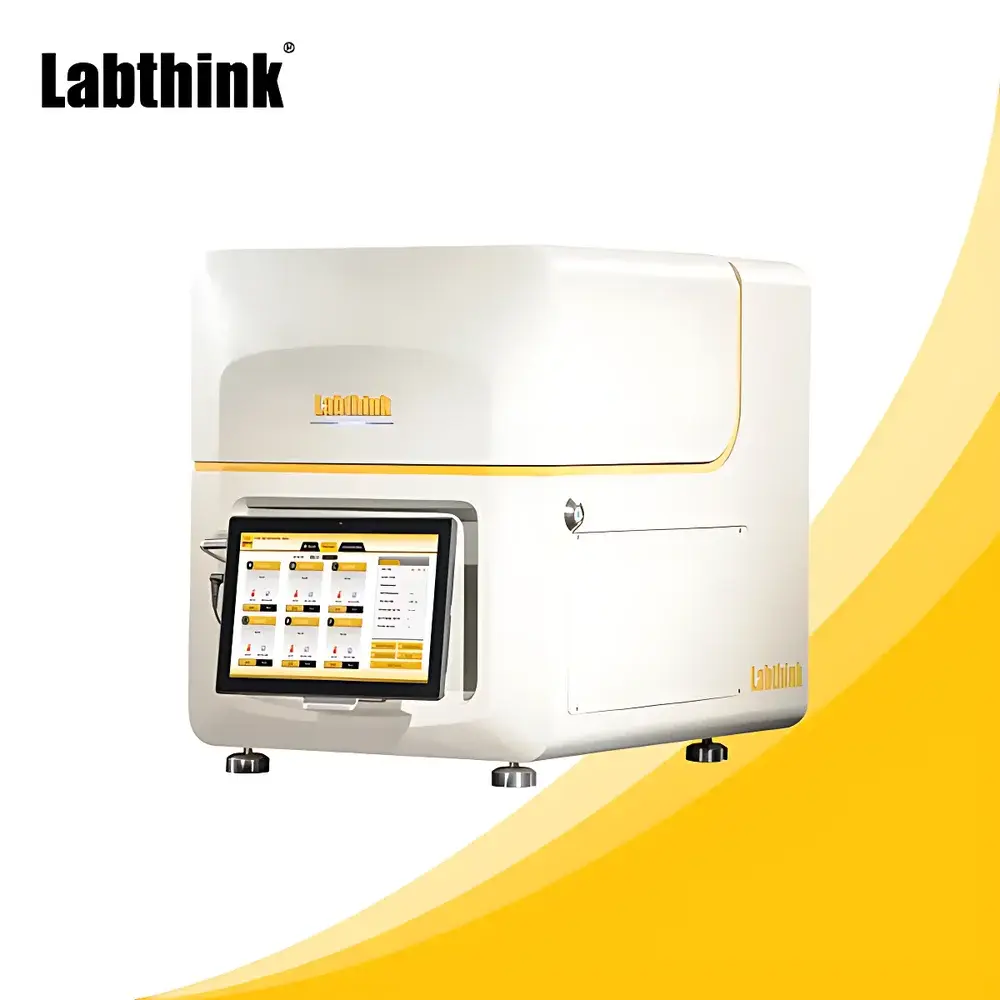

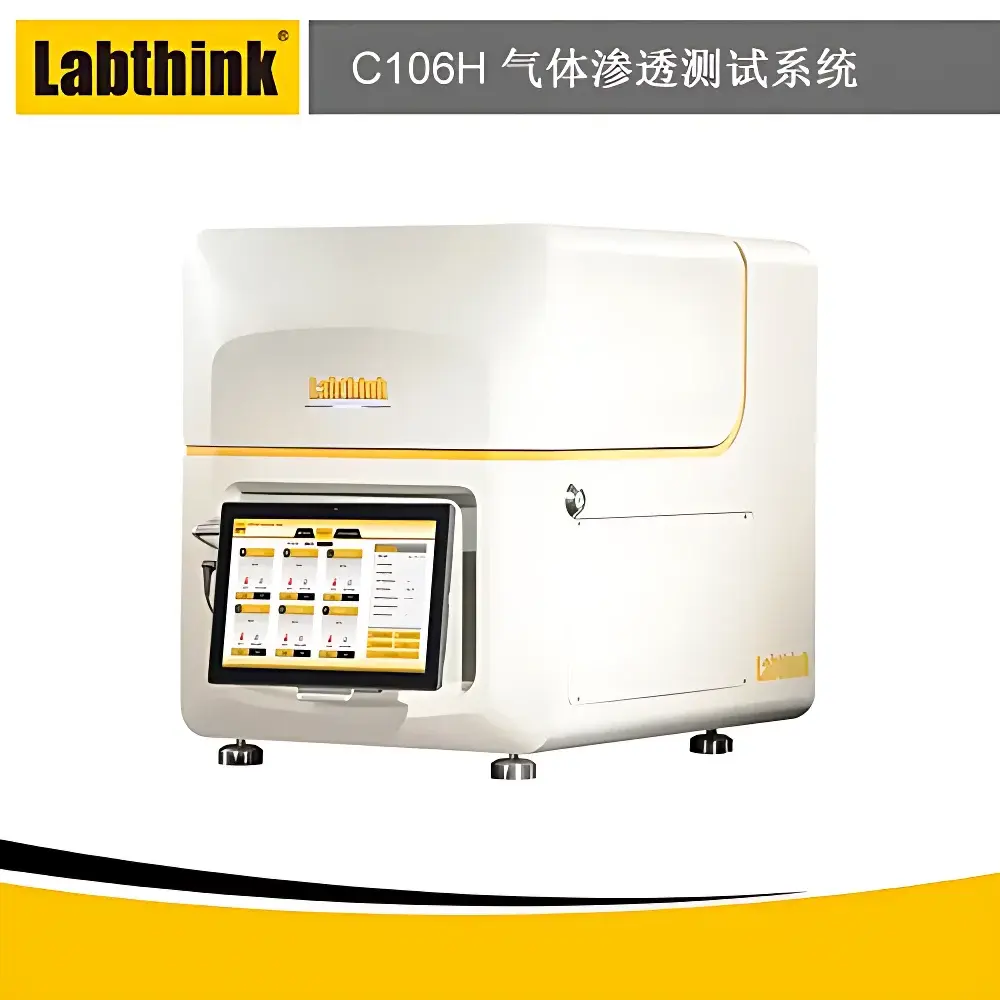

Labthink C106H Differential-Pressure Method Oxygen Transmission Rate (OTR) Tester

Overview

The Labthink C106H Differential-Pressure Method Oxygen Transmission Rate (OTR) Tester is a precision-engineered gas permeability measurement system designed for quantitative evaluation of oxygen barrier performance in pharmaceutical packaging materials. It operates on the manometric differential-pressure principle: a conditioned specimen is sealed between two chambers — the high-pressure (upstream) side charged with pure O₂ at precisely controlled pressure (10–150 kPa), and the low-pressure (downstream) side evacuated to ≤10 Pa. As oxygen molecules permeate through the film under the established partial pressure gradient, the rising pressure in the downstream chamber is continuously monitored via a high-stability, imported vacuum transducer (resolution 0.01 Pa). Real-time pressure-time data are mathematically integrated to compute oxygen transmission rate (OTR), permeability coefficient (P), diffusion coefficient (D), and solubility coefficient (S), all traceable to SI units and internationally recognized physical models. This methodology conforms strictly to ISO 15105-1 (gas transport in polymers), ASTM D1434 (O₂ permeability of plastic film), and pharmacopoeial standards including YBB 00082003 (Chinese Pharmacopoeia for pharmaceutical packaging), making it suitable for regulatory submissions and quality control laboratories operating under GLP or GMP frameworks.

Key Features

• Six independent, parallel test chambers — triple the throughput of conventional single- or dual-chamber systems — enabling statistically robust replication and accelerated method validation.
• Rainbow Bridge™ test cavity architecture with 360° circumferential air circulation ensures uniform thermal distribution across all six chambers, achieving ±0.15 °C temperature stability over extended testing cycles.
• Imported high-accuracy vacuum sensor (±0.2% full-scale accuracy) and ultra-low-leakage pneumatic control system guarantee measurement repeatability <1.5% RSD for OTR values ≥0.1 cm³/m²·24h·0.1MPa.
• Automated pressure compensation algorithm actively maintains high-side pressure within ±0.2 kPa during test execution, eliminating drift-induced error in high-barrier material analysis (e.g., AlOx-coated PET, SiOx-laminates).
• Motorized clamping mechanism applies consistent compressive force (pre-calibrated to ISO 1038 requirements), ensuring reproducible seal integrity without operator-dependent variability.
• Integrated 12-inch Windows touch interface supports both automated operation (one-touch start after temperature setpoint entry) and advanced manual control for research-grade parameter tuning.
• Vacuum pump auto-sequencing logic eliminates manual valve actuation, reducing operator intervention and minimizing contamination risk during chamber evacuation and equilibration phases.

Sample Compatibility & Compliance

The C106H accommodates a broad spectrum of rigid and flexible packaging substrates used in pharmaceutical, biotech, and sterile device applications. Validated test specimens include multilayer coextruded films (e.g., PE/EVOH/PE), metallized polyester (PET-Al), aluminum foil laminates, cold-forming blister foils (PVC/PVDC), polymer-coated paperboard, and high-barrier silicon oxide (SiO_x) or aluminum oxide (AlO_x) coated films. All six chambers accept samples up to 11.2 cm × 11.2 cm and 3 mm thick. The system meets essential regulatory requirements: it supports audit-trail-enabled operation when equipped with the optional CFR 21 Part 11 compliance package, including electronic signatures, user access controls, and immutable data logging. Its adherence to ISO 2556 (determination of gas transmission rate) and GB/T 1038-2000 (plastic film and sheet — determination of gas transmission rate) ensures compatibility with global quality assurance protocols. For sterile packaging qualification, the instrument’s documented calibration traceability (NIST-traceable pressure and temperature sensors) satisfies Annex 11 (Computerised Systems) and ICH Q5C stability guidance expectations.

Software & Data Management

The embedded Windows-based software provides full lifecycle data handling — from experimental setup and real-time curve visualization to export-ready reporting. Users can generate time-resolved OTR plots, Arrhenius-type temperature-dependence graphs, and derived kinetic parameters (D, S, P) with uncertainty propagation based on sensor specifications and statistical sampling. Raw pressure vs. time datasets are stored in encrypted binary format; CSV exports include metadata (test ID, operator, timestamp, environmental conditions, calibration certificates). With the optional DataShield™ module, all data modifications are logged with user ID, timestamp, and reason code — fulfilling ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Audit trails comply with FDA 21 CFR Part 11 and EU Annex 11 requirements, supporting inspection readiness for regulatory audits.

Applications

• Pharmaceutical primary packaging qualification: blister foil OTR verification per USP , vial stopper permeability screening, sachet film barrier validation.
• Accelerated stability studies: correlation of OTR shifts with aging conditions (e.g., 40 °C/75% RH) to predict shelf-life under real-world storage.
• Raw material supplier qualification: batch-to-batch consistency assessment of EVOH, PVDC, or nanocomposite barrier layers.
• Process development support: evaluating extrusion coating thickness, metallization uniformity, or plasma treatment efficacy on OTR reduction.
• Regulatory dossier preparation: generating compliant datasets for ANDA, NDA, or MAA submissions requiring ISO/ASTM-aligned barrier metrics.
• Research into novel barrier architectures: quantifying synergistic effects in hybrid multilayer systems (e.g., graphene-enhanced PE).

FAQ

What gases can be tested besides oxygen?
Standard configuration supports O₂, N₂, and CO₂. Hydrogen (H₂) and methane (CH₄) testing is available as a factory-customized option, subject to safety interlock integration and gas-specific sensor calibration.
Is the system compatible with humidified test conditions?
Yes — relative humidity control from 5% to 90% ±2% RH is offered as an optional module, enabling water vapor-coupled permeation studies critical for moisture-sensitive drug products.
How is calibration verified and maintained?
The system includes built-in reference leak standards traceable to NIST-certified flow meters. Annual recalibration of vacuum sensors and temperature probes is recommended; Labthink provides certified calibration services with ISO/IEC 17025 accreditation.
Can test data be exported to LIMS or ERP systems?
Yes — CSV and XML formats support seamless integration with laboratory information management systems. The optional API interface enables direct SQL or RESTful data ingestion into enterprise platforms.
What safety certifications does the instrument hold?
The C106H complies with IEC 61010-1 (Electrical Safety for Laboratory Equipment), CE marking (EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU), and meets UL 61010-1 requirements for North American markets.
