| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | HRS-5A |
| Type | Handheld Raman Spectrometer |
| Spectral Range | 200–3200 cm⁻¹ |
| Spectral Resolution | 15 cm⁻¹ (typical) |
| Excitation Wavelength | 785 ± 0.5 nm (linewidth < 0.1 nm) |
| Laser Power | 0–500 mW (continuously adjustable) |
| Spectral Repeatability | ±0.5 nm |
| Dimensions (L×W×H) | 180 × 85 × 30 mm (excl. probe extension) |
| Weight | 550 g |
| Operating Temperature | −10 to 50 °C |
| Storage Temperature | −20 to 60 °C |
| Relative Humidity | ≤90% (non-condensing) |
| Battery Life | ≥3.5 h (standard), ≥12 h (optional extended-life battery) |
| Local Storage Capacity | >1,000,000 spectra |
| Display | 1920 × 1080 capacitive touchscreen |
| Onboard Camera | 13 MP |
| Positioning | GPS/BeiDou/GLONASS + Wi-Fi/4G triangulation |
| Connectivity | Wi-Fi, 4G (SIM-card enabled), Micro-USB |
| Operating System | Android-based embedded platform |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | SR2 |
| Spectral Range | 185–1100 nm (configuration-dependent) |
| Detector Type | CCD |
| Optical Resolution (FWHM) | 0.56–1.71 nm |
| Signal-to-Noise Ratio | 380:1 (single acquisition) |
| Dynamic Range | 3400:1 (single acquisition) |
| Integration Time | as low as 10 µs |
| Slit Options | 5, 10, 25, 50, 100, or 200 µm |
| Thermal Stability | Engineered for low drift across operating temperatures |
| Inter-unit Consistency | Low unit-to-unit variation via automated precision manufacturing |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | QE65 Pro |
| Spectral Range | 200–1100 nm |
| Detector | Back-Illuminated CCD (Hamamatsu FFT-CCD) |
| Optical Resolution (FWHM) | 0.14–7.7 nm |
| Sensitivity | 22 e⁻/count (all λ) |
| Signal-to-Noise Ratio | 1000:1 (full signal) |
| Dynamic Range | 7.5 × 10⁹ |
| Stray Light | <0.08% @ 600 nm |
| Cooling | Two-stage TEC to –15 °C (ΔT = –40 °C below ambient) |
| Integration Time | 8 ms – 15 min |
| Slit | Interchangeable SMA905-compatible slit |
| Grating Options | Including 900 grooves/mm (#H36), blaze 500 nm |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | HR4000 |
| Optical Configuration | Single-beam |
| Detector | 3648-pixel linear CCD array |
| Wavelength Range | 200–1100 nm |
| Optical Resolution | ~1.0 nm FWHM |
| Slit Width | 25 µm |
| Grating | HC-1 holographic concave grating, 300 lines/mm |
| Stray Light | <0.05% at 600 nm |
| Focal Length | f/4, 101 mm |
| Dynamic Range | 2 × 10⁸ (system) |
| 2000 | 1 (single acquisition) |
| Data Transfer | 4 ms (USB 2.0 full spectrum) |
| Input/Output | 10 programmable GPIOs |
| Brand | Ocean Optics |
|---|---|

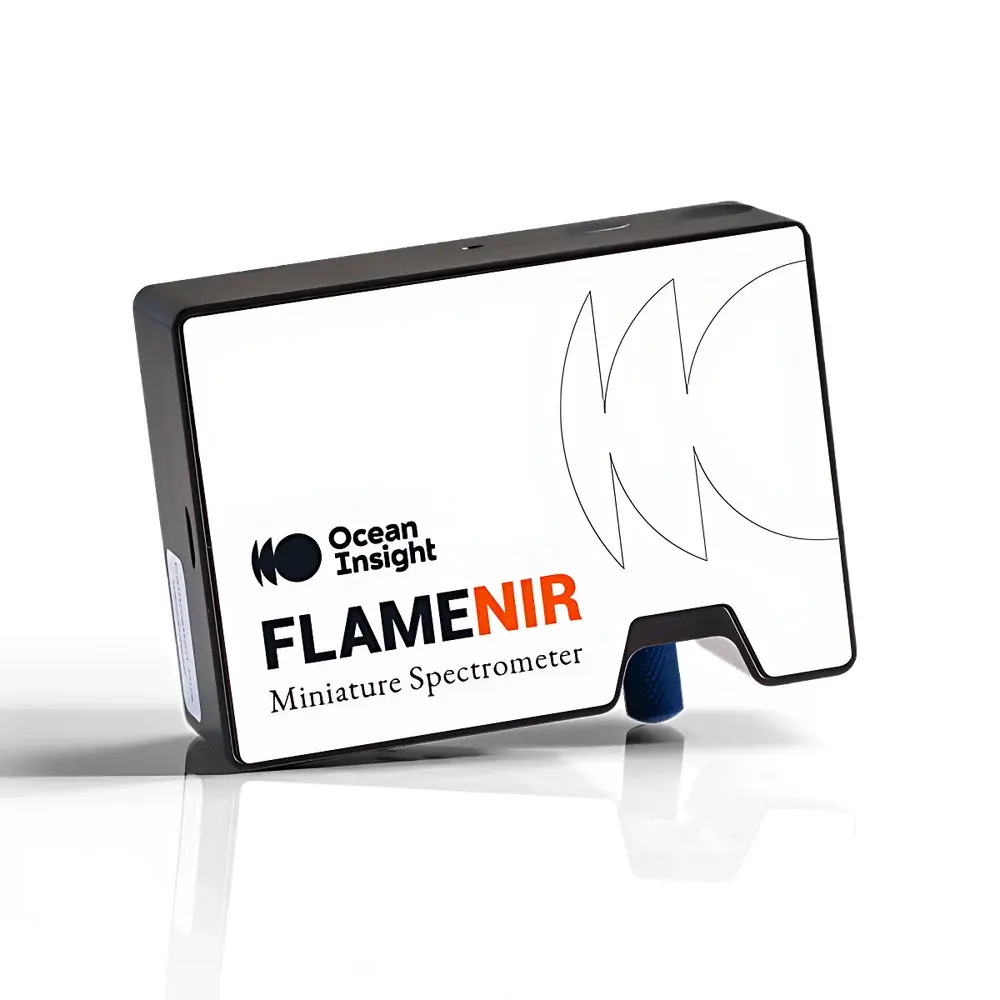

| Model | Flame-NIR+ |
| Type | Portable Spectrometer |
| Principle | Grating-based Scanning Spectroscopy |
| Wavelength Range | 970–1700 nm |
| Optical Resolution | ~10 nm FWHM (25 µm slit) |
| Signal-to-Noise Ratio | 6000:1 (full signal) |
| Dynamic Range | 6000:1 (single acquisition) |
| Thermal Drift | 0.08 nm/°C |
| Maximum Scan Rate | ~400 Hz |
| Integration Time | 1 ms – 45 s |
| Detector | Uncooled InGaAs linear array (128 pixels) |
| Dimensions | 89.1 × 63.3 × 31.9 mm (34.4 mm including feet) |
| Weight | 265 g |
| Interface | Micro-USB |
| Compliance | CE, RoHS, FCC Class B |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | HR4000CG-UV-NIR |
| Optical Architecture | Single-beam |
| Detector Type | Toshiba TCD1304AP CCD |
| Wavelength Range | 190–1100 nm |
| Grating | HC-1, 300 lines/mm |
| Slit Width | 5 µm |
| Optical Resolution (FWHM) | 0.75 nm |
| Stray Light | <0.05% at 600 nm |
| Integration Time | 4 ms–20 s (continuous) |
| Signal-to-Noise Ratio | 300:1 (full signal) |
| Dynamic Range (system) | 2×10⁹ |
| Interface | USB 2.0 (480 Mbps), RS-232 (2-wire), I²C |
| Operating Temperature | –10°C to +50°C |
| Storage Temperature | –30°C to +70°C |
| Humidity | 0–90% RH (non-condensing) |
| Dimensions | 148.6 × 104.8 × 45.1 mm |
| Weight | 0.57 kg |
| Fiber Connector | SMA 905 |
| Brand | Solar Light |
|---|---|
| Origin | USA |
| Model | SPF-290AS |
| Wavelength Range | 290–400 nm |
| Scan Resolution Options | 1 nm, 2 nm, or 5 nm |
| Compliance | ISO 23698:2024, ISO 23675:2024, ISO 24443, FDA Guidance, COLIPA, Boots Star Rating Methodology |
| Sample Types | Lotions, creams, sprays, gels, powders, emulsions, textiles |
| Data Output | Monochromatic Protection Factor (MPF), SPF, UV transmittance spectra |
| Software Features | Pre-loaded erythemal action spectrum & solar irradiance reference data (CIE 1987 / ISO 17166), user-modifiable weighting functions, audit-trail-enabled calculation logs |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | Ocean ST |
| Spectral Range | 185–650 nm (UV-VIS), 350–810 nm (VIS-NIR), 645–1085 nm (NIR) |
| Optical Resolution (FWHM, 25 µm slit) | 2.2 nm |
| Signal-to-Noise Ratio | 190:1 (single scan @ 10 ms), 2250:1 (1 s averaging, no buffer) |
| Dynamic Range | 1000:1 (single scan) |
| Stray Light | < 2.0 AU |
| Integration Time | 3.8 ms – 6 s |
| Scan Rate | 160 Hz (no buffer) |
| A/D Resolution | 14-bit |
| Thermal Stability | 0.05 pixel/°C |
| Interface | USB-C + 16-pin Samtec TFM-108-02-L-DH connector |
| Dimensions | 42.1 × 40.3 × 26.6 mm |
| Weight | 70.4 g |
| Brand | Ocean Optics |
|---|---|
| Origin | Imported |
| Model | Ocean HDX |
| Spectral Range | 200–925 nm |
| Detector Type | CCD |
| Optical Resolution (FWHM) | 0.61–0.72 nm (with 10 µm slit) |
| Signal-to-Noise Ratio | 400:1 |
| Dynamic Range | 12,000:1 |
| Stray Light | < 0.3% (typical, at 600 nm with 400 nm cutoff filter) |
| Onboard Storage Capacity | Up to 50,000 spectra |
| Interface Options | USB 3.0, Gigabit Ethernet, Wi-Fi (802.11ac), RS-232 |
| Operating Temperature Stability | ±0.05 nm/°C (wavelength drift) |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | STS Miniature Fiber Optic Spectrometer |
| Spectral Range | 200–1100 nm |
| Detector Type | CMOS |
| Optical Resolution (FWHM) | 1.0–12.0 nm (configurable via slit width) |
| Signal-to-Noise Ratio | >1500:1 (at maximum signal) |
| Dynamic Range | 5×10⁹ (system, 10 s integration) |
| Stray Light | ≤0.25% at 450 nm |
| Dimensions | 40 × 42 × 24 mm |
| Weight | 68 g |
| Integration Time | 10 µs – 10 s |
| Dark Noise | ≤3 counts RMS |
| Grating | 600 lines/mm |
| Input Connector | SMA 905 |
| Brand | Ocean Optics |
|---|---|
| Origin | Shanghai, China |
| Model | HR2000+ |
| Spectral Range | 200–1100 nm |
| Detector | Sony ILX511B linear CCD array (2048 pixels) |
| Optical Resolution (FWHM) | 0.035–6.8 nm |
| Sensitivity | 75 photons/count @ 400 nm |
| Signal-to-Noise Ratio | 250:1 (full signal) |
| Dynamic Range | 2 × 10⁸ (system) |
| 1300 | 1 (single acquisition) |
| Stray Light | <0.05% @ 600 nm |
| A/D Resolution | 14-bit |
| Integration Time | 1 ms – 65 s |
| Slit Options | 5, 10, 25, 50, 100, or 200 µm |
| Grating Options | 14 UV–NIR gratings including HC-1 for enhanced UV throughput |
| Optical Design | f/4 symmetrical crossed Czerny-Turner (101.6 mm focal length) |
| Interface | USB 2.0 (480 Mbps), RS-232 (115.2 kbaud), or Ethernet via Remora adapter |
| Trigger Modes | 4 hardware/software-selectable modes |
| Digital I/O | 10 programmable GPIO pins |
| Analog I/O | 1 × 13-bit input, 1 × 9-bit output |
| Dimensions | 148.6 × 104.8 × 45.1 mm |
| Weight | 570 g |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |

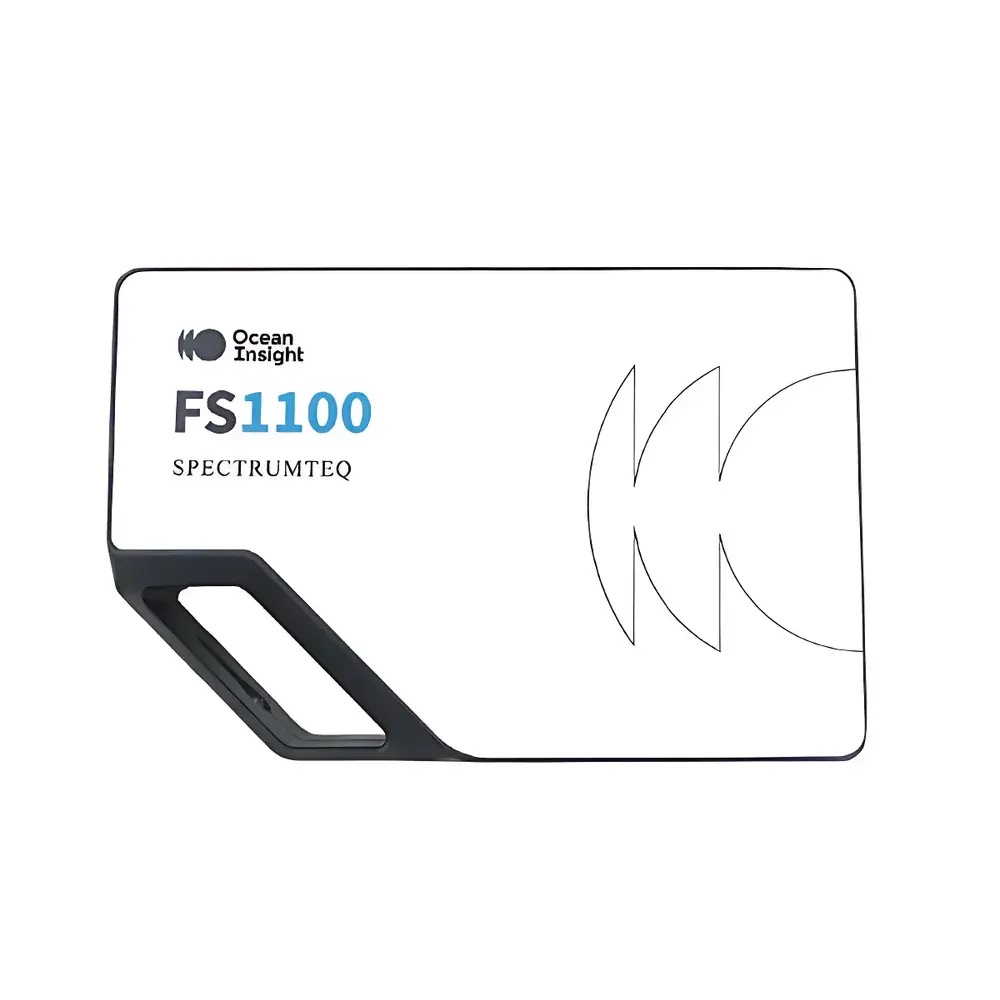

| Model | FS1100 |
| Spectral Range | 300–1100 nm |
| Detector | CCD |
| Optical Resolution (FWHM) | 1.3 nm |
| Signal-to-Noise Ratio | 450:1 |
| Dynamic Range | 8000:1 |
| Stray Light | <0.05% at 600 nm |
| Brand | Ocean Insight |
|---|---|
| Origin | USA |
| Detector Type | Back-Illuminated CCD |
| Spectral Range | Configurable from 185–1100 nm |
| Resolution | 18-bit ADC |
| Peak Quantum Efficiency | 90% |
| Signal-to-Noise Ratio | 1000:1 (full well, single acquisition) |
| Dynamic Range | 85,000 (typical, at full well capacity) |
| Stray Light | <0.08% at 600 nm |
| Cooling | Thermoelectrically cooled to –15 °C (stabilized ±0.1 °C) |
| Onboard Memory | 15,000 spectra buffer |
| Interface | USB 2.0 / USB 3.0 compatible |
| Slit Options | 5–200 µm (interchangeable) |
| Grating Options | Multiple groove densities and blaze wavelengths available |
| Internal Shutter | Optional for dark current optimization |
| Brand | Ocean Optics |
|---|---|
| Model | Maya2000 Pro |
| Spectral Range | 200–1100 nm |
| Detector Type | Back-Illuminated CCD |
| Optical Resolution | 0.07–6.7 nm (slit- and grating-dependent) |
| Signal-to-Noise Ratio | 450:1 |
| Dynamic Range | ~8000:1 |
| Stray Light | <0.05% at 600 nm, <0.10% at 435 nm |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | ACCUMAN SR-510 Pro |
| Instrument Type | Portable/Handheld Raman Spectrometer |
| Spectral Range | 200–3900 cm⁻¹ (configurable) |
| Spectral Resolution | 4–12 cm⁻¹ (dependent on grating and spectral window) |
| Laser Wavelength | 785 nm ± 0.5 nm, linewidth < 2 cm⁻¹, frequency stability < 0.1 cm⁻¹ |
| Laser Power | Up to 350 mW, 10-step linear adjustment |
| Detector | TE-cooled back-illuminated thin CCD array |
| Signal-to-Noise Ratio | 1000:1 |
| Integration Time | 0.1–30 s |
| Display | 4.5″ 720p capacitive multi-touch LCD |
| Data Interfaces | USB 2.0, Wi-Fi |
| Battery Life | >5 hours (rechargeable Li-ion) |
| Weight | 330 g (handheld probe), 3.8 kg (main unit) |
| Dimensions | 15.5 × 7.4 × 2.5 cm (probe), 29 × 22 × 10 cm (unit) |
| Operating Temperature | 0–45 °C |
| Software Features | Fluorescence background subtraction, spectral similarity matching, quantitative modeling, PDF/CSV/TXT/JDX/RDB export |
| Compliance | ASTM E1840, ISO 8573-1 (for optical path integrity), GLP/GMP-ready audit trail in software log |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |

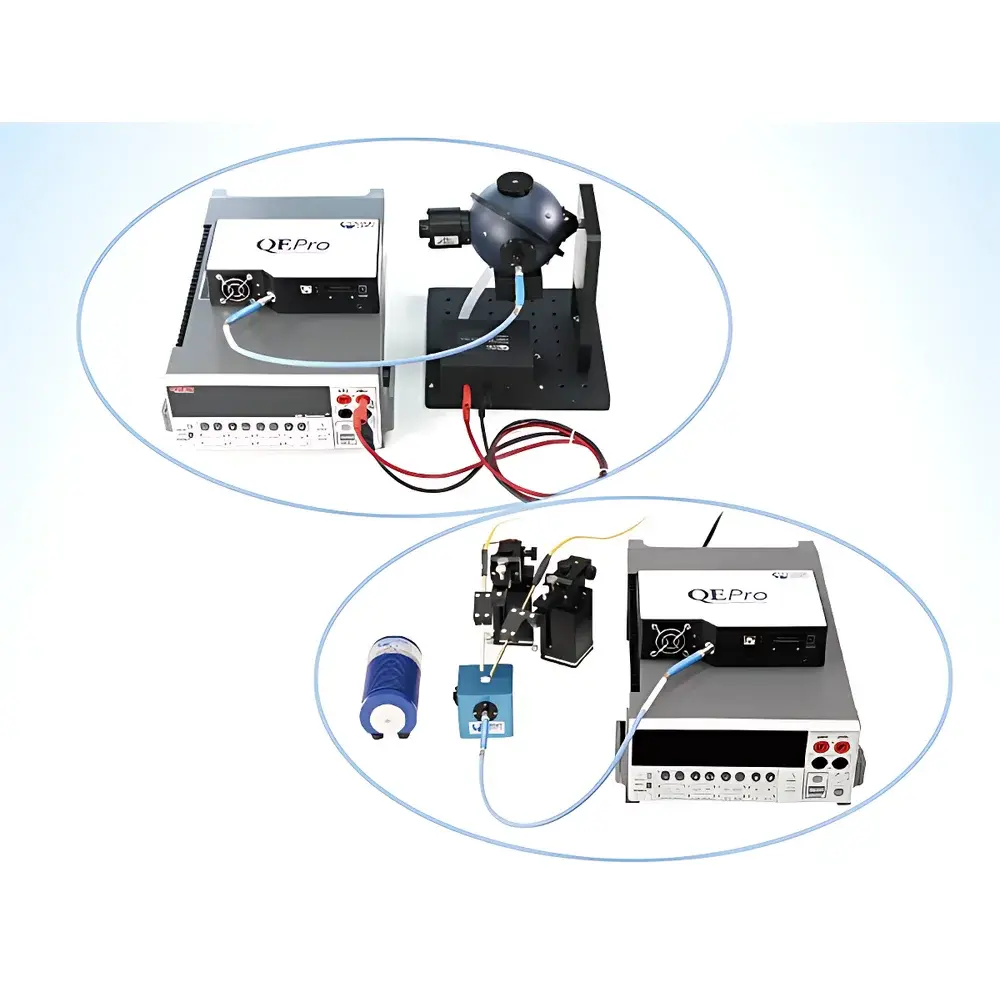

| Model | SpectrumTEQ-PL |
| Pricing | Upon Request |
| Spectrometer Options | QE Pro / QE65 Pro (350–1100 nm) or NIRQuest+ (900–1700 nm / 900–2200 nm) |
| SNR | 1000:1 (QE Pro, 100 ms) / 15,000:1 (NIRQuest+, 100 ms) |
| Optical Resolution (FWHM) | 2.5 nm (QE Pro) / 3.4–10.8 nm (NIRQuest+) |
| Dynamic Range | 85,000:1 (QE Pro, single acquisition) / 15,000:1 (NIRQuest+, single scan) |
| ADC | 18-bit (QE Pro) / 16-bit (QE65 Pro, NIRQuest+) |
| Integrating Sphere Diameter | 3.3″ (standard), 1.5″ (optional) |
| Sphere Coating | Spectralon® (PTFE-based, >99% reflectance, 250–2500 nm) |
| Light Source | HL-3-INT-CAL calibrated halogen lamp (5 W electrical power) |
| Excitation Source Compatibility | External CW or pulsed LEDs/lasers (user-supplied) |
| Fiber Core | 1000 µm (quartz, SMA 905, interchangeable) |
| Source Measure Unit | Keithley 2400 or 2450 (for electroluminescent mode) |
| Software | Ocean QY v3.x (Windows-based, guided workflow, ASTM E2758-compliant reporting) |
| Sample Environment | Glovebox-compatible (O₂/H₂O < 0.1 ppm), ambient or controlled atmosphere |
| Measurement Modes | Absolute photoluminescence quantum yield (PLQY), electroluminescence quantum yield (ELQY), spectral radiance, luminance, chromaticity (CIE 1931), dominant wavelength, radiant/photometric flux |
| Repeatability | PLQY ±5%, ELQY ±2%, dominant wavelength ±0.5 nm, luminance >98% (Lambertian reference) |
| Brand | Ocean Optics |
|---|---|
| Model | NIRQuest |
| Type | Laboratory-grade, Fiber-coupled, Thermoelectrically Cooled InGaAs Array Spectrometer |
| Wavelength Range | 900–1700 nm (standard), up to 2500 nm (optional configurations) |
| Optical Resolution | Configurable via slit width (10–200 µm) and grating selection |
| Detector | Hamamatsu InGaAs linear array (512 or 256 pixels) |
| Cooling | Thermoelectric (TEC), stabilized to ~30 °C below ambient |
| A/D Converter | 16-bit USB interface |
| Integration Time | As low as 1 ms |
| Measurement Modes | Diffuse reflectance, transmission |
| Software Compatibility | SpectraSuite (with spectral acquisition, real-time processing, and basic chemometric tools) |
| Compliance | CE, RoHS, FDA 21 CFR Part 11-ready via optional audit-trail configuration |
| Sample Interface | SMA905 fiber optic connector |
| Brand | Ocean Insight |
|---|---|
| Origin | USA |
| Model | FLAME-S / FLAME-T |
| Spectral Range | 190–1100 nm |
| Detector Type | CMOS (back-thinned or standard, model-dependent) |
| Optical Resolution (FWHM) | Configurable via slit width and grating selection |
| Sensitivity | Configuration-dependent (e.g., UV-enhanced or NIR-optimized) |
| Signal-to-Noise Ratio | 250:1 (full signal, 10 ms integration) |
| 300 | 1 (with on-chip binning) |
| Dynamic Range | 8.5 × 10⁷ (system, with 16-bit ADC and multi-integration) |
| Stray Light | <0.05% at 600 nm |
| Dimensions | 89.1 × 63.3 × 34.4 mm |
| Weight | 265 g |
| Interface | USB 2.0 (micro-B), no external power required |
| Operating Temperature | 0–40 °C |
| Thermal Drift | <0.03 nm/°C (typical, with onboard thermal stabilization) |
| Brand | Ocean Insight |
|---|---|
| Model | NIRQuest+ |
| Type | Portable Grating-Based Spectrometer |
| Wavelength Range | 900 nm – 2500 nm |
| Detector Cooling | Thermoelectric (TEC) to –20 °C |
| Dark Current | Low |
| Signal-to-Noise Ratio | High |
| Integration Time | Short (ms-scale typical) |
| Optical Compatibility | Fully compatible with Ocean Insight light sources, optical fibers, and sampling accessories |
| Configurations | NIRQuest+1.7 (900–1700 nm), NIRQuest+2.2 (900–2200 nm), NIRQuest+2.5 (900–2500 nm) |
| Compliance | Designed for GLP/GMP-aligned workflows |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | USB4000 |
| Spectral Range | 190–1100 nm |
| Detector | Toshiba TCD1304AP Linear CCD Array (3648 pixels, 8 µm × 200 µm) |
| Optical Resolution (FWHM) | 0.02–8.4 nm (configurable via grating & slit selection) |
| Sensitivity | 130 photons/count @ 400 nm |
| Signal-to-Noise Ratio | 300:1 (full signal) |
| Dynamic Range | 3.4 × 10⁶ (single acquisition) |
| Stray Light | <0.05% @ 600 nm |
| A/D Conversion | 16-bit with auto-zero and temperature-compensated dark correction |
| Integration Time | 3.8 ms – 10 min |
| Interface | USB 2.0 (480 Mbps), RS-232, SPI, I²C |
| GPIO | 8 programmable digital I/O pins |
| Dimensions | 89.1 × 63.3 × 34.4 mm |
| Weight | 190 g |
| Operating Systems | Windows, macOS, Linux |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | HR4 Pro |
| Spectral Range | 190 nm – 1100 nm |
| Detector Type | CCD |
| Optical Resolution (FWHM) | 0.42 nm (typical), 0.72 nm (typical) |
| Sensitivity | 6 counts/photon |
| Signal-to-Noise Ratio | 250:1, 290:1, and 300:1 (full signal, configuration-dependent) |
| Dynamic Range | 1500:1, 2000:1, and 2500:1 (integration-time dependent) |
| Stray Light | <0.05% at 600 nm |
| Configuration Options | UV-Vis (200–875 nm), Vis-NIR (350–1025 nm), Full Range (200–1100 nm) |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | FS1100 |
| Spectral Range | 300–1100 nm |
| Detector | CCD array |
| Optical Resolution (FWHM) | 1.3 nm |
| Signal-to-Noise Ratio | 450:1 |
| Dynamic Range | 8000:1 |
| Stray Light | <0.05% at 600 nm |
| Display | Monochrome e-ink screen |
| Battery | Removable 4200 mAh Li-ion, >6 h continuous operation |
| Interface | Android-based acquisition app + Windows-compatible spectral processing software |
| Data Export Formats | .txt, .csv, .m |
| Mounting | Adjustable tripod-compatible handle (29–88 cm height range) |
| Integrated features | Motorized shutter, auto-exposure, embedded image/audio annotation |
| Brand | Ocean Optics |
|---|---|
| Model | FLAME-NIR |
| Type | Portable NIR Spectrometer |
| Wavelength Range | 950–1650 nm |
| Optical Resolution | ~10 nm FWHM (configuration-dependent) |
| Signal-to-Noise Ratio | 6000:1 (full signal) |
| Dynamic Range | 6000:1 |
| Integration Time | 1 ms – 65 s |
| Scan Rate | 400 spectra/s |
| Detector | Uncooled InGaAs linear array (128 pixels, 900–1700 nm response) |
| Dimensions | 89.1 × 63.3 × 34.4 mm (incl. feet) |
| Weight | 265 g |
| Interface | Micro-USB (plug-and-play) |
| Software Compatibility | OceanView, NIR Tools, and third-party chemometrics platforms (e.g., MATLAB, Python with Ocean SDK) |
| Compliance | CE, RoHS, FCC Class B |
| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | SpectrumTEQ-EL |
| Spectral Range | 350–1100 nm |
| Detector | CCD |
| Optical Resolution | 2.5 nm (FWHM) |
| Sensitivity | 0.14–7.7 nm (wavelength-dependent responsivity) |
| Signal-to-Noise Ratio | 1000:1 |
| Dynamic Range | 85,000:1 (typical, single acquisition, QEPro) |
| Stray Light | <0.08% at 600 nm |
| Integrating Sphere Diameter | 3.3" or 1.5" |
| Sphere Coating | Spectralon® |
| Source Meter | Keithley 2400 |
| Fiber Core Diameter | 1000 µm (interchangeable) |
| Calibration Standard | HL-3-INT-CAL 2π geometry, 50 lm, 5 W |
| AD Resolution | 18-bit (QEPro), 16-bit (QE65Pro) |
| Software | SpectrumTEQ-EL dedicated application |
Show next
