| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Instrument Type | Benchtop |
| Integration | Modular |
| Laser Wavelength | 1064 nm (Nd:YAG, optional 532 nm) |
| Laser Pulse Energy | 50–200 mJ |
| Spectral Range | 180–1037 nm |
| Channels | 1–8 configurable |
| Optical Resolution | 0.1 nm (FWHM) |
| Detector | Linear or Area CCD |
| Trigger Delay Accuracy | ±450 ns |
| Trigger Jitter | ±10 ns |
| Spot Size | ≤50 µm |
| Sample Max Dimensions | 30 × 30 × 20 mm |
| Sample Max Mass | 2 kg |
| XYZ Translation Stage Range | 60 × 60 × 60 mm |
| Plasma Emission Detection Sensitivity | ≥10 ppm (element-dependent) |
| Fiber Optic Coupling | UV-Enhanced Silica Fiber |

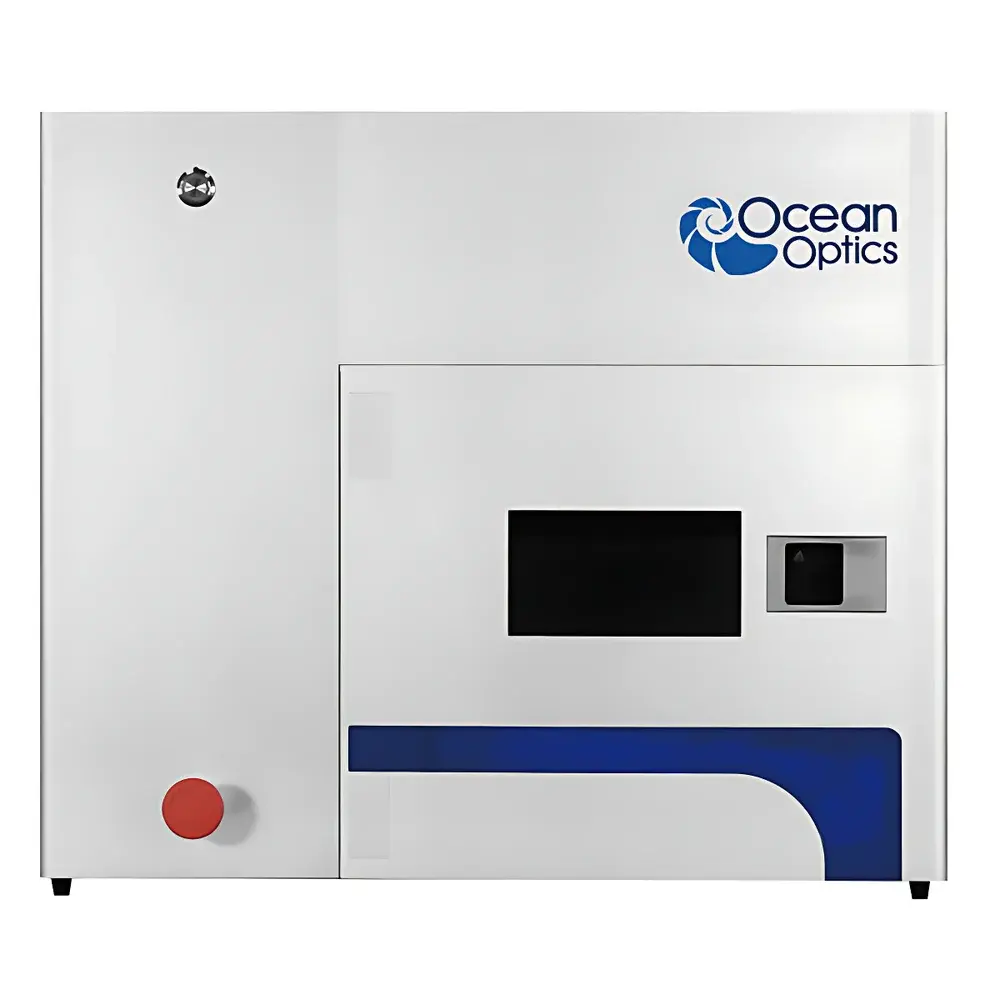

| Brand | Ocean Optics |
|---|---|
| Origin | USA |
| Model | ACCULIBS 2500 |
| Instrument Type | Benchtop |
| Integration | Fully Integrated |
| Laser Wavelength | 1064 nm |
| Translation Stage Range | 50 × 50 × 20 mm |
| Positioning Accuracy | ≥1 μm |
| Wavelength Coverage | 180–1037 nm (configurable) |
| Optical Resolution | 0.1 nm (FWHM) |
| Minimum Integration Time | 1 ms |
| Trigger Jitter | ±10 ns |
| Trigger Delay Range | ±450 μs |
| Spectral Channels | 1–8 |
| Gas Control | Solenoid-Valve Actuated Enclosure |
| Imaging | Optional 2× or 5× magnification, fixed-focus optical path |
