| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Model | InfraCal 2 ATR-B |
| Measurement Principle | Attenuated Total Reflectance (ATR) Mid-Infrared Spectroscopy |
| Compliant Standards | ASTM D7371, EN 14078 |
| Detection Range | 0–100% biodiesel in diesel |
| Repeatability | ±0.2% (0–30%), ±1.0% (30–100%) |
| Analysis Time | <30 seconds |
| Power Supply | Rechargeable Li-ion battery (18 V DC, 3.3 A), >6 h operation |
| Weight | 2.6 kg (net), 3.2 kg (with battery) |
| Dimensions | 17 × 19.8 × 13.2 cm |
| Operating Temperature | 5–40 °C |
| Interface | Touchscreen display, USB, RS-232 |
| Data Storage | Internal memory with user, location, date/time stamping |
| Language Support | English, Spanish, French, Arabic |
| Calibration Options | Pre-loaded ATR-B curve (405-2041-24), optional multi-point calibration kits (e.g., 403-1024) |
| Brand | GRABNER |
|---|---|
| Origin | Austria |
| Model | MINISCAN IR Vision Gasoline |
| Portability | Portable |
| Measurement Range | 70–110 (RON/MON) |
| Accuracy | ±1 ON |
| Analysis Time | 1 min |
| Sample Volume | 10 mL |
| Spectral Range | Mid-IR (KBr-coated Ge beam splitter) |
| Density Measurement | Integrated thermostatted densitometer, resolution ±0.0001 g/cm³ |
| Data Output Units | v%, m% |
| Display | 10-inch industrial-grade full-color touchscreen |
| Compliance | ASTM D5845, ASTM D6277, EN 238, SH/T 0797, ASTM E1655, GB/T 29858, GB/T 33648-2017 |
| Chemometric Engine | PLS (Partial Least Squares) with validated multivariate calibration models |
| Connectivity | 2× USB, 2× LAN |
| Power | 100–264 V AC, 47–63 Hz, 130 W |
| Dimensions | 293 × 390 × 280 mm |
| Weight | 12 kg |
| Brand | Spectro Scientific |
|---|---|
| Origin | USA |
| Model | InfraCal 2 ATR-E |
| Portability | Portable |
| Compliance | ASTM D4815 |
| Detection Range | 0–20% and 70–98% ethanol in gasoline |
| Repeatability | ±0.2% (0–20%), ±1.0% (70–98%) |
| Analysis Time | <30 seconds |
| Wavelength | 9.6 µm (1045 cm⁻¹) |
| Power | 18 V DC, 3.3 A |
| Battery Life | >12 hours (rechargeable Li-ion) |
| Weight | 2.6 kg (net), 3.2 kg (with battery) |
| Dimensions | 17 × 19.8 × 13.2 cm |
| Operating Temperature | 5–40 °C |
| Interface | USB, RS-232 |
| Data Storage | Internal, password-protected |
| Display | Touchscreen LCD |
| Language Support | English, Spanish, French, Arabic |
| Brand | GRABNER |
|---|---|
| Origin | Austria |

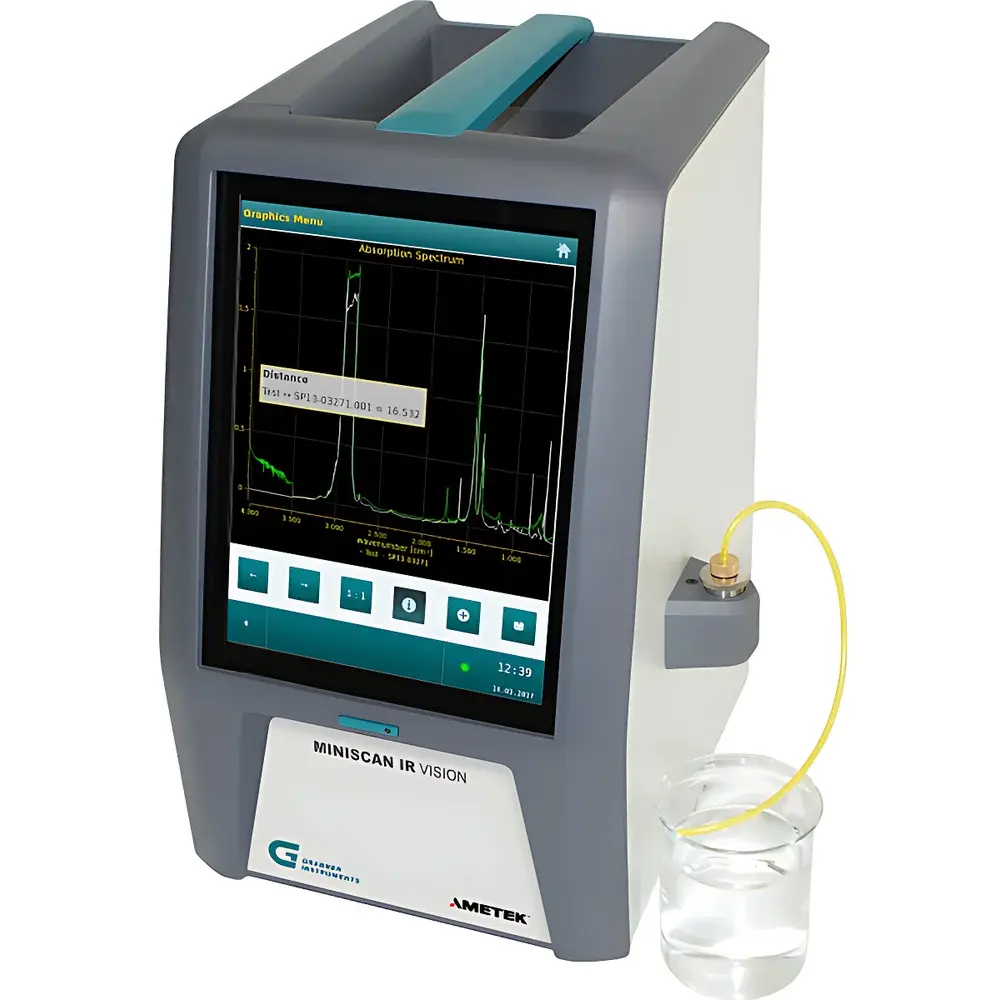

| Model | MINISCAN IR Vision |
| Application | Gasoline Octane Number (RON/MON), Diesel Cetane Number (CN) |
| Portability | Portable |
| Measurement Range | 70–110 |
| Measurement Accuracy | ±1 unit |
| Analysis Time | <5 min |
| Sample Volume | 6 mL |
| Compliance | GB/T 33648–2017, ASTM D5845, ASTM D6277, EN 238, SH/T 0797, EN 14078, ASTM D7806, GB/T 23801, ASTM E1655, GB/T 29858 |
| Spectral Technology | Fourier Transform Mid-Infrared (FT-MIR) with Dual Interferometer Architecture |
| Calibration Method | Partial Least Squares (PLS) Multivariate Quantitative Analysis |
| Integrated Density Measurement | Thermoelectrically Controlled Oscillating U-tube Densitometer |
| Operating Interface | 10-inch Industrial Capacitive Touchscreen (Multi-language: English, Chinese, German) |
| Data Storage | Internal SSD with Full Spectrum Archiving |
| Connectivity | 2× USB 3.0, 2× Gigabit Ethernet |
| Power Supply | 100–264 V AC, 47–63 Hz, 130 W |
| Optional Mobile Power | 12 V DC Vehicle Adapter |
| Dimensions | 293 × 390 × 280 mm |
| Weight | 12 kg |
| Brand | Grabner |
|---|---|
| Origin | Austria |
| Model | MINISCAN IR Vision Diesel |
| Portability | Portable |
| Measurement Parameter | Diesel Cetane Number |
| Measurement Range | 20–80 CN |
| Accuracy | ±1 CN |
| Analysis Time | 1 minute |
| Sample Volume | 10 mL |
| Compliance | ASTM D5845, ASTM D6277, EN 238, SH/T 0797, EN 14078, ASTM D7806, GB/T 23801, ASTM E1655, GB/T 29858 |
| Spectral Technology | FTIR with Dual Interferometer and Auto-Mirror Calibration |
| Chemometric Engine | PLS (Partial Least Squares) Multivariate Calibration |
| Database | SGS-Verified Real-Fuel Reference Library |
| Display | 10-inch Industrial Touchscreen |
| Power | 12 V DC Vehicle Adapter Compatible |
