| Brand | NOSELAB ATS |
|---|---|
| Origin | Italy |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | PNEUMATIC DIE CUTTER |
| Instrument Type | Semi-Automatic Pellet Press |
| Maximum Applied Force | 55 kN |
| Operating Pressure Range | 0–6 bar |
| Max. Sample Thickness | 16 mm |
| Max. Distance Between Die Holder and Worktable | 70 mm |
| Punch Stroke | 18 mm |
| Adjustable Ram Stroke | 30 mm |
| Platen Dimensions | 320 × 200 mm |
| Safety | Dual-Hand Operated Start + Polycarbonate Safety Guard |
| Die Features | Spring-Loaded Ejector Integrated |
| Compliance | ISO 178, ASTM D638, ISO 527, ISO 1856 |

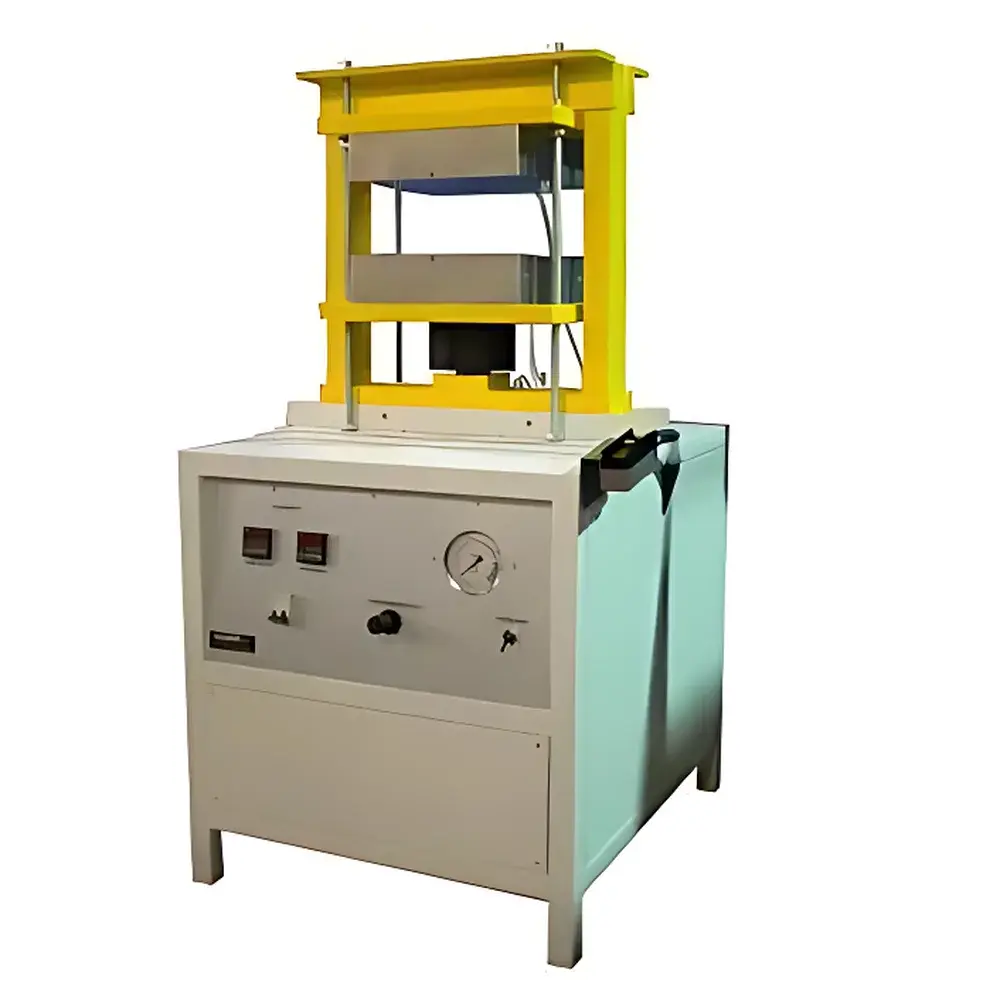

| Brand | ATSFAAR |
|---|---|
| Origin | Italy |
| Model | 10026120 |
| Max Operating Force | 100 kN (10 tonf) |
| Recommended Max Working Force | 70–80 kN |
| Platen Spacing Range | 0–200 mm |
| Bottom Platen Stroke | 180 mm (pneumatically adjustable) |
| Heating Plate Dimensions | 300 × 300 mm |
| Temperature Range | Ambient to 300 °C |
| Inlet Pressure | Compressed Air 5 bar, Cooling Water 3 bar |
| Electrical Supply | 230 V, 50 Hz, 6.4 kVA |
| Overall Dimensions (W × D × H) | 900 × 750 × 1450 mm |
| Net Weight | ~250 kg |
| Pressure Gauge | 150 mm dial, full scale 630 kg/cm² (≈61.8 MPa) |
| Brand | ATSFAAR |
|---|---|
| Origin | Italy |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | A1026110 |
| Instrument Type | Fully Automatic Pellet Press |
| Maximum Force | 265 kN (27,000 kgf) |
| Platen Area | 300 × 300 mm |
| Stroke Adjustment Range | 0–200 mm |
| Max Operating Temperature | 300 °C |
| Cooling Method | Integrated cooling channels in heated platens (air or recirculating water) |
| Control Option | Microprocessor-based digital programmable controller |
| Brand | ATSFAAR |
|---|---|
| Origin | Italy |
| Model | easy2818 |
| Cutting Speed | 0–20 m/min |
| Stroke Length | 30 mm |
| Notch Types | V-notch, U-notch |
| Feed Increment | 0.01 mm |
| Sample Clamp Height | 26 mm |
| Sample Clamp Width | 15 mm |
| Maximum Sample Thickness | 4 mm |
| Safety Enclosure | Polycarbonate Interlocked Guard |
| Compliance | ISO 179-1, ISO 180, ASTM D256, ASTM E23, EN ISO 8256 |
