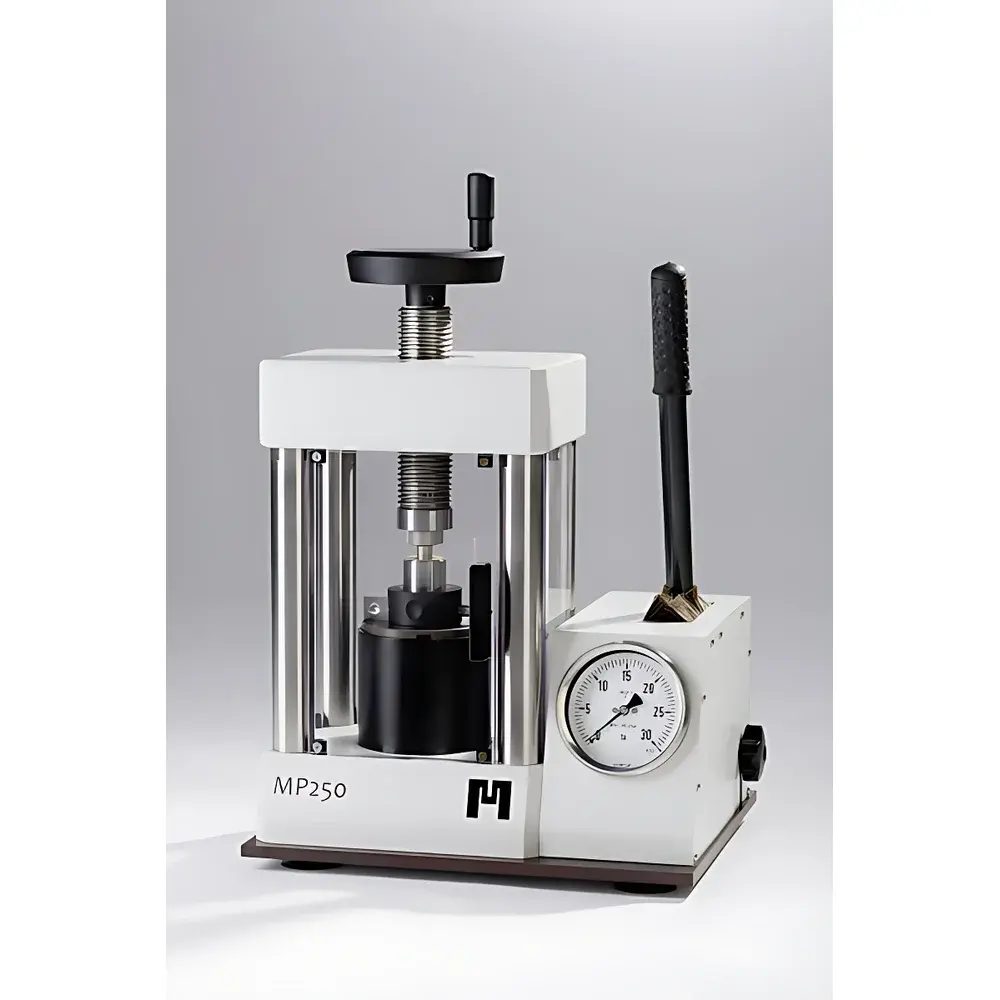

| Brand | Maassen |
|---|---|
| Origin | Germany |
| Model | MP250 / MP250D |
| Type | Manual Pellet Press |
| Maximum Force | 30 tons (294 kN) |
| Force Display | Analog (MP250, 0.5-ton increments) or Digital (MP250D, 0.01-ton resolution) |
| Column Spacing | 150 mm |
| Minimum/Maximum Net Height | 10 mm / 115 mm |
| Platen Diameter | 105 mm |
| Platen Stroke | 25 mm |
| Handle Diameter | 45 mm |
| Handle Stroke | 105 mm |
| Net Weight | 49.5 kg (MP250), 49 kg (MP250D) |
| Dimensions (W×D×H) | 400 × 360 × 300 mm |
| Construction | Stainless steel frame and high-grade aluminum components |
| Safety Features | Mechanical stroke limiter, active pressure limiter, polycarbonate safety guard |
| Compliance | Designed for ISO/IEC 17025-compliant sample preparation environments |
| Brand | Maassen |
|---|---|
| Origin | Germany |
| Model | MP25M |
| Type | Fully Automatic Hydraulic Pellet Press |
| Maximum Force | 25 metric tons (245 kN) |
| Pressure Resolution | 0.01 ton (10 kg) |
| Mold Compatibility | 13–40 mm diameter |
| Safety Features | Interlocked safety door, emergency stop button (red), pressure-limiting system |
| Construction | Stainless steel frame, anodized aluminum components, polycarbonate safety shield |
| Power Supply | 230 V / 50 Hz / 250 W |
| Net Weight | 68 kg |
| Dimensions (W×D×H) | 620 × 290 × 420 mm |
| Compliance | CE-marked, designed per EN 61000-6-2/6-4 (EMC), EN ISO 13857 (safety distances), EN 60204-1 (electrical safety) |
| Brand | Maassen |
|---|---|
| Origin | Germany |
| Model | MP5MD |
| Type | Fully Automatic Pellet Press |
| Maximum Force | 5 Ton (49 kN) |
| Pressure Resolution | 0.01 Ton (10 kgf) |
| Compatible Die Sizes | Up to 8 mm |
| Display | 4-Digit Digital LED |
| Safety Features | Polycarbonate Safety Shield, Interlocked Safety Door, Active Pressure Limiter |
| Construction | Stainless Steel & High-Grade Aluminum Frame |
| Power Supply | 230 V / 50 Hz / 250 W |
| Net Weight | 68 kg |
| Dimensions (W×D×H) | 620 × 290 × 420 mm |
| Compliance | CE-marked, Designed per EN 61000-6-2/6-4 EMC Standards, GLP-Compatible Operation Log |
| Brand | Maassen |
|---|---|
| Origin | Germany |
| Model | MP150 / MP150D |
| Type | Manual Hydraulic Pellet Press |
| Maximum Force | 15 tons (147 kN) |
| Pressure Display | Analog (MP150, ±0.25 ton resolution) or Digital (MP150D, ±0.01 ton resolution) |
| Platen Opening Width | 150 mm |
| Minimum–Maximum Net Height | 10–115 mm |
| Column Diameter | 105 mm |
| Stroke | 25 mm |
| Handle Diameter | 35 mm |
| Handle Max Travel | 100 mm |
| Net Weight | 43 kg |
| Dimensions (W×D×H) | 400 × 360 × 300 mm |
| Construction | Stainless steel frame + high-grade aluminum components |
| Safety Features | Polycarbonate safety shield, mechanical stroke limiter, active pressure limiter, manual bleed valve |
| Mold Compatibility | 10–40 mm diameter dies (standard and low-load applications) |
| Compliance | Designed and manufactured in accordance with DIN EN ISO 9001 |
