| Origin | Jiangsu, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic |
| Model | QM-F |
| Pricing | Upon Request |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Simoloyer CM01–CM900 |
| Instrument Type | High-Energy Horizontal Attritor Mill |
| Sample Suitability | Hard & Brittle Materials |
| Feed Size | ≤20 mm |
| Final Particle Size | <1 µm |
| Batch Processing Capacity | 200 g – 250 kg |
| Drive Power | 2.7–220 kW |
| Grinding Chamber Volume | 0.5–900 L |
| Operating Atmosphere | Air, Inert Gas (N₂, Ar), or Vacuum |
| Temperature Control | Integrated Heating/Cooling Jacket |
| Sealing System | Dual-Rotation Dynamic Seal with Air Lock Interface |
| Rotor Speed Range | Up to 3× Higher Than Conventional Ball Mills |
| Origin | Beijing, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |

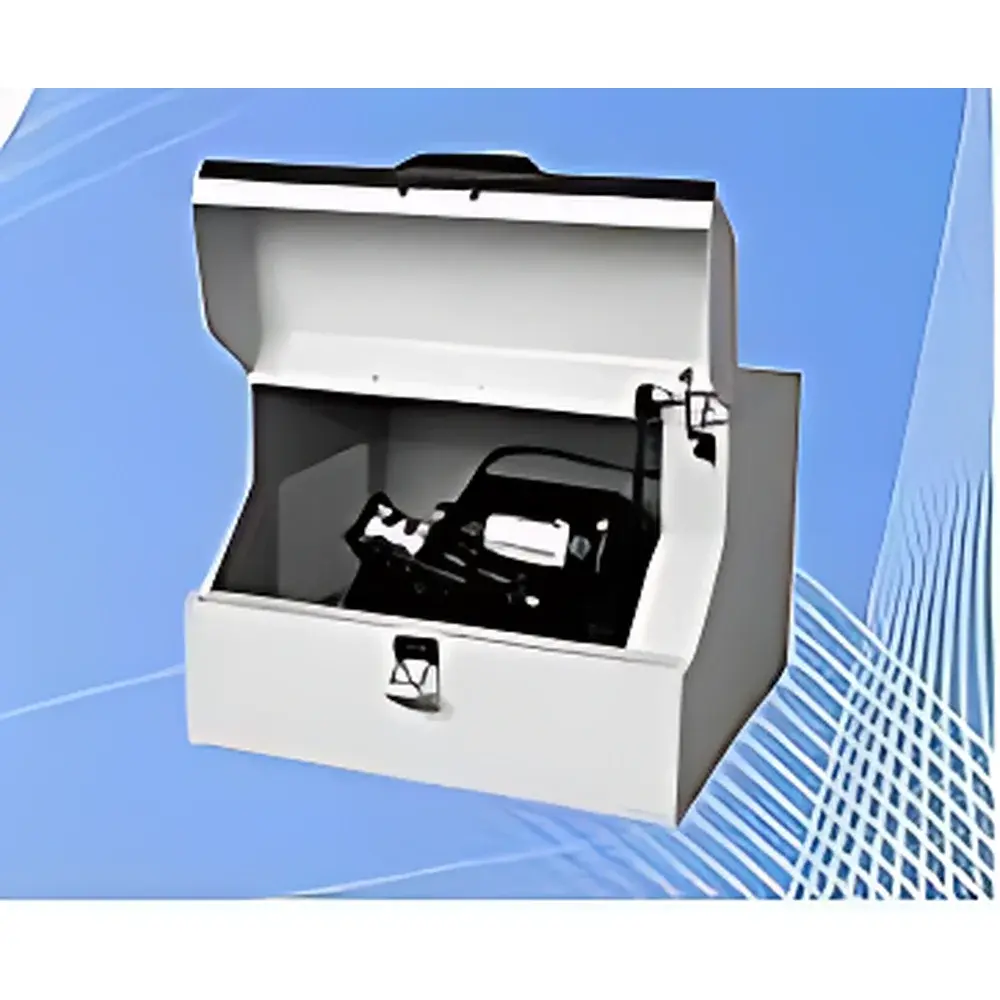

| Model | BHY-FM100 |
| Pricing | Available Upon Request |
| Maximum Sample Load per Vial | 1/3 of Vial Volume |
| Feed Size | <10 mm |
| Final Particle Size | Down to 0.1 µm |
| Oscillation Frequency | 1200 cycles/min |
| Timer Range | 0–72 h |
| Voltage/Power | 220 V AC / 200 W |
| Input Frequency | 50 Hz |
| Dimensions (W×D×H) | 450 × 375 × 280 mm |
| Weight | 18 kg |
| Brand | Chemplex |
|---|---|
| Origin | USA |
| Model | 1100 |
| Instrument Type | High-Energy Ball Mill |
| Sample Compatibility | Soft to moderately hard materials |
| Feed Size | < 2 mm |
| Final Particle Size | < 1 µm (typical), down to ≤ 0.01 mm (10 µm) achievable |
| Batch Capacity | 60 mL |
| Motor | 1/3 HP, Single-Phase 230 V / 50 Hz |
| Compliance | Designed for GLP-compliant laboratories |
| Brand | Pike |
|---|---|
| Origin | USA |

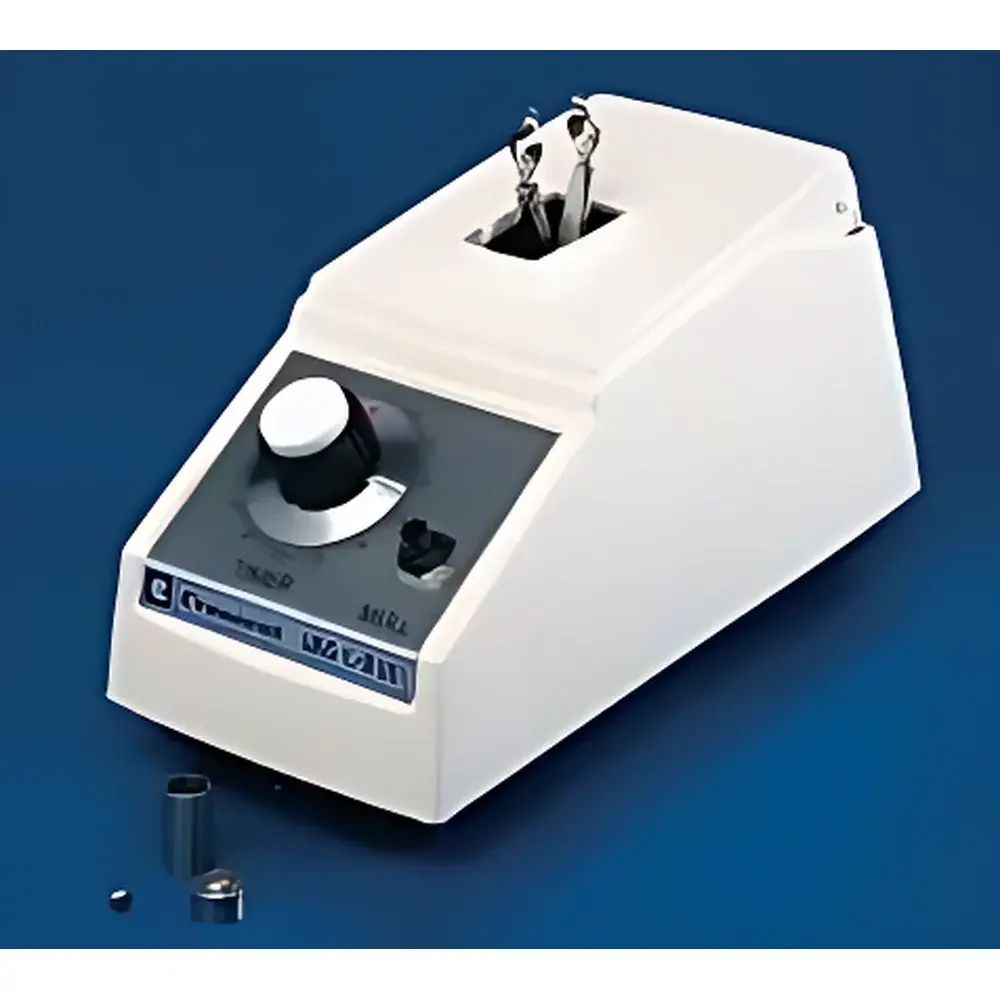

| Model | BHY-MIXER |
| Instrument Type | High-Energy Oscillatory Ball Mill |
| Sample Suitability | Hard & Brittle Materials |
| Feed Size | <15 mm |
| Final Particle Size | <0.01 mm (10 µm) |
| Output Size (for mixing) | <1 mm |
| Batch Capacity | 2 g |
| Motion | 8-shaped reciprocating oscillation at 6.5° angle |
| Frequency | >100 Hz impact rate |
| Speed | 3200 rpm equivalent effective agitation |
| Timer | 30 min (High-Efficiency Mode) / 60 min (Standard Mode) |
| Brand | Chemplex |
|---|---|
| Origin | USA |
| Model | 5000 |
| Grinding Disc Options | Hardened Steel (5050), Tungsten Carbide (5060), Zirconia Ceramic (5070) |
| Distribution Type | Authorized Distributor |
| Import Status | Imported Equipment |
| Origin | Germany |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

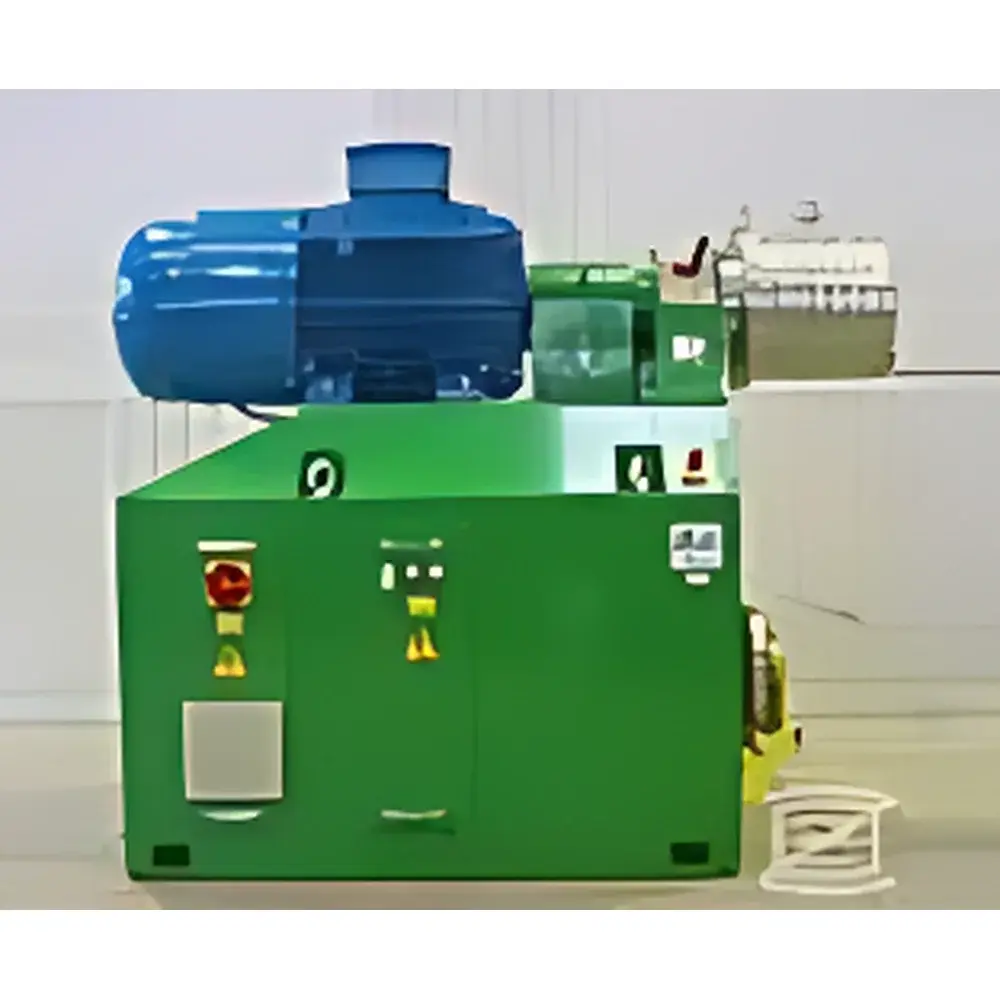

| Model | Simoloyer CM02 |
| Instrument Type | High-Energy Ball Mill |
| Grinding Chamber Volume | 0.5–900 L |
| Throughput Capacity | 200 g – 250 kg per batch |
| Drive Power | 2.7–220 kW |
| Maximum Feed Size | ~20 mm |
| Final Particle Size | <1 µm |
| Operating Atmosphere | Air, Inert Gas (e.g., Ar, N₂), or Vacuum |
| Temperature Control | Integrated Heating/Cooling Jacket |
| Sealing System | Dual-Rotor Dynamic Seal with Air Lock and Vacuum Compatibility |
| Rotor Speed Range | Up to 3× Higher Than Conventional Planetary Mills |
