| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |

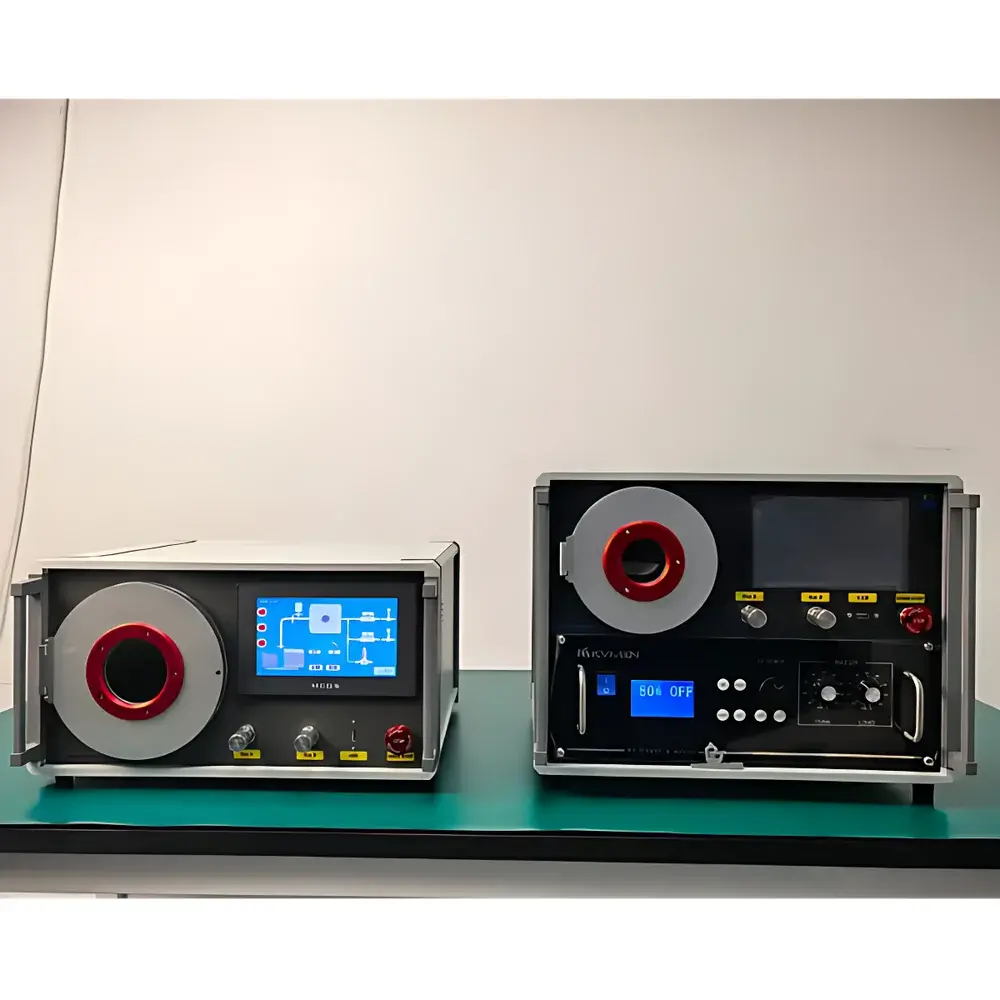

| Model | Z5KQX |
| Chamber Volume | 2–5 L |
| Heating Power | 150–500 W |
| Cleaning Temperature | 100 °C |
| External Dimensions (L×W×D) | 450 × 450 × 250 mm |
| RF Power | 150 W / 500 W |
| Operating Frequency | 40 kHz / 13.56 MHz |
| Vacuum Range | ≤30 Pa / ≤50 Pa |
| Chamber Material | High-Purity Quartz |
| Gas Flow Control | 0–50 mL/min (dual thermal mass flow sensors) |
| Vacuum Gauge Range | 1×10⁵ Pa to 1×10⁻¹ Pa (Pirani gauge) |
| Cooling Method | Forced Air Cooling |
| Control Interface | 7-inch Touchscreen HMI |
| Power Supply | AC 220 V (110 V optional) |
| Max. Operating Current | ≤3.5 A (excl. vacuum pump) |
