| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | GL0614 |
| Maximum Temperature | 1400°C |
| Control Accuracy | ±1°C |
| Rated Power | 5 kW |
| Heating Rate (to Max Temp) | 20°C/min |
| Heating Element | Silicon Carbide Rods |
| Internal Chamber Dimensions | 60 mm ID × 300 mm L |
| Furnace Type | Horizontal Vacuum/Atmosphere Tube Furnace |
| Tube Material | 99% Alumina Ceramic (Al₂O₃) |
| Sealing | 304 Stainless Steel KF Flanges with Dual Viton/Silicone O-Rings |
| Temperature Sensor | Type S Thermocouple |
| Control System | 30-Stage Programmable PID Controller with Auto-Tuning & Power-Fail Recovery |
| Insulation | Polycrystalline Molybdenum Fiber Blanket |
| Cooling | Dual-Layer Shell with Active Air-Cooling Fan (Auto-activated at surface temp ≥45°C) |
| Gas Compatibility | Inert (N₂, Ar), Oxidizing (O₂, CO₂), Non-Flammable/Non-Toxic Gases Only |
| Compliance | Designed for ISO/IEC 17025 laboratory environments |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | TL0912 |
| Furnace Type | Box-type Muffle Furnace |
| Max Temperature | 1200 °C |
| Control Accuracy | ±1 °C |
| Max Power | 3 kW |
| Heating Rate (to 1200 °C) | ≤40 min |
| Heating Method | HRE Resistance Wire |
| Chamber Dimensions (W×D×H) | 300×200×150 mm |
| Chamber Volume | 9 L |
| Power Supply | AC 220 V, 16 A |
| Thermocouple Type | K |
| Insulation Material | Ceramic Fiber |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | Custom |
| Voltage/Frequency | 220V/16A (6–9 L) |
| Max Temperature | 1000 °C / 1700 °C |
| Heating Rate | ≤30 min (100 → 1000 °C) |
| Chamber Volume | 6–60 L |
| External Surface Temp at 1000 °C Hold | ≤55 °C |
| Insulation | Ceramic Fiber Module |
| Heating Element | Dual-Side Mounted High-Temp Alloy or SiC Rods (Imported) |
| Control System | Digital PID Controller with Setpoint Programming & Ramp/Soak Profiles |
| Safety | Over-Temperature Protection, Door-Interlocked Power Cut-off, Ground Fault Detection |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | SXKW-100-4 |
| Configuration | 4-position (quadruple) |
| Rated Power | 400 W (for 100 mL × 4 configuration) |
| Max. Flask Capacity per Position | 100 mL |
| Dimensions (L×W×H) | 550 × 290 × 150 mm |
| Net Weight | 7.25 kg |
| Housing Material | Cold-rolled steel with electrostatic powder coating |
| Heating Element | Sealed Ni-Cr resistance wire embedded in high-temp alkali-free glass fiber insulation |
| Control System | PID-based digital temperature controller with LED display |
| Temperature Range | Ambient to 400 °C (adjustable in 1 °C increments) |
| Temp. Stability | ±1 °C at setpoint (under standard lab conditions) |
| Safety Features | Over-temperature cut-off, grounded chassis, no open flame |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | BX-2 / BX-6 / BX-10 |
| Temperature Control Range | 5–45 °C |
| Operating Ambient Temperature | 25 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ±1 °C |
| Temperature Fluctuation | ±0.1 °C |
| Chamber Dimensions (D×W×H) | 110×140×120 mm (BX-2) / 190×180×175 mm (BX-6) / 210×220×220 mm (BX-10) |
| External Dimensions (D×W×H) | 180×230×160 mm (BX-2) / 300×260×295 mm (BX-6) / 280×310×300 mm (BX-10) |
| Chamber Volume | 2 L / 6 L / 10 L |
| Inner Chamber Material | Stainless Steel (SUS304) |
| Heating Method | Tubular Heaters |
| Door Seal | Magnetic Gasket |
| Power Supply | 220 V AC |
| Power Consumption | 80 W (BX-2), 100 W (BX-6), 125 W (BX-10) |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | TL2014 |
| Furnace Type | Box-type Muffle Furnace |
| Max Operating Temperature | 1400 °C |
| Temperature Uniformity | ±1 °C |
| Heating Element | Silicon Carbide (SiC) Rods |
| Internal Chamber Dimensions | 400 × 250 × 200 mm (W×D×H) |
| Effective Volume | 30 L |
| Rated Power | 9 kW |
| Heating Rate | ≤80 min (100 °C to 1400 °C) |
| Control System | PID Digital Temperature Controller with Programmable Ramp/Soak Profiles |
| Power Supply | 3-Phase 380 V AC, 16 A |
| Thermal Insulation | High-Density Ceramic Fiber |
| Thermocouple Type | Type S (Platinum/Rhodium) |
| Safety Features | Automatic Power Cut-off on Door Opening, Surface Temperature <60 °C at 1000 °C Hold |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | TE1212 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 4 kW |
| Heating Rate to Max Temp | 30 °C/min |
| Heating Element | HRE Alloy Wire |
| Internal Chamber Dimensions | 300 × 200 × 220 mm |
| Insulation Material | Polycrystalline Mullite Ceramic Fiber (1500 °C rated) |
| Control System | 30-Stage Programmable PID Controller |
| Safety Protections | Over-Temperature, Thermocouple Break, Overload |
| Compliance | Designed for GLP-compliant sample ashing and thermal treatment per ASTM E1508, ISO 562, ISO 29541, and USP <281> |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | Custom Triple-Zone Vertical Tube Furnace |
| Instrument Type | Tube Furnace |
| Max Temperature | 1100 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 3000 W |
| Heating Rate (to Max Temp) | 30 °C/min |
| Heating Method | Resistance Wire |
| Internal Dimensions | 120 mm (ID) × 400 mm (L) |
| Control System | PID Intelligent Programmable Temperature Controller |
| Nominal Volume | 10 L |
| Compliance | ASTM E220, ISO/IEC 17025-compatible operation environment, GLP-aligned data logging capability |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Type | Tube Furnace |
| Max Temperature | 1700 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 10 kW |
| Heating Rate to Max Temp | ≤170 min (typical) |
| Heating Method | Electric (Fiber-Embedded Resistance Heating) |
| Internal Dimensions | Custom-Engineered per Drawing |
| Construction | Hybrid Fiber-Resistive Heating Module Assembly |
| Operating Temp Range | 1250–1600 °C (continuous), up to 1700 °C (intermittent) |
| Bulk Density | 200–600 kg/m³ |
| Thermal Conductivity | 0.16 W/(m·K) @ 1000 °C |
| Linear Shrinkage after Reheating | ≤2.0% @ 1500 °C × 1 h |
| Mechanical Workability | Machinable to Complex Geometries |
| Thermal Shock Resistance | High |
| Heat Capacity | Low |
| Brand | Zhongke Aobo |
|---|---|
| Model | TL3014 |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1400 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 7.5 kW |
| Heating Rate to Max Temp | 80 min |
| Heating Method | Resistance Wire (High-Temp Alloy) |
| Internal Chamber Dimensions | 400 × 300 × 250 mm (L×W×H) |
| Chamber Volume | 30 L |
| Insulation | Ceramic Fiber Module |
| Power Supply | 380 V, 3-Phase, 16 A |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | TL3012 |
| Furnace Type | Box-Type Muffle Furnace |
| Max Temperature | 1200 °C |
| Control Accuracy | ±1 °C |
| Rated Power | 6 kW |
| Heating Rate (to 1200 °C) | ≤60 min from 100 °C |
| Internal Dimensions | 400 × 300 × 250 mm |
| Chamber Volume | 30 L |
| Heating Element | HRE Resistance Wire |
| Insulation | Ceramic Fiber Module |
| Thermocouple Type | K |
| Power Supply | 3-Phase 380 V, 16 A |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | TL0417 |
| Instrument Type | Box Furnace |
| Maximum Temperature | 1700 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 4000 W |
| Heating Time to Max Temp | ≤90 min |
| Heating Element | Silicon Molybdenum (MoSi₂) Rods |
| Internal Chamber Dimensions | 170 × 160 × 150 mm (L×W×H) |
| Chamber Volume | 4 L |
| Insulation Material | Ceramic Fiber Module |
| Power Supply | AC 220 V, 20 A single-phase |
| Brand | Zhongke Aobo |
|---|---|
| Model | TL0617 |
| Type | Box-Type Muffle Furnace |
| Max Temperature | 1700 °C |
| Rated Temperature | 1600 °C |
| Internal Chamber Dimensions (W×D×H) | 250 × 160 × 150 mm |
| Chamber Volume | 6 L |
| Heating Element | Silicon-Molybdenum (MoSi₂) Rods |
| Temperature Control Accuracy | ±1 °C |
| Power Rating | 5 kW |
| Supply Voltage | AC 220 V, 25 A |
| 升温 Time (100 → 1700 °C) | <90 min |
| Insulation Material | High-Purity Alumina-Silica Ceramic Fiber |
| Thermocouple Type | Type B (Pt/Rh) |
| Weight | 95 kg |
| Compliance | Designed for GLP-compliant sample ashing, thermal analysis, and materials processing per ASTM E1131, ISO 1171, USP <281>, and EN 15407 |
| Brand | Zhongke Aobo |
|---|---|
| Model | TL2014 |
| Type | Benchtop Box-Type Muffle Furnace |
| Max Operating Temperature | 1400 °C |
| Chamber Volume | 20 L |
| Heating Element | Resistance Wire (Ni-Cr Alloy) |
| Thermocouple Type | S-Type (Platinum-Rhodium) |
| Power Supply | 3-Phase 380 V AC, 16 A |
| Rated Power | 6 kW |
| Chamber Dimensions (W×D×H) | 250 × 400 × 200 mm |
| External Dimensions (W×D×H) | 660 × 770 × 595 mm |
| Net Weight | 85 kg |
| Temperature Uniformity | ±5 °C at 1300 °C |
| Control System | PID Programmable Controller with 50-step Ramp/Soak Profile |
| Surface Temperature (at 1000 °C hold) | ≤55 °C |
| Insulation | High-Density Ceramic Fiber (1400 °C Grade) |
| Compliance | Designed per IEC 61000-6-3 (EMC), GB/T 10066.1–2004 (Industrial Furnaces), and ISO/IEC 17025:2017 (for laboratory use environments) |
| Brand | Zhongke Aobo |
|---|---|
| Model | ML |
| Type | Benchtop Digital Thermostatic Heating Plate |
| Construction | Cold-rolled steel housing with epoxy coating |
| Heating Surface | 304 stainless steel or cast iron (user-selectable) |
| Temperature Control | PID-regulated digital LED controller |
| Max Operating Temperature | 400 °C |
| Power Range | 1.5–3 kW (model-dependent) |
| Input Voltage | 220 V AC, 50 Hz |
| Dimensions (L×W×H) | 400×280×200 mm / 450×350×200 mm / 600×400×200 mm |
| Compliance | CE-marked design principles |
| Brand | Zhongke Aobo |
|---|---|
| Model | UMB-12 / UMB-24 / UMB-36 |
| Temperature Range | RT+5°C to 150°C |
| Temperature Accuracy | ±0.3°C |
| Temperature Resolution | ±0.1°C |
| Timer Range | 0–99 h 59 min (with audible alarm and continuous mode) |
| Heating Power | 150 W (UMB-12), 200 W (UMB-24), 300 W (UMB-36) |
| Dimensions (L×W×H) | 200×220×120 mm (UMB-12/24), 280×240×120 mm (UMB-36) |
| Net Weight | 2.7 kg (UMB-12), 3.8 kg (UMB-24), 5.2 kg (UMB-36) |
| Input Voltage | 220 V ±10%, 50 Hz ±1 Hz |
| Standard Block Configuration | 12/24/36 × φ17 mm wells |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | General Distributor |
| Product Origin | Domestic |
| Model | SJ |
| Price | USD 145 (approx.) |
| Heating Element Surface Temp | 380°C |
| Input Voltage | 220 V ±10%, 50 Hz |
| Enclosure | Cold-Rolled Steel with Electrostatic Powder Coating |
| Insulation | High-Temperature Alkali-Free Glass Fiber |
| Heating Element | Sealed Ni-Cr Resistance Wire |
| Control Options | Electronic Variable-Temp or Intelligent Digital PID Controller |
| Available Capacities | 100–5000 mL |
| Inner Chamber Dimensions (Ø × H, mm) | φ53×45 to φ180×180 |
| Power Rating | 100–1000 W |

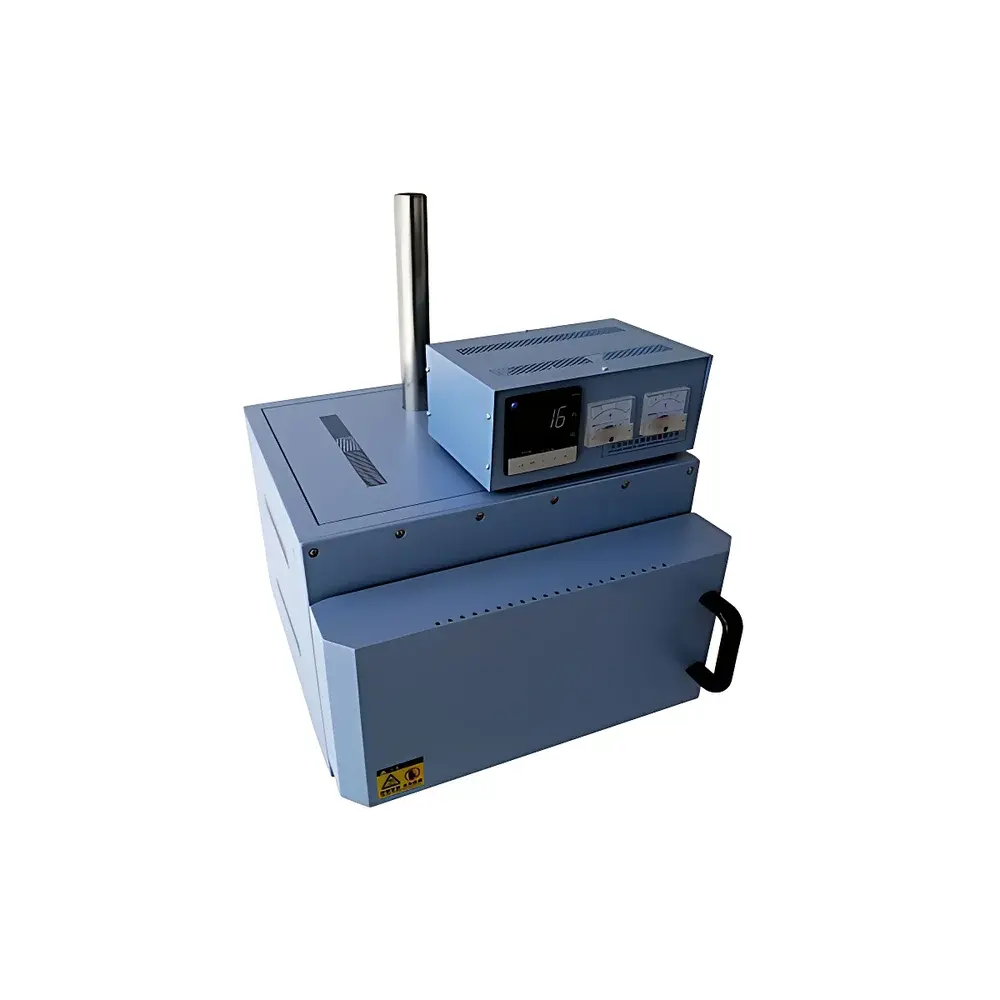

| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | TL-3012 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Max Power | 7.5 kW |
| Heating Rate (to Max Temp) | 50 °C/min |
| Heating Method | Resistance Wire |
| Internal Chamber Dimensions (W×D×H) | 400×300×250 mm |
| Chamber Volume | 30 L |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | HJ-6 |
| Heating Element Surface Temperature | 380 °C |
| Voltage | 220 V ±10%, 50 Hz |
| Speed Range | 0–1200 rpm |
| Insulation Material | High-Temperature Alkali-Free Fiber |
| Heating Element | Sealed Ni-Cr Resistance Wire |
| Enclosure | Seamless Drawn Metal Shell with Epoxy Powder Coating |
| Control Type | Solid-State Electronic Temperature & Speed Regulation |
| Compliance | Designed for General Laboratory Use under IEC 61010-1 Safety Standards |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |

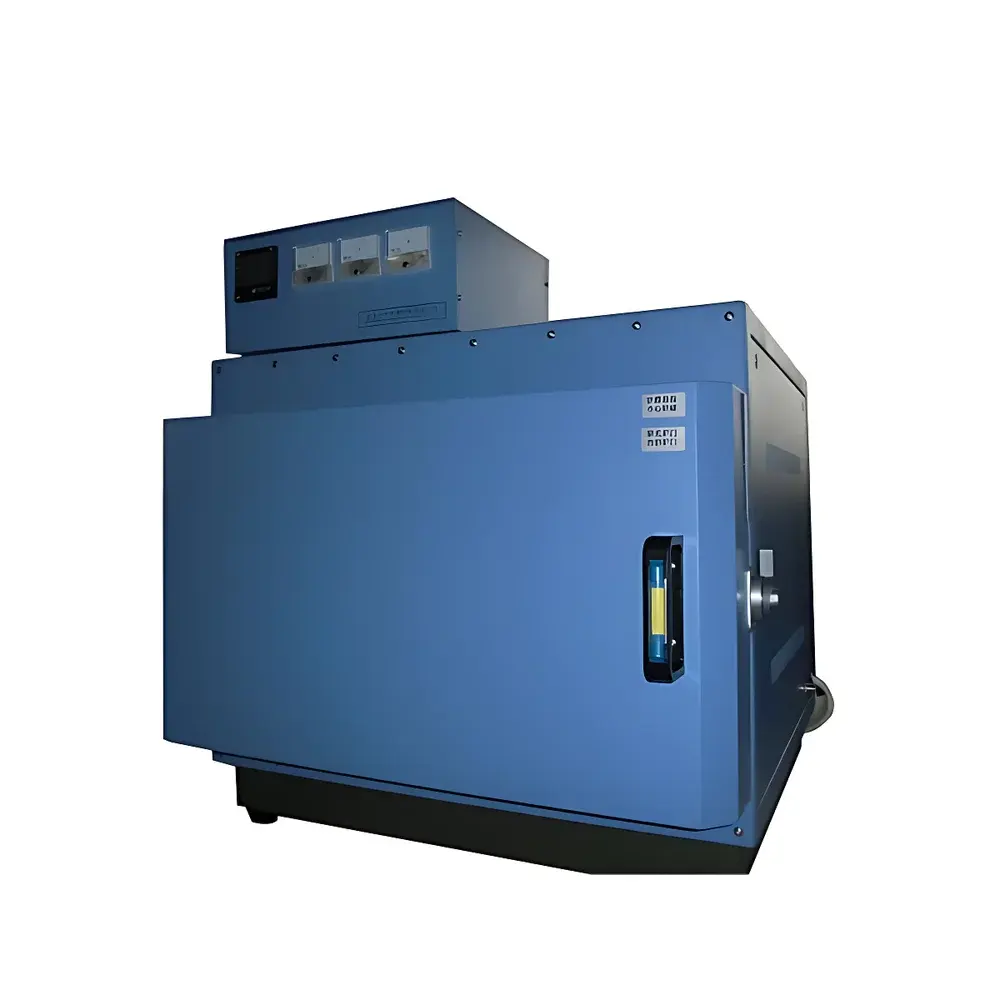

| Model | TL3010 |
| Instrument Type | Box-Type Muffle Furnace |
| Maximum Temperature | 1200 °C |
| Temperature Control Accuracy | ±1 °C |
| Rated Power | 7.5 kW |
| Heating Time to Max Temp | ≤50 min (from 100 °C to 1200 °C) |
| Heating Method | Electric Alloy Radiant Heating |
| Internal Chamber Dimensions | 400 × 300 × 250 mm (W×D×H) |
| Chamber Volume | 30 L |
| Thermal Insulation | High-Density Ceramic Fiber Module |
| Heating Element | HRE Resistance Wire (replaceable as modular units) |
| Thermocouple Type | K-type |
| Controller | PID Intelligent Programmable Controller (30-step ramp/soak) |
| Safety Features | Automatic Power Cut-off Upon Door Opening |
| Power Supply | 3-Phase 380 V AC, 16 A |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

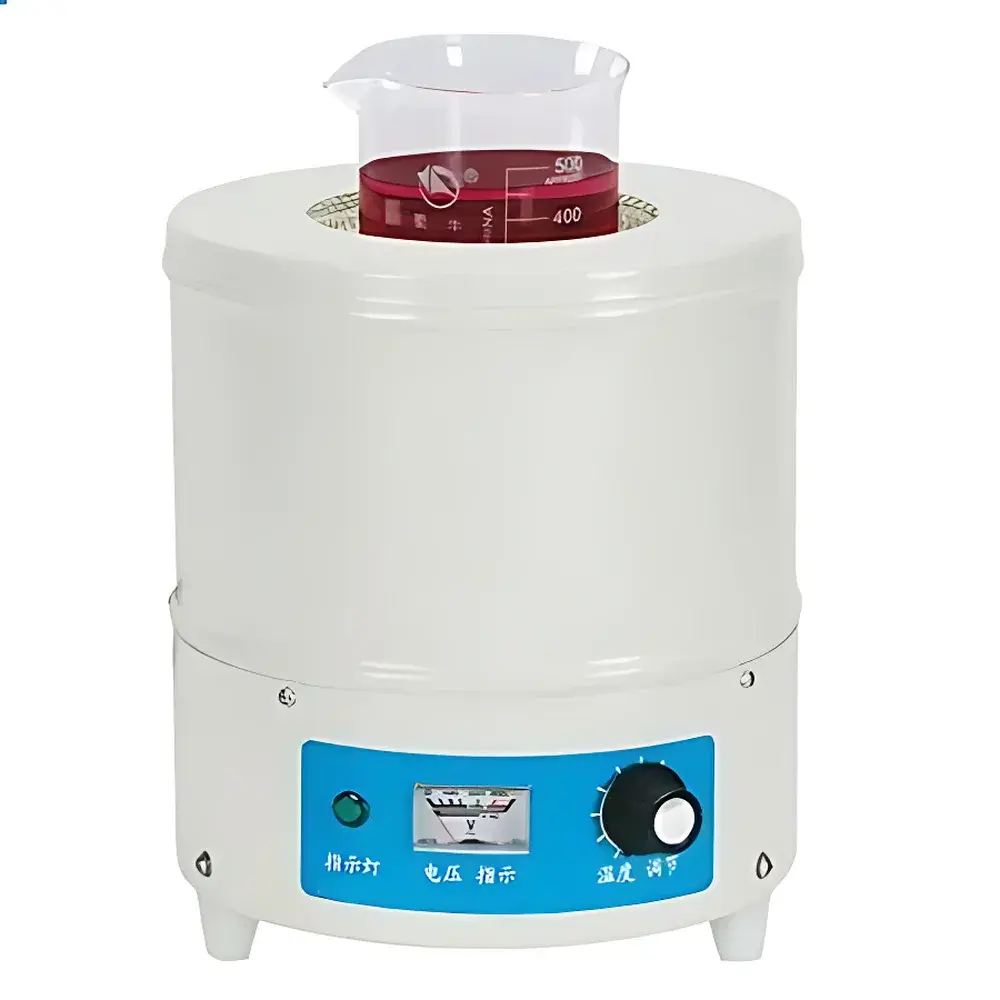

| Model | SXKW |
| Price | USD 72 (approx.) |
| Heating Capacity | 100–50,000 mL |
| Power Range | 180–6000 W |
| Input Voltage | 220 V ±10%, 50 Hz |
| Max Surface Temperature | 380 °C |
| Control Method | Digital PID Temperature Controller with LED Display |
| Temperature Setting Resolution | 1 °C |
| Operating Mode | Continuous Duty |
| Construction | Cold-Rolled Steel Housing with Electrostatic Powder Coating |
| Safety Features | Over-Temperature Protection, Ground Fault Detection, Thermal Insulation Layer |
| Compliance | CE-marked per IEC 61010-1 (Laboratory Equipment Safety), RoHS 2 Directive Compliant |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | DZKW-D-1 to DZKW-D-4 (Single/Double Row, 1–8 Wells) |
| Bath Volume | 2–18 L |
| Temperature Range | Ambient +10°C to 100°C |
| Temperature Uniformity | ≤ ±1°C |
| Temperature Stability (Fluctuation) | ≤ ±1°C |
| Control Accuracy (Setpoint Deviation) | ≤ ±2°C |
| Heating Power | 300–2000 W |
| Supply Voltage | 220 V, 50 Hz |
| Chamber Dimensions (W×D×H, mm) | 170×170×90 to 620×325×90 |
| Construction | Stainless Steel Interior & Lid, Electrostatically Powder-Coated Exterior |
| Control Options | Analog Pointer or Digital LED Display |
| Circulation | Non-Circulating (Static Bath) |
| [Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |

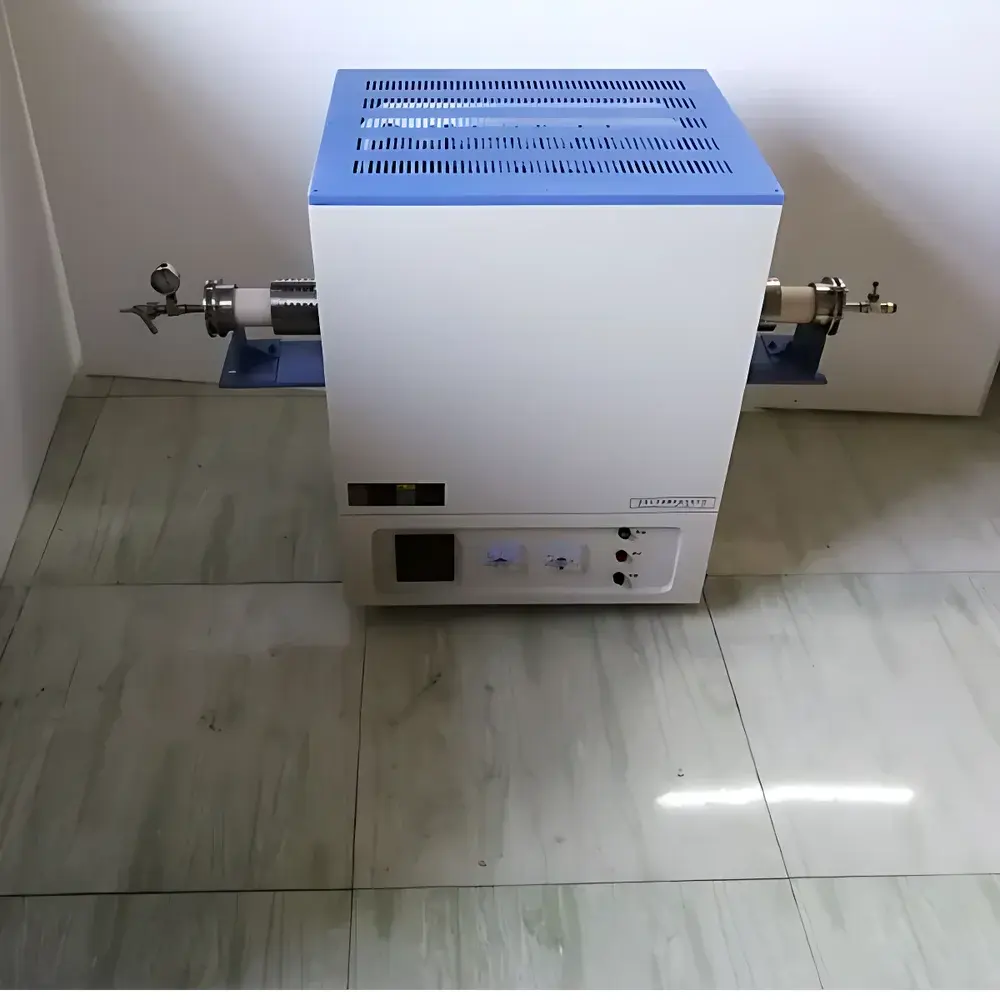

| Model | GL1012 |
| Max Temperature | 1200 °C |
| Control Accuracy | ±1 °C |
| Max Power | 3000 W |
| Heating Rate (to max temp) | 30 °C/min |
| Heating Method | Resistance Wire (HRE Alloy) |
| Chamber Dimensions | 120 mm ID × 420 mm L |
| Control System | PID-based 30-Stage Programmable Controller |
| Tube Dimensions | Φ100/Φ92 mm × 1000 mm (quartz or high-purity alumina ceramic options available) |
| Insulation | Polycrystalline mullite fiber vacuum-formed lining |
| Sealing | Dual-O-ring KF stainless steel flanges (304 SS) |
| Gas Compatibility | Inert (N₂, Ar), oxidizing (O₂, CO₂), reducing (H₂, forming gas) — non-toxic/non-explosive only |
| Safety Features | Surface temperature auto-cooling (fan activation at ≥45 °C), over-temperature alarm, step-joint furnace door design for structural integrity and thermal containment] |
| Brand | Zhongke Aobo |
|---|---|
| Origin | Beijing, China |
| Model | TE0414 |
| Instrument Type | Box-Type Muffle Furnace |
| Max Temperature | 1400 °C |
| Operating Temperature Range | 300–1300 °C |
| Temperature Control Accuracy | ±1 °C |
| Heating Element | Silicon Carbide Rod (SiC) |
| Thermocouple Type | S-Type |
| Power Rating | 4000 W |
| Ramp Rate to Max Temperature | 40 °C/min |
| Internal Chamber Dimensions | 150 × 150 × 200 mm (W × D × H) |
| Insulation Material | 1600 °C-rated Polycrystalline Mullite Ceramic Fiber |
| Control System | 30-Stage Programmable PID Controller |
| Safety Protections | Over-Temperature, Thermocouple Break, and Overload Protection |
| Surface Temperature at 1000 °C | ≤50 °C (measured after 1 h stabilization) |
| Compliance | Designed per GB/T 10066.1–2004 (General Requirements for Industrial Resistance Furnaces), compatible with ISO/IEC 17025 laboratory environmental conditioning workflows |
Show next
