| Brand | Coolium |
|---|---|
| Origin | Beijing, China |
| Model | DX-5020 |
| Instrument Type | Vertical |
| Temperature Range | −50 °C to −20 °C |
| Temperature Stability | ±0.1 °C |
| Temperature Uniformity | ±0.1 °C |
| Minimum Operating Temperature | −50 °C |
| Bath Opening | Ø300 × 300 mm |
| Bath Volume | 20 L |
| External Dimensions (W×D×H) | 580 × 750 × 1580 mm |
| Net Weight | 89 kg |
| Refrigeration Capacity | 1000 W @ −50 °C |
| Circulation Pressure | 2–8 bar |
| Flow Rate | 20–28 L/min |
| Cooling Method | Air-cooled or water-cooled (configurable) |
| Safety Protections | High/Low pressure, oil pressure, leakage, overload, overtemperature |
| Brand | Coolium |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | CT4-80 |
| Instrument Type | Horizontal |
| Temperature Stability | ≤ ±0.1 °C at –50 °C |
| Temperature Uniformity | ±0.3 °C across bath volume |
| Setpoint Resolution | 0.1 °C |
| Minimum Operating Temperature | –80 °C |
| Bath Volume | 4 L |
| External Dimensions | 360 × 600 × 300 mm (W × D × H) |
| Net Weight | 35 kg |
| Brand | Coolium |
|---|---|
| Origin | Beijing, China |
| Model | HX-205 |
| Type | Vertical |
| Temperature Range | –40 °C to 95 °C |
| Temperature Stability | ±0.1 °C |
| Temperature Uniformity | ±0.1 °C across bath volume |
| Setpoint Resolution | 0.1 °C (optional 0.01 °C) |
| Bath Volume | 5–20 L |
| Circulation Flow Rate | 5–10 L/min |
| Circulation Pressure | 0.25 bar |
| Working Distance (Bath Depth) | 150–250 mm |
| External Dimensions | W215 × D405 × H550 mm |
| Net Weight | 30 kg |
| Circulating Medium | Deionized Water |
| Refrigeration Capacity | 200 W at 20 °C |
| Power Supply | AC 220 V / 50 Hz / 10 A |
| Open Bath Opening | W145 × D150 mm |
| Brand | Coolium |
|---|---|
| Origin | Beijing, China |
| Model | DX-80A1000H |
| Temperature Range | −80 °C to +80 °C |
| Temperature Uniformity | ±0.2 °C |
| Minimum Operating Temperature | −80 °C |
| Bath Opening | Φ300 × 300 mm |
| Heating Capacity | 80 °C (heating function) |
| Bath Volume | 20 L |
| External Dimensions | 580 × 750 × 1580 mm (W × D × H) |
| Net Weight | 162 kg |
| Circulation Pressure | 1.2 bar |
| Flow Rate | 15 L/min |
| External Port | Rc1/2″ (female thread) |
| Cooling Medium | Deionized Water |
| Refrigerant | Eco-friendly, non-CFC/HFC blend (R507/R23 cascade system) |
| Control System | Microprocessor-based PID controller with RS485 optional |
| Brand | Coolium |
|---|---|
| Origin | Beijing, China |

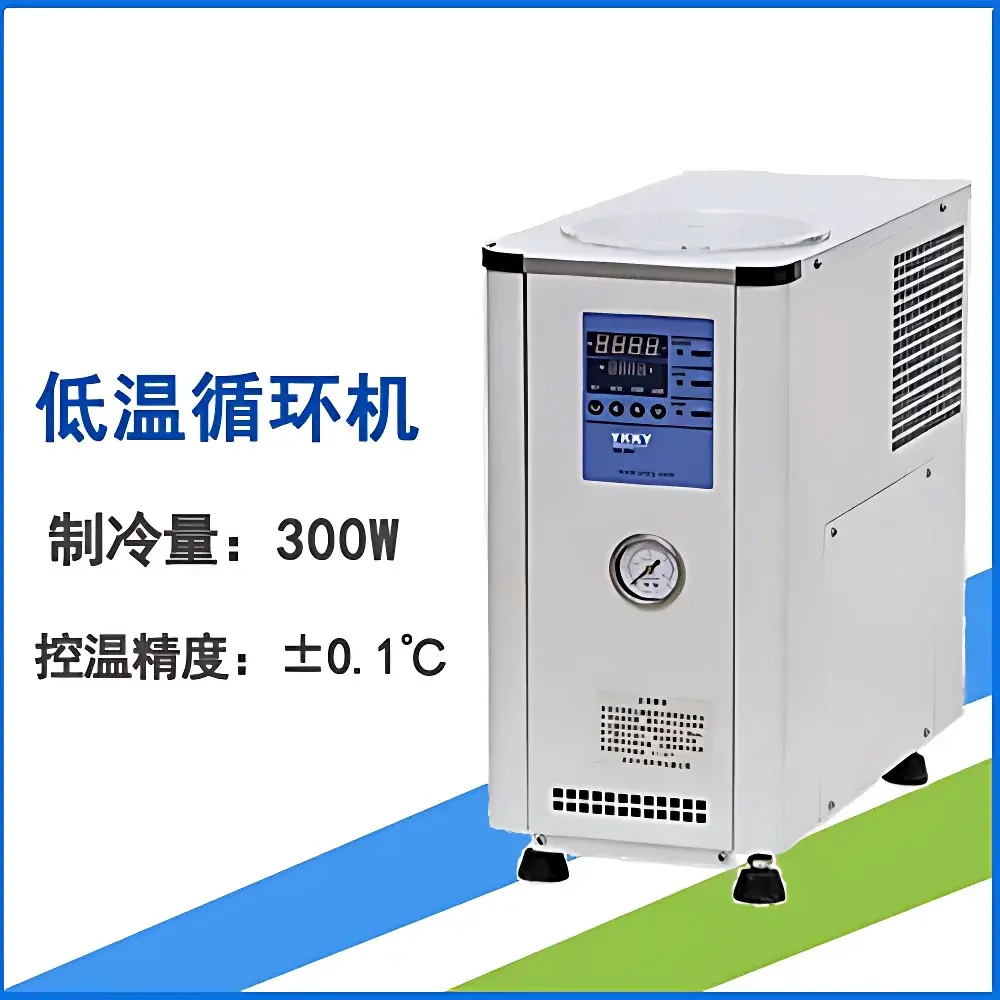

| Model | DX-204 |
| Instrument Type | Vertical |
| Temperature Range | −20 °C to 30 °C |
| Temperature Stability | ±0.1 °C |
| Minimum Operating Temperature | −20 °C |
| Bath Volume | 4 L |
| External Dimensions | 230 mm (W) × 450 mm (D) × 490 mm (H) |
| Net Weight | 27 kg |
| Circulation Medium | Heat Transfer Fluid or Secondary Coolant |
| Cooling Capacity | 300 W at 20 °C bath temperature |
| Bath Dimensions | 140 mm × 240 mm × 150 mm |
| Circulation Pressure | 0.8 bar |
| Flow Rate | 15 L/min |
| Control Method | PID-based Fuzzy Logic with Non-Cycling Refrigeration Architecture |
| Construction | Full 304 Stainless Steel Bath and Housing |
| Circulation Type | Closed-Loop |
| Brand | Coolium |
|---|---|
| Model | HX-025 |
| Type | Horizontal Circulating Bath |
| Temperature Range | RT+5 to 95°C |
| Temperature Stability | ±0.05°C |
| Setpoint Resolution | 0.01°C |
| Tank Volume | 25 L |
| Tank Opening | 200 mm (diameter) |
| Heating Power | 1000 W |
| Circulation Flow Rate | 5–10 L/min |
| Circulation Pressure | 0.25 bar |
| Tank Depth | 200 mm |
| External Dimensions | 560 × 350 × 400 mm (W×D×H) |
| Net Weight | 22 kg |
| Power Supply | AC 220 V / 50 Hz / 10 A |
| Operating Port Size | 300 × 300 mm |
| Brand | Coolium |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

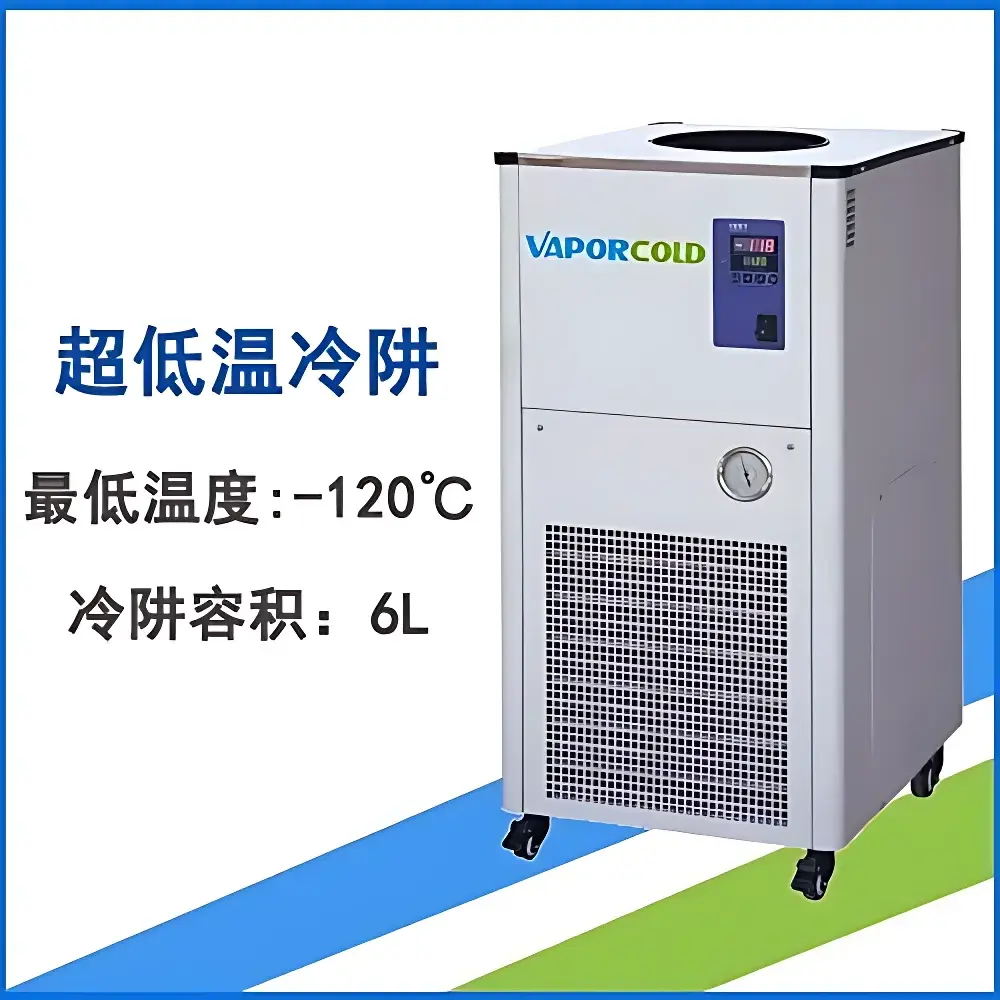

| Model | CT9-120 |
| Instrument Type | Vertical |
| Temperature Uniformity | ≤ −120 °C |
| Setpoint Resolution | 0.1 °C |
| Minimum Operating Temperature | −120 °C |
| Bath Opening | Ø220 × 250 mm |
| Bath Volume | 9 L |
| External Dimensions | 440 W × 520 D × 880 H mm |
| Net Weight | 108 kg |
| Circulating Medium | Low-temperature heat transfer fluid (e.g., silicone oil or specialized cryogenic coolant) |
| Cooling Method | Air-cooled auto-cascade refrigeration system |
| Power Supply | 220 V / 50 Hz / 1.5 kW |
| Brand | Coolium |
|---|---|
| Model | CH-3030T |
| Type | Vertical Circulating Chiller |
| Temperature Range | −30 °C to +180 °C |
| Temperature Stability | ±0.5 °C |
| Temperature Uniformity | ±0.5 °C across bath volume |
| Heating Power | 3.0 kW |
| Cooling Capacity | 0.3–2.2 kW (dependent on setpoint) |
| Circulation Flow Rate | 20 L/min |
| Maximum Circulation Pressure | 1.2 bar |
| Bath Volume | 13 L |
| Medium Compatibility | Deionized water or synthetic heat-transfer fluid |
| Dimensions (W×D×H) | 480 × 620 × 1190 mm |
| Weight | 89 kg |
| Power Supply | AC 380 V, 50 Hz, 5.4 kW |
| Safety Certifications | CE-compliant architecture |
| Brand | Coolium |
|---|---|
| Model | DX-40A2000 |
| Type | Vertical Cryostat |
| Temperature Range | −50 °C to −20 °C |
| Temperature Stability | ±0.5 °C |
| Bath Volume | 20 L |
| Bath Opening | Φ300 mm × Depth 300 mm |
| Refrigeration Capacity | 2000 W @ −40 °C |
| Circulation Pressure | 2 bar |
| Flow Rate | 0–28 L/min |
| External Port | Rc 3/4″ (female) |
| Dimensions (W×D×H) | 580 mm × 750 mm × 1590 mm |
| Weight | 187 kg |
| Cooling Medium | Heat Transfer Oil or Secondary Coolant |
| Refrigerant | Non-CFC, Environmentally Compliant HFC Blend |
| Control System | PID-Fuzzy Logic Microprocessor |
| Safety Protections | High/Low Pressure, Oil Pressure, Overload, Overheat, Leakage Detection |
| Construction | Stainless Steel Bath & Tubing |
| Cooling Method | Air-Cooled or Water-Cooled (configurable) |
