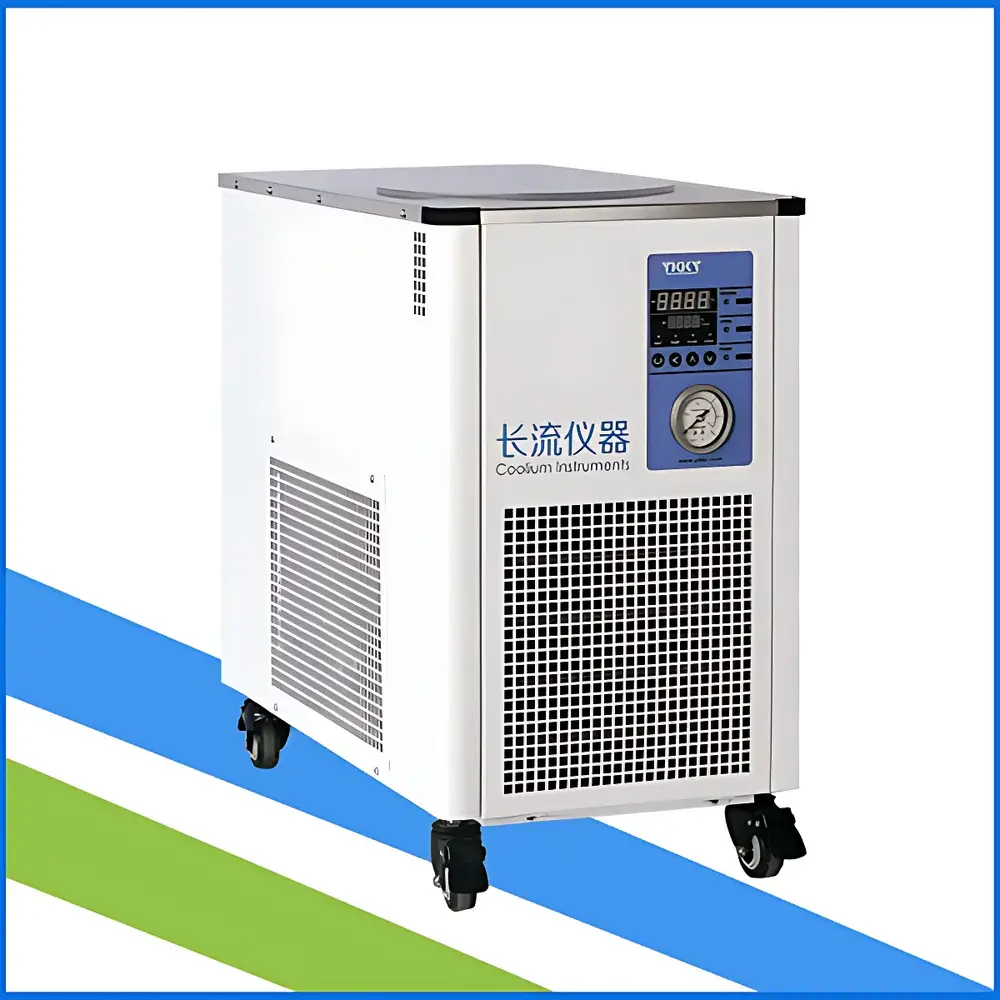

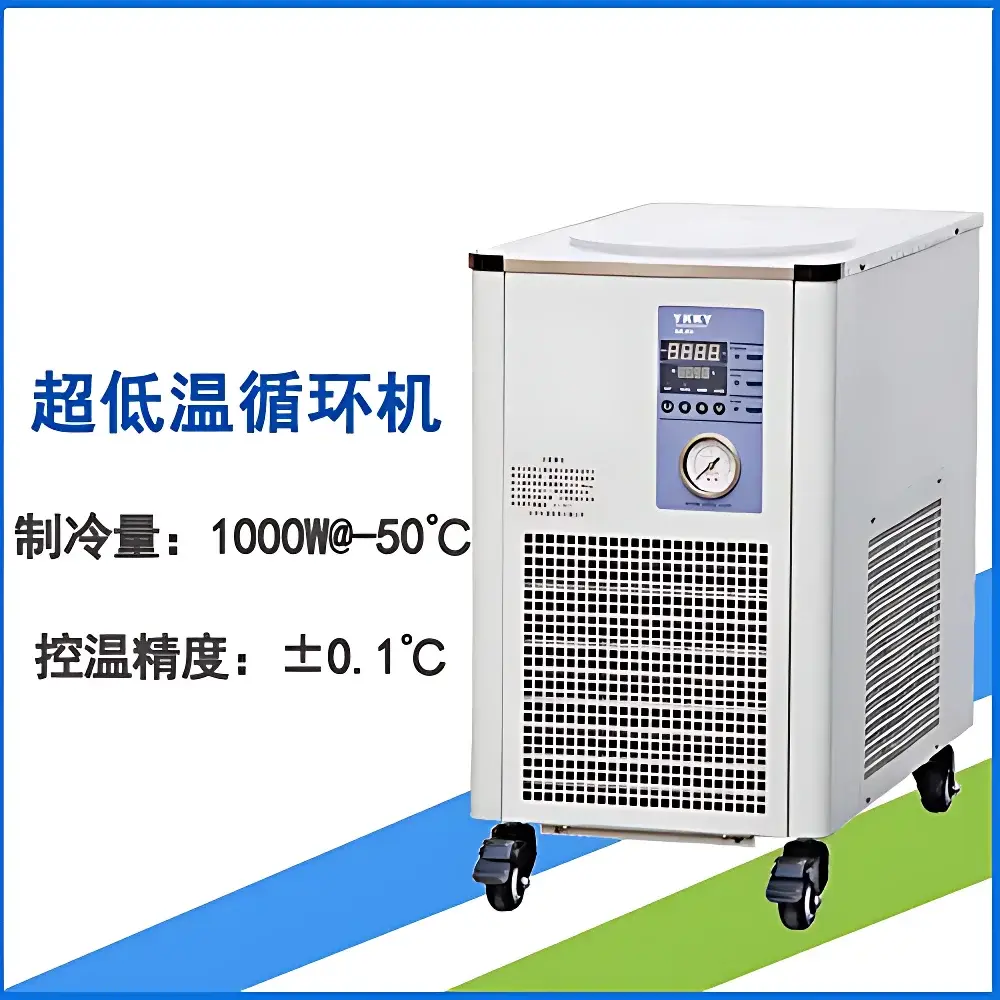

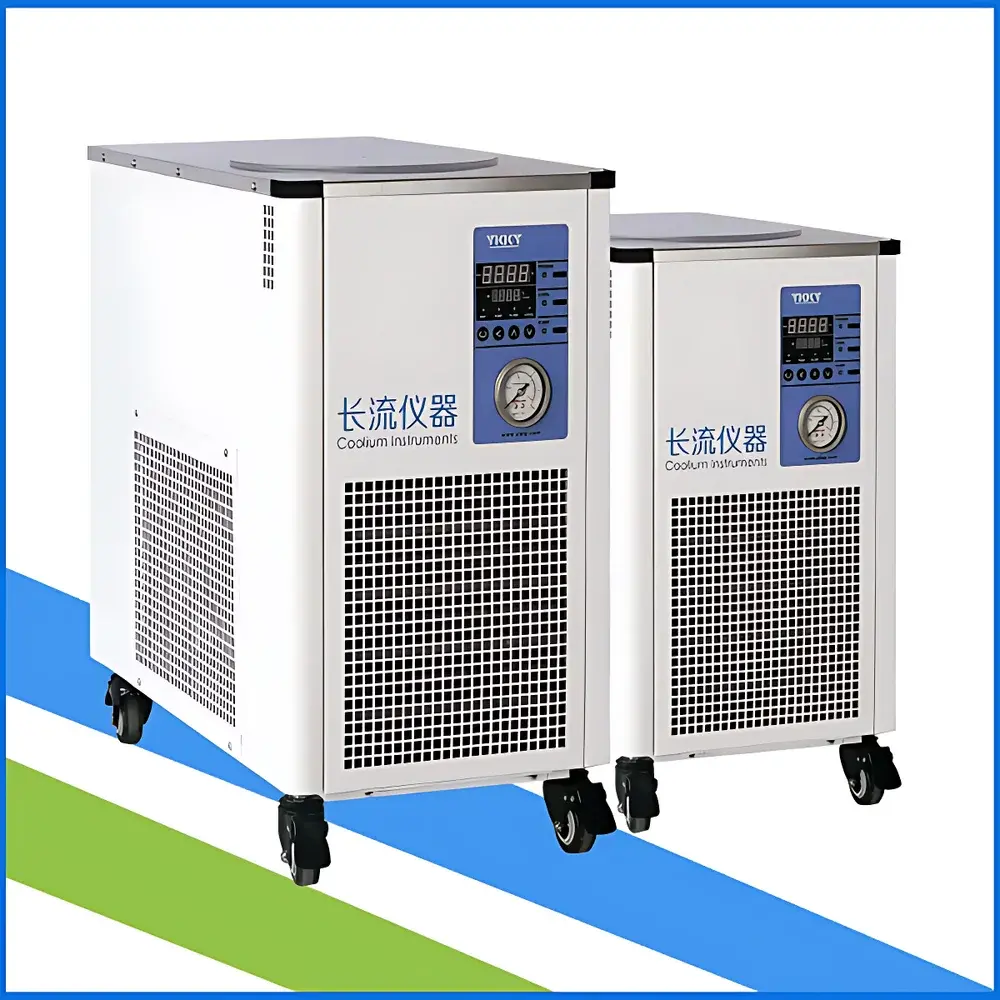

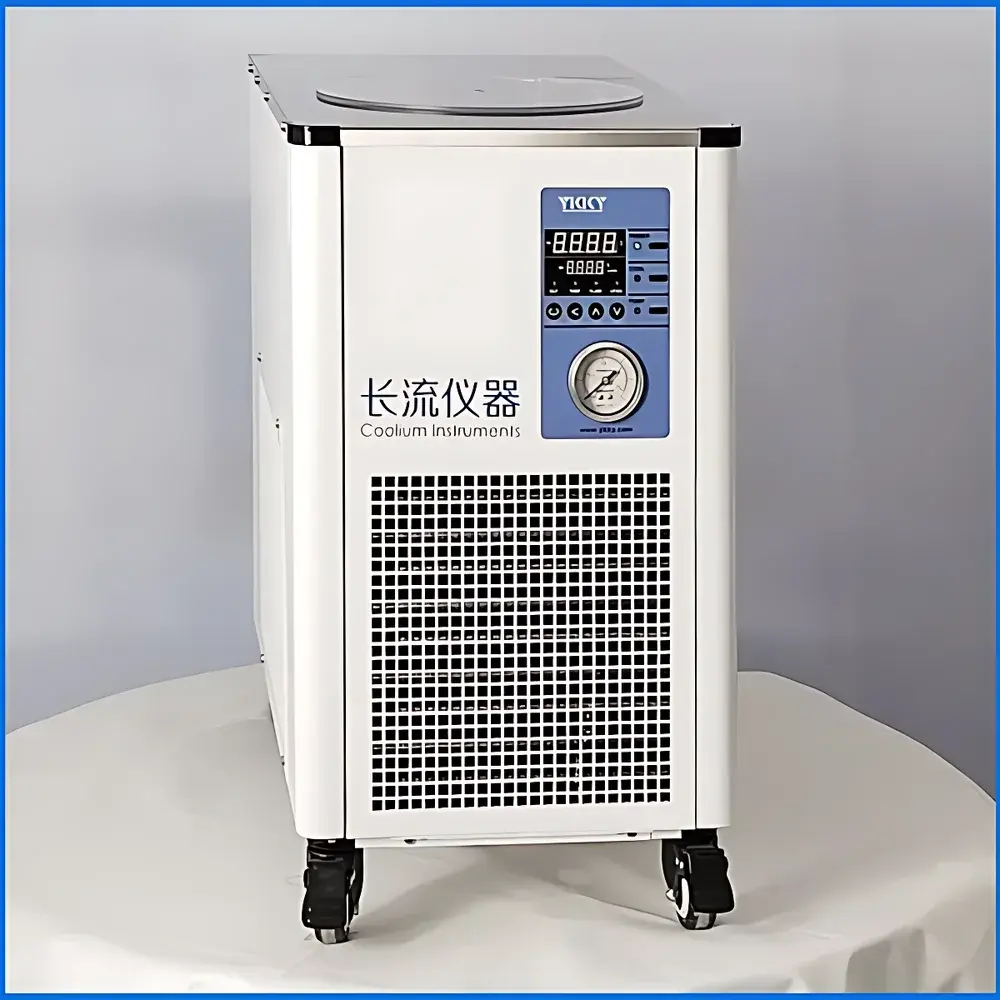

Coolium DX-5020 Cryogenic Circulating Chiller

Overview

The Coolium DX-5020 Cryogenic Circulating Chiller is an engineered low-temperature thermal management system designed for continuous, stable delivery of precisely controlled cryogenic coolant to external equipment. It operates on a dual-stage cascade refrigeration cycle—comprising primary and secondary refrigerant circuits—to achieve reliable cooling down to −50 °C while maintaining high thermal stability and reproducibility across extended operation periods. Unlike single-stage chillers, the DX-5020’s cascade architecture enables efficient heat rejection at ultra-low sink temperatures, minimizing compressor stress and extending service life. Its sealed stainless-steel bath and circulation loop ensure compatibility with common heat-transfer fluids—including ethanol/water, methanol/water, and silicone oils—while preventing evaporation, oxidation, or contamination during prolonged use. The unit is intended for integration into laboratory-scale chemical synthesis, material testing, spectroscopic instrumentation cooling, and low-temperature process validation workflows where consistent thermal boundary conditions are critical.

Key Features

• Microprocessor-based PID temperature controller with 0.1 °C setpoint resolution and real-time deviation monitoring.
• Cascade refrigeration system utilizing environmentally compliant HFC/HFO blended refrigerants (non-ozone-depleting, low-GWP), fully compliant with ISO 5149 and EU F-Gas Regulation (EU No. 517/2014).
• Stainless-steel fluid reservoir (AISI 304) and corrosion-resistant circulation tubing rated for continuous exposure to sub-zero organic coolants.
• Dual-mode cooling configuration: factory-configurable air-cooled or water-cooled condenser—enabling installation flexibility in environments with limited ventilation or elevated ambient temperatures.
• High-efficiency cryogenic magnetic drive pump with dry-run protection, delivering stable flow (20–28 L/min) and pressure (2–8 bar) across the full operating range without cavitation or seal failure.
• Comprehensive safety architecture including high/low refrigerant pressure cutoffs, oil pressure monitoring, motor overload protection, ground-fault circuit interruption (GFCI), and thermal cutout on both compressor and bath sensor circuits.
• Optional RS-485 Modbus RTU interface (standard on firmware v2.3+) for integration with SCADA systems, LIMS, or centralized lab automation platforms—supporting remote setpoint adjustment, alarm logging, and runtime diagnostics.

Sample Compatibility & Compliance

The DX-5020 supports a broad spectrum of external devices requiring external cryogenic cooling, including jacketed glass reactors (5–100 L), FTIR spectrometer detector housings, X-ray diffractometer goniometers, cryo-milling systems, and environmental test chambers. Its closed-loop design prevents solvent loss and minimizes operator exposure risk—aligning with OSHA 29 CFR 1910.1200 (HCS) and CLP Regulation (EC) No. 1272/2008 requirements for hazardous substance handling. All electrical components meet IEC 61010-1:2010 safety standards for laboratory equipment. For regulated environments, optional audit-trail-enabled firmware (v3.1+) provides time-stamped event logging compliant with FDA 21 CFR Part 11 Annex 11 principles, supporting GLP and GMP-aligned validation protocols.

Software & Data Management

The onboard controller features a backlit LCD interface with intuitive menu navigation and real-time display of bath temperature, setpoint, flow rate, refrigerant pressures, and system status codes. Optional PC software (Coolium LabLink v4.2) enables automated data acquisition at user-defined intervals (1–300 s), export to CSV/Excel, and graphical trend analysis with overlay capability for multi-channel comparison. Data integrity safeguards include write-protected internal memory (16 MB non-volatile flash), automatic backup on power loss, and configurable alarm thresholds with email/SMS notification via connected gateway (requires optional Ethernet module). Firmware updates are performed via USB or secure HTTPS upload, with SHA-256 signature verification to prevent unauthorized modification.

Applications

• Controlled-rate cooling of exothermic reactions in jacketed reactors—enabling precise kinetic studies and crystallization optimization at −40 °C to −50 °C.
• Thermal conditioning of NMR probe preamplifiers and superconducting magnet cryoshields to reduce thermal noise and improve signal-to-noise ratio.
• Stabilization of laser diode mounts and optical benches in ultrafast spectroscopy setups requiring sub-0.2 °C thermal drift over 24 h.
• Low-temperature validation of polymer rheology behavior using rotational rheometers equipped with Peltier or liquid-nitrogen-cooled sample holders.
• Pre-cooling of samples prior to cryo-SEM preparation or cryo-TEM grid vitrification—ensuring rapid, uniform thermal equilibration without ice recrystallization.
• Support of accelerated stability testing per ICH Q1A(R2) guidelines under sub-zero storage conditions (e.g., −20 °C and −40 °C).

FAQ

What is the minimum achievable temperature with the DX-5020 when paired with a 20 L reactor?
The unit maintains −50 °C at the bath outlet under nominal load; actual process temperature depends on reactor thermal mass, insulation quality, and heat load profile—but sustained operation at −45 °C ±0.3 °C is routinely achieved with standard 20 L glass reactors.
Can the DX-5020 be integrated into a validated pharmaceutical manufacturing environment?
Yes—when configured with audit-trail firmware, calibrated temperature sensors (NIST-traceable certificate available), and IQ/OQ documentation package, it meets baseline requirements for cold-chain support in API synthesis and sterile fill-finish ancillary cooling.
Is the circulation pump compatible with ethylene glycol/water mixtures at −50 °C?
The pump is qualified for use with 60/40 (v/v) ethylene glycol/water solutions down to −50 °C; viscosity-induced flow reduction remains within specified pressure and flow tolerances per ISO 10816-3.
Does the unit require annual preventive maintenance?
Coolium recommends biannual inspection of refrigerant charge, filter-drier integrity, and electrical grounding continuity; full service interval is 24 months or 4,000 operational hours—whichever occurs first.
What is the typical ramp-down time from 20 °C to −50 °C with a full 20 L bath?
Under standard ambient conditions (25 °C, 50% RH), the bath reaches −50 °C in approximately 115 minutes with no external load; ramp time increases linearly with connected thermal mass and ambient temperature deviation.
