| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K10600 (4-position), K10601 (6-position) |
| Construction Material | ASTM A316 Stainless Steel |
| Pressure Range | 0–200 psi |
| Dimensions | K10600 — 8.5" H × 9.5" D |
| Weight | K10600 — 6.4 kg |
| Compliance | ASTM D5304-2006 Standard Test Method for Evaluating Storage Stability of Middle Distillate Fuels by Oxygen Overpressure Method |
| Optional Accessory | K10540 Capped Sample Vessels |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | K12290, K12219, K12339 |
| Quotation | Upon Request |
| Standards Compliance | ASTM D943, D2274, D2893*, D4310, D6158 |
| Sample Capacity | 8 / 12 / 30 / 60 positions |
| Temperature Range | Ambient to 100 °C |
| Temperature Stability | ±0.1 °C |
| Bath Medium | White mineral oil |
| Heating System | Immersed copper heater with 1⁄20 hp circulation agitator |
| Temperature Control | Microprocessor-based PID controller with LED digital display (°C/°F), overheat cut-off protection |
| Air Flow Rate | 3 L/h (independent flowmeter + control valve) |
| Bath Volume | 37.8 L (8-position), 71.9 L (12-position), 227 L (30-position), 432 L (60-position) |
| Dimensions & Weight | K12290: 44×64×107 cm, 62.1 kg |
| K12219 | 65×61×107 cm, 96.6 kg |
| K12339 | 109×140×132 cm, 404.6 kg |
| K12395 | 109×198×132 cm, 451.3 kg |
| Electrical Supply | 220–240 V, 50/60 Hz, single-phase |
| Brand | Koehler |
|---|---|
| Origin | USA |

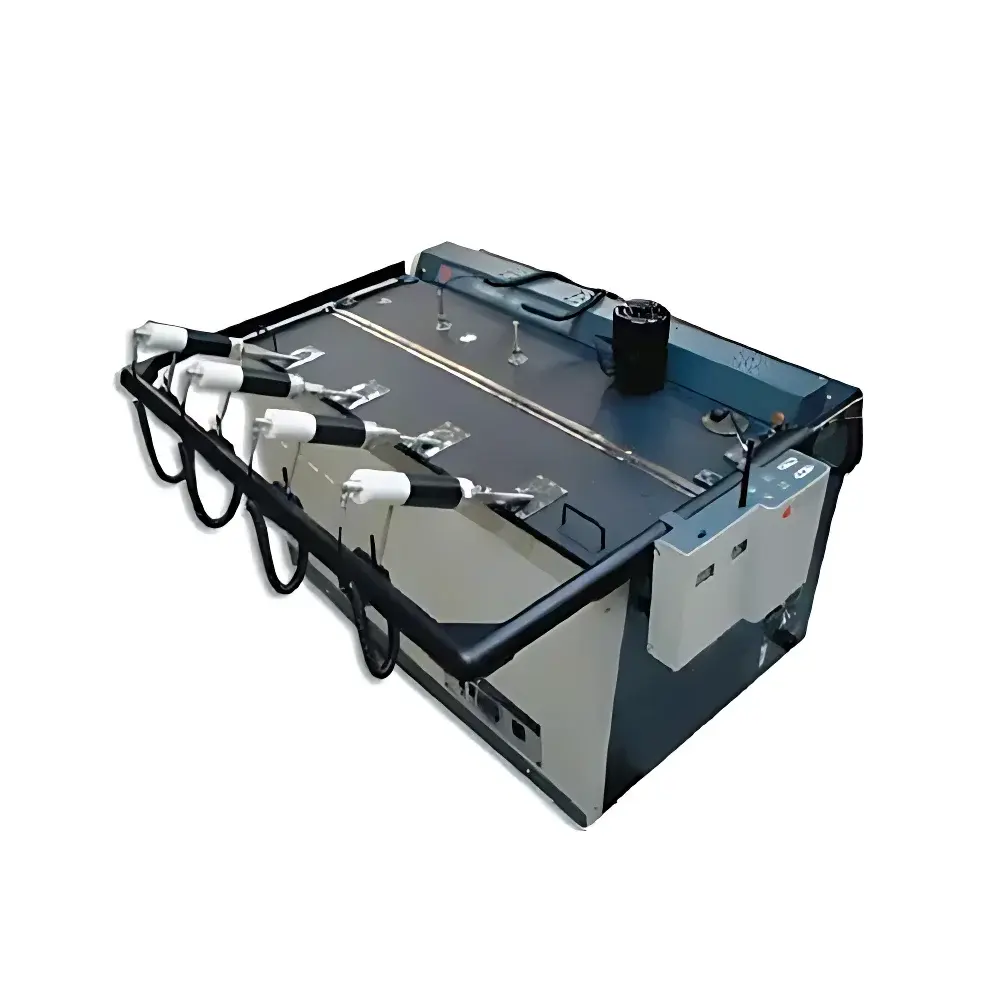

| Model | K70290 / K70390 / K70490 |
| Compliance | ASTM D2112, ASTM D2272, ASTM D4742, IP 229, SH/T 0193 |
| Temperature Control Accuracy | ±0.02°C |
| Rotation Speed | 100 rpm |
| Operating Pressure | 90 psi (620 kPa) |
| Bath Configurations | 2-, 3-, or 4-vessel units |
| Power | 0–3750 W |
| Dimensions (W×D×H) | 117 × 66 × 84 cm |
| Weight | 170 kg (4-vessel configuration) |
| Software | Oxidata™ for Windows |
| Data Channels | up to 12 pressure + 4 temperature channels |
| Safety | Over-temperature protection, corrosion-resistant polyurethane coating |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K56190 |
| Sample Capacity | 12 positions |
| Temperature Range | 80–200 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Heating Bath Type | Aluminum Block |
| Air Flow Rate | 1 L/h per sample |
| Temperature Display | Dual-line LED, ℃/°F selectable |
| Power Supply | 220–240 V, 50/60 Hz, single-phase |
| Dimensions (Bath) | 43.2 × 55.9 cm |
| Dimensions (Flow Console) | 61 × 20.3 × 76.8 cm |
| Brand | Koehler |
|---|---|
| Origin | USA |

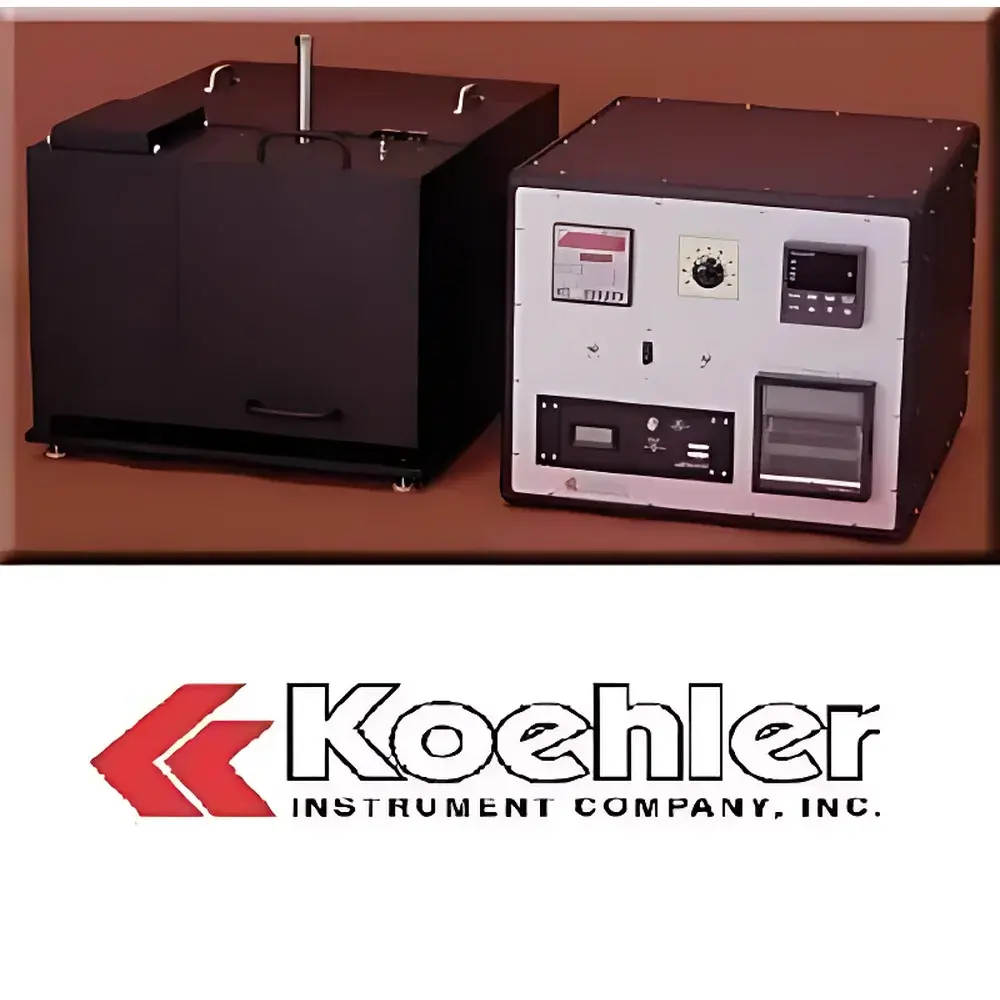

| Model | K18650 |
| Standard Compliance | ASTM D5704, STP512A L-60-1, FTM 791-2504 |
| Temperature Control | 162.8 ± 0.6 °C |
| Air Flow Rate | 1.1 L/h |
| Drive Motor | 1725 rpm, 45 A alternator-loaded, thermally protected ball-bearing motor |
| Gear Load | 128 W (DC voltage/current digitally displayed and user-adjustable) |
| Temperature Sensor | Platinum RTD (PT-RTD) with microprocessor-based digital controller and strip-chart recorder |
| Power Supply | 220–240 V, 50 Hz, single-phase, 15 A |
| Dimensions (Test Chamber) | 61 × 61 × 37 cm |
| Dimensions (Control Cabinet) | 60 × 60 × 44 cm |
| Weight | 149.7 kg |
| Brand | Koehler |
|---|---|
| Origin | USA |
| Model | K10491, K10493, K10404 |
| Temperature Range | Ambient to 121 °C |
| Operating Pressure | 689 kPa (100 psi) |
| Compliance | ASTM D525, ASTM D873, ISO 7536, IP 40, IP 138, GB/T 8018, DIN 51780, DIN 51799, FTM 791-3352/3354, NF M 07-012/07-013 |
| Software | Oxidata™ (Windows-based, multi-channel real-time monitoring) |
| Bath Options | Solid-state (2- or 4-position) or liquid bath (4-position) |
| Safety Features | Over-temperature cutoff, pressure-relief membrane, direct-mounted pressure transducer, integrated pressure tracking and data logging |
