| Brand | Starwood |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |

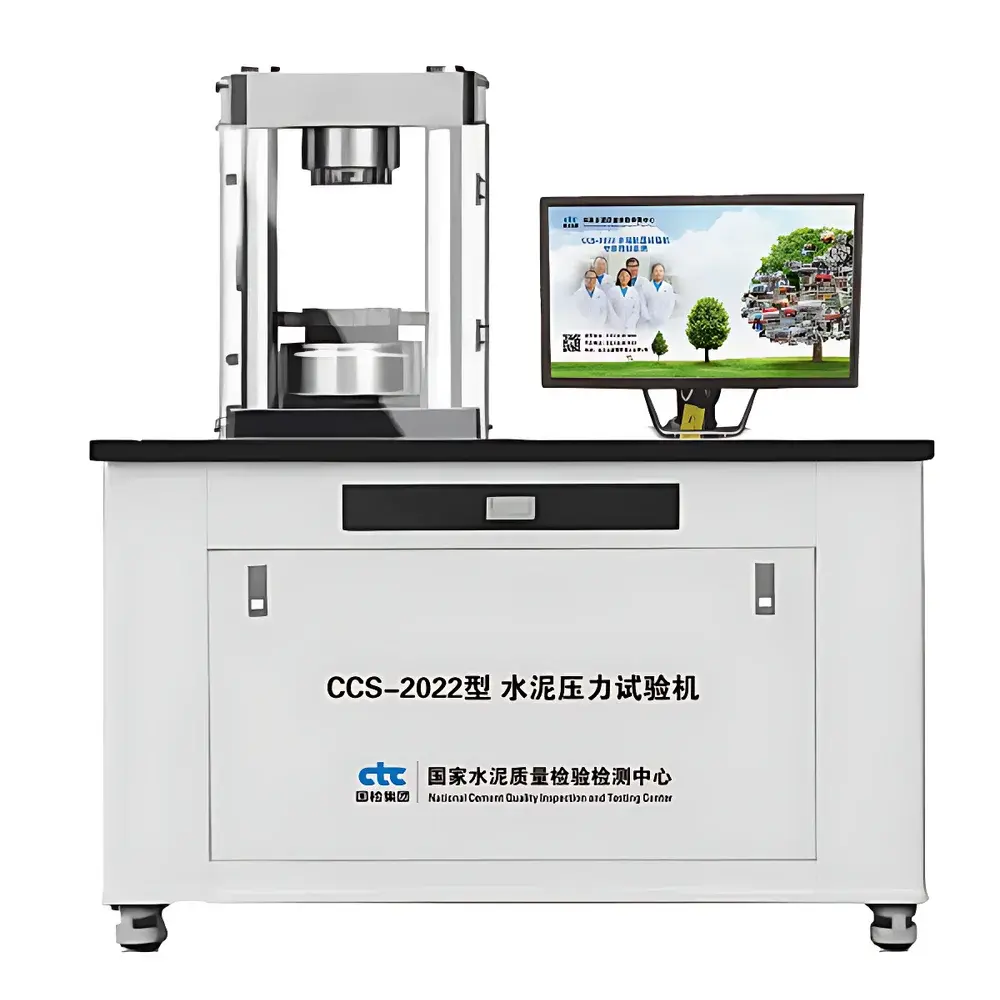

| Model | CCS-2022 |
| Max Test Force | 300 kN |
| Constant Load Rate Range | 0.3–9.9 kN/s |
| Platen Spacing (Max) | 185 mm |
| Compression Platen Diameter | φ120 mm |
| Piston Stroke (Max) | 90 mm |
| Indicated Value Relative Error (Accuracy Class) | ±0.5% |
| Repeatability Relative Error | 0.5% |
| Return-to-Zero Relative Error | ±0.1% |
| Force Display Resolution | 0.5% |
| Zero Drift | ≤±0.1% |
| Servo Motor Power | 1500 W (Single-Phase) |
| Supply Voltage | 220 V AC |
| Dimensions (W×D×H) | 1300×580×1340 mm |
| Net Weight | 480 kg |
| Brand | Starwood |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |

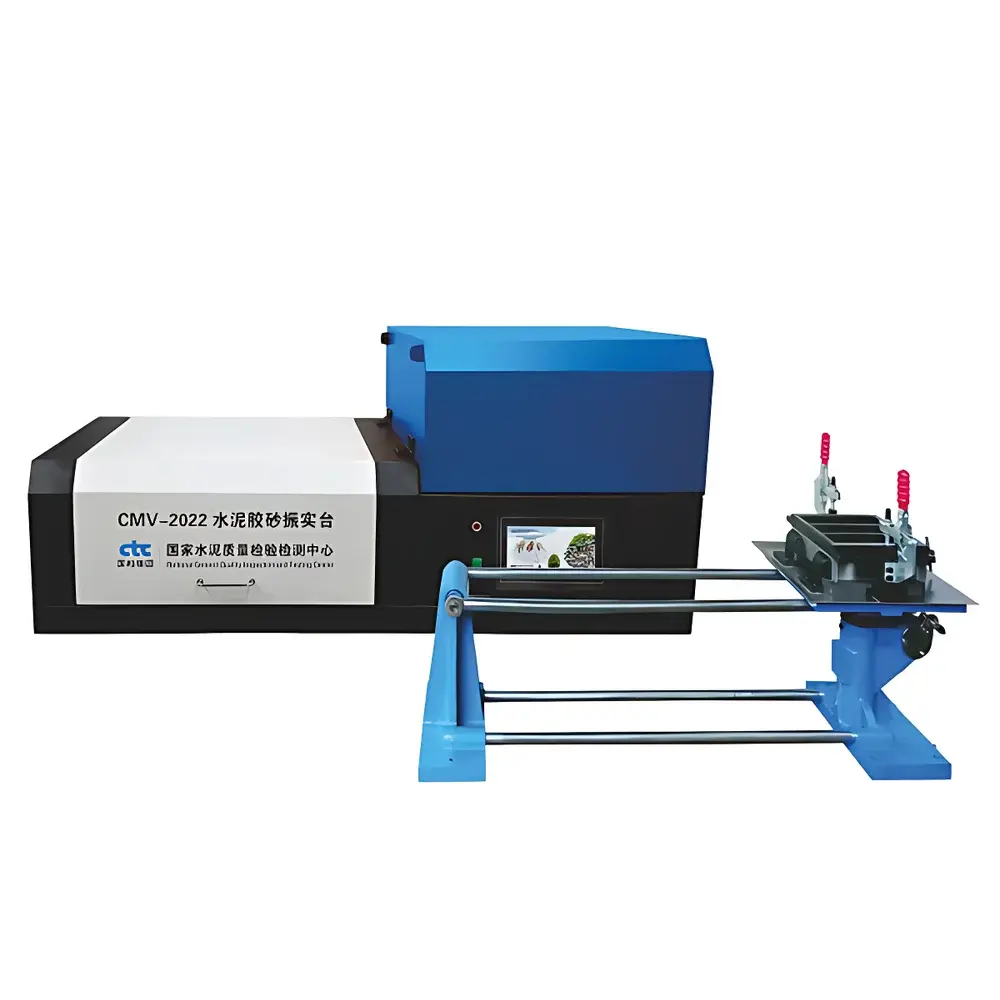

| Model | CMV-2022 |
| Vibration Part Total Mass | 13.75 kg ±0.25 kg |
| Drop Height / Amplitude | 15 mm ±0.3 mm |
| Vibration Frequency | 60 cycles per 60 s ±2 s |
| Dual-Arm Assembly + Cross Rib Total Mass | 2.25 kg ±0.25 kg |
| Distance from Table Center to Arm Shaft Center | 800 mm ±1 mm |
| Lid Locking Mechanism | Mechanical Latch |
| Mold Positioning Method | Detent Ball Locator |
| Motor Model | 90TDY060-T |
| Motor Speed | 60 rpm |
| Motor Power | 70 W |
| Supply Voltage | 220 V AC |
| Gross Weight | 85 kg |
| Overall Dimensions (L×W×H) | 1130 × 400 × 450 mm |
