| Origin | South Korea |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

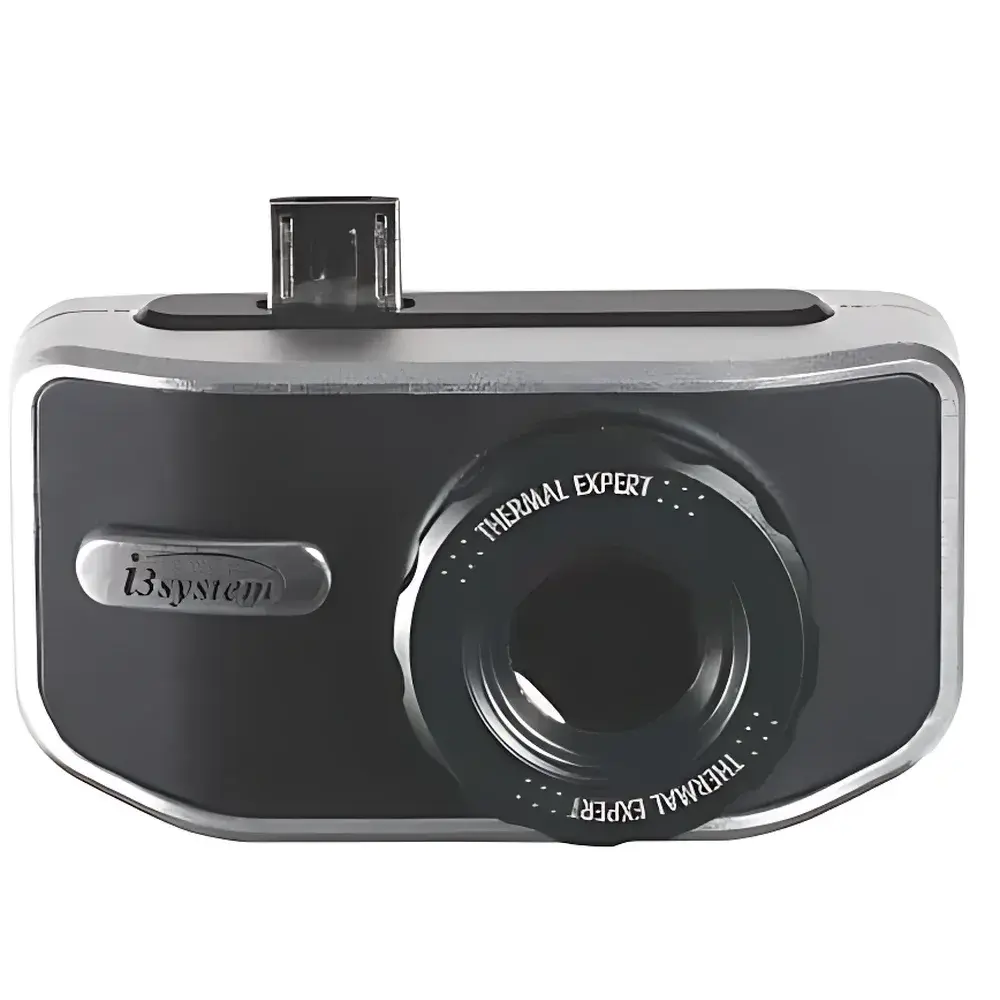

| Model | TE-Q1 |
| Pricing | Available Upon Request |
| Sensor Resolution | 384 × 288 pixels |
| Pixel Pitch | 17 µm |
| Spectral Band | 8–14 µm (LWIR) |
| Thermal Sensitivity (NETD) | 0.05 °C @ f/1.0 |
| Frame Rate | < 9 Hz |
| Temperature Measurement Range | −10 °C to +150 °C |
| Operating Ambient Temperature | −10 °C to +50 °C |
| Power Consumption | ~500 mW |
| Weight | < 27 g (with Lens 1) |
| Dimensions (W × H × D, no lens) | 47 mm × 25 mm × 16 mm |
| Interface | USB OTG / Micro-USB |
| Platform Support | Android OS |
| Standard Lens | Wide FOV, 6.8 mm / f/1.3 (56.3° H × 41.8° V) |
| Optional Lens | Narrow FOV, 13 mm / f/1.0 (28.7° H × 21.7° V) |
| Focus Range | Wide FOV — 0.2 m to ∞ (0.19 mm refocus step) |
