| Origin | Sichuan, China |
|---|---|
| Manufacturer Type | Distributor |
| Origin Category | Domestic (China) |
| Model | ZDZ-1A |
| Price | Upon Request |
| Full Scale Range | 1×10⁵ to 1×10⁻¹ Pa |
| Compatible Gauge Tube | Leybold TR211 (KF16 Flange) |
| Brand | Chengyi |
|---|---|
| Origin | Sichuan, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

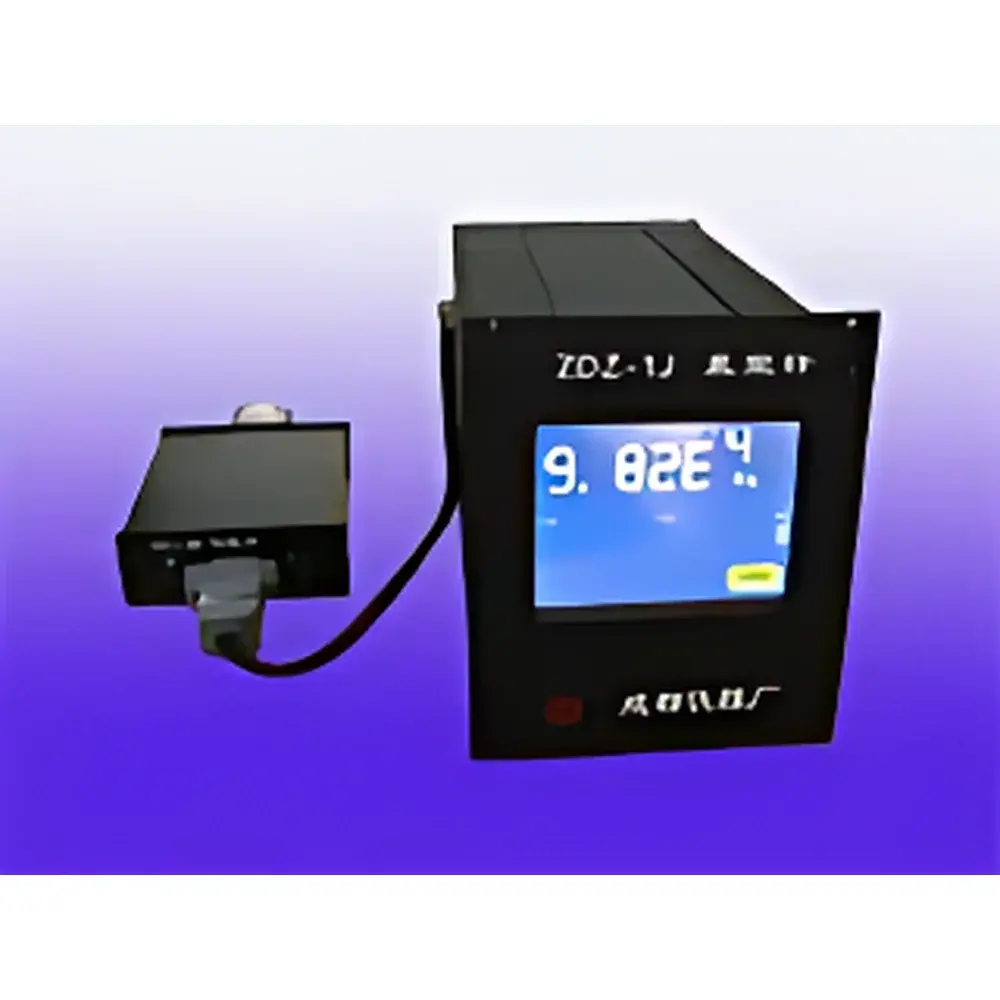

| Model | ZDZ-1J |
| Measurement Principle | Thermal Conductivity (Pirani) |
| Pressure Range | 1.0 × 10⁵ Pa to 1.0 × 10⁻¹ Pa (Atmosphere to 0.1 Pa) |
| Vacuum Port | KF16 |
| Display | TFT Touchscreen Interface |
| Processor | ARM Cortex-M3 |
| Accuracy | ±20% of reading |
| Standard Gauge Tube | CY-1Z Pirani Sensor (KF16 flange) |
| Cable Length | 3 m |
| Dimensions (H×W×D) | 103 × 120 × 155 mm |
| Weight | ~2.0 kg |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Optional Outputs | 0–10 V analog output |
| Brand | SCChengyi |
|---|---|
| Origin | Sichuan, China |
| Model | ZDZ-4JA |
| Measurement Principle | Thermal Conductivity (Pirani) |
| Pressure Range | 1.0 × 10⁵ Pa to 1.0 × 10⁻¹ Pa |
| Vacuum Port | KF16 |
| Display | 4.3-inch TFT Touchscreen |
| Sensor Channels | 4 independent Pirani sensor inputs |
| Sensor Type | CY-1Z resistive gauge (included, 4 pcs) |
| Cable Length | 3 m (standard) |
| Dimensions (H×W×D) | 110 × 103 × 230 mm |
| Power Supply | AC 220 V ±10%, 50 Hz |
| Weight | ~3 kg |
| Accuracy | ±20% of reading (typical, within specified range) |
