| Brand | Apkji |
|---|---|
| Model | AP-GD-100D |
| Internal Volume | 100 L |
| Temperature Range | −70 °C to +150 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Temperature Uniformity | ±2 °C |
| Heating Rate | ~3 °C/min (RT to +150 °C in ~40 min) |
| Cooling Rate | ~1 °C/min (RT to −70 °C in ~100 min) |
| Construction | SUS304 Stainless Steel Interior & Exterior |
| Insulation | Rigid Polyurethane Foam + Glass Wool |
| Refrigeration System | Cascade Refrigeration (R404A / R23) |
| Compressor | Tecumseh (France) Hermetic or Bitzer (Germany) Semi-Hermetic |
| Power Supply | 1φ3w AC220V ±10% 50/60 Hz or 3φ5w AC380/415V ±10% 50/60 Hz |
| Compliance | GB/T 10589, GB/T 10592, GB/T 2423.1, GB/T 2423.4, MIL-STD-810D Method 502.2 & 507.2 |
| Brand | APKJ |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AP-GD-4081 |
| Pricing | Upon Request |
| Internal Dimensions (W×H×D) | 60 × 85 × 80 cm |
| Temperature Range | −40 °C to +150 °C |
| Humidity Range | 20–98% RH |
| Temperature Uniformity | ±2 °C |
| Humidity Uniformity | ±2% RH |
| Temperature Fluctuation | ≤±0.5 °C |
| Humidity Fluctuation | ±2% RH |
| Heating Rate | ≥3 °C/min |
| Cooling Rate | ≥1 °C/min |
| Control System | TEMI880 Programmable Touchscreen Controller (Korean) |
| Refrigerant | R404A/R23 |
| Compressor | Hermetic French Tecumseh or Semi-Hermetic German Bitzer |
| Interior Material | SUS304 Mirror-Finish Stainless Steel |
| Exterior Material | SUS304 Brushed Stainless Steel |
| Insulation | High-Density Polyurethane Foam + Ultra-Fine Glass Wool |
| Air Circulation | Wide-Band Forced Convection (Top-Out/Bottom-In) |
| Standard Ports | One Φ25 mm Test Port |
| Safety Protections | Over-Temperature/Under-Temperature Cut-off, Dry-Run Prevention, Phase Failure Detection, High-Pressure & Overload Protection, Water Shortage Alarm |
| Brand | APKJ |
|---|---|
| Model | AP-GD-150AS |
| Internal Volume | 150 L |
| Temperature Range | −70 °C to +150 °C |
| Temperature Uniformity | ±2 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Heating Rate | ~3 °C/min (RT to 150 °C in ~40 min) |
| Cooling Rate | ~1 °C/min (RT to −70 °C in ~100 min) |
| Inner Chamber Material | SUS304 Mirror-Finish Stainless Steel |
| Refrigerant | R404A/R23 (Honeywell) |
| Compressor | Hermetic or Semi-Hermetic (Tecumseh or Bitzer) |
| Controller | Programmable LCD Touchscreen (100 programs × 1000 segments × 999 cycles) |
| Compliance | Designed for IEC 62133, UN 38.3, GB/T 31467.3, ISO 16750-4, and automotive battery thermal validation protocols |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AP-GD1-80 |
| Temperature Range | -70 °C to +150 °C |
| Temperature Uniformity | ±2 °C |
| Temperature Fluctuation | ±0.5 °C |
| Resolution | ±0.1 °C |
| Heating System | Nickel-Chromium Alloy Resistive Heaters |
| Refrigeration System | Twin-Stage Hermetic Compressor (Original Tecumseh/Tecumseh-derived “Tecumseh”-branded unit, R404A/R23 refrigerant blend) |
| Air Circulation | Long-Shaft Motor with Stainless Steel Multi-Wing Impeller |
| Sensor | PT100 Platinum Resistance Thermometer |
| Compliance | GB/T 10589–1989, GB/T 10592–1989, GB/T 2423.1–1989 (Test Aa/Ab), GB/T 2423.4–1993 (Test Db), MIL-STD-810D Method 502.2 & 507.2 |
| Control Interface | LAN-enabled Programmable Logic Controller (PLC) with USB data export and remote operation capability |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AP-GD-B |
| Pricing | Available Upon Request |
| Temperature Range Options | -20°C to 150°C, -40°C to 150°C, -70°C to 150°C |
| Internal Dimensions (H×W×D) | 50×40×40 cm to 100×100×100 cm |
| Temperature Uniformity | ±2°C |
| Temperature Fluctuation | ≤ ±0.5°C |
| Resolution | ±0.1°C |
| Sensor | PT100 Platinum Resistance Thermometer |
| Heating System | Nickel-Chromium Alloy Resistive Heaters |
| Refrigeration System | French Tecumseh (original) hermetic compressors |
| Refrigerants | R404A/R507 (high stage), R23/R508B (low stage) |
| Air Circulation | Extended-shaft motor with stainless-steel multi-wing impeller |
| Compliance Standards | GB/T 10589–1989, GB/T 10592–1989, GB/T 2423.1–1989 (Test Aa/Ab), GB/T 2423.4–1993 (Test Db), MIL-STD-810D Method 502.2 & 507.2 |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AP-GD-AP |
| Pricing | Upon Request |
| Internal Volume | 1000 L |
| Internal Dimensions (W×H×D) | 100×100×100 cm |
| External Dimensions (W×H×D) | 155×205×150 cm |
| Temperature Range | −70 °C to +150 °C |
| Temperature Control Accuracy | ±0.2 °C |
| Temperature Uniformity | ±2 °C |
| Heating Rate | ~3 °C/min (RT to 150 °C in ~40 min) |
| Cooling Rate | ~1 °C/min (RT to −70 °C in ~100 min) |
| Refrigerant | R404A / R23 (dual-stage cascade system) |
| Compressor | Tecumseh (France) hermetic scroll compressor |
| Insulation | Rigid polyurethane foam + glass wool |
| Interior Material | SUS304 stainless steel |
| Exterior Material | SUS304 stainless steel |
| Power Supply | 3φ5w AC380/415V ±10%, 50/60 Hz |
| Safety Protections | Over-temperature, dry-run, refrigerant low-level, high-pressure, over-current, emergency stop, thermal cutoff |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AP-GD- |
| Pricing | Available Upon Request |
| Temperature Range Options | A: 0°C to 150°C |
| B | −20°C to 150°C |
| C | −40°C to 150°C |
| D | −60°C to 150°C |
| E | −70°C to 150°C |
| Humidity Range | 20–98% RH |
| Temperature Uniformity | ≤ ±2°C |
| Temperature Fluctuation | ≤ ±0.5°C |
| Humidity Deviation | +2 / −3% RH |
| Internal Dimensions (W×D×H, cm) | AP-HX-80 (40×50×40) |
| External Dimensions (W×D×H, cm) | AP-HX-80 (95×165×95) |
| Control Modes | Programmable & Constant-Temperature/Humidity |
| Refrigeration | Variable-Speed Compressor (0–100% Capacity Modulation) |
| Compliance | GB/T 10589–2008, GB/T 10592–2008, GB/T 2423.1–2022 (Cold Test), GB/T 2423.2–2022 (Dry Heat Test), GJB 150.3A–2009, GJB 150.4A–2009, IEC 60068-2-1, IEC 60068-2-2, MIL-STD-810H |
| Brand | APKJ |
|---|---|
| Model | AP-HX-D1 |
| Type | Mobile Environmental Test Chamber |
| Application | Temperature Cycling, Thermal Shock, Constant/Alternating Humidity Testing |
| Construction | Stainless Steel Interior (SUS304), Cold-Rolled Steel Exterior with Electrostatic Coating |
| Insulation | Rigid Polyurethane Foam or Ultra-Fine Glass Wool |
| Sealing | Imported Silicone Gasket |
| Control System | Korean-Made Touchscreen PID Controller (0.1°C/0.1%RH Resolution), BTHC Balanced Heating/Cooling/Humidifying/Dehumidifying |
| Heating | Stainless Steel Finned Air Heater |
| Humidification | Shallow-Tank Steam Generator |
| Refrigeration | Original Imported Hermetic Compressor, Single-Stage or Cascade Low-Temperature System |
| Air Circulation | Custom Aluminum Impeller Driven by HVAC-Grade Motor |
| Safety Protections | Independent Over-Temperature Cut-off, Compressor Overheat/Overcurrent/Overload Protection, Fan Overheat Protection, Low-Water Alarm, Real-Time Deviation Alarms (High/Low/Out-of-Spec Temp & RH) |
| Data Interface | RS-485, USB Storage Port, Optional Printer Connectivity |
| Compliance | GB 10589, GB 10592, GB 10586, GB 11158, GB/T 5170.2–1996, GB/T 5170.5–1996, GB 2423.1–89, GB 2423.2–89, GB 2423.3–91, GB 2423.4–91, GB 2423.22–87 |
| Certifications | Designed for GLP/GMP-aligned validation workflows |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

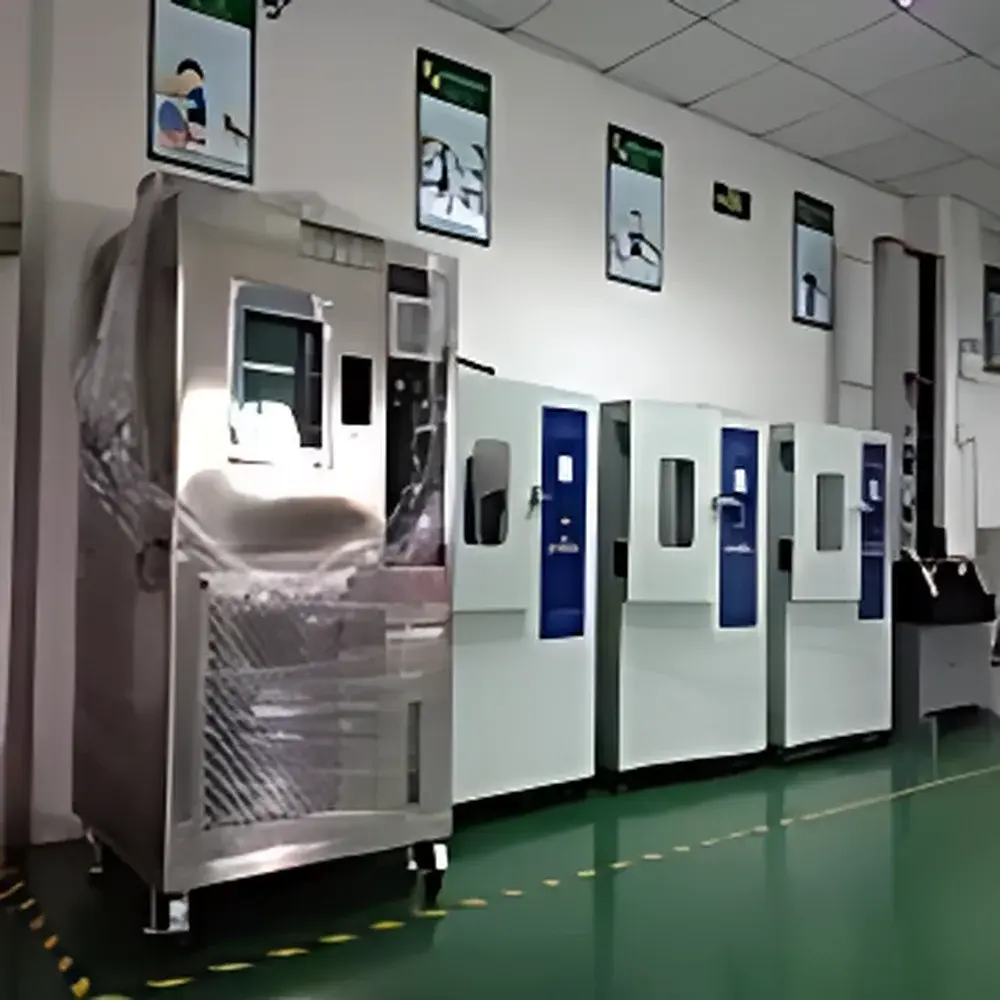

| Model | AP-GD-80LB |
| Temperature Range | -70°C to +150°C |
| Temperature Uniformity | ±2°C |
| Temperature Fluctuation | ±0.5°C |
| Resolution | ±0.1°C |
| Heating System | Nickel-Chromium Alloy Heaters |
| Refrigeration System | French “Tecumseh” Hermetic Compressor |
| Refrigerant | R404A/R23 (Dual-Stage Low-Temp System) |
| Air Circulation | Long-Shaft Motor with Stainless Steel Multi-Wing Impeller |
| Compliance | GB/T 10589–1989, GB/T 10592–1989, GB/T 2423.1–1989, GB/T 2423.4–1993, MIL-STD-810D Method 502.2 & 507.2 |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AP-GD-50 |
| Pricing | Upon Request |
| Internal Chamber Dimensions (H×W×D) | 50×40×40 cm |
| Temperature Range Options | 0–150°C / –20–150°C / –40–150°C / –70–150°C |
| Temperature Uniformity | ±2°C |
| Temperature Fluctuation | ±0.5°C |
| Temperature Resolution | ±0.1°C |
| Sensor | PT100 Platinum Resistance Thermometer |
| Heating System | Nickel-Chromium Alloy Electric Heaters |
| Refrigeration System | Original Tecumseh (France) Hermetic Compressor |
| Cooling Medium | R404A/R23 or R507/R508B Dual-Stage Eco-Friendly Refrigerant |
| Air Circulation | Long-Shaft Motor with Stainless Steel Multi-Blade Impeller |
| Compliance Standards | GB/T 10589–1989, GB/T 10592–1989, GB/T 2423.1–1989, GB/T 2423.4–1993, MIL-STD-810D Method 502.2 & 507.2 |
