| Brand | APKJ |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | AP-KF-3.5m |
| Cooling Method | Water-Cooled |
| Temperature Range | RT+10°C to 80°C |
| Humidity Range | 65–98% RH |
| Irradiance (290–800 nm) | 550 W/m² |
| Xenon Lamp Power | 4.5 kW |
| Lamp Lifetime | ≥2000 h |
| Inner Chamber Dimensions (W×H×D) | 950×950×850 mm |
| Sample Exposure Area | 6500 cm² |
| Sample Mounting | Rotating Drum (≤3 rpm ±1 rpm) |
| Distance from Lamp to Sample | 375 mm |
| Black Panel Temperature Control | 65°C ±3°C or 100°C ±3°C (selectable) |
| Spray Cycle | 18 min spray / 102 min dry (adjustable) |
| Dark Cycle | Configurable with elevated humidity and condensation simulation |
| Compliance | ASTM C1442, ASTM D4459, AATCC TM16, ISO 4892-2, GB/T 16422.3 |
| Safety Protections | Door Interlock, Overtemperature, Overcurrent, Leakage Current, Phase Sequence Monitoring |
| Interior Material | Mirror-Finish SUS304 Stainless Steel |
| Exterior Material | Cold-Rolled Steel with Powder Coating or Optional Stainless Steel |
| Filtration System | Imported American Optical Filters (Inner & Outer) |
| Control Interface | Touchscreen HMI with Data Logging Capability |
| Brand | APKJ |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | AP-XD-01 |
| Internal Chamber Dimensions (D×W×H) | 500×760×500 mm |
| External Dimensions (D×W×H) | 1350×1350×1700 mm |
| Sample Tray Size | 450×720 mm |
| Temperature Range | RT+10°C to 70°C (adjustable) |
| Humidity Range | 65–98% RH (adjustable) |
| Black Panel Temperature Range | 63–100°C |
| Temperature Uniformity | ±2.0°C |
| Temperature Stability | ±0.5°C |
| Light Source | 4 × imported air-cooled xenon arc lamps (3 operational + 1 spare) |
| Lamp Power | 1.8 kW per lamp |
| Total Heating Power | 2 kW |
| Humidification Power | 0.75 kW |
| Irradiance Spectrum | 290–800 nm |
| Max Irradiance | ≤300 W/m² |
| Sample-to-Lamp Distance | 230–280 mm |
| Filter System | Triple-layer quartz glass filter |
| Rainfall Duration | 0–999 min (continuous) |
| Rainfall Cycle | 0–240 min (intermittent) |
| Water Spray Cycle Options | 18 min ON / 102 min OFF or 12 min ON / 48 min OFF |
| Nozzle Orifice Diameter | Ø0.8 mm |
| Light Exposure Time Control | 1–999 h or min (continuously adjustable) |
| Compliance | GB/T 2423.24–1995, ISO 4892-2 Method A |
| Power Supply | AC 380 V ±10%, 50 ±0.5 Hz, 3-phase 5-wire |
| Ambient Operating Conditions | 5–30°C, ≤85% RH, flat & ventilated floor, no strong vibration/EMI, ≥500 Ω·m purified water required for humidification and spray systems |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | AP-XD-500C |
| Price | Upon Request |
| Internal Dimensions (D×W×H) | 500×760×500 mm |
| External Dimensions (D×W×H) | 1350×1350×1700 mm |
| Sample Tray Size | 450×720 mm |
| Temperature Range | RT+10°C to 70°C |
| Humidity Range | 65–98% RH |
| Black Panel Temperature Range | 63–100°C |
| Temperature Uniformity | ±2.0°C |
| Temperature Stability | ±0.5°C |
| Light Source | 4 × Imported Air-Cooled Xenon Lamps (3 operational + 1 spare) |
| Lamp Power | 1.8 kW per lamp |
| Total Heating Power | 2 kW |
| Humidification Power | 0.75 kW |
| Irradiance Spectrum | 290–800 nm |
| Max Irradiance | ≤300 W/m² |
| Distance Between Lamp and Sample Holder | 230–280 mm |
| Rainfall Duration | 0–999 min (continuous) |
| Rainfall Cycle | 0–240 min (intermittent) |
| Water Spray Cycle Options | 18 min ON / 102 min OFF or 12 min ON / 48 min OFF |
| Nozzle Orifice Diameter | Ø0.8 mm |
| Compliance | GB/T 2423.24–1995, ISO 4892-2 Method A |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |

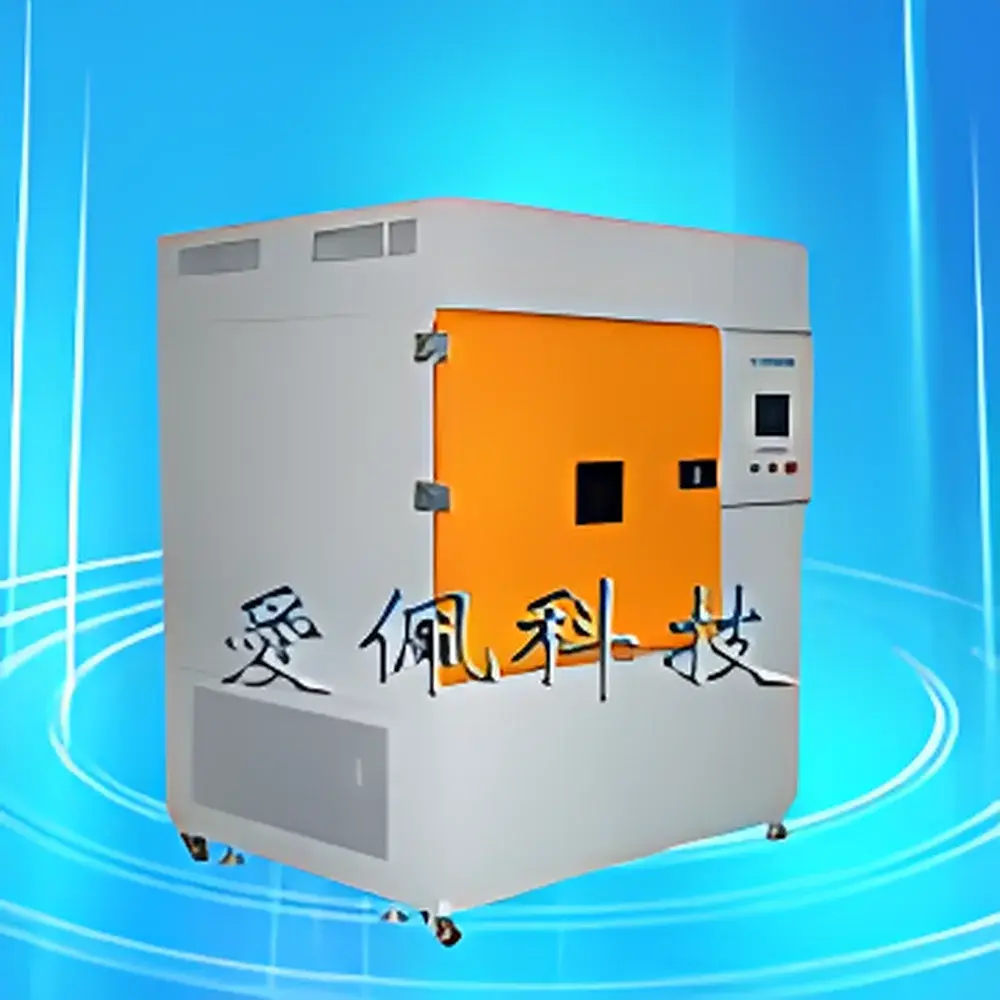

| Model | AP-XD-100 |
| Power Supply | 380 V AC / 50 Hz |
| Xenon Lamp Power | 6 kW (air-cooled, ±5–20% tolerance) |
| Heating Power | 2 kW |
| Humidification Power | 2 kW |
| Igniter Voltage/Current | 220 V AC / 27 ± 3 A |
| Ignition Time | < 2 s |
| Re-ignition Interval | > 10 min |
| Black Panel Temperature | 63 ± 3 °C |
| Temperature Range | +10 °C to 80 °C (above ambient) |
| Temperature Uniformity | ±2 °C |
| Temperature Fluctuation | ±0.5 °C |
| Humidity Range | 80–98 %RH |
| Humidity Uniformity & Fluctuation | ±3 %RH |
| Sample Rack Rotation Speed | 1–5 rpm (360° continuous rotation) |
| Specimen Dimensions | 75 × 150 mm (standard) |
| Lamp-to-Specimen Distance | 350–782 mm (adjustable) |
| Rainfall Duration | 0–9999 min (continuously adjustable) |
| Light Cycle Timer | 0–99 h 99 min (with programmable on/off intervals) |
| Internal Chamber Dimensions (W×D×H) | 900 × 900 × 850 mm |
| Compliance | GB/T 16422.2, GB 10485–1989 |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Model | AP-XD-A4 |
| Internal Chamber Dimensions (W×H×D) | 450 × 1170 × 500 mm |
| External Dimensions (W×H×D) | 500 × 1280 × 1450 mm |
| Temperature Range | RT+10°C to 70°C |
| Humidity Range | 0–98% RH |
| Temperature Uniformity | ±2°C |
| Temperature Stability | ±0.5°C |
| Control Method | PID Auto-Tuning |
| Lamp Center-to-Center Distance | 70 mm |
| Sample-to-Lamp Distance | 50 mm |
| Standard Specimen Size | 75 × 150 mm or 75 × 300 mm |
| Water Tray Depth | 25 mm (Auto-Controlled) |
| Effective Irradiated Area | 900 × 210 mm |
| UV-A Spectrum | 315–400 nm |
| UV-B Spectrum | 280–315 nm |
| Exposure Time Range | 0–999 h (Adjustable |
| Black Panel Temperature Range | 40–65°C |
| Power Supply | 3-Phase AC 380 V / 50 Hz, 5 kW |
| Net Weight | ~110 kg |
| Lamp Type | 3000 W Long-Arc Xenon Lamp |
| Irradiance Control | Digital Setpoint with Closed-Loop Feedback (Optional Monitoring at 340 nm, 420 nm, 300–400 nm, or 300–800 nm) |
| Brand | APKJ |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |
| Model | AP-XD-100A |
| Working Chamber Dimensions | 450 × 1170 × 500 mm |
| Overall Dimensions | 500 × 1280 × 1450 mm |
| Temperature Range | RT+10°C to 70°C |
| Humidity Range | 0–98% RH |
| Temperature Uniformity | ±2°C |
| Temperature Stability | ±0.5°C |
| Control Method | PID Auto-Tuning |
| Lamp Center-to-Center Distance | 70 mm |
| Sample-to-Lamp Distance | 50 mm |
| Standard Specimen Size | 75 × 150 mm or 75 × 300 mm |
| Water Tray Depth | 25 mm (Auto-Controlled) |
| Effective Irradiated Area | 900 × 210 mm |
| UV-A Wavelength Range | 315–400 nm |
| UV-B Wavelength Range | 280–315 nm |
| Exposure Time Range | 0–999 h (Adjustable |
| Black Panel Temperature Range | 40–65°C |
| Power Supply | 3-Phase AC 380 V / 50 Hz, 5 kW |
| Weight | Approx. 110 kg |
| Brand | Apkji |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Manufacturer |
| Country of Origin | China |

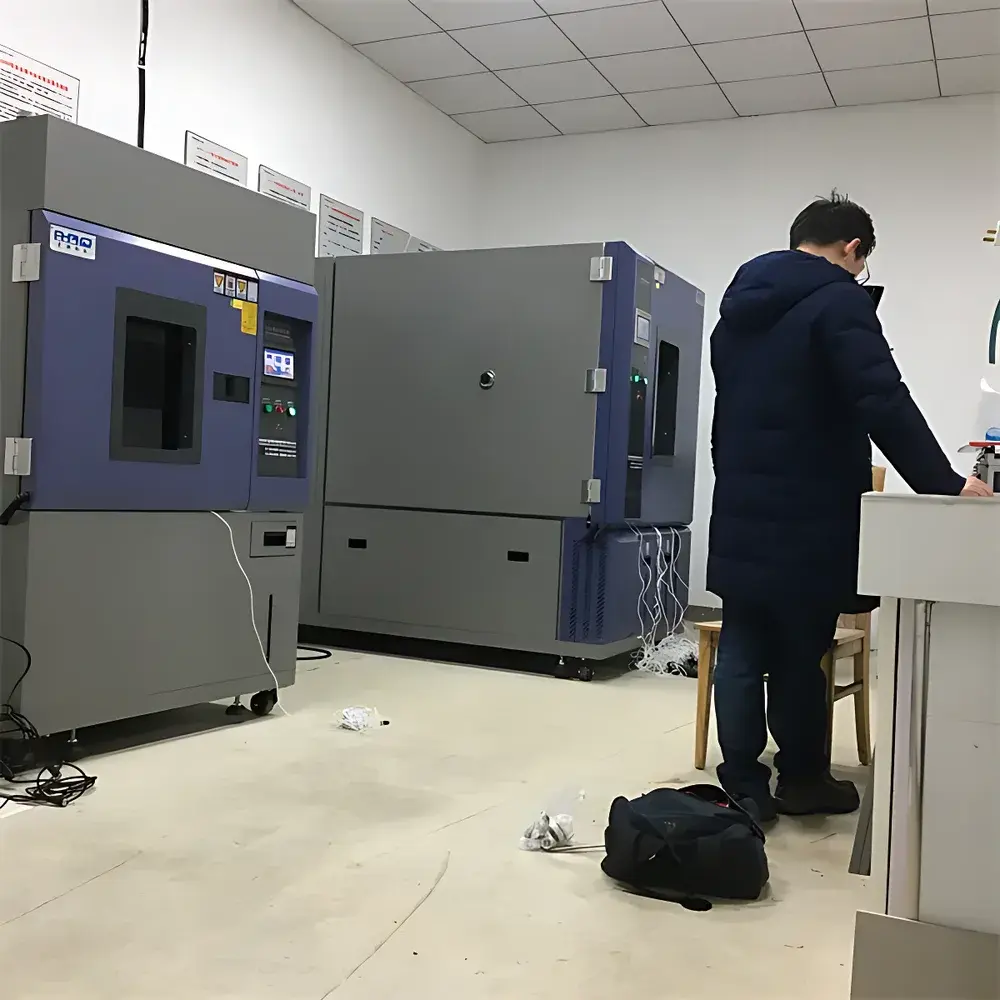

| Model | AP-XD-15 |
| Xenon Lamp Power | 6 kW (single lamp) |
| Irradiance Range | 0.30–0.65 W/m² @ 340 nm |
| Illumination Cycle | 1–9999 h/min/sec adjustable |
| Black Panel Temperature Range | (Ambient +10)–100 °C |
| Temperature Uniformity | ±3.0 °C |
| Humidity Range | 10–70 %RH (irradiation phase) |
| Humidity Accuracy | ±5.0 %RH |
| Sample Rack | Rotating turntable, Ø ≈ 400 mm |
| Internal Volume | 150 L |
| Inner Dimensions (W×H×D) | 500 × 600 × 500 mm |
| Overall Dimensions (W×H×D) | 1100 × 1850 × 1000 mm |
| Lamp Type | Long-arc xenon lamp |
| Spectral Range | 290–800 nm |
| Filter System | S1 quartz filter (matching terrestrial solar spectrum) |
| Irradiance Control | PID-controlled digital power supply with “Sun Eye” closed-loop radiometer feedback |
| Cooling System | Single-stage hermetic compressor (French Tecumseh), R404A/R23 refrigerant blend, independent heating/cooling circuits |
| Compliance | GB/T 16422.1, ASTM G155, ASTM C1442, AATCC TM16 |
| Brand | APKJ |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |

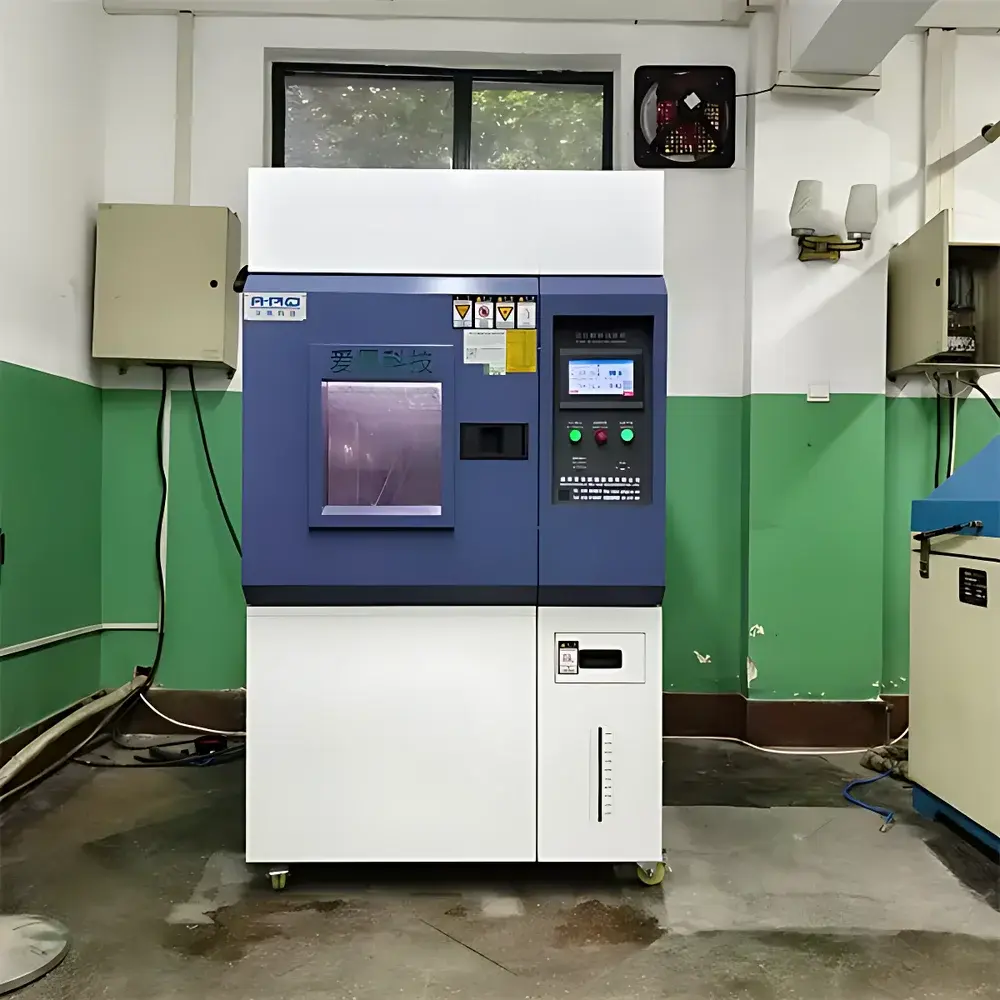

| Model | AP-XD-80A |
| Xenon Lamp Power | 1500 W |
| Irradiance Range | ≤1120 W/m² |
| Light Exposure Cycle | 1–999 h (adjustable) |
| Humidity Range | 20–98% RH |
| Internal Chamber Volume | 80 L |
| Chamber Dimensions (W×H×D) | 400 × 500 × 400 mm |
| Overall Dimensions (W×H×D) | 920 × 1670 × 950 mm |
| Weight | ~200 kg |
| Spectral Band Options | 340 nm (standard), 420 nm / 290–400 nm / 290–800 nm (optional, subject to filter configuration) |
