| [Brand | Asida |
|---|---|
| Origin | Guangdong, China |
| Model | LV12 |
| Test Method | Static Extraction |
| Measurement Accuracy | ±5% |
| Conductivity Resolution | 0.001 µS/cm |
| Sample Plate Size Range | 10 cm × 10 cm to 60 cm × 35 cm |
| Extractant Density | 0.85–0.855 g/cm³ |
| Extractant Volume | ~17 L |
| Water Tank Dimensions | 352 mm × 70 mm × 600 mm (L×W×H) |
| Overall Dimensions | 1050 mm × 600 mm × 920 mm (L×W×H) |
| Power Consumption | 1300 W |
| Input Voltage/Frequency | 220 V / 50 Hz |
| Net Weight | ~115 kg |
| Operating Ambient Temperature | 22 ± 3 °C |
| Extractant Temperature Control | 40 ± 2 °C |
| Compliance | GB/T 4677.22a, GB/T 18268, SJ/T 11364, IPC-6012B Clause 3.9, IPC-TM-650 2.3.25B] |
| Brand | ASIDA |
|---|---|
| Model | CQ2000 |
| Origin | Guangdong, China |
| Instrument Type | Metallographic Slitting & Precision Cutting System for Prepreg Rolls |
| Cutting Accuracy | ±1 mm |
| Cut Edge Quality | No whitening, delamination, wrinkling, charring, or stringing |
| Dust Reduction | >95% vs. conventional mechanical cutting |
| Cutting Frequency (500 mm length) | ≤18 cuts/min |
| Cut Length Range | 250–750 mm |
| Cut Width Range | 200–1270 mm |
| Material Thickness Range | 0.04–0.3 mm |
| Dimensions (L×W×H) | 2657 × 2200 × 1658 mm |
| Weight | 1800 kg |
| Brand | ASIDA |
|---|---|
| Model | LZ12 |
| Type | Static Ionic Contamination Tester for Printed Circuit Boards |
| Measurement Principle | Conductivity-based extraction analysis per IPC-TM-650 2.3.25 and J-STD-001 |
| Standard Extractant Volume | 17 L (customizable up to 30 L) |
| Extractant Temperature Control | 40 ± 2 °C |
| Test Area Range | 1200–8712 cm² |
| Conductivity Resolution | 0.0001 µS/cm² |
| Accuracy | ±5% |
| Electrode Sensitivity Range | 0.0001–9999.9999 µS/cm² |
| Power Supply | AC 220 V, 50 Hz |
| Rated Power | 1300 W |
| Dimensions (Std) | 1050 × 600 × 920 mm |
| Weight (Std) | ~115 kg |
| Operating Ambient | 22 ± 3 °C |
| Data Output | Excel (.xlsx), USB/RS232 interface |
| Language Support | English & Simplified Chinese |
| Security | Multi-level password protection |
| Thermal Stability | ±0.3 °C at 40 °C setpoint |
| Resin Filtration System | Mixed-bed anion/cation exchange resin |
| Compliance | IPC, JEDEC, ISO 9001-aligned workflow support |
| Software | Embedded PC-controlled acquisition with real-time conductivity curve plotting and auto-report generation |

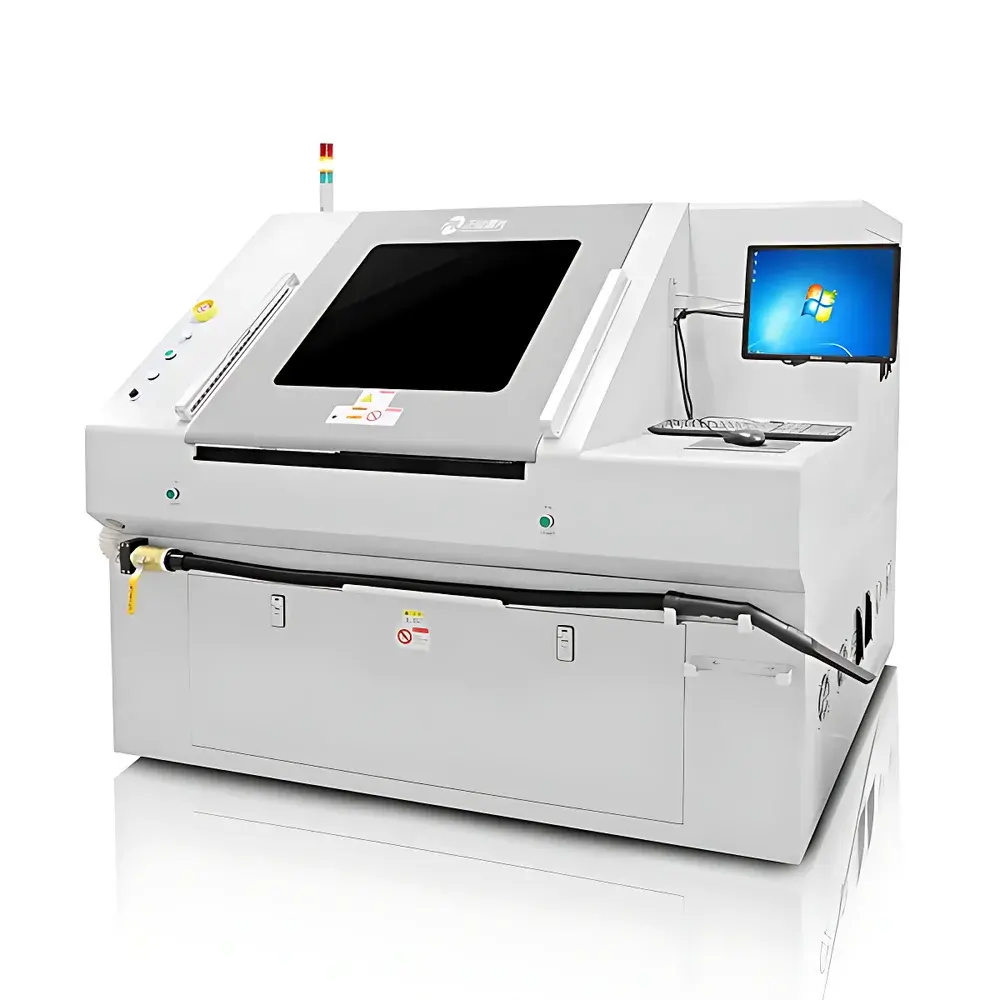

| Brand | ASD (Zhengye Technology) |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Type | Precision UV Laser Cutting System |
| Laser Source | Solid-State UV Laser, 355 nm, 10 W |
| Max. Working Area | 610 mm × 500 mm (24″ × 18″) |
| XY Stage Max. Speed | 50 m/min |
| Positioning Accuracy | ±3 µm |
| Repeatability | ±1 µm |
| System Processing Accuracy | ±20 µm |
| Galvo Scan Range | 50 mm × 50 mm |
| Max. Material Thickness | <1 mm |
| Power Supply | AC 220 V / 50 Hz / 2.2 kW or 3-phase 380 V / 50 Hz / 5.5 kW |
| Dust Extraction Requirement | 516 m³/h |
| Dimensions (L×W×H) | 1818 mm × 2317 mm × 1550 mm |
| Weight | 3500 kg |
| Operating Environment | 20 °C ±2 °C, RH <60% (non-condensing), Floor Vibration Amplitude <5 µm, Acceleration <0.05 g, Load Capacity ≥2200 kgf/m² |
