| Brand | Zhengye |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Producer |
| Model | ZK2130 |
| Measurement Range | 20–150 Ω |
| Measurement Length | 0.05–2 m |
| Bandwidth | 3 GHz |
| Accuracy | ±1% at 50 Ω |
| Test Speed | ≤1 s per point |
| Compliance | Designed for IPC-TM-650 2.5.1 and IEC 61189-2 compliant impedance verification |
| Brand | Zhengye |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM/ODM Producer |
| Country of Origin | China |
| Model | ZK3185 |
| Price | Upon Request |
| Impedance Measurement Range | 20–200 Ω |
| Measurement Length | 0.02–2 m |
| Bandwidth | 0.1–8.5 GHz |
| TDR Accuracy | ±1% @ 50 Ω |
| Measurement Speed | ≤1 s per point |
| S-Parameter Capability | Yes |
| Dynamic Range | >100 dB |
| Calibration | Full user-accessible multi-point calibration |
| Brand | Zhengye |
|---|---|
| Model | ZK2130 |
| Measurement Principle | Time-Domain Reflectometry (TDR) |
| Impedance Range | 20–150 Ω |
| Accuracy | ±1% at 50 Ω |
| Measurement Length | 0.05–2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.05 Ω |
| Bandwidth | 3 GHz |
| Test Modes | Single-Ended & Differential |
| Channel Configurations | 2-channel or 4-channel |
| Compliance | IPC-TM-650, IPC-2141 |
| Data Analysis | Integrated SPC module for statistical process control |
| Operating System | Windows-based GUI |
| Reporting | Automated report generation with waveform export, CSV data logging, and printer support |
| Brand | Oxford Instruments |
|---|---|
| Origin | Guangdong, China |
| Model | TDRZK2130 |
| Impedance Range | 20–150 Ω |
| Measurement Accuracy | ±1% at 50 Ω |
| Test Length | 0.05–2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.05 Ω |
| Measurement Method | Time-Domain Reflectometry (TDR) |
| Bandwidth | 3 GHz |
| Compliance | IPC-TM-650, IPC-2141 |
| Brand | ASIDA |
|---|---|
| Model | ZK2130 |
| Origin | Guangdong, China |
| Type | Domestic |
| Measurement Principle | Time-Domain Reflectometry (TDR) |
| Impedance Range | 20–150 Ω |
| Accuracy at 50 Ω | ±1% |
| Test Length Range | 0.05–2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.05 Ω |
| Bandwidth | 3 GHz |
| Compliance | IPC-TM-650, IPC-2141 |
| Test Modes | Single-Ended & Differential Impedance, Differential Pair Delay |
| Brand | Aisida |
|---|---|
| Model | ZK2120 |
| Origin | Guangdong, China |
| Type | TDR-Based Differential/Single-Ended Impedance Analyzer |
| Impedance Range | Single-Ended 10–150 Ω, Differential 20–300 Ω |
| Measurement Accuracy | ±1% at 50 Ω |
| Repeatability | ±0.5% at 50 Ω |
| TDR Bandwidth | >1.75 GHz |
| Sampling Oscilloscope Bandwidth | >3 GHz |
| Rise Time | <120 ps |
| Time Resolution | 10 ps |
| Length Measurement Range | 0.04–2 m |
| Horizontal Display Resolution | 0.2 mm |
| Vertical Display Resolution | 0.03 Ω |
| Supported Modes | Single-Ended, Differential, Common-Mode, Skew (Intra-Pair & Inter-Pair) |
| Compliance Standards | IEEE 1394a/b, DiiVA, DisplayPort, HDMI 1.4, SATA I/II, USB 2.0/3.0 |
| Brand | Aisida |
|---|---|
| Model | ZK2130 |
| Origin | Guangdong, China |
| Testing Principle | Time-Domain Reflectometry (TDR) |
| Impedance Range | 20–150 Ω |
| Measurement Accuracy | ±1% at 50 Ω |
| Maximum Test Length | 2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.05 Ω |
| Bandwidth | 3 GHz |
| Supported Configurations | Single-ended & Differential Impedance |
| Channel Options | 2-channel or 4-channel |
| Compliance | IPC-TM-650, IPC-2141 |
| Data Analysis | Integrated SPC module with statistical reporting |
| Operating System | Windows-based GUI |

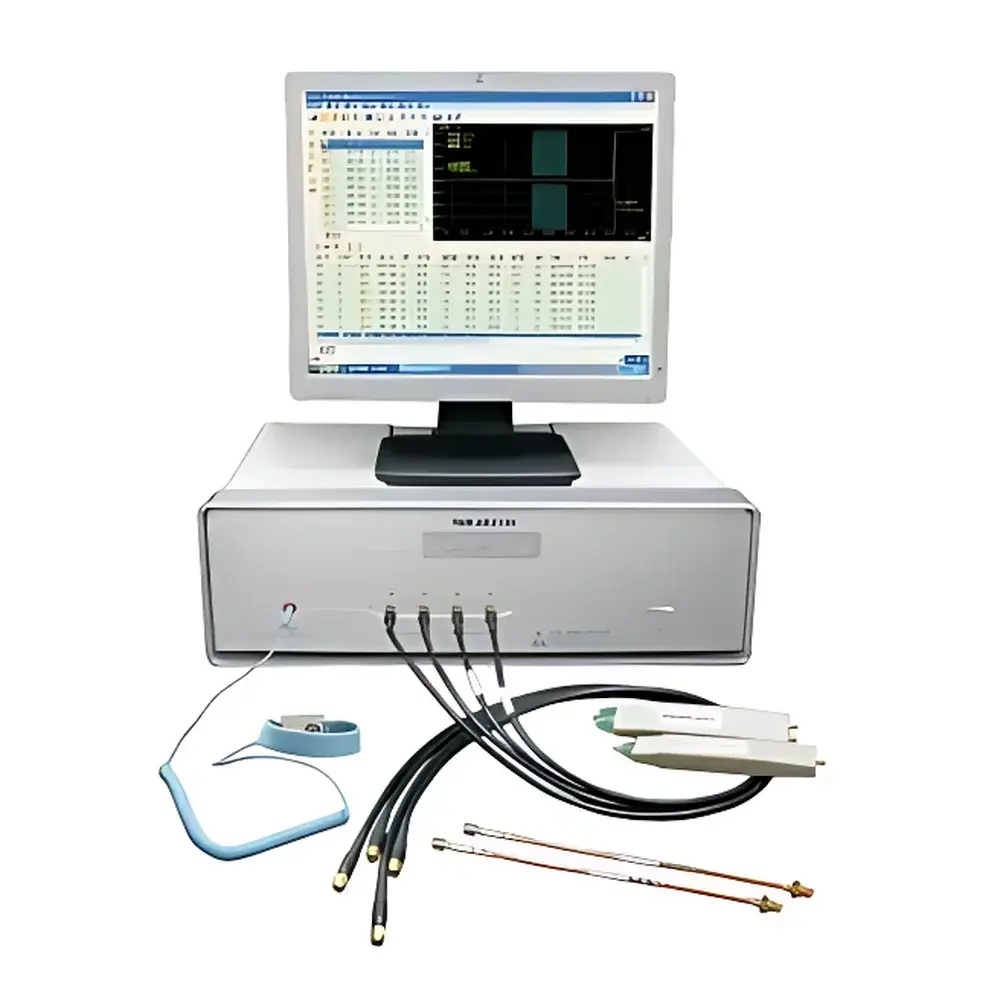

| Brand | Aisida |
|---|---|
| Model | TDR-ZK2130 |
| Origin | Guangdong, China |
| Measurement Principle | Time-Domain Reflectometry (TDR) |
| Impedance Range (Single-Ended) | 10–150 Ω |
| Impedance Range (Differential) | 20–300 Ω |
| Accuracy (at 50 Ω) | ±1% |
| Repeatability (at 50 Ω) | ±0.5% |
| Measurement Length | 0.04–2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.03 Ω |
| TDR Bandwidth | >3 GHz |
| Sampling Oscilloscope Bandwidth | >5 GHz |
| Incident Pulse Rise Time | <80 ps |
| Time Sampling Resolution | 10 ps |
| Supported Modes | Single-ended, Differential, Common-mode impedance |
| Statistical Process Control (SPC) Module | Integrated |
| Channel Configurations | 2-channel or 4-channel operation |
| Compliance Standards | IEEE 1394a/b, DiiVA, DisplayPort, HDMI 1.4, SATA I/II, USB 2.0/3.0 |
| Brand | Aisida |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ZK2130 |
| Pricing | Upon Request |
