| Brand | Astroda |
|---|---|
| Model | XG5600 |
| Origin | Guangdong, China |
| Detector Type | Flat-Panel Digital Radiography System |
| Max. Tube Voltage | 110 kV |
| Max. Tube Current | 450 µA |
| Focal Spot Size | 5 µm |
| Cooling Method | Forced Air |
| Detector Active Area | 54 mm × 48 mm |
| Spatial Resolution | 20.8 lp/mm |
| Pixel Matrix | 2000 × 2249 / 1000 × 1124 |
| Repeatability Accuracy | ±60 µm |
| Throughput | ≥50 ppm |
| False Positive Rate | ≤2% |
| False Negative Rate | 0.0% |
| Pass Rate Consistency | ≥99.5% |
| Radiation Leakage | ≤1 µSv/hr (measured at 5 cm from enclosure surface) |
| Compliance | IEC 61000-6-3, IEC 61000-6-4, GBZ 126-2011, ANSI N43.3 |

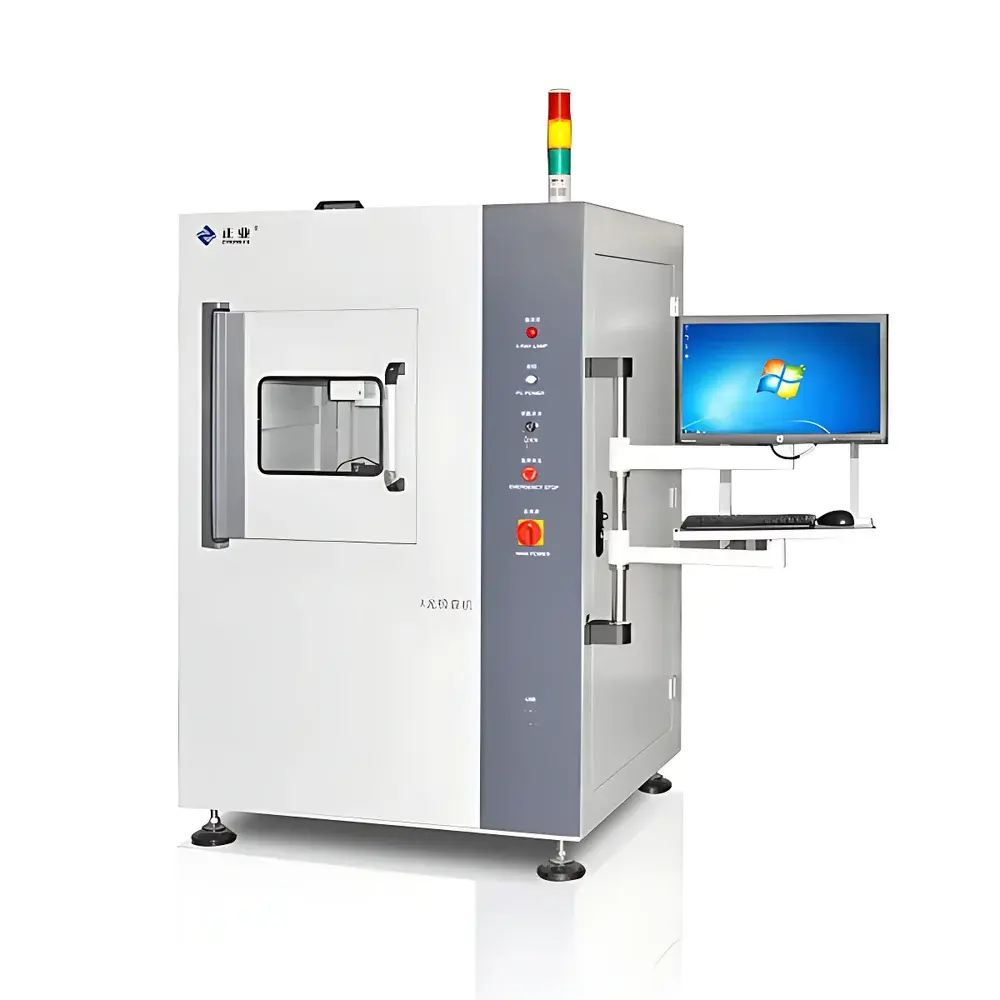

| Brand | Astroda |
|---|---|
| Origin | Guangdong, China |
| Model | XG5 |
| Price Range | USD 70,000 – 140,000 |
| Category | X-ray Radiographic Inspection System for Electronics Assembly |
| Detection Principle | Transmission X-ray Imaging (2.5D) |
| Motion Control | CNC-programmable XYZ-axis movement of X-ray source and image intensifier |
| Image Acquisition | Real-time digital radiography with software-based measurement and pass/fail classification |
| Compliance | Designed to support IPC-A-610, IPC-J-STD-001, and ISO 9001 quality audit workflows |
| Software | Proprietary automated inspection suite with measurement tools (linear distance, circle diameter, concentricity, point-to-center), navigation mapping, and DICOM-compatible image export |
| Brand | Astroda |
|---|---|
| Model | XG5100 |
| Application | In-line/Off-line Automated Radiographic Inspection of Polymer Pouch-Type Li-ion Cells and Sealed Battery Packs |
| X-ray Tube Voltage | Up to 110 kV |
| X-ray Tube Current | Up to 450 µA |
| Focal Spot Size | 5 µm |
| Detector Type | Line-Scan CCD/CMOS Array |
| Sensitive Area | 235 mm × 13 mm |
| Repeatability Accuracy | ±60 µm |
| Throughput | ≥25 parts per minute (ppm) |
| False Positive Rate | ≤2% |
| Miss Detection Rate | 0.0% |
| Overall Yield Compliance Rate | ≥99.5% |
| Radiation Leakage | ≤1 µSv/hr at any accessible surface |
| Cooling Method | Forced-Air Cooled X-ray Source |
| Safety Certification | Compliant with IEC 61000-6-4, IEC 61000-6-2, and GBZ 126–2011 (China National Standard for Radiation Protection in Industrial X-ray Equipment) |
| Brand | Astroda |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | XG5130 |
| Pricing | Available Upon Request |
| X-ray Tube Voltage | 90 kV |
| X-ray Tube Current | 200 µA |
| Focal Spot Size | 5 µm |
| Cooling Method | Forced Air Cooling |
| Detection Accuracy | 40 µm |
| Radiation Leakage | ≤1 µSv/hr (compliant with IEC 61000-4-3 & IEC 62471) |

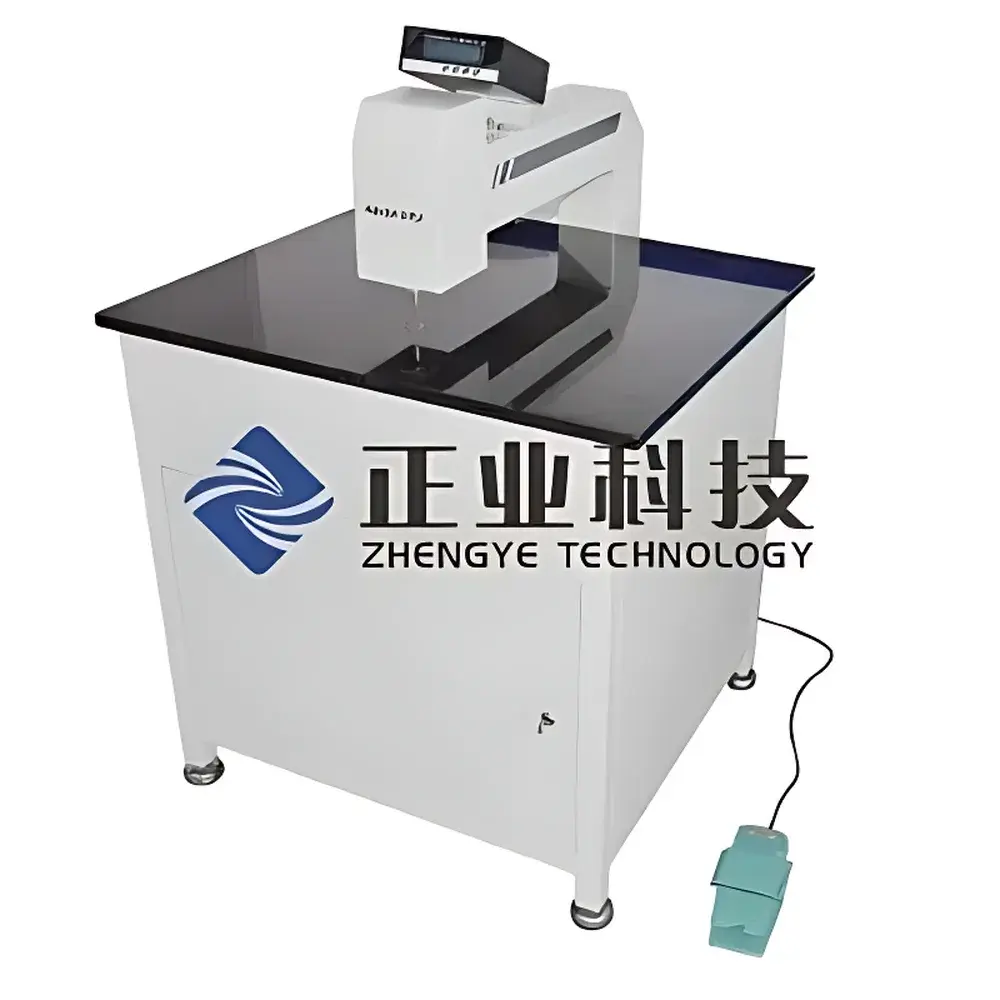

| Brand | Astroda |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | CB11 |
| Quotation | Upon Request |
| Throat Depth | 530 mm |
| Thickness Measurement Range | 0–25 mm |
| Stroke | 25 mm |
| Tabletop Dimensions | 900 × 870 mm |
| Accuracy | ±0.003 mm |
| Display | LCD (mm/inch switchable) |
| Zeroing Function | Arbitrary Position |
| Tabletop Material | Phenolic Resin (Electrical Insulating Board) |
| Power Supply | 220 V AC, 50 Hz / 100 W |
| Net Weight | 120 kg |
| Brand | Astroda |
|---|---|
| Model | XG5120 |
| Origin | Guangdong, China |
| X-ray Tube Voltage | 90 kV |
| X-ray Tube Current | 200 µA |
| Focal Spot Size | 5 µm |
| Cooling Method | Forced Air Cooling |
| Detection Accuracy | 40 µm |
| Radiation Leakage | ≤1 µSv/hr (per IEC 61331-1 & FDA 21 CFR §1020.40) |
| Throughput | ≥30,000 units/day |
| Reconfiguration Time | 0.5–2 h |
| Compliance | CE, ISO 13485 (for medical device manufacturing support), GB/T 18871-2002, IEC 62495 |
| Brand | ASIDA |
|---|---|
| Model | ZK2130 |
| Origin | Guangdong, China |
| Type | Domestic |
| Measurement Principle | Time-Domain Reflectometry (TDR) |
| Impedance Range | 20–150 Ω |
| Accuracy at 50 Ω | ±1% |
| Test Length Range | 0.05–2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.05 Ω |
| Bandwidth | 3 GHz |
| Compliance | IPC-TM-650, IPC-2141 |
| Test Modes | Single-Ended & Differential Impedance, Differential Pair Delay |
| Brand | Astroda |
|---|---|
| Model | XG5300/XG5310 |
| X-ray Tube Voltage | 90 kV |
| X-ray Tube Current | 200 µA (software-limited to 89 µA) |
| Focal Spot Size | 5 µm |
| Cooling Method | Forced Air Cooling |
| Field of View | 2″ / 4″ |
| Spatial Resolution | 75 / 110 lp/cm |
| X-CCD Resolution | 1024 × 1024 pixels |
| Repeatability Accuracy | ±40 µm |
| Throughput | ≥60 PPM |
| False Positive Rate | ≤2% |
| False Negative Rate | 0.0% |
| Overall Yield Rate | ≥99.5% |
| Radiation Dose Rate | ≤1 µSv/hr (at any accessible surface) |
| Host Dimensions | 2500 × 1500 × 1700 mm |
| Power Supply | AC 380 V, 50 Hz |
| Operating Environment | 23 ±5 °C, ≤80% RH |
| Display | 22″ widescreen LCD |
| CPU | Intel Core i3 |
| RAM | 2 GB |
| Storage | 500 GB HDD |

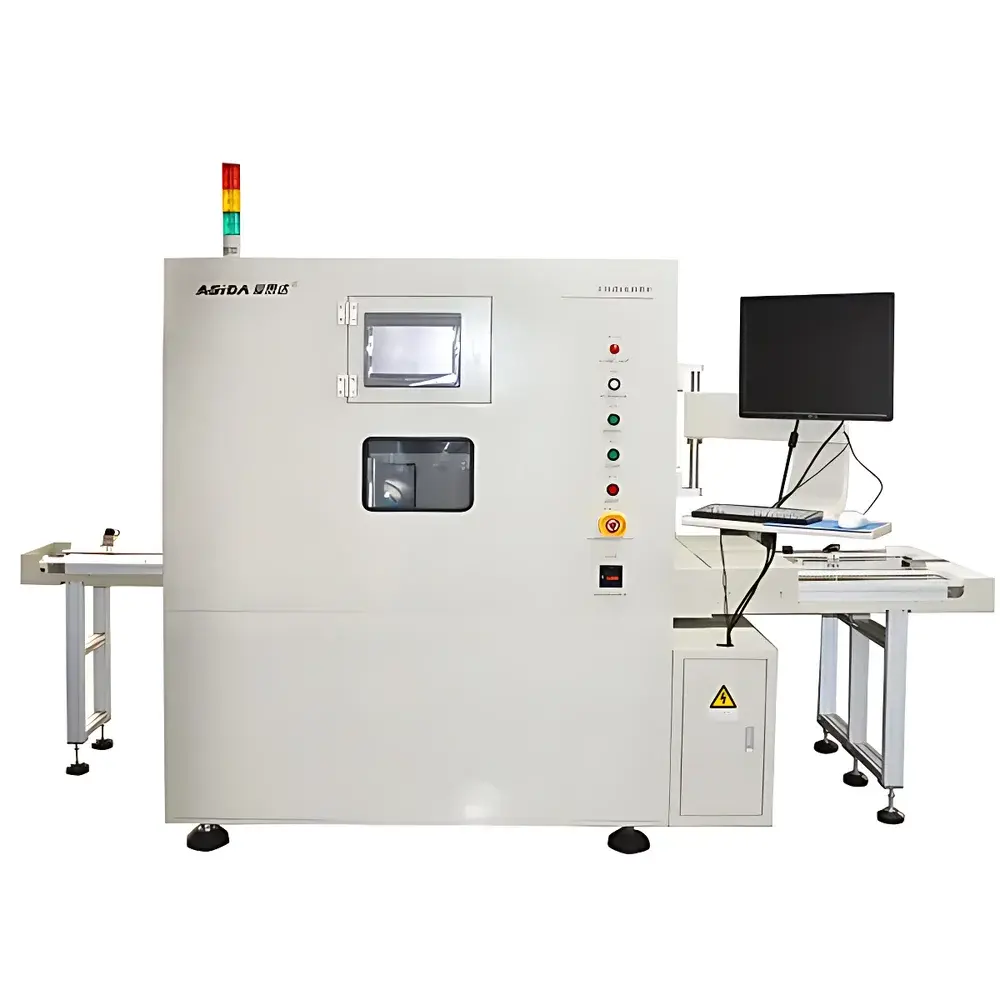

| Brand | Astroda |
|---|---|
| Model | XG5200D |
| X-ray Tube Voltage | Up to 110 kV |
| X-ray Tube Current | Up to 450 µA |
| Focal Spot Size | 5 µm |
| Cooling Method | Forced Air Cooling |
| Image Intensifier Field of View | 4″ / 6″ |
| Spatial Resolution | 80 lp/cm |
| Camera Resolution | 752 × 480 pixels |
| Repeatability Accuracy | ±60 µm |
| Throughput | ≥6 parts per minute (at non-tab corner regions) |
| False Positive Rate | ≤2% |
| False Negative Rate | 0.0% |
| Pass Rate Consistency | ≥99.5% |
| Radiation Leakage | ≤1 µSv/hr (compliant with international radiation safety standards) |
| Brand | Astera |
|---|---|
| Origin | Guangdong, China |
| Model | XG5120 / XG5130 |
| X-ray Tube Voltage | 90 kV |
| X-ray Tube Current (Software-Limited) | 89 µA |
| Focal Spot Size | 5 µm |
| Cooling Method | Forced Air Cooling |
| Field of View | 2″ / 4″ |
| Spatial Resolution | 75 / 110 lp/cm |
| X-CCD Resolution | 1024 × 1024 pixels |
| Geometric Magnification | 12×–48× |
| Repeatability Accuracy | ±40 µm |
| Radiation Dose Rate | ≤1 µSv/hr (at any accessible surface) |
| System Dimensions | 2800 × 1550 × 1850 mm |
| Weight | ~2000 kg |
| Power Supply | AC 220 V, 10 A |
| Operating Environment | 22 ± 3 °C, 50 ± 10% RH |
| Computing Platform | 22″ widescreen LCD, Intel Core i3, 2 GB RAM, 500 GB HDD |
| Brand | Asida |
|---|---|
| Model | JK3200, JK3600 |
| Detectable Hole Diameter Range | 0.15–10 mm |
| PCB Size Range | 100 × 150 mm to 630 × 650 mm |
| PCB Thickness Range | 0.3–10 mm |
| Max. Hole Count per Board | 150,000 |
| Inspection Speed | 3.5–12.5 m/min (adjustable) |
| Hole Position Repeatability | ±40 µm |
| Hole Dimension Tolerance | ±40 µm |
| Minimum Hole-to-Hole Edge Distance | 0.15 mm |
| Detection Method | CIS Contact Image Sensor (Close-Range Linear Array Imaging) |
| Light Source | Diffuse Long-Strip LED Illumination |
| Power Supply | AC 220 V, 50 Hz |
| Compressed Air Requirement | 0.5–0.7 MPa |
| Dimensions (L×W×H) | 3550 × 1200 × 1100 mm |
| Weight | 450 kg |
| Origin | Guangdong, China |
| Distribution Type | Authorized Distributor |
| Brand | Asida |
|---|---|
| Model | CQ1000 |
| Application | Precision slitting and blanking of uncured fiberglass-reinforced epoxy prepreg (PP) rolls used in PCB and copper-clad laminate (CCL) manufacturing |
| Cutting Principle | Non-contact localized thermal softening followed by mechanical shearing |
| Max. Roll Diameter | 320 mm |
| Cutting Length | 50–750 mm |
| Cutting Width | 200–1270 mm |
| Material Thickness | 0.04–0.3 mm |
| Positioning Accuracy | ±1.0 mm |
| Web Speed | ≤60 m/min |
| Cycle Rate | ≤13 cuts/min (at 500 mm length) |
| Power Supply | 3-phase 5-wire, AC380 V / 50 Hz / ≥40 A |
| Compressed Air | 0.7–1.0 MPa |
| Ambient Requirements | 20 °C ±2 °C, 50 %RH ±5 %RH |
| Footprint | 2600 × 2300 × 1700 mm (L×W×H) |
| Weight | ~1500 kg |
| Avg. Power Consumption | ≤9 kW |
| Compliance | Designed for ISO 9001-aligned production environments |
| Brand | Asada |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | JK3600 |
| Pricing | Available Upon Request |
| Detectable Hole Diameter Range | 0.15–10 mm |
| PCB Size Capacity | 100 × 150 mm to 630 × 650 mm |
| PCB Thickness Range | 0.3–10 mm |
| Max. Hole Count per Board | 150,000 |
| Inspection Speed | 3.5–12.5 m/min (adjustable) |
| Hole Position Repeatability | ±40 µm |
| Hole Dimension Tolerance | ±40 µm |
| Minimum Hole-to-Hole Edge Distance | 0.15 mm |
| Detection Method | Contact Image Sensor (CIS) Proximity Imaging |
| Light Source | Diffuse Long-Strip LED Array |
| Power Supply | AC 220 V, 50 Hz |
| Machine Dimensions (L×W×H) | 3550 × 1200 × 1100 mm |
| Compressed Air Requirement | 0.5–0.7 MPa |
| Weight | 450 kg |
| Brand | Aisida |
|---|---|
| Model | ZK2120 |
| Origin | Guangdong, China |
| Type | TDR-Based Differential/Single-Ended Impedance Analyzer |
| Impedance Range | Single-Ended 10–150 Ω, Differential 20–300 Ω |
| Measurement Accuracy | ±1% at 50 Ω |
| Repeatability | ±0.5% at 50 Ω |
| TDR Bandwidth | >1.75 GHz |
| Sampling Oscilloscope Bandwidth | >3 GHz |
| Rise Time | <120 ps |
| Time Resolution | 10 ps |
| Length Measurement Range | 0.04–2 m |
| Horizontal Display Resolution | 0.2 mm |
| Vertical Display Resolution | 0.03 Ω |
| Supported Modes | Single-Ended, Differential, Common-Mode, Skew (Intra-Pair & Inter-Pair) |
| Compliance Standards | IEEE 1394a/b, DiiVA, DisplayPort, HDMI 1.4, SATA I/II, USB 2.0/3.0 |

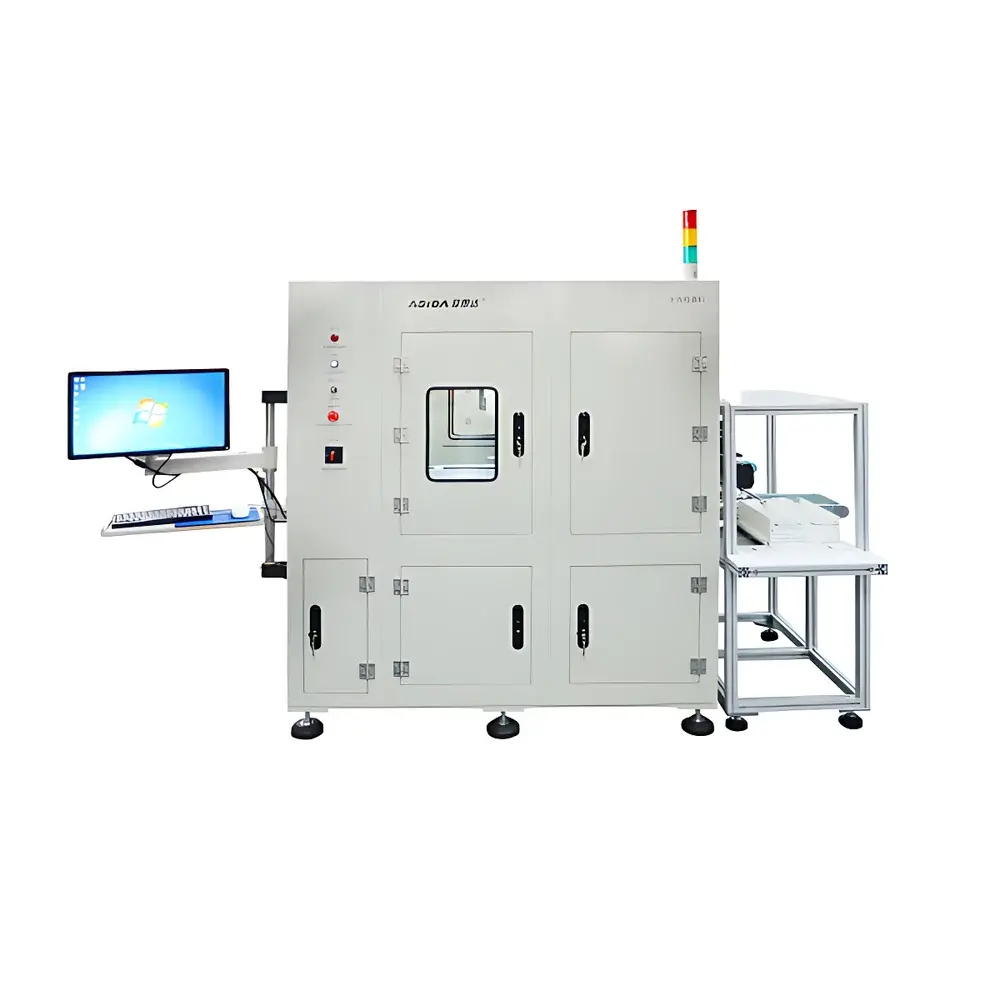

| Brand | Aisida |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | X-RAY Series |
| Pricing | Upon Request |
| Brand | Aisida |
|---|---|
| Model | ZK2130 |
| Origin | Guangdong, China |
| Testing Principle | Time-Domain Reflectometry (TDR) |
| Impedance Range | 20–150 Ω |
| Measurement Accuracy | ±1% at 50 Ω |
| Maximum Test Length | 2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.05 Ω |
| Bandwidth | 3 GHz |
| Supported Configurations | Single-ended & Differential Impedance |
| Channel Options | 2-channel or 4-channel |
| Compliance | IPC-TM-650, IPC-2141 |
| Data Analysis | Integrated SPC module with statistical reporting |
| Operating System | Windows-based GUI |
| Brand | Aisida |
|---|---|
| Model | TDR-ZK2130 |
| Origin | Guangdong, China |
| Measurement Principle | Time-Domain Reflectometry (TDR) |
| Impedance Range (Single-Ended) | 10–150 Ω |
| Impedance Range (Differential) | 20–300 Ω |
| Accuracy (at 50 Ω) | ±1% |
| Repeatability (at 50 Ω) | ±0.5% |
| Measurement Length | 0.04–2 m |
| Horizontal Resolution | 0.2 mm |
| Vertical Resolution | 0.03 Ω |
| TDR Bandwidth | >3 GHz |
| Sampling Oscilloscope Bandwidth | >5 GHz |
| Incident Pulse Rise Time | <80 ps |
| Time Sampling Resolution | 10 ps |
| Supported Modes | Single-ended, Differential, Common-mode impedance |
| Statistical Process Control (SPC) Module | Integrated |
| Channel Configurations | 2-channel or 4-channel operation |
| Compliance Standards | IEEE 1394a/b, DiiVA, DisplayPort, HDMI 1.4, SATA I/II, USB 2.0/3.0 |
| Brand | Aisida |
|---|---|
| Model | JK2400 |
| Measurement Principle | Contactless CIS-based optical imaging with diffuse LED illumination |
| Pore Diameter Range | 0.10–10.0 mm |
| PCB Size Capacity | 120 × 64 mm to 610 × 610 mm |
| PCB Thickness Range | 0.08–10 mm |
| Max. Hole Count per Scan | 600,000 |
| Inspection Speed | 4.2 m/min |
| Diameter Measurement Accuracy | ≤21 µm |
| Tolerance Specification | ±50 µm |
| Imaging Method | Proximity CIS line-scan sensor with short-focus lens |
| Light Source | Diffuse linear LED array |
| Power Supply | 220 V AC, 15 A, 3 kW |
| Compressed Air Requirement | 0.6 MPa |
| Dimensions (L×W×H) | 4050 × 1280 × 1220 mm |
| Weight | 450 kg |
| Data Storage | Integrated relational database with timestamped audit trail |
| Communication Interface | CAN bus architecture |
| Compliance Framework | Designed for integration into ISO 9001-certified PCB manufacturing lines |
| Brand | Aisida |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | ZK2130 |
| Pricing | Upon Request |
| Brand | Aisida |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | Zhengye XG5120 |
| Quotation | Available Upon Request |
| Detection Efficiency | ≥60 ppm |
| False Positive Rate | ≤2% |
| False Negative Rate | 0% |
| Yield Accuracy | 99.5% |
| Measurement Resolution | 40 µm |
| Radiation Dose Rate | ≤1 µSv/hr (per IEC 61000-4-2 & ISO 13783 compliance) |
| [Brand | Isida |
|---|---|
| Origin | Guangdong, China |
| Model | XK22 |
| Resolution | 0.70–5.20 µm/pixel |
| Optical Magnification | 1.4×–9× (continuously adjustable) |
| Electronic Magnification | 50× |
| Light Source | Adjustable LED ring light + red laser diode (LD) positioning |
| CCD | High-sensitivity color CCD |
| Maximum PCB width | 780 mm (30") |
| Field of View | 3.4 mm × 2.5 mm to 0.53 mm × 0.4 mm |
| Repeatability | ±1 µm |
| Dimensions (L×W×H, instrument only) | 960 mm × 700 mm × 1220 mm |
| Weight (instrument only) | 145 kg |
| Power | 220 V ±10%, 50 Hz, 10 A |
| Operating Temperature | 0–40 °C] |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Classification | Domestic (China) |

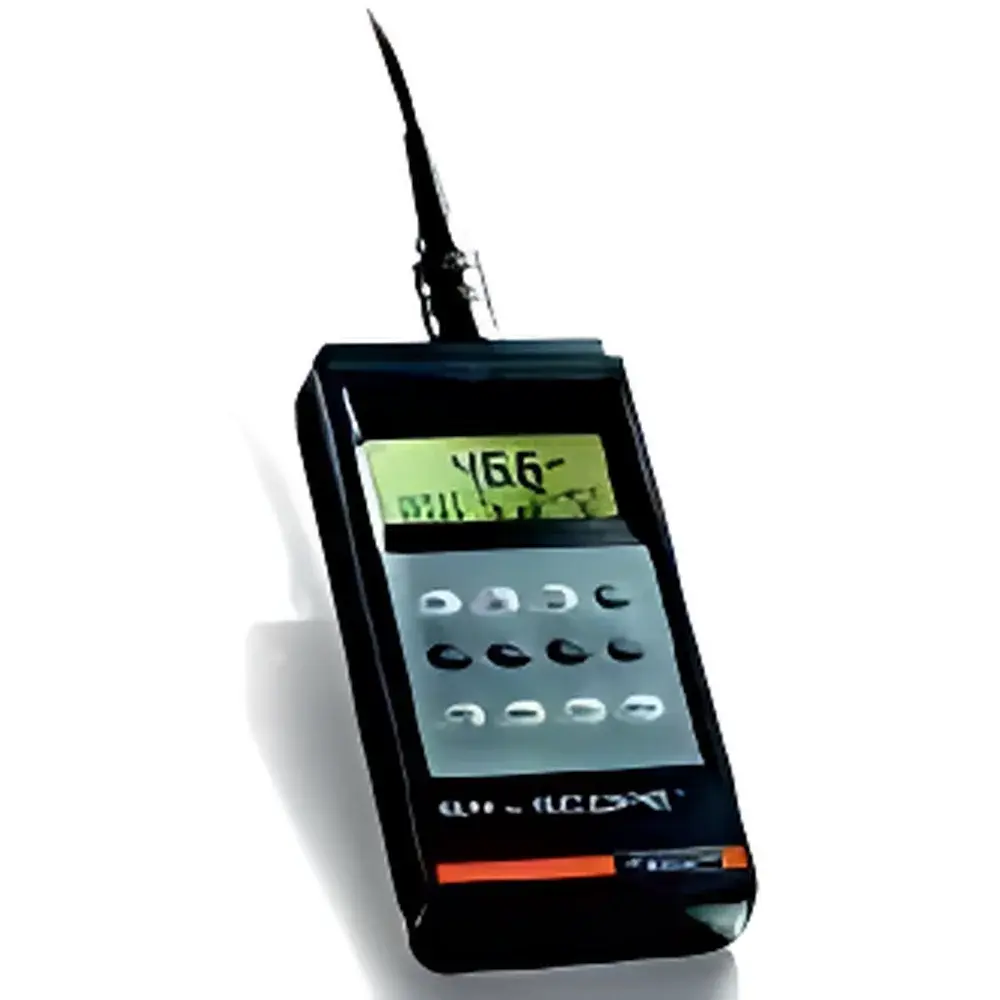

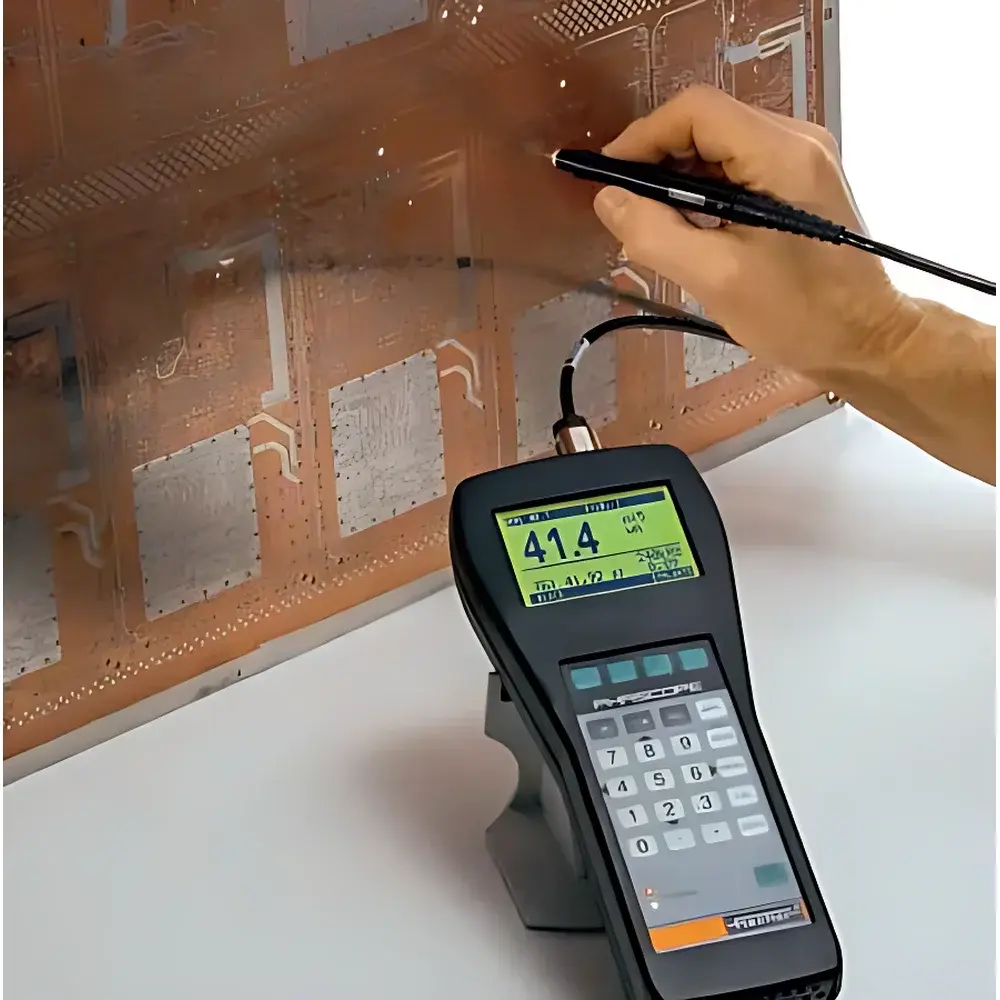

| Models | PMP10, RMP30-S, MPO, FMP |
| Pricing | Available Upon Request |
| Brand | Zhengye |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM Manufacturer |
| Regional Classification | Domestic (China) |
| Model | Aisida XG5000 Series |
| Price Range | USD 28,000 – 70,000 |
| Origin | Guangdong, China |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (PRC) |
| Model | XG600 |
| Pricing | Available Upon Request |
Show next
