| Brand | Hexagon Metrology |
|---|---|
| Origin | China (Shandong) |
| Model | OPTIV PERFORMANCE/M/G |
| Structural Design | Fixed-bridge, granite base |
| Drive Configuration | Central drive on all three axes |
| Positioning System | High-accuracy open optical encoder scales |
| Imaging System | Industrial-grade monochrome or color CCD camera |
| Zoom Optics | Motorized zoom lens or 2-step manual zoom |
| Software | PC-DMIS Vision metrology software suite |
| Optional Sensors | Confocal chromatic white-light sensor |
| Optional Accessories | CNC rotary table (for multi-face automated measurement) |
| Z-Axis Configuration | Single-Z (standard) or Dual-Z (high-precision vertical probing & imaging alignment) |
| Compliance | Designed to support ISO 10360-7, VDI/VDE 2617 Part 7, and GD&T evaluation per ASME Y14.5 and ISO 1101 |
| Brand | Hexagon Metrology |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

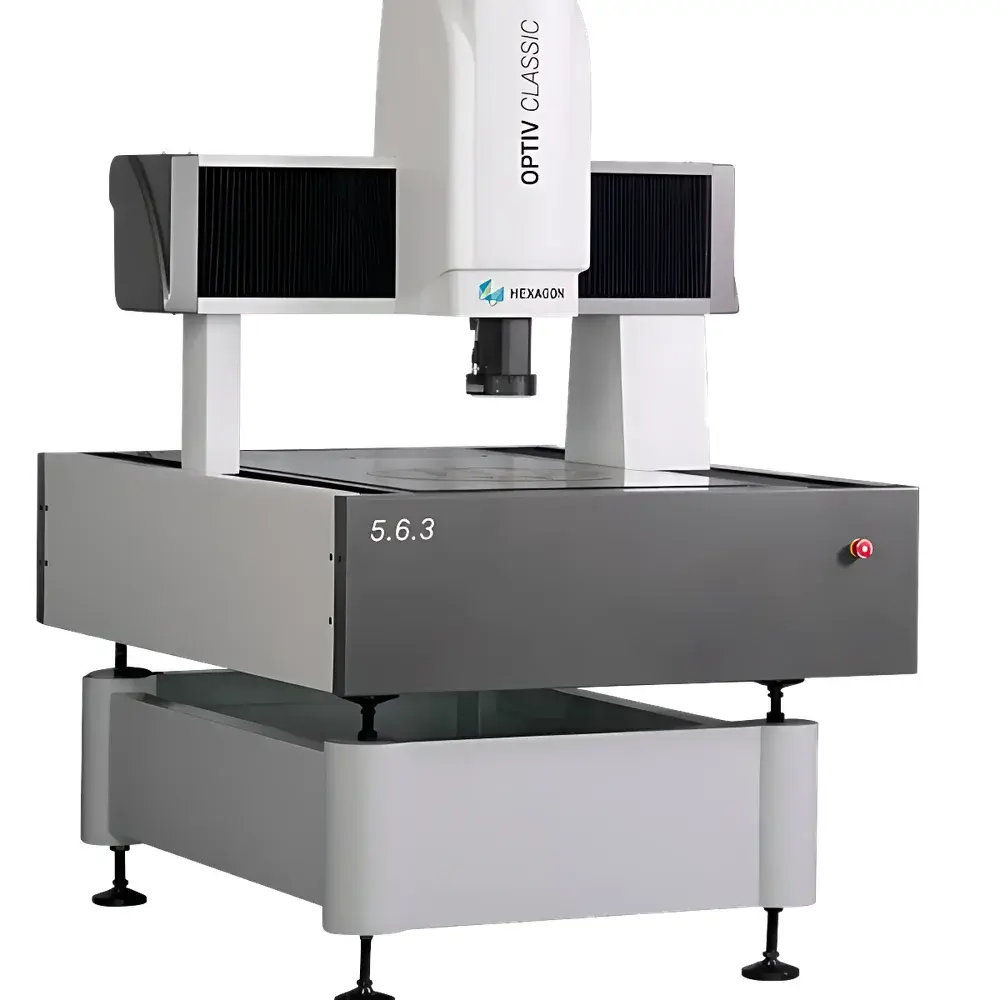

| Model | OPTIV CLASSIC |
| Pricing | Available Upon Request |
| Measurement Range (X×Y×Z) | 300×200×200 mm to 1200×1500×250 mm |
| External Dimensions (L×W×H) | 760×800×1015 mm to 1800×2742×1660 mm |
| Table Load Capacity | 16–40 kg |
| Machine Weight | 260–5000 kg |
| Base & Bridge Material | Precision Granite |
| Encoder System | Imported High-Accuracy Open-Loop Optical Grating |
| Imaging Sensor | Industrial-Grade Color CCD Camera |
| Illumination | Programmable 6-Ring, 8-Zone LED Ring Light with Independent Zone Intensity Control |
| Software | PC-DMIS Vision (ISO/IEC 17025-compliant metrology software) |
| Optional Probes | Confocal White-Light Sensor |
| Optional Probes | Touch Trigger Probe |
