| Brand | Hexagon Metrology |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

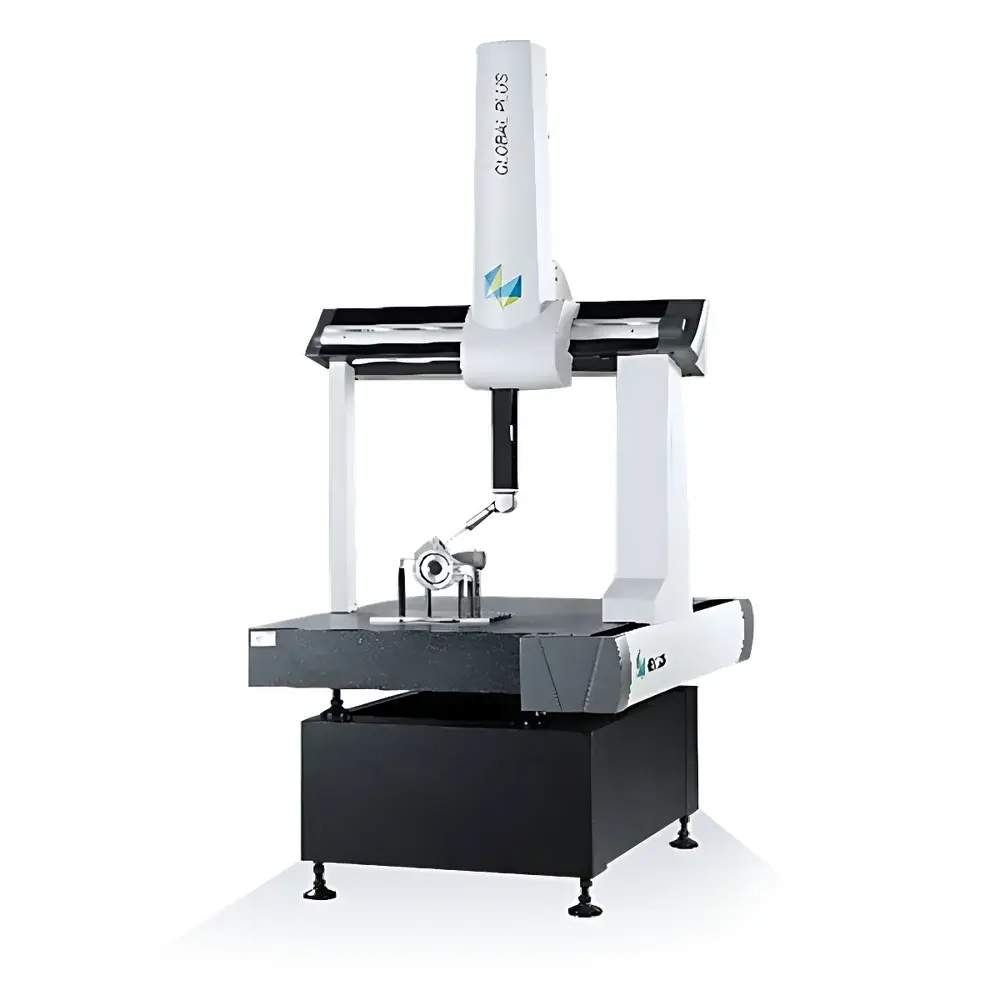

| Model | GLOBAL PLUS |
| Configuration | Bridge-Type |
| Operation Mode | Fully Automatic |
| Orientation | Horizontal |
| Measurement Method | Hybrid Contact & Non-Contact (Trigger/Scanning Probes + Line Laser / Confocal White Light Sensors) |
| Measurement Volume Range | 600 × 800 × 600 mm to 1000 × 2100 × 800 mm |
| Volumetric Accuracy | Starting from 1.7 μm |
| Compliance | DIN 876 (granite table flatness), PTB-certified low-expansion linear encoders |
| Supported Industries | Automotive, Aerospace, Precision Machining, Electronics, Mold & Die Manufacturing |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Domestic |
| Model | XPERT |
| Configuration | Bridge-Type |
| Operation Mode | Automatic |
| Instrument Orientation | Vertical |
| Measurement Method | Contact & Non-Contact Hybrid |
| Measurement Volume | 600 × 500 × 500 mm to 600 × 800 × 600 mm |
| Volumetric Accuracy | Starting from 0.5 µm |
| Standard Ambient Temperature | 19–21 °C |
| Minimum Air Supply Pressure | 0.6 MPa |
| Application Sectors | Mechanical Manufacturing, Automotive, Aerospace, Mold & Die, Electronics, Medical Devices |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | X-METRO |
| Configuration | Bridge-Type |
| Operation Mode | Fully Automated |
| Orientation | Vertical |
| Measurement Method | Hybrid Contact & Non-Contact |
| Measuring Volume Range | 600 × 800 × 600 mm to 1000 × 2010 × 900 mm |
| Volumetric Accuracy | Starting from 1.9 µm |
| Maximum Probe Speed | 520 mm/s |
| Standard Operating Temperature | 18–22 °C |
| Minimum Air Supply Pressure | 0.6 MPa |
| Application Sectors | Mechanical Manufacturing, Automotive, Aerospace, Electronics, Mold & Die Making |
| Software Platform | PC-DMIS PREMIUM |
| Brand | Leitz |
|---|---|
| Origin | Germany |
| Configuration | Bridge-Type |
| Operation Mode | Automatic |
| Orientation | Vertical |
| Measurement Method | Combined Contact and Non-Contact |
| Software Platform | QUINDOS & PC-DMIS |
| Structural Design | Floor-Standing, No Foundation Required |
| Environmental Tolerance | Ambient Workshop Installation (No Air-Conditioned Room Required) |
| Integration Capability | CAQ Network Compatible |
| Probe System | Leitz LSP Series (Max. Probe Length: 800 mm, Max. Probe Mass: 1000 g) |
| Dynamic Performance | Up to 660 mm/s Scanning Speed, Up to 3250 mm/s² Acceleration |
| Repeatability | Sub-micron Level Across Full Volume |
| Compliance Context | Designed for ISO 10360-2, ISO 15530-3, VDI/VDE 2617, and GLP/GMP-aligned QA workflows |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | RA8-Compact |
| Price Range | USD 28,000 – 57,000 |
| Category | Articulated Arm CMM |
| Operation Mode | Manual |
| Form Factor | Portable |
| Max Operating Temperature | 45 °C |
| IP Rating | IP54 |
| Compliance | ISO 10360-2, ISO 10360-12 |
| Encoder Type | Integrated Absolute Encoders |
| Power Supply | Rechargeable Battery |
| Communication | Wi-Fi & Bluetooth |
| Arm Construction | Carbon Fiber |
| Base | Integrated Quick-Deploy Base |
| Optional Functionality | Contact Probe + Entry-Level Laser Scanner |
| Brand | Hexagon Metrology |
|---|---|
| Origin | Shandong, China |
| Model | TORO HP |
| Configuration | Cantilever |
| Operation Mode | Automatic |
| Machine Type | Vertical |
| Measurement Method | Contact & Non-Contact Hybrid |
| Measurement Volume Range | 4000 × 1600 × 2100 mm to 7000 × 1600 × 3000 mm |
| Volumetric Accuracy | Starting from 16 µm |
| Standard Operating Temperature | 16–24 °C |
| Primary Application | Automotive Body-in-White (BIW) and Sheet Metal Assembly Inspection |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic |
| Model | INNOVA |
| Price Range | USD 56,000 – 140,000 (FOB) |
| Configuration | Bridge-Type |
| Operation Mode | Automatic |
| Orientation | Vertical |
| Measurement Principle | Non-Contact Optical Metrology (with optional tactile probing) |
| Measurement Volume | 600 × 800 × 600 mm to 1000 × 2100 × 800 mm |
| Standard Operating Temperature | −20 °C to +40 °C |
| Compliance | ISO 10360-2, ISO 15530-3, VDI/VDE 2617 Part 2 |
| Target Sectors | Mechanical Engineering, Automotive, Aerospace, Electronics, Mold & Die, Academic Research & Vocational Training |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

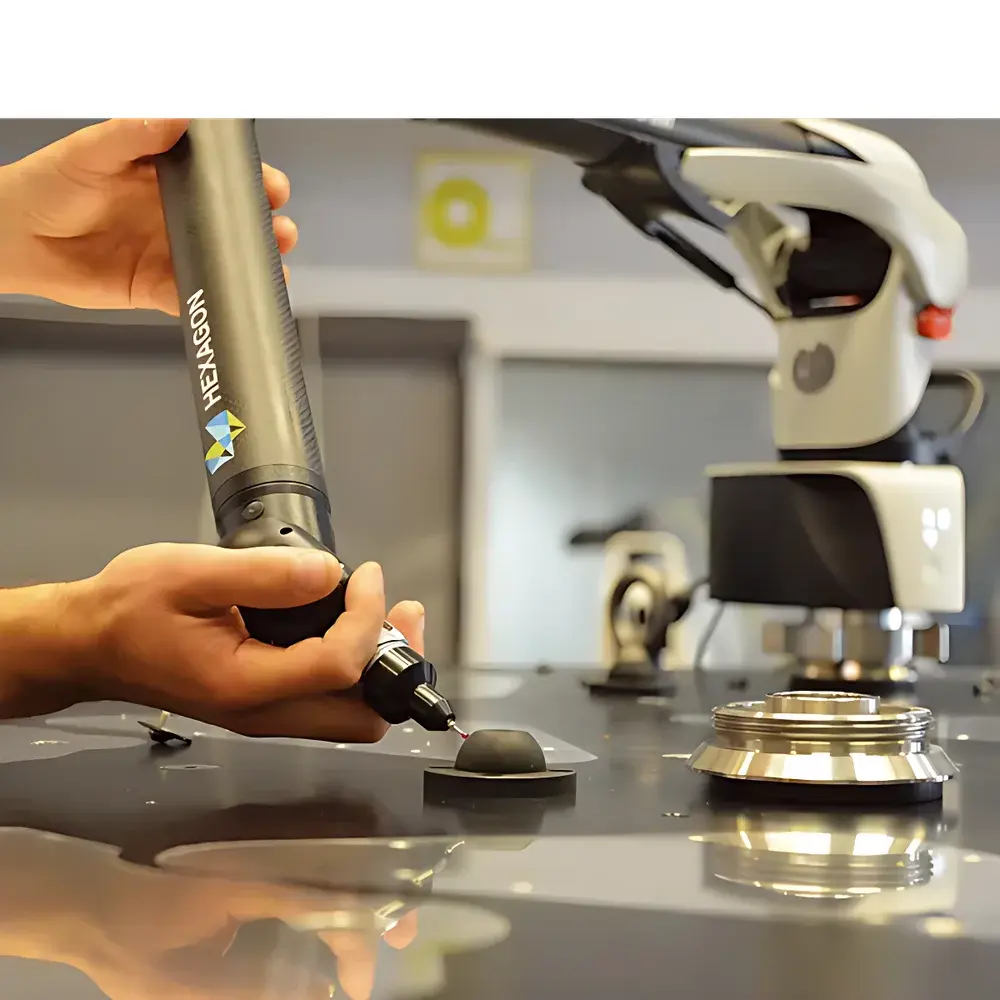

| Model | RA8-6 |
| Price Range | USD 42,000 – 70,000 |
| Configuration | Articulated Arm CMM |
| Operation Mode | Motorized/Automatic |
| Portability | Portable |
| Measurement Principle | Contact-Based Tactile Probing |
| Measurement Volume | 1.49 m – 4.73 m (spherical envelope) |
| Volumetric Accuracy | ±0.04 mm (as per ISO 10360-12) |
| Maximum Point Capture Rate | 45,000 pts/sec |
| Operating Temperature Range | Up to +45 °C |
| IP Rating | IP54 |
| Compliance | ISO 10360-12 certified |
| Integrated Options | Optional WiFi module, rechargeable battery pack, SFx Asset Management compatibility |
| Probe Interface | Quick-swap tactile probe mount with hot-swap capability and zero recalibration requirement |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |
| Model | RA8-7 |
| Pricing | Available Upon Request |
| Configuration | Articulated Arm CMM |
| Operation Mode | Motor-Assisted / Semi-Automatic |
| Form Factor | Portable |
| Measurement Volume | Not Specified |
| Volumetric Accuracy | Not Specified |
| Standard Ambient Temperature | Not Specified |
| Brand | Hexagon |
|---|---|
| Origin | Italy |
| Model | DELTA SLANT |
| Configuration | Gantry (Vertical) |
| Operation | Automatic |
| Structural Type | Bridge-style gantry |
| Measurement Volume | ≥2500 × 3300 × 2000 mm |
| Volumetric Accuracy | Starting from 3.5 μm |
| Core Technology | Dual-encoder Y-axis bridge, SiC Z-axis (Performance variant), Certified high-resolution optical encoder system, 26-parameter geometric error compensation |
| Environmental Tolerance | Shop-floor capable (16–26 °C) with optional Shop Floor Kit |
| Compliance | ISO 10360-2, ISO 15530-3, VDI/VDE 2617, ASME B89.4.1 |
| Brand | Hexagon |
|---|---|
| Origin | USA |
| Configuration Type | Bridge-type |
| Operation Mode | Fully Automated |
| Structural Design | Vertical CMM |
| Measurement Methodology | Hybrid Contact & Non-contact Probing |
| Primary Application Domain | Precision Manufacturing |
| Compliance Framework | Designed for ISO 10360-2, ISO 10360-7, and VDI/VDE 2617 Part 2/3 conformance |
| Environmental Operating Range | 18–22 °C (±1 °C/hour stability), 40–60% RH |
| Standard Base Material | Granite with reinforced steel frame |
| Drive System | High-resolution linear motor with dual-loop position feedback |
| Controller | Leitz PMM-C or PC-DMIS-based motion control architecture |
| Software Platform | PC-DMIS Metrology Suite (v2024+) |
| Brand | Hexagon Metrology |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

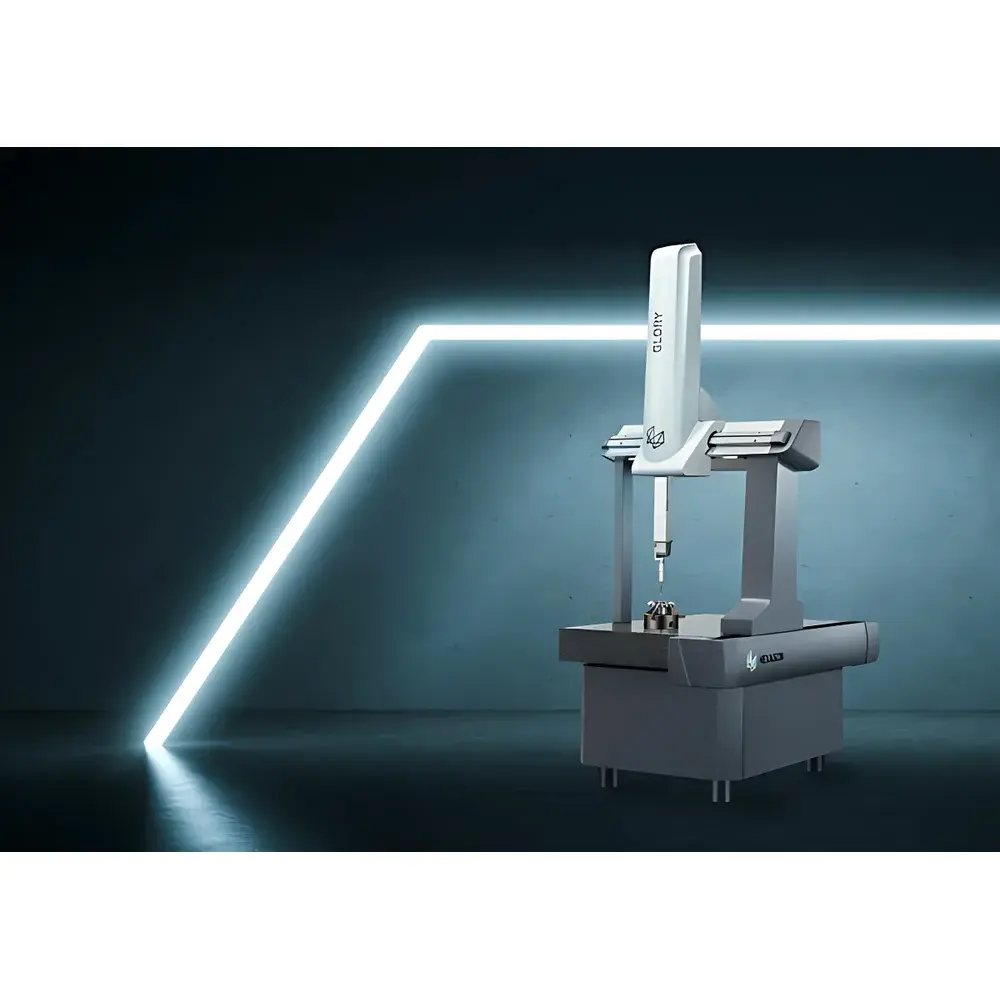

| Model | GLORY |
| Configuration | Bridge-Type |
| Operation Mode | Fully Automatic |
| Instrument Orientation | Horizontal |
| Measurement Method | Hybrid Contact & Non-Contact |
| Measurement Volume Range | 400 × 500 × 400 mm to 1500 × 3000 × 1200 mm |
| Volumetric Accuracy | Starting from 1.6 µm |
| Maximum Traverse Speed | 520 mm/s |
| Standard Operating Temperature | 18–22 °C |
| Minimum Air Supply Pressure | 0.6 MPa |
| Application Sectors | Mechanical Manufacturing, Automotive, Aerospace, Electronics, Mold & Die Production |
| Brand | Hexagon |
|---|---|
| Origin | Italy |

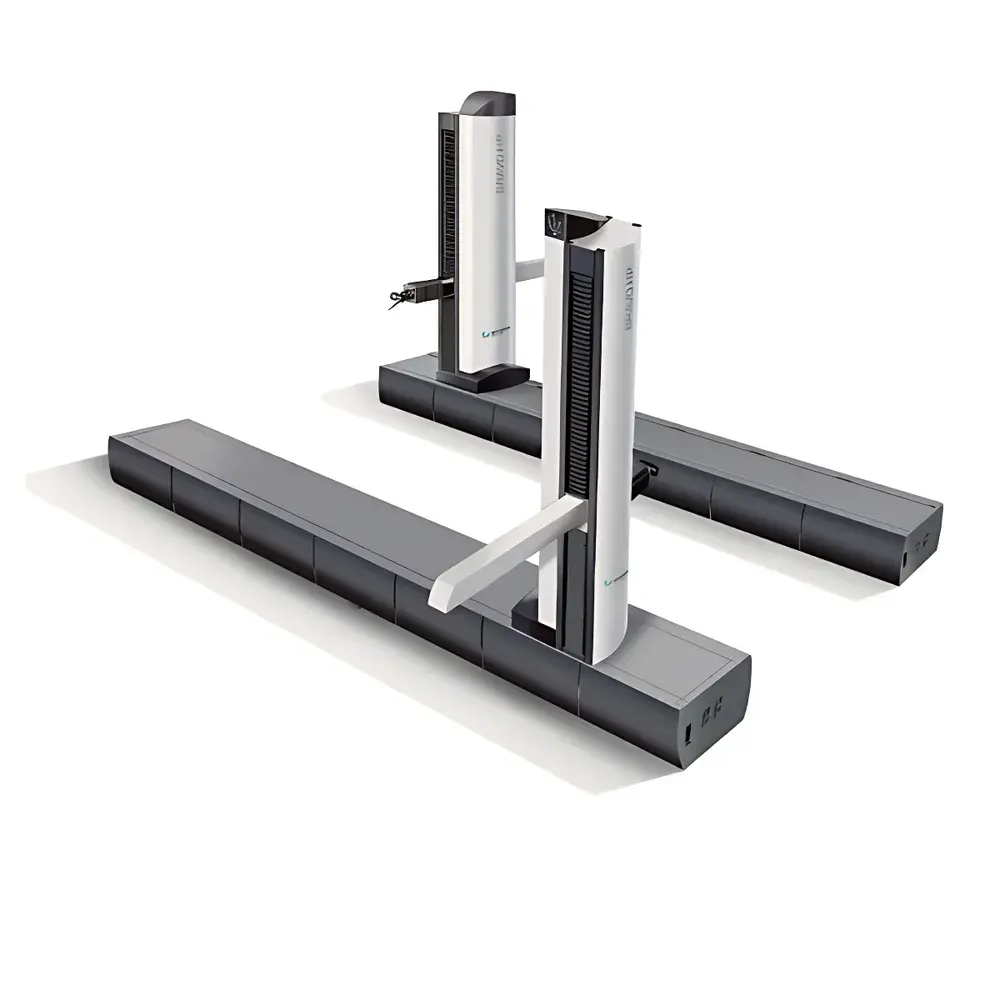

| Model | BRAVO HP |
| Configuration | Horizontal Cantilever Type |
| Operation Mode | Fully Automatic |
| Measurement Principle | Contact-Based (with optional non-contact laser scanning) |
| Measurement Range (X×Y×Z) | 4000–9000 × 1600 × 2100–3000 mm |
| Standard Operating Temperature | 16–32 °C |
| Compliance | Designed for automotive production environments |
| Application Focus | Automotive body-in-white (BIW), stamping, fixture validation, pre-series & series production metrology |
| Structural Architecture | Ground-level installed, open-frame cantilever design with thermally compensated granite or steel base |
| Optional Sensors | HH-ACW-43MW infinite-rotation probe head, HH-A automatic indexing probe head, HP-L series laser line scanners |
| Thermal Compensation | CLIMA dynamic structural compensation + Active real-time multi-sensor temperature correction |
| Probe Change System | Automatic tool changer (ATC) compatible |
| Mechanical Drive | Recirculating ball bearing transmission (pneumatic-free) |
| Z-Axis Cross-Section | 80 × 100 mm |
| Collision Protection | Pre-configured mechanical and software-based safeguards |
| Environmental Tolerance | Up to 1.5 °C/h vertical gradient, 1 °C/m horizontal gradient, 3 °C/24 h drift |
| Accuracy Base Specification | Starting from E0 = 14 µm (per ISO 10360-2, calibrated at 20 °C ± 0.5 °C reference condition) |
| Brand | Hexagon |
|---|---|
| Type | Bridge CMM |
| Structural Design | 龙门式 (Bridge-type) |
| Measurement Volume Range | 2000×3300×1000 mm to 2500×5000×2000 mm |
| Z-Axis Material | Ceramic |
| Y-Axis Technology | Inclined Bridge Structure |
| Drive System | DC Servo Motors on All Axes |
| Encoder System | Dual Read-Head / Dual Scale (ALPHA 2.0 Performance) |
| Dynamic Accuracy (E0) | Starting from 3.5 µm |
| Compliance | ISO 10360-2, ISO 10360-8, VDI/VDE 2617 |
| Enclosure Options | Bellows Covers & Full Environmental Enclosures |
| Multi-Sensor Capability | Yes (Touch-trigger, Scanning, Optical, Laser Line Probes) |
| Brand | Leitz |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Regional Classification | Domestic (China) |

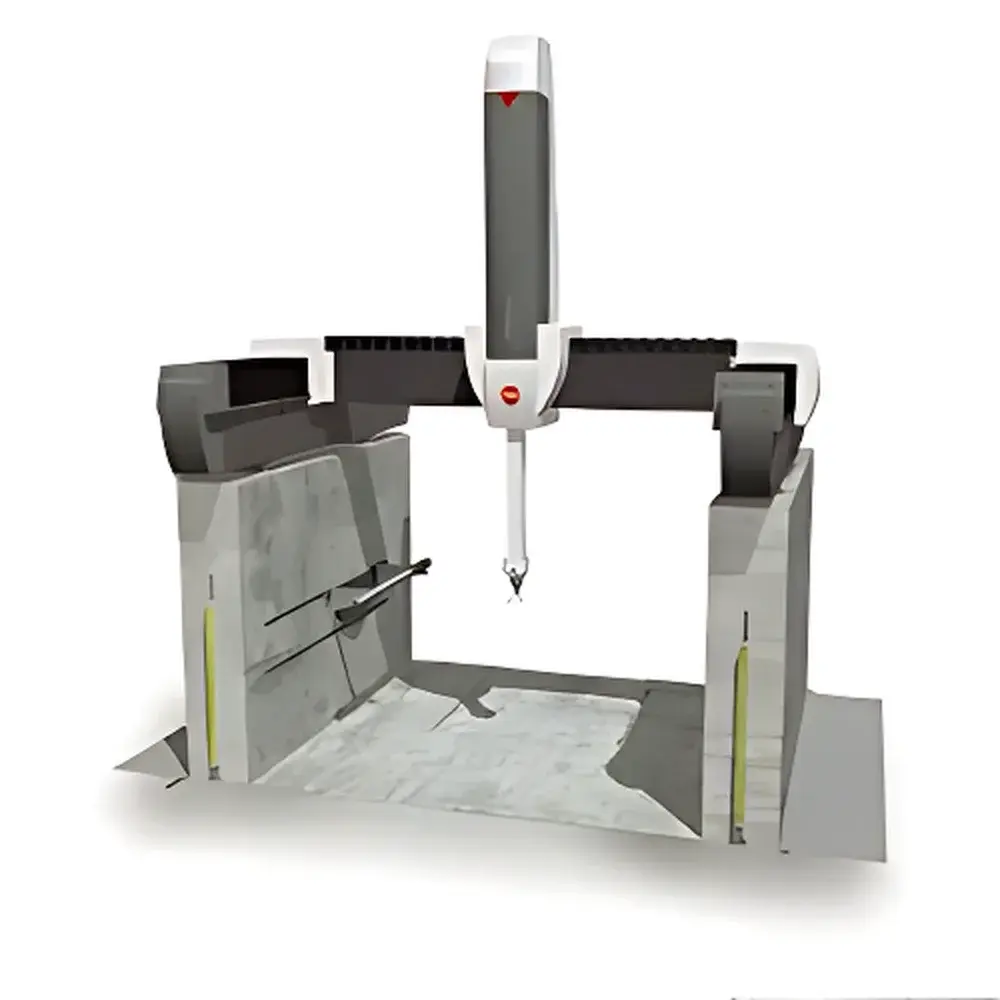

| Model | PMM-G |
| Configuration | Bridge-Type |
| Operation Mode | Fully Automatic |
| Instrument Orientation | Vertical |
| Measurement Principle | Contact-Based Metrology with Multi-Sensor Integration |
| Maximum Travel Range | 7000 × 4000 × 3000 mm |
| Standard Temperature Range | 18–22 °C |
| Z-Axis Material | Ceramic |
| Guideway Material | Granite |
| Bearing System | Air Bearings with Electronic Gap Monitoring |
| Positioning Resolution | 0.005 µm |
| Vibration Isolation | Active Damping System |
| Thermal Compensation | Integrated Environmental Sensor Network |
| Safety Systems | Dual Laser Scanners + Collision Avoidance Logic |
| Compliance Framework | ISO 10360-2, ISO 15530-3, VDI/VDE 2617, ASTM E1352, GLP/GMP-Ready Data Audit Trail |
| Brand | Hexagon |
|---|---|
| Origin | China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Bridge-Type CMM |
| Operation Mode | Fully Automatic |
| Instrument Orientation | Vertical |
| Measurement Method | Hybrid Contact & Non-Contact |
| Measurement Volume Range | 500 × 700 × 500 mm to 1200 × 3000 × 1000 mm |
| Volumetric Accuracy | Starting from 2.2 µm |
| Standard Environmental Temperature | 20 °C |
| Application Sectors | Medical Devices, Mechanical Equipment, Automotive Manufacturing, Aerospace, Electronics |
| Brand | Hexagon |
|---|---|
| Origin | Italy |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |

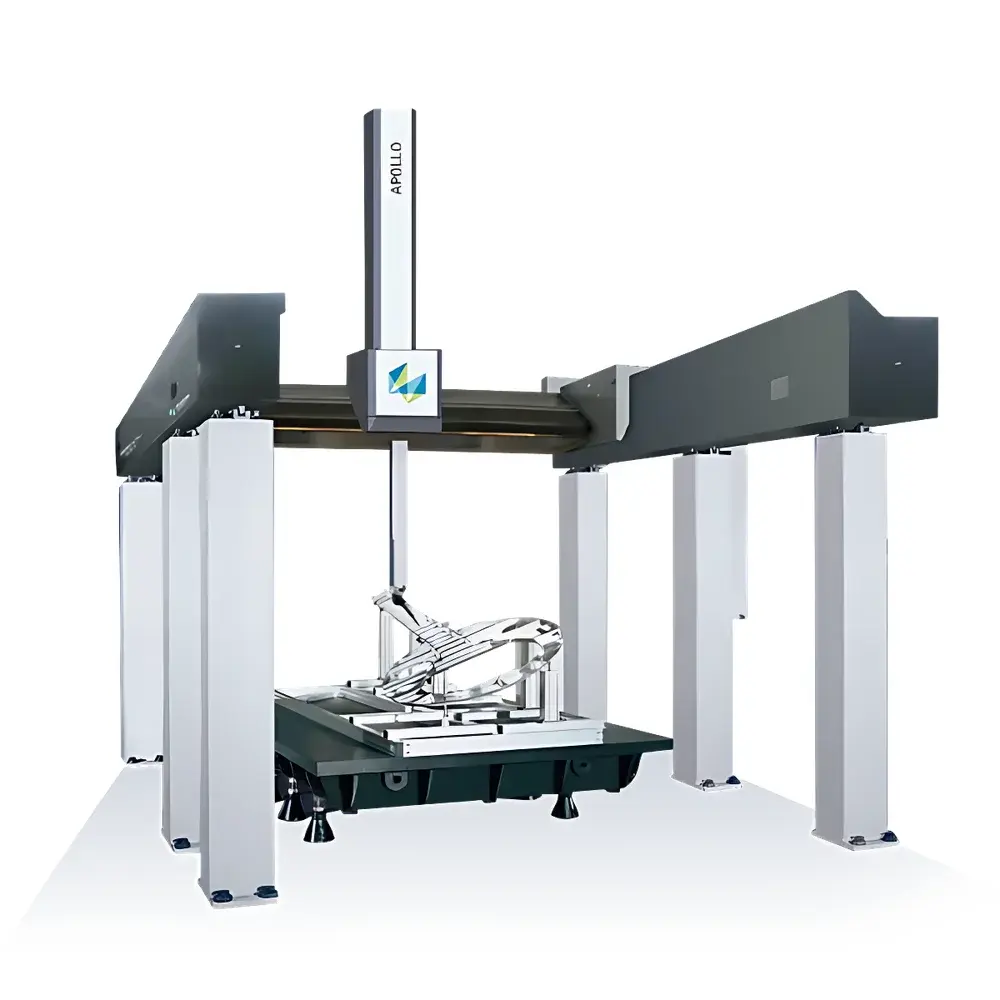

| Model | Apollo |
| Price Range | USD 270,000 – 540,000 (est.) |
| Configuration | Bridge-Type |
| Operation Mode | Fully Automatic |
| Instrument Orientation | Vertical CMM |
| Measurement Volume | 2000 mm × 3300 mm × 1000 mm to 2500 mm × 5000 mm × 2000 mm |
| Volumetric Accuracy | (4.0 + 4.0L/1000) µm (L in mm) |
| Standard Accuracy Level | E₀ starting from 4 µm |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic |
| Model | GLOBAL S |
| Configuration Type | Bridge-type |
| Operation Mode | Fully Automatic |
| Instrument Orientation | Vertical |
| Measurement Method | Hybrid Contact & Non-contact |
| Measurement Volume Range | 500×700×500 mm to 2000×5000×1500 mm |
| Standard Operating Temperature | 15–30 °C |
| Primary Application Sectors | Automotive, Precision Manufacturing, Aerospace |
Show next
