| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | OPTIV REFERENCE |
| Quotation | Upon Request |
| Measurement Volume | 530 × 400 × 300 mm to 730 × 600 × 300 mm |
| Brand | Hexagon Metrology |
|---|---|
| Origin | Germany |
| Model | OPTIV ADVANCE PLUS/F |
| Operation Mode | Fully Automatic |
| Measurement Volume (X×Y×Z) | 300×200×200 mm to 800×700×200 mm |
| Scale Resolution | High-precision open-frame optical encoder system |
| Zoom Lens | Motorized high-accuracy auto-focus zoom lens |
| Camera | High-resolution color CCD/CMOS sensor |
| Illumination | Programmable 6-ring, 8-sector LED ring light |
| Structural Frame | Granite-based fixed bridge architecture |
| Drive Configuration | Central drive on all three axes |
| Optional Probes | Touch-trigger probe, laser line scanner, confocal white-light sensor |
| Software Platform | PC-DMIS Vision with AI-assisted edge detection |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |

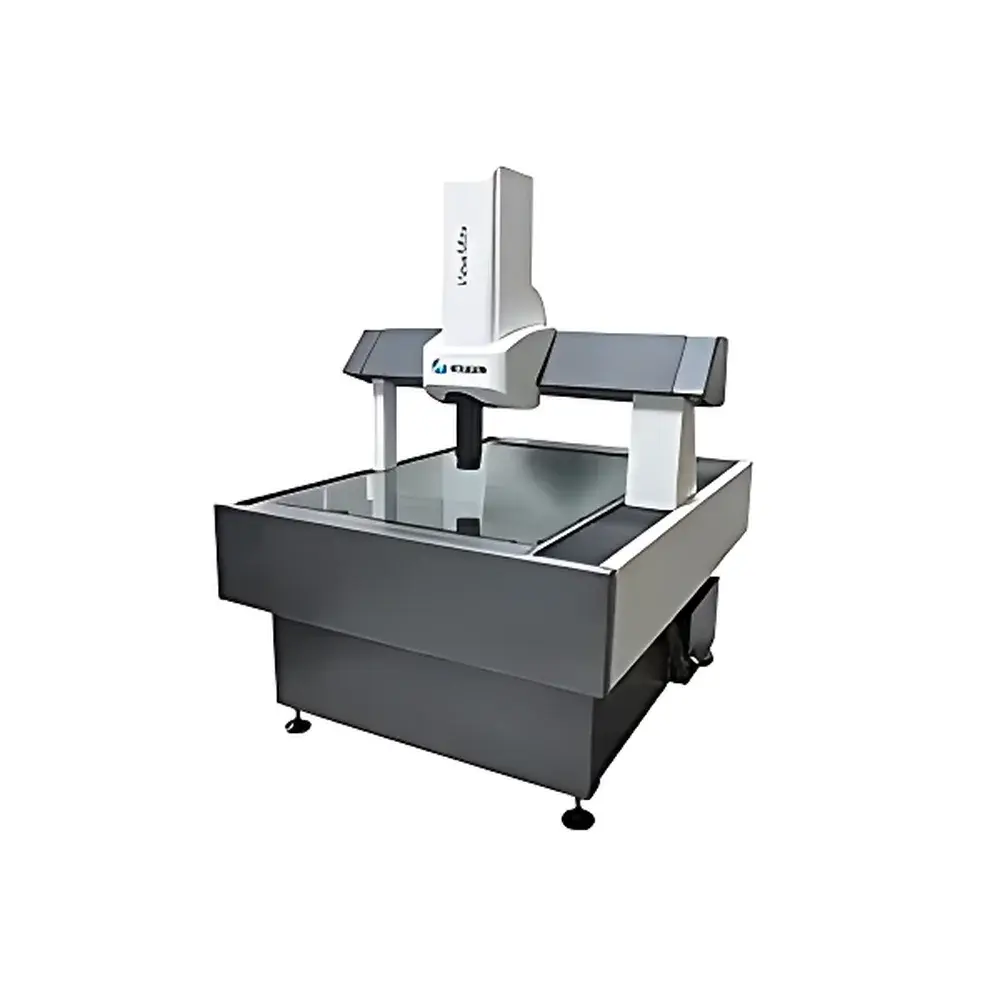

| Model | VIEWMAX L |
| Operation Mode | Fully Automatic |
| Measurement Range | 500 × 600 × 250 mm to 1800 × 2470 × 250 mm |
| Grating Scale Resolution | 0.4 µm |
| Maximum Traverse Speed | 290 mm/s |
| Optional Zoom Lenses | 0.5×, 0.75×, 1.5×, 2× |
| Camera | High-Resolution Industrial CMOS Camera |
| Illumination System | White LED Coaxial Light, Green LED Transmitted Light, 4×90° Dual-Ring Surface Ring Light |
| Software Platform | METUS or PC-DMIS Vision |
| Optional Probes | Renishaw TP20 Touch Probe |
| Optional Z-Axis Extension | Up to 400 mm |
| Optional Sensor | CWS Confocal White Light Sensor |
| Compliance | ISO 10360-7, VDI/VDE 2617 Part 7, ASTM E29, USP <1059>, GLP/GMP-ready audit trail support |
| Brand | Hexagon |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Domestic (China) |

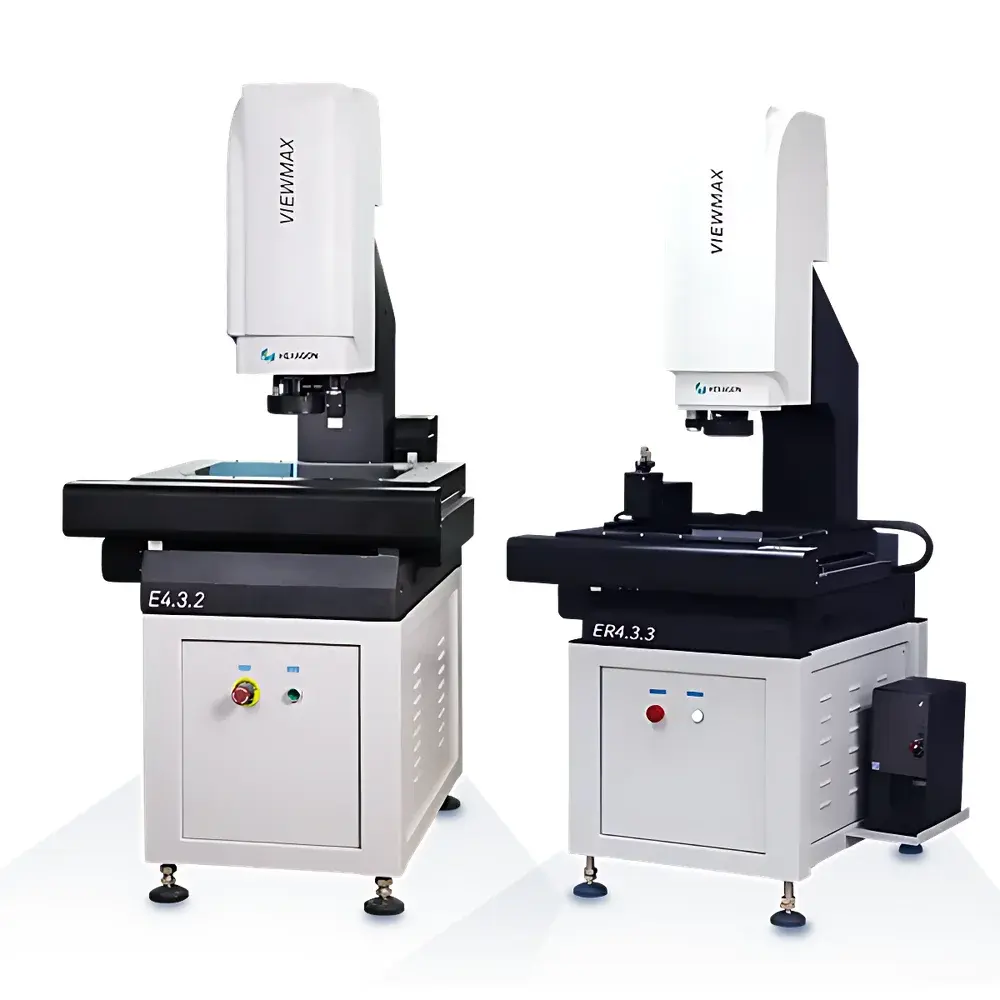

| Model | VIEWMAX E/ER |
| Pricing | Upon Request |
| Base Material | Granite |
| Drive System | Precision Ground Ball Screw |
| Control System | Full-Closed-Loop Servo Control on X/Y/Z Axes |
| Camera | High-Resolution Color CMOS Sensor |
| Lens | 6.5:1 Motorized Zoom Lens |
| Illumination | Coaxial White LED, Transmitted Green LED, 6-Ring 8-Zone Surface Ring Light |
| Software | METUS Measurement Suite |
| Navigation | Real-Time Video Measurement Guidance System |
| Optional Probes | MCP Touch Probe, CWS Confocal White Light Sensor |
| ER Variant | Dual-Axis Rotary Table (Tilt & Rotation) |
| Environmental Requirements | 18–22°C (±1°C/h, ±2°C/24h, ±1°C/m), 40–70% RH, 220 V ±10%, 50/60 Hz, 1000 VA, Ground Resistance < 4 Ω |
