| Brand | Shengaohua |
|---|---|
| Origin | Jiangsu, China |
| Manufacturer Type | Direct Manufacturer |

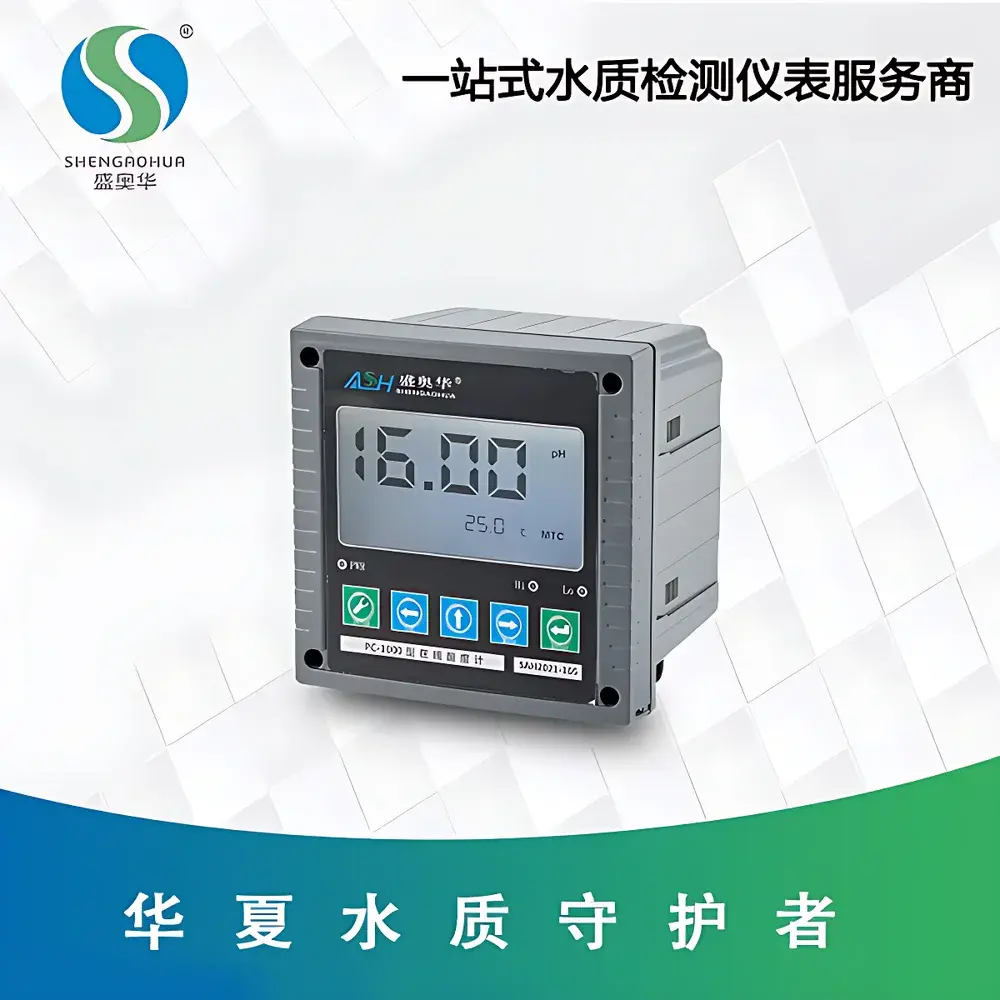

| Model | PC-1000 |
| Measurement Range | pH 0–14, ORP −1999 to +1999 mV, Temp 0–60 °C |
| Resolution | 0.01 pH, 1 mV, 0.1 °C |
| Accuracy | ±0.01 pH ±1 digit, ±0.1% ORP ±1 digit, ±0.2 °C ±1 digit |
| Temperature Compensation | NTC 30 kΩ / PT1000 (auto & manual) |
| Calibration | 3-point pH calibration |
| Input Impedance | >10¹² Ω |
| Display | 4.3-inch LCD |
| Output 1 | Isolated 4–20 mA (configurable for pH/ORP, load ≤600 Ω) |
| Output 2 | Isolated 4–20 mA (configurable for temperature, load ≤600 Ω) |
| Relay Outputs | 2 × SPDT, 240 VAC / 0.5 A max (HI/LO alarm + cleaning timer: ON 0–99:59 min, OFF 0–999:59 h) |
| Voltage Output | DC ±12 V / 1 W max |
| Power Supply | 220 VAC |
| Mounting Options | Wall-mount, pipe-mount, panel-mount |
| Cutout Size | 90 × 90 mm |
| Dimensions | 110 × 95 × 95 mm |
| Weight | 1.5 kg |
