| Brand | AXIS-TEC |
|---|---|
| Origin | USA |
| Model | PE-100 |
| RF Frequency | 13.56 MHz |
| RF Power | 0–300 W (automatically adjustable) |
| Chamber Dimensions | 305 × 368 × 305 mm (L×D×H) |
| Chamber Volume | 34 L |
| Chamber Material | T6-aluminum monolithic construction |
| Operating Pressure Range | 1–2000 mTorr |
| Gas Flow Control | 0–50 sccm with precision needle valve |
| Vacuum Gauge | Pirani gauge (0–1 Torr) |
| Gas Inlet | Single or multi-channel configurable |
| Control System | PLC-based HMI automation |
| Configuration Options | Plasma cleaning, isotropic plasma etching, anisotropic RIE, and switchable mode architecture |
| Brand | AXIS-TEC |
|---|---|
| Origin | USA |
| Model | PlasmaSTAR100 / PlasmaSTAR200 |
| RF Frequency | 40 kHz (LF) or 13.56 MHz |
| RF Power | 600 W |
| Chamber Volume | 10 L |
| Chamber Material | Anodized Aluminum |
| Maximum Substrate Size | 8-inch wafer |
| Process Gas Pressure | 10 PSI |
| Control Interface | Touchscreen PC with Multi-step Programmable Logic |
| Vacuum System | Rotary Vane Pump (standard), optional Roots-boosted configuration |
| Gas Delivery | Mass Flow Controllers (MFCs) standard, downstream pressure controller optional |
| Brand | AXIS-TEC |
|---|---|
| Origin | USA |
| Model | PE-75 |
| RF Frequency | 13.56 MHz |
| Power Output | 0–150 W (automatically regulated) |
| Chamber Dimensions | Cylindrical, ID 273 mm × Depth 254 mm |
| Chamber Volume | 13.8 L |
| Chamber Material | T-6 Aluminum Monolithic Construction |
| Operating Gas | Single- or Multi-Gas Inlet |
| Vacuum Range | 1–2000 mT (via Pirani gauge, 0–1 Torr) |
| Gas Flow Control | 0–25 sccm with Precision Needle Valve |
| Control Mode | Fully Automated |
| Brand | -- |
|---|---|
| Origin | Imported |
| Manufacturer Type | General Distributor |

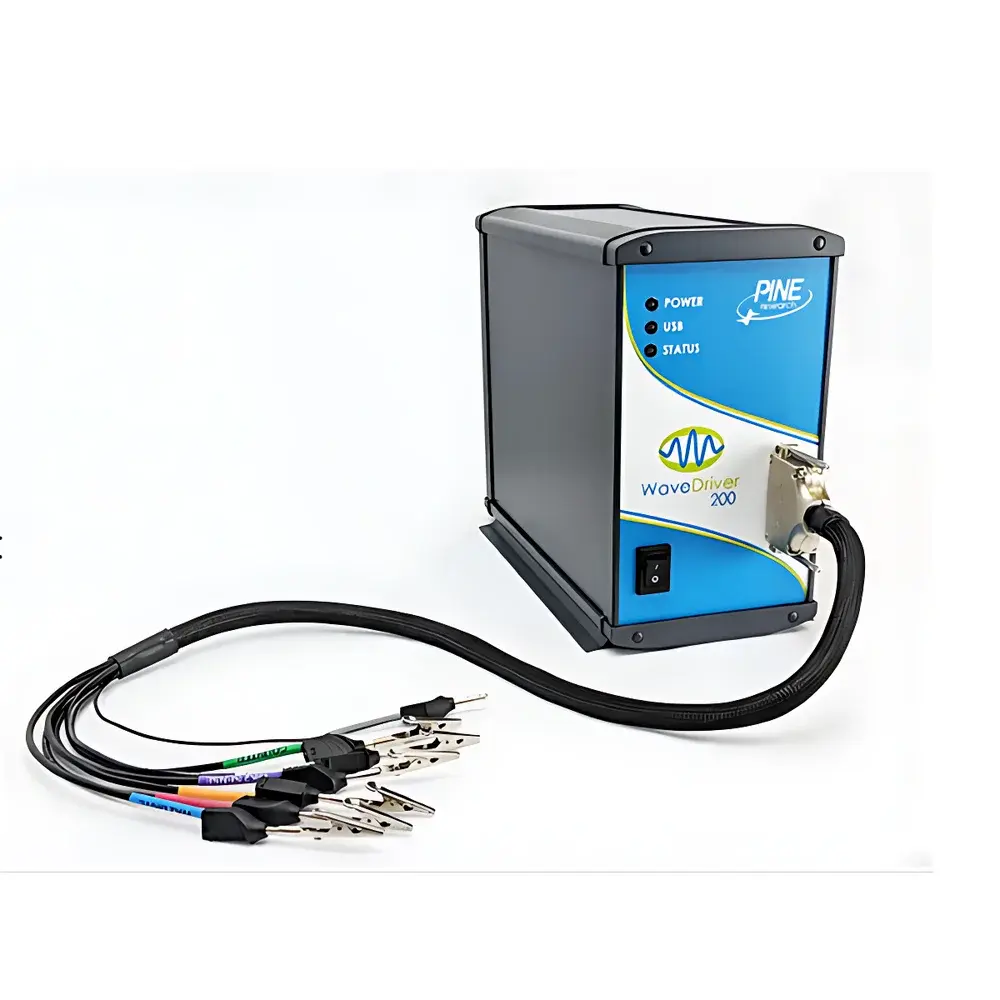

| Model | WaveDriver 200 |
| Price | Upon Request |
| Working Electrode Configuration | Single or dual WE with shared RE and CE |
| Current Range | ±100 nA to ±1 A |
| Potential Range | ±2.5 V / ±10 V / ±15 V (selectable) |
| EIS Frequency Range | 10 µHz – 1 MHz |
| DC Techniques | CV, LSV, CA, DPV, SWV, NPV, ASV, OCP, ZRA, RCP, BE, etc. |
| AC Techniques | EIS, Mott-Schottky, iR Compensation Measurement |
| Optional Accessories | RRDE, RDE, Spectroelectrochemical Cells |
| Software | AfterMath (EIS equivalent circuit fitting, Kramers–Kronig validation, data transformation, advanced analysis modules) |
| Brand | -- |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Model | AT650T / AT-Ozone Generator / AT650P / AT200M |
| Pricing | Upon Request |
| Brand | Novascan |
|---|---|
| Origin | USA |
| Model Series | PSD & PSDP |
| Control Type | Digital (PSD) / Programmable Digital (PSDP) |
| UV Wavelengths | 185 nm and 254 nm |
| Lamp Type | Low-pressure mercury grid lamp with aluminum reflector |
| Lamp Lifetime | ~5,000 hours |
| Sample Stage | Height-adjustable with position lock |
| Chamber Access | Top-hinged lid for 360° sample loading |
| Safety Interlock | Automatic UV shutoff when chamber is open |
| Gas Options | Ambient air or optional O₂ feed via inlet ports |
| Exhaust Options | Integrated ozone destruct unit with pump (optional) |
| Temperature Capability | Up to 150 °C (200 °C or 300 °C heating plate available as option) |
| Vacuum Chamber | Customizable (aluminum or quartz) |
| Compliance | Designed for GLP-compliant environments |
