| Brand | NETZSCH |
|---|---|
| Origin | Germany |
| Model | DSC 300 Caliris Classic |
| Instrument Type | Differential Scanning Calorimeter (DSC) |
| Temperature Range | −170 °C to 600 °C |
| Heating/Cooling Rate | 0.001–100 K/min |
| Temperature Accuracy | ±0.1 K (intrinsic) |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | STA/TG-FTIR |
| Operating Temperature Range | RT to 350 °C |
| Gas Transfer Path | Heated Entirely (Prevents Condensation) |
| Gas Residence Time | Short |
| Carrier Gas Flow Rate | Low (Minimizes Dilution Effect) |
| Measurement Mode | Synchronized Simultaneous STA–FTIR Acquisition or Independent Operation |
| Software Architecture | Fully Integrated, Core-Embedded Control with Hardware-Automated Triggering |
| Sample Introduction | Top-Loading Vertical TGA Configuration (Ensures Quantitative Evolved Gas Transfer) |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | DSC 300 Caliris® Select-P |
| Instrument Type | Differential Scanning Calorimeter (DSC) |
| Temperature Range | –170 to 600 °C |
| Heating/Cooling Rate | 0 to 500 K/min |
| Compliance | GLP/GMP, FDA 21 CFR Part 11 (software-enabled), ISO 11357, ASTM E794, ASTM E1356 |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | DMA 303 Eplexor |
| Instrument Type | Dynamic Mechanical Analyzer (DMA/DMTA) |
| Temperature Range | −170 °C to 800 °C |
| Temperature Accuracy | ±0.1 °C |
| Force Range | 1 mN to 50 N |
| Displacement Range | 30 mm |
| Frequency Range | 0.001 Hz to 150 Hz |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | STA 2500 Regulus |
| Heating Rate | 0–100 °C/min |
| Temperature Range | RT to 1100 °C (standard furnace) / RT to 1600 °C (high-temperature furnace) |
| Temperature Stability | ±0.3 K |
| Maximum Sample Mass | 250 mg |
| Atmosphere Options | Oxidizing, Reducing, Inert, Vacuum (dynamic or static) |
| Gas Control | Integrated Mass Flow Controllers (MFCs), software-regulated |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | LFA 427 |
| Measurement Principle | Laser Flash Method (LFM) |
| Temperature Range | –120 °C to 2800 °C (depending on furnace configuration) |
| Laser Source | Nd:Glass, energy-adjustable pulse |
| Thermal Conductivity Range | 0.1–2000 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ±2% |
| Vacuum Level | ≤10⁻⁵ mbar |
| Sample Dimensions | Square: 8×8 mm, 10×10 mm |
| Circular | Ø6, Ø10, Ø12.7, Ø20 mm |
| Thickness | 0.1–6 mm |
| Sample Types | Solids, powders, thin films, liquids (with specialized holders) |
| Furnace Options | Dual-furnace capability |
| Pulse Control | Software-adjustable pulse width |
| Key Technology | PulseMapping™ |
| Atmosphere Control | Vacuum, inert (Ar, N₂), or reactive gases (e.g., O₂, CO₂) |
| Sample Holders | Graphite, alumina, silicon carbide |
| Dimensions (L×W×H) | 800 mm × 800 mm × 1900 mm |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | STA 509 Jupiter Supreme |
| Temperature Range | –150 °C to 2000 °C |
| Maximum Sample Mass | 5 g |
| Atmosphere Options | Inert, Oxidizing, Static, Dynamic, Vacuum, Corrosive (optional) |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | TLR 1000 |
| Measurement Principle | Guarded Hot Pipe Method |
| Standards Compliance | DIN EN ISO 8497, DIN EN 1946-5, DIN 52613, ASTM C 534, ASTM C 335 |
| Thermal Conductivity Range | 0.001–0.25 W/(m·K) |
| Accuracy | ±1.0% |
| Repeatability | ±0.5% |
| Sample ID | 18–89 mm |
| Sample OD | 30–220 mm |
| Test Chamber Temperature Range | −15 to +140 °C |
| Heating Pipe Temperature Range | 20 to +200 °C |
| Dimensions (H×W×D) | 45×185×50 cm |
| Sample Throughput | Multi-sample sequential operation |
| Operating Environment | Ambient laboratory conditions |
| Brand | NETZSCH |
|---|---|
| Origin | Germany |
| Model | NanoTR |
| Measurement Principle | Laser-based Thermal Reflectance (Time-Domain Thermoreflectance, TDTR) |
| Instrument Type | Thin-Film Thermal Conductivity Analyzer |
| Temperature Range | Ambient (RT) to 300 °C (optional heating stage) |
| Sample Dimensions | 10 × 10 mm to 20 × 20 mm |
| Film Thickness Range | 30 nm to 20 µm (dependent on material and measurement mode) |
| Thermal Diffusivity Range | 0.01 to 1000 mm²/s |
| Thermal Conductivity Range | 0.1 to 2000 W/(m·K) |
| Accuracy | ±5% |
| Repeatability | ±5% |
| Pulse Width | 1 ns |
| Probe Beam Diameter | 100 µm |
| Pump Laser Power | 100 mW |
| Measurement Modes | RF (Rear-Heating/Forward-Detection) and FF (Front-Heating/Forward-Detection) |
| Footprint (L×W×H) | 600 mm × 500 mm × 700 mm |
| Compliance | ISO 13826, ASTM E1461 (adapted for thin-film extension), NIST-traceable calibration protocols |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | TDW 4040 |
| Measurement Principle | Guarded Hot Box (Steady-State Heat Flow Method) |
| Instrument Type | Thermal Transmittance (U-value) and Thermal Resistance (R-value) Analyzer |
| External Dimensions (H×W×D) | 300 × 500 × 360 cm |
| Weight | 3890 kg |
| Temperature Range (Hot Side) | 10–40 °C |
| Temperature Range (Cold Side) | −10–40 °C |
| Sample Area Options | 1500 × 1500 mm or 2000 × 2000 mm |
| Maximum Sample Thickness | 360 mm (Standard), 560 mm (Extended) |
| Thermal Resistance Range (R) | 0.10–8.00 m²·K/W |
| Accuracy | ±3.0% (per DIN EN 12937 & ISO 8990) |
| Repeatability | ±1.0% |
| Cooling System | Water-Cooled Circulating Chiller |
| Compliance | DIN EN 12937, DIN EN 1934, ISO 8990, ASTM C1363, EN ISO 10211 |
| Software | HotBox v5.x (Single-User License) |
| Test Frame | Insulated, Forklift-Compatible Roller Base with Adjustable Aperture |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | HMOR422 |
| Temperature Range | RT to 1450°C (optional up to 1500°C) |
| Sample Dimensions | 125 × 25 × 25 mm (standard) |
| Load Capacity | 1 N to 5000 N |
| Loading Rate | 1.25 N/s to 125 N/s (4 selectable steps) |
| Test Atmosphere | Air |
| Feed Mechanism | Continuous feed with preheating zone |
| Bending Mode | Three-point bending (standard) |
| Deformation Measurement | Differential high-precision displacement system (compatible with RUL/CIC421 architecture) |
| Compliance | ISO 5013 |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | TG 309 Libra Supreme |
| Temperature Range | 10 °C to 1100 °C |
| Temperature Accuracy | ±0.15 K |
| Heating/Cooling Rate | 0–200 K/min |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | STA 449 F3 Jupiter |
| Temperature Range | −150 to 2400 °C |
| Heating Rate | 0–50 °C/min (standard) |
| Temperature Stability | ±0.3 K |
| Maximum Sample Mass | 35 g |
| Balance Resolution | 0.1 µg |
| Vacuum Level | 10⁻⁴ mbar |
| Atmosphere Options | Oxidizing, Reducing, Inert, Vacuum |
| Optional Modules | TMDSC, Tau-R® Cp Calibration, BeFlat® Baseline Optimization, ASC Auto-sampler (20 positions), Coupling to FTIR/MS/GC-MS, Steam Furnace, Corrosive Gas Kit |
| Brand | NETZSCH |
|---|---|
| Origin | Germany |
| Model | DIL 402 Expedis Classic |
| Temperature Range | RT to 1600 °C |
| Heating Rate | 0–50 °C/min |
| Temperature Accuracy | ±1 °C |
| Sample Length | 0–52 mm |
| Measurement Range | ±5000 µm |
| Resolution | 2 nm |
| Atmosphere Options | Oxidizing, Reducing, Inert, Vacuum |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | TDW 4240 |
| Measurement Principle | Guarded Hot Box (Steady-State Heat Flow Method) |
| Compliance Standards | DIN EN ISO 8990, DIN EN 1946-4, DIN EN ISO 12567, DIN EN 12412-2, ASTM C1363 |
| Thermal Resistance Range (R-value) | 0.10 – 8.00 m²·K/W |
| Thermal Transmittance Range (U-value) | 0.12 – 3.70 W/m²·K |
| Sample Height (Windows) | up to 2180 mm |
| Sample Width (Windows) | up to 1480 mm |
| Sample Height (Doors) | up to 2180 mm |
| Sample Width (Doors) | up to 2000 mm |
| Maximum Sample Thickness | 560 mm |
| Cold Chamber Temperature Range | −15 °C to +40 °C |
| Hot Chamber Temperature Range | +10 °C to +60 °C |
| Enclosure Dimensions (Closed) | 400 × 400 × 405 cm (H × W × D) |
| Enclosure Dimensions (Open) | 400 × 610 × 405 cm (H × W × D) |
| System Weight | 4680 kg |
| Accuracy | ±3.0% |
| Repeatability | ±1.0% |
| Cooling System | Water-cooled recirculating chiller |
| Sensor Configuration | Two guarded heat flux meters with protective plates |
| Test Frame | Insulated test frame with roller base and opening for forklift-assisted sample loading |
| Software | HotBox™ v5.x (single-user license) |
| Power Supply | 400 V, 3-phase, 50/60 Hz |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | GHP456 Titan |
| Measurement Principle | Guarded Hot Plate Method |
| Applicable Standards | ISO 8302, DIN EN 12667, DIN EN 12939, DIN EN 13163, ASTM C177, GB 10294 |
| Temperature Range | −160 °C to 600 °C |
| Sample Dimensions | 300 mm × 300 mm (max thickness 100 mm) |
| Thermal Conductivity Range | 0–2 W/(m·K) |
| Accuracy | ±2% |
| Repeatability | ±1% |
| Vacuum Capability | Yes |
| Control Sensors | 29 Pt-100 resistance thermometers |
| Footprint (L×W×H) | 3000 mm × 1500 mm × 2000 mm |
| Operating Environment | Ambient temperature laboratory conditions |
| Sample Throughput | Multi-sample sequential testing supported |
| Brand | NETZSCH |
|---|---|
| Origin | Germany |
| Model | APTAC 264 |
| Temperature Range | RT to 500 °C |
| Temperature Tracking Rate | 0–400 °C/min |
| Minimum Detectable Heat Flow Rate | 0.002 °C/min |
| Pressure Range | 0–140 bar |
| Pressure Tracking Rate | 0–680 bar/min |
| Standard Functions | Integrated Stirring, Liquid Injection, and Effluent Discharge |
| Optional Feature | VARIPHI™ Thermal Inertia Compensation Technology |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | DSC 204 F1 Phoenix |
| Instrument Type | Differential Scanning Calorimeter (DSC) |
| Temperature Range | –180 °C to 700 °C |
| Temperature Accuracy | ±0.1 K |
| Heating/Cooling Rate | 0 to 200 K/min |
| Sensor Options | τ-type (time constant 0.6 s), μ-type (high-sensitivity) |
| Cooling Options | Liquid nitrogen (LN₂), mechanical refrigeration (–85 °C to 600 °C), compressed air, cooling cup |
| Sample Capacity | Multi-sample capability (optional 64-position ASC auto-sampler) |
| Atmosphere Control | Integrated mass flow controller, gas-tight furnace design compatible with FTIR/MS coupling |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | TAURUS GHP 600 |
| Measurement Principle | Guarded Hot Plate Method |
| Sample Capacity | Multiple sequential tests |
| Operating Environment | Ambient temperature |
| Dimensions (H×W×D) | 186 × 85 × 85 cm |
| Accuracy | ±1.0% |
| Thermal Conductivity Range | 0.005 – 2.0 W/(m·K) |
| Repeatability | ±0.5% |
| Compliant Standards | ISO 8302, ASTM C177, EN 1946-2, EN 12664, EN 12667, EN 12939 |
| Sample Thickness | 15–200 mm (single-plate), 15–100 mm per plate (double-plate) |
| Sample Area | 100×100 – 300×300 mm² (standard), up to 600×600 mm² (optional) |
| Hot Plate Temperature Range | –5 to 70 °C |
| Cold Plate Temperature Range | –15 to 60 °C |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Instrument Type | DSC |
| Temperature Range | −170 °C to 600 °C |
| Temperature Accuracy | ±0.1 K |
| Heating/Cooling Rate | 0 to 500 °C/min |
| Detection Limit | 0.1 μW |
| Atmosphere Control | Dynamic or static inert, reducing, or oxidizing (automated gas switching) |
| Cooling Options | Compressed air, mechanical refrigeration, liquid nitrogen (dual-cooling system optional, software-switchable) |
| Optional Accessories | Photo-DSC module, ASC automatic sample changer (20 positions), TMDSC upgrade |
| Software Features | Intelligent Mode, Expert Mode, Auto-Calibration, Auto-Analysis, Pattern Recognition, Tau-R® advanced thermal lag correction, DSC spectral database and search engine |
| Brand | NETZSCH |
|---|---|
| Origin | Germany |

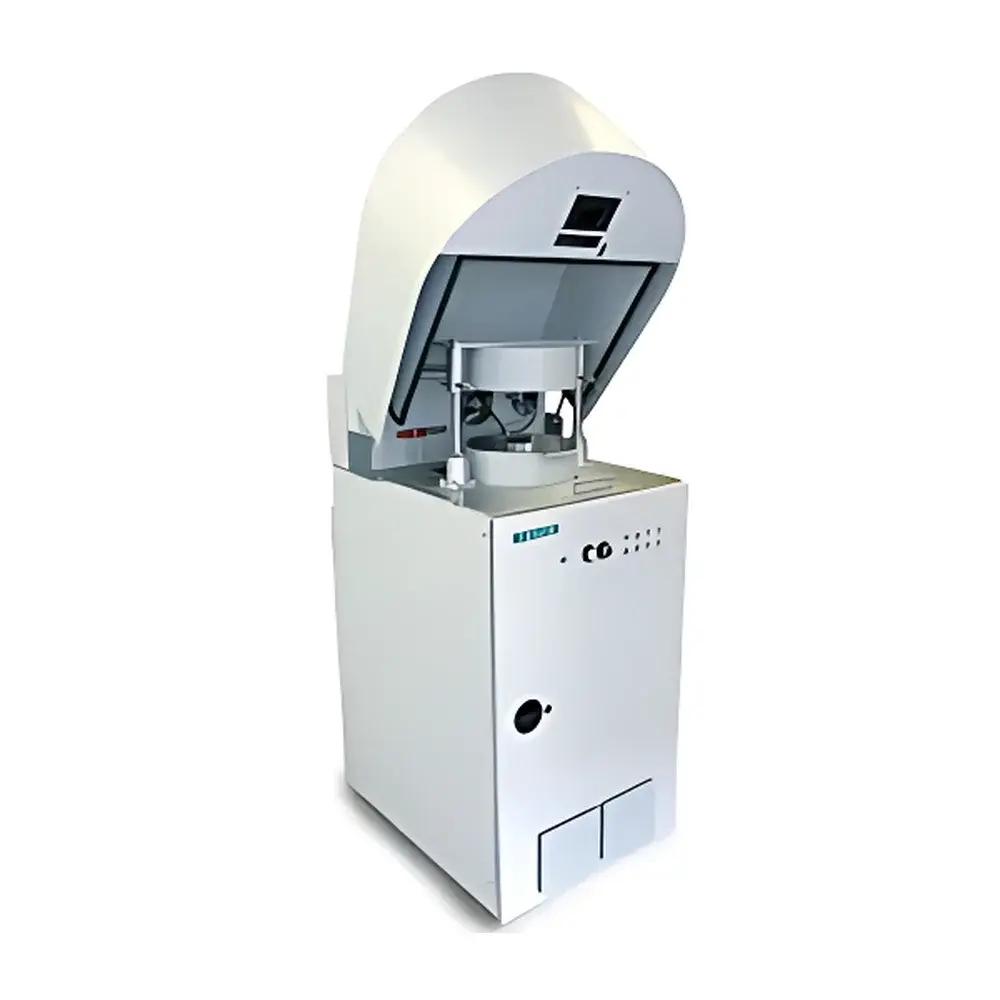

| Model | ARC 244 |
| Temperature Range | RT to 500 °C |
| Temperature Tracking Rate | 0–20 °C/min |
| Minimum Detectable Heat Flow Rate | 0.01 °C/min |
| Pressure Range | 0–200 bar |
| Optional Features | Integrated Stirring, Venting Module, VARIPHI™ Thermal Inertia Compensation Technology |
| Safety Architecture | Dual-Redundant Interlock System, Top-Lifting Furnace Assembly, Tubular Heater Design for Minimized Thermal Backflow |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | TCA 500 |
| Measurement Principle | Heat Flow Meter Method (HFM) |
| Dimensions (H×W×D) | 179 × 80 × 90 cm |
| Thermal Conductivity Range | 0.005 – 1.0 W/(m·K) |
| Accuracy | ±1.0% |
| Repeatability | ±0.5% |
| Sample Size (L×W) | 250 × 250 mm to 500 × 500 mm |
| Sample Thickness (H) | 10 – 120 mm |
| Cold Plate Temperature Range | −20 °C to +60 °C |
| Hot Plate Temperature Range | −10 °C to +70 °C |
| Standards Compliance | ISO 8301, ASTM C518, DIN EN 1946-3, EN 12664, EN 12667, EN 12939 |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | TAURUS GHP 900 |
| Measurement Principle | Guarded Hot Plate (GHP) |
| Standard Compliance | ISO 8302, ASTM C177, EN 12664, EN 12667, EN 12939, EN 1946-2 |
| Thermal Conductivity Range | 0.005 – 2.0 W/(m·K) |
| Accuracy | ±1.0% |
| Repeatability | ±0.5% |
| Sample Thickness (Single-Sided) | 15 – 280 mm |
| Sample Thickness (Double-Sided) | 2 × 15 – 140 mm |
| Sample Area | 200 × 200 mm to 500 × 500 mm (optional up to 900 × 900 mm) |
| Cold Plate Temperature Range | −10 to +60 °C |
| Hot Plate Temperature Range | 0 to +70 °C |
| Chamber Dimensions (H × W × D) | 233 × 146 × 126 cm |
| Guarded Enclosure | Full adiabatic shielding with active temperature control |
| Automation | Motorized upper plate lift, adjustable heating area, multi-directional sample access |
| Brand | Netzsch |
|---|---|
| Origin | Germany |
| Model | LFA 467 HyperFlash HT |
| Measurement Principle | Laser Flash Method (LFA) |
| Temperature Range | RT to 1250 °C |
| Thermal Conductivity Range | 0.1 – 4000 W/(m·K) |
| Accuracy | ±3% |
| Repeatability | ±2% |
| Pulse Source | Adjustable-energy xenon lamp, pulse width <2 µs |
| Detection Rate | up to 2 MHz |
| Sample Forms | Solid, liquid, powder, thin film |
| Atmosphere Options | Inert or oxidative (vacuum-tight chamber) |
| Dimensions (L×W×H) | 600 mm × 500 mm × 600 mm |
| Sample Capacity | Up to 4 positions with independent thermocouples |
| Compliance | ASTM E1461, ASTM E2585, ISO 22007-4, ISO 18755, ISO 13826, DIN EN 821-2, DIN 30905, DIN EN 1159-2 |
Show next
