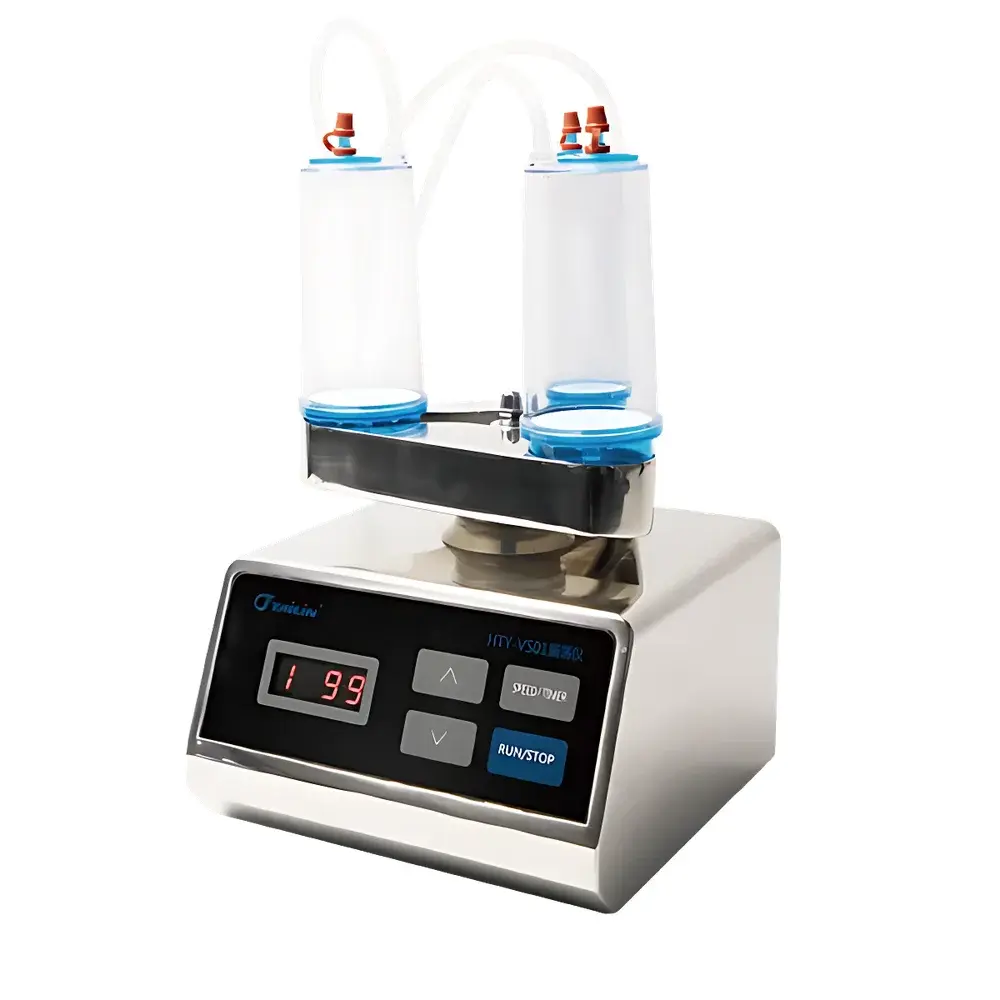

泰林生物 HTY-VS01 Isolator-Compatible Oscillator for Pharmaceutical Microbial Recovery

Overview

The Tailin Biotech HTY-VS01 Isolator-Compatible Oscillator is an engineered solution designed specifically for microbial recovery workflows in regulated pharmaceutical environments. It operates on the principle of controlled orbital oscillation to enhance elution efficiency during membrane-based filtration procedures—particularly in sterility testing of antibiotics and other adsorptive drug substances. By applying consistent, low-amplitude mechanical agitation (≥0.1 mm RMS), the device minimizes analyte adsorption onto polyethersulfone (PES), nitrocellulose, or mixed cellulose ester (MCE) filter membranes, thereby improving microbial elution yield and reducing the risk of false-negative outcomes per USP , EP 2.6.1, and ISO 11737-2 requirements. Its compact footprint and dual-use design support seamless integration both inside isolators (under H₂O₂ vapor sterilization conditions) and on laboratory benches—ensuring continuity across aseptic processing, QC release testing, and method validation protocols.

Key Features

• Isolator-compatible architecture with full enclosure rated for repeated exposure to hydrogen peroxide (H₂O₂) vapor sterilization cycles (up to 1000 ppm, 60% RH, 45–60°C)
• Orbital oscillation mechanism delivering stable, repeatable motion at adjustable speed (30–300 rpm) and programmable duration (1–99 min)
• Digitally controlled interface featuring LED display, one-touch start/stop, and capacitive tempered-glass touch panel with haptic feedback
• Integrated liquid containment system: built-in sloped drainage channel and recessed reservoir eliminate need for external drip trays or secondary containment
• Secure mounting via vacuum suction cups—designed to maintain positional stability under dynamic load during operation inside isolators or laminar flow cabinets
• Low-power consumption (25 W nominal) and CE-compliant electrical safety (AC 220 V / 50 Hz); weight optimized at 6 kg for ergonomic handling and modular installation

Sample Compatibility & Compliance

The HTY-VS01 is validated for use with standard sterile filtration assemblies including Tailin’s HTY-HPV series of closed-system microbial retention filters and HTY-DC series of double-chambered集菌 (bacterial collection) vessels. It supports all common membrane formats (25 mm, 47 mm, and 142 mm diameter) and accommodates both single- and multi-unit configurations. Device operation aligns with current Good Manufacturing Practice (cGMP) expectations for equipment qualification (IQ/OQ/PQ), and its design facilitates audit readiness for FDA 21 CFR Part 11-compliant data integrity when paired with compliant software logging systems. The oscillator meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions) standards, and its materials comply with USP Class VI biocompatibility testing for prolonged contact with pharmaceutical solutions.

Software & Data Management

While the HTY-VS01 operates as a standalone hardware unit with embedded microcontroller logic, it supports traceable operation through optional RS-485 serial output (Modbus RTU protocol) for integration into Laboratory Information Management Systems (LIMS) or SCADA platforms. All user-defined parameters—including speed setpoint, timer value, and cycle count—are retained in non-volatile memory and logged with timestamp upon execution. When deployed in GxP environments, the device may be included in electronic record workflows requiring ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available), particularly when interfaced with validated data acquisition modules that enforce audit trail generation and electronic signature enforcement per 21 CFR Part 11 Annex 11 requirements.

Applications

• Sterility testing of β-lactam antibiotics, monoclonal antibodies, and liposomal formulations where membrane adsorption compromises detection sensitivity
• Enhanced rinse recovery in membrane filtration-based endotoxin testing (LAL assays) per USP
• Accelerated dissolution of poorly soluble active pharmaceutical ingredients (APIs) during sample preparation for microbiological assay or potency testing
• Uniform suspension of spore suspensions (e.g., Bacillus subtilis, Geobacillus stearothermophilus) prior to filter challenge studies
• Supporting validation of filtration efficiency and breakthrough testing in pre-sterilization process characterization

FAQ

Is the HTY-VS01 certified for use inside VHP-sterilized isolators?
Yes—the unit’s fully sealed housing, silicone gasketing, and stainless-steel fasteners are qualified for ≥100 cycles of vaporized hydrogen peroxide (VHP) exposure at concentrations up to 1000 ppm.
Can the oscillation speed be calibrated or verified externally?
Speed accuracy is factory-verified using NIST-traceable tachometric reference; users may perform periodic verification with optical tachometers or laser Doppler vibrometers per internal SOPs.
Does the device meet electromagnetic compatibility (EMC) requirements for cleanroom deployment?
Yes—it complies with IEC 61000-6-2 and IEC 61000-6-4, and has been tested in ISO Class 5 (Grade A) environments without signal interference to adjacent analytical instrumentation.
What maintenance intervals are recommended for long-term reliability?
No scheduled lubrication or consumable replacement is required; routine visual inspection of suction cup integrity and cleaning of the drainage channel every 30 operational days is advised.
Is technical documentation available in English for regulatory submission packages?
Yes—Tailin provides English-language User Manuals, Risk Assessments (FMEA), Design Qualification (DQ) summaries, and Material Certificates of Conformance (CoC) upon request for regulatory filing support.
