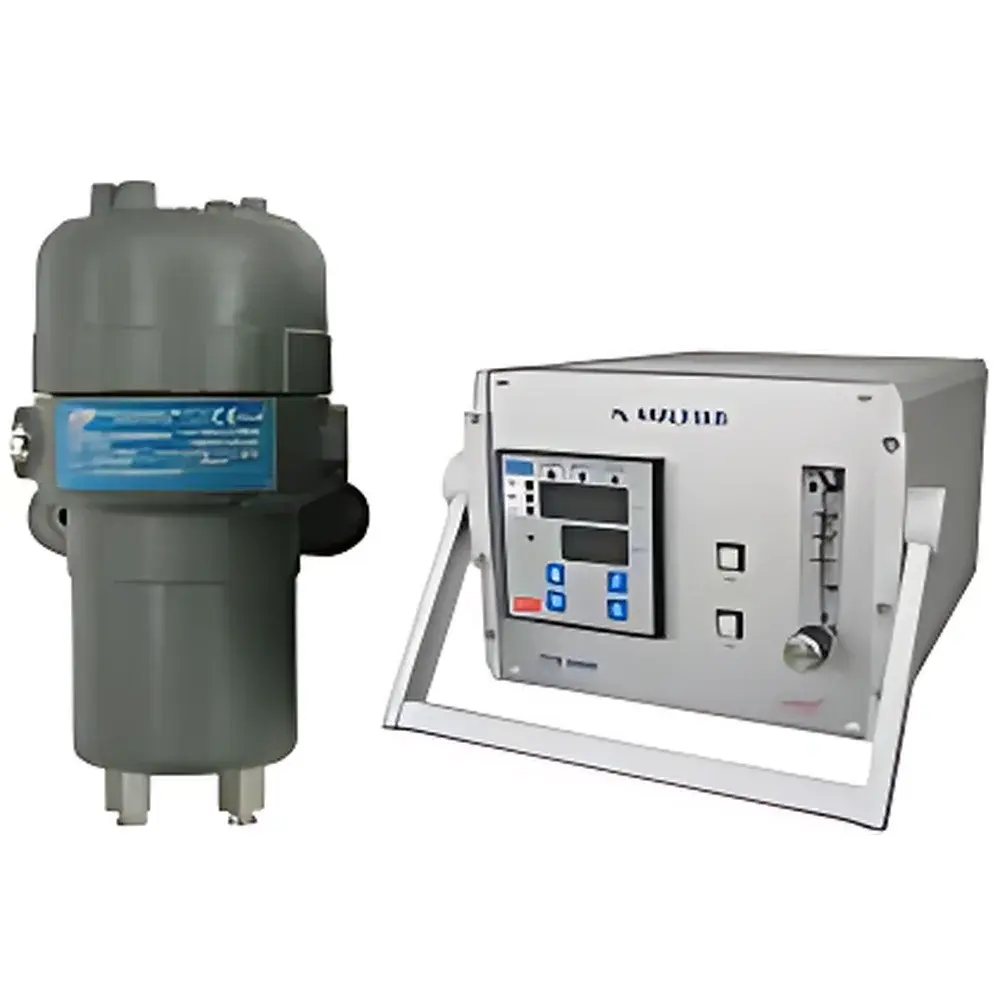

ADEV 8866 Intrinsically Safe Online Hydrogen Analyzer

Overview

The ADEV 8866 Intrinsically Safe Online Hydrogen Analyzer is a high-integrity, process-certified gas analyzer engineered for continuous, real-time measurement of hydrogen (H₂), helium (He), methane (CH₄), and hydrocarbon concentrations in demanding industrial environments. Based on thermal conductivity detection (TCD) principle, the instrument delivers stable, drift-compensated readings across multiple calibrated ranges — from trace-level (0–1% H₂) to full-scale purity monitoring (98–100% H₂). Its dual-chamber TCD sensor architecture ensures high selectivity against background gases such as N₂, CO₂, Ar, and air, while maintaining robust performance under variable pressure and temperature conditions typical of furnace atmospheres, synthesis loops, and generator cooling circuits. Designed for uninterrupted operation in Zone 1 and Zone 2 hazardous locations, the 8866 complies fully with IEC 60079-0/-1/-11 and UL 60079-0/-1/-11 standards, enabling direct installation at point-of-process without external purging or remote sampling systems.

Key Features

• ATEX and CSA-certified explosion-proof enclosure (Ex d IIC T6 Gb / Class I, Div 1, Groups B/C/D)
• Thermal conductivity detector with dual reference-compensated sensing elements for long-term baseline stability
• Configurable multi-range measurement: 13 standard span options including ultra-high-purity (98–100% H₂) and low-concentration (0–1% H₂) modes
• Response time optimized for dynamic process control: t₉₀ ≤ 24 s for H₂, t₉₀ ≤ 45 s for CO₂ — validated per ISO 10780 and ASTM D1946
• Four independent, galvanically isolated 4–20 mA analog outputs assignable to concentration, alarm status, or diagnostic signals
• RS232 and RS485 interfaces supporting Modbus RTU protocol for integration into DCS, SCADA, and SIS platforms
• IP66-rated stainless-steel housing with 1/4″ Swagelok® or 6 mm compression inlet/outlet ports for leak-tight sample connection
• Zero drift ≤1% FS/week — verified under continuous operation at 40 °C ambient and 1.5 bar sample pressure

Sample Compatibility & Compliance

The ADEV 8866 is validated for use with dry, non-corrosive process streams containing H₂, He, CH₄, and light hydrocarbons. It is not intended for wet, particulate-laden, or highly reactive gas matrices (e.g., Cl₂, NH₃, H₂S) without upstream conditioning (e.g., coalescing filters, catalytic scrubbers, or chilled mirror dryers). The analyzer meets EN 61326-1 (EMC), EN 61000-6-2/-6-3 (immunity/emission), and EN 61010-1 (safety) requirements. Its hazardous-area certification covers ATEX Directive 2014/34/EU (formerly 94/9/EC) and CSA C22.2 No. 142 and UL 1203. For pharmaceutical and biotech applications requiring audit-ready data integrity, optional firmware supports 21 CFR Part 11-compliant user access control and electronic signature logging when integrated with validated host software.

Software & Data Management

The embedded firmware provides local configuration via front-panel membrane keypad and LCD display, with parameter locking and password-protected calibration access. Remote setup and diagnostics are supported through ASCII command protocol over RS232/RS485. Optional ADEV ConfigTool v3.2 (Windows-based) enables full device commissioning, range assignment, alarm threshold definition, and trend logging export (CSV). All analog outputs support HART-compatible smart diagnostics, including sensor health status, flow fault indication, and temperature deviation alerts. Data timestamps are synchronized to internal RTC (±2 s/month accuracy), and event logs retain up to 1,000 entries with time/date stamping for GLP/GMP traceability.

Applications

• Hydrogen purity monitoring in hydrogen-cooled turbine generators (IEC 60034-27-2 compliance)
• Atmosphere control in batch and continuous annealing furnaces (e.g., bright annealing of stainless steel)
• Process gas analysis in ammonia synthesis loops and methanol reformers
• Leak detection and purge verification in semiconductor fab H₂ delivery systems
• Concentration verification in on-site electrolytic H₂ generators and PEM fuel cell feed lines
• Argon/helium ratio monitoring in superconducting magnet cryogenic systems
• CH₄ and hydrocarbon impurity detection in natural gas grid injection points
• Off-gas composition tracking in zinc/lead smelting and copper refining reduction zones

FAQ

What calibration gases are required for field verification?
Certified binary mixtures (e.g., H₂/N₂ or H₂/Ar) traceable to NIST or PTB standards, with uncertainty ≤0.5% of reading. Zero gas must be high-purity N₂ or Ar (≥99.999%).
Can the 8866 measure H₂ in the presence of CO₂ or steam?
CO₂ is detectable but requires separate calibration; steam must be removed prior to analysis (dew point ≤−20 °C) to prevent condensation-induced drift.
Is third-party SIL certification available?
The 8866 is designed to SIL 2 capability per IEC 61508; full SIL 2 validation requires system-level assessment including logic solver and final element integration.
Does the unit support automatic zero/span correction?
Manual zero adjustment is supported; auto-span requires external solenoid-valve manifold and certified span gas — available as ADEV Option ZS-MANIFOLD.
What maintenance intervals are recommended?
Sensor replacement every 24 months under continuous operation; filter elements every 6 months; annual verification of calibration and explosion-proof integrity per IEC 60079-17.
