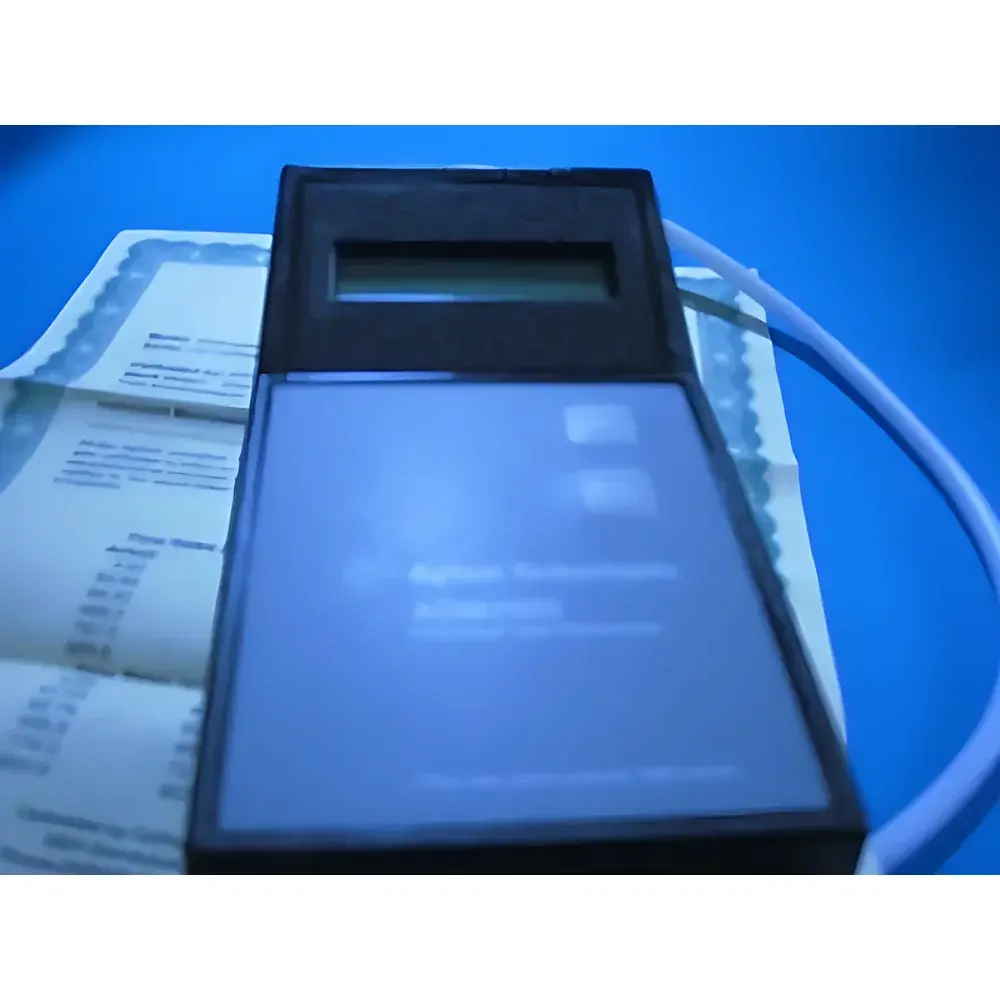

Agilent ADM 2000 Digital Electronic Mass Flow Meter

Overview

The Agilent ADM 2000 Digital Electronic Mass Flow Meter is a precision-engineered instrument designed for accurate, real-time verification and calibration of carrier and auxiliary gas flows in gas chromatography (GC) and related analytical workflows. Unlike traditional volumetric flowmeters, the ADM 2000 incorporates internal temperature and atmospheric pressure compensation algorithms to compute mass-normalized flow rates—enabling consistent, condition-independent measurement across varying lab environments. It operates on the principle of thermal dispersion sensing, where heat transfer from a heated element to the flowing gas is correlated to mass flow rate via calibrated thermal response curves. This eliminates reliance on fixed reference conditions (e.g., STP), making it especially suitable for labs operating at non-standard altitudes or ambient conditions. The device supports flow verification across the full operational range of modern capillary GC systems—from low-flow applications (e.g., microbore columns, splitless injection) to high-throughput carrier gas delivery (up to 1000 mL/min). Its design aligns with routine QC/QA protocols in regulated environments, including those requiring traceable documentation of flow integrity prior to method validation.

Key Features

• True mass-flow compensated measurement: Delivers volumetric flow output (mL/min) corrected for local temperature and barometric pressure—ensuring reproducibility without manual correction tables.
• Dual power flexibility: Operates reliably on standard 9 V alkaline battery for field portability or via optional AC adapter (120 V or 220 V variants available) for benchtop continuity.
• RS-232 serial interface: Enables direct data logging into LIMS or spreadsheet-based tracking systems; supports ASCII command protocol for automated script integration.
• High-resolution digital display: Clear LED readout with auto-ranging scaling and unit confirmation (mL/min), minimizing operator interpretation error.
• Robust sensor architecture: Stainless steel flow body and thermally stabilized sensing elements ensure long-term stability and resistance to minor particulate exposure in clean, dry gas streams.
• Compliance-ready design: Supports GLP/GMP-aligned workflows through timestamped manual recording; compatible with audit-trail-enabled software when paired with compliant data acquisition tools.

Sample Compatibility & Compliance

The ADM 2000 is validated for use with clean, dry, non-corrosive gases commonly employed in GC instrumentation—including nitrogen, hydrogen, helium, air, carbon dioxide, methane, and 95% argon/methane blends. It is not rated for use with reactive, acidic, solvent-saturated, or particulate-laden streams. While the instrument itself does not carry formal ISO/IEC 17025 accreditation, its accuracy specification (±3% of reading or ±0.2 mL/min, whichever is greater) meets typical requirements for secondary flow verification per ASTM D3588 and ISO 8502-4 guidelines. For regulated laboratories, the ADM 2000 serves as a documented verification tool within instrument qualification (IQ/OQ/PQ) packages—particularly during GC system commissioning, preventive maintenance, or post-repair flow recalibration. Its physical construction and electrical safety comply with UL 61010-1 and IEC 61010-1 standards for laboratory measurement equipment.

Software & Data Management

The ADM 2000 communicates via standard RS-232 protocol using TTL-level signals and a 9-pin D-sub connector. No proprietary driver is required; terminal emulation software (e.g., PuTTY, Tera Term) or custom Python/Excel VBA scripts can capture real-time flow values at user-defined intervals. Each transmitted line includes flow value, unit identifier, and carriage return—facilitating parsing into CSV or database structures. Though the meter lacks onboard memory or firmware-upgrade capability, its output format is fully compatible with Agilent OpenLab CDS and third-party chromatography data systems (CDS) that accept external analog/digital inputs via serial gateways. For 21 CFR Part 11 compliance, raw RS-232 logs must be archived alongside associated instrument runs and annotated with operator ID and timestamp—practices readily supported by validated electronic lab notebooks (ELNs) or LIMS platforms.

Applications

• Verification of carrier gas flow accuracy in Agilent, Thermo Fisher, Shimadzu, and PerkinElmer GC systems prior to method execution.
• Calibration cross-check of electronic pneumatic control (EPC) modules during preventive maintenance or troubleshooting.
• Flow profiling across split/splitless injectors, detector make-up gases (e.g., FID, ECD), and purge-and-trap interfaces.
• Validation of flow consistency in multi-dimensional GC (GC×GC) and heart-cutting configurations requiring precise zone-specific flow allocation.
• Educational use in analytical chemistry laboratories to demonstrate gas law deviations and the practical impact of ambient pressure/temperature on volumetric readings.
• Field service support for chromatography application specialists performing on-site system audits or installation qualification.

FAQ

Does the ADM 2000 measure true mass flow or volumetric flow?
It measures volumetric flow (mL/min) and applies real-time temperature and pressure compensation to report a mass-equivalent value—this is distinct from direct thermal mass flow measurement but provides comparable utility for GC flow verification.
Can the ADM 2000 be used with corrosive or humidified gases?
No. The sensor is designed exclusively for clean, dry, non-corrosive gases. Exposure to moisture, solvents, or reactive species will degrade sensor performance and void calibration validity.
Is the RS-232 output compatible with modern USB-only computers?
Yes—via industry-standard USB-to-RS-232 adapters (FTDI chipset recommended); no additional drivers are needed on Windows 10/11 or macOS when using certified converters.
What is the recommended calibration interval for the ADM 2000?
Agilent recommends annual calibration against a NIST-traceable primary standard; more frequent verification is advised in high-usage environments or after mechanical shock or extended battery depletion.
Does the ADM 2000 support gas-specific calibration factors?
No—it uses a generalized calibration optimized for common GC carrier gases. For specialized gas mixtures outside the specified list, users should apply published K-factors manually or consult Agilent Technical Support for application-specific guidance.
