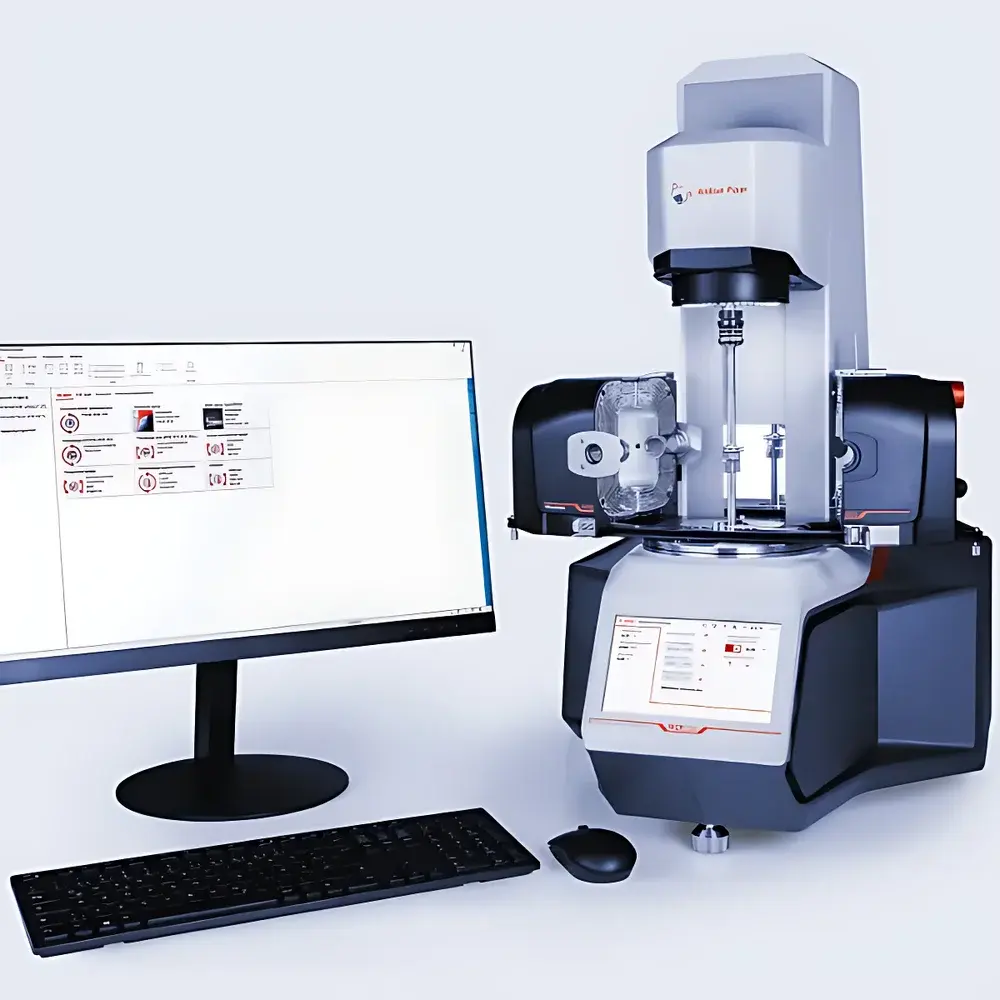

Anton Paar MCR Powder Rheometer
| Brand | Anton Paar |
|---|---|
| Origin | Austria |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Category | Imported Instrument |
| Model | MCR Powder Rheometer |
| Instrument Type | Multifunctional Powder Flowability Tester |
| Minimum Sample Volume | 4.3 mL / 18.9 mL |
Overview
The Anton Paar MCR Powder Rheometer is a precision-engineered modular add-on system designed for the quantitative, reproducible characterization of bulk powder behavior under controlled mechanical and environmental conditions. Integrated with Anton Paar’s flagship MCR series rotational rheometers—platforms originally developed for advanced viscoelastic and tribological testing—the Powder Rheometer leverages the same high-accuracy torque transducer, temperature-controlled geometry positioning, and motor-in-hybrid architecture to deliver traceable, physics-based measurements of powder flow dynamics. Unlike empirical funnel-flow or angle-of-repose methods, this system applies controlled shear, compression, and consolidation forces to simulate real-world processing environments including hopper discharge, screw feeding, die filling, and pneumatic conveying. Its operational principle centers on measuring resistance to flow via rotational and vertical motion of a standardized blade through a conditioned powder bed, enabling derivation of fundamental parameters such as basic flow energy (BFE), specific energy (SE), compressibility, permeability, and shear cell-derived yield loci when combined with optional accessories.
Key Features
- Modular integration with MCR rotational rheometers (e.g., MCR 702e, MCR 902), ensuring full compatibility with existing rheological software, temperature control units (Peltier or liquid-cooled), and environmental chambers.
- Standardized stainless-steel flow blade (6 mm diameter, 30 mm length) with calibrated geometry and surface finish, compliant with ASTM D7891–21 guidelines for dynamic powder testing.
- High-resolution force and torque sensing (±0.01 mN·m torque resolution; ±0.001 N normal force resolution) enabling detection of subtle interparticle cohesion and wall friction effects.
- Programmable test sequences—including upward/downward blade motion, oscillatory shearing, and stepwise consolidation—supporting both QC screening and R&D-grade mechanistic analysis.
- Automated sample conditioning module (optional) for humidity and temperature stabilization prior to measurement, aligning with ISO 4762 and USP <1174> recommendations for powder testing standardization.
- Robust mechanical architecture with zero-backlash gear drive and active thermal compensation, ensuring long-term repeatability across multi-shift laboratory operation.
Sample Compatibility & Compliance
The MCR Powder Rheometer accommodates free-flowing to highly cohesive powders, including pharmaceutical actives and excipients, metal and ceramic feedstocks, food ingredients (e.g., milk powder, flour), battery cathode/anode materials, and additive manufacturing powders. Sample volume requirements are flexible: 4.3 mL for rapid BFE screening (using small-diameter sample cup), and 18.9 mL for comprehensive flow profiling including compressibility and aeration studies. All measurements adhere to internationally recognized frameworks: data acquisition meets FDA 21 CFR Part 11 requirements for electronic records and signatures when used with RheoCompass™ software in audit-trail mode; test protocols align with ASTM D7891 (Standard Test Method for Measuring the Basic Flow Energy of Powders Using a Rotational Shear Cell), ISO/IEC 17025–compliant calibration documentation is provided, and instrument validation supports GLP/GMP-regulated environments.
Software & Data Management
Controlled exclusively via Anton Paar’s RheoCompass™ software (v5.0+), the system provides guided workflow templates for method development, automated report generation (PDF/CSV/XLSX), and integrated statistical process control (SPC) charts. Raw torque, normal force, and displacement data are time-stamped and stored with full metadata (operator ID, ambient RH/T, calibration certificate ID, instrument firmware version). Advanced analysis modules enable calculation of Hausner ratio, Carr index, flow function coefficient (ffc), and consolidation stress–porosity relationships. Data export conforms to ASTM E1447 and ISO 10012 standards for measurement management systems. Optional cloud synchronization (via Anton Paar Connect) enables secure cross-site comparison and centralized method library deployment across global R&D and manufacturing sites.
Applications
- Pharmaceutical solid dosage development: quantifying blend uniformity impact on tablet press feedability and predicting segregation risk during high-speed capsule filling.
- Battery material qualification: evaluating cathode powder flow stability under inert atmosphere and correlating BFE with electrode coating defect rates.
- Food powder handling optimization: assessing moisture-induced caking thresholds and validating anti-caking agent efficacy under variable RH conditions.
- Metal AM powder certification: verifying batch-to-batch consistency in apparent density and flow rate prior to laser powder bed fusion processing.
- Chemical catalyst handling: modeling hopper discharge arching tendencies and designing gravity-fed reactor feed systems.
- Regulatory submission support: generating ICH Q5C-compliant stability data for powder physical attributes over accelerated storage conditions.
FAQ
Can the MCR Powder Rheometer replace traditional shear cell testers?
Yes—when configured with the optional shear cell adapter and appropriate calibration routines, it delivers equivalent yield locus data per ASTM D6128 and Jenike methodology, while adding dynamic flow energy metrics unavailable in static testers.
Is humidity control built into the base system?
No—environmental control is achieved via external climate chambers (e.g., Binder KBWF) or the optional Anton Paar Humidity Control Unit (HCU), which integrates directly with RheoCompass™ for closed-loop RH regulation from 10% to 90% RH.
What calibration standards are supplied?
Each system ships with NIST-traceable torque and force calibration kits, certified reference powders (glass beads, alumina), and a full ISO/IEC 17025 calibration certificate valid for 12 months.
Does it support GMP-compliant audit trails?
Yes—RheoCompass™ in “GxP Mode” enforces user authentication, electronic signatures, change history logging, and locked data archives meeting FDA 21 CFR Part 11 and EU Annex 11 requirements.
Can test methods be exported and shared across instruments?
Absolutely—method files (.rhm) include all parameter settings, sequence logic, and reporting configurations, and are fully portable between any MCR platform running compatible firmware.
