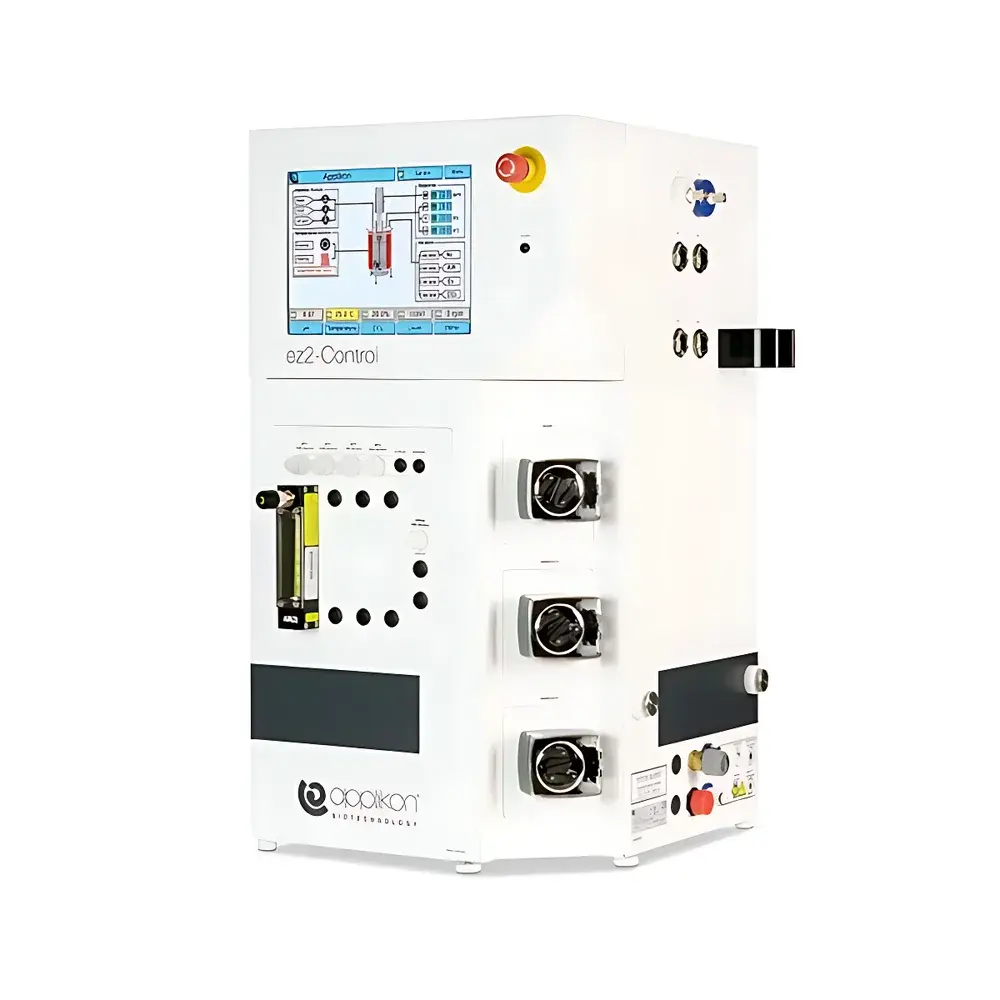

Applikon ez2-Control Bioreactor Control System

Overview

The Applikon ez2-Control is a compact, web-enabled bioreactor control system engineered for precision, reproducibility, and operational transparency in laboratory- and pilot-scale bioprocess development. Unlike modular or legacy PLC-based controllers, the ez2-Control integrates real-time regulation of core bioreactor parameters—including dissolved oxygen (DO), pH, temperature, agitation speed, and gas flow—within a unified, browser-accessible architecture. Its control logic is grounded in closed-loop PID algorithms with adaptive tuning capabilities, ensuring stable setpoint maintenance under dynamic metabolic loads typical of microbial, mammalian, and yeast cultivations. Designed specifically for integration with Applikon’s DASbox® and MiniBio® bioreactor platforms, the system supports both fed-batch and perfusion modes, and is validated for use in process characterization studies aligned with ICH Q5 and Q8 guidelines.

Key Features

• Web-native HMI: Full control and monitoring via any HTML5-compliant browser—no proprietary software installation required; responsive interface adapts to desktop, tablet, or mobile devices.
• Real-time parameter visualization: Simultaneous display of up to 16 process variables with configurable trend windows, alarm thresholds, and color-coded status indicators (e.g., green/amber/red for DO deviation).
• Integrated data logging: Timestamped raw data stored locally on embedded industrial-grade SSD (≥3 years at 1-second sampling interval); exportable in CSV and ASTM E1384-compliant ASCII format.
• Secure remote access: TLS 1.2–encrypted communication, role-based user authentication (admin/operator/observer), and audit-trail generation compliant with FDA 21 CFR Part 11 requirements.
• Modular I/O expansion: Supports up to 4 analog input channels (4–20 mA / 0–10 V) and 2 digital outputs for integration with third-party sensors (e.g., capacitance-based biomass probes, off-gas analyzers).
• Fail-safe operation: Built-in hardware watchdog timer, automatic recovery from network interruption, and configurable emergency shutdown protocols triggered by critical parameter breaches.

Sample Compatibility & Compliance

The ez2-Control is validated for use with standard stainless-steel and glass bioreactors ranging from 0.5 L to 10 L working volume. It accommodates common single-use vessel configurations when paired with Applikon’s SU-compatible sensor sleeves and sterile connectors. All firmware and configuration files undergo version-controlled release management per ISO 13485:2016 and IEC 62304 Class B software lifecycle standards. The system meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and safety compliance per EN 61010-1 for laboratory equipment. Documentation packages—including IQ/OQ templates, risk assessments (FMEA), and traceability matrices—are provided to support GLP and GMP audits.

Software & Data Management

Control logic and visualization are hosted on a Linux-based real-time OS with deterministic scheduling. The embedded web server enables concurrent multi-user access without performance degradation. Data integrity is enforced through write-once-read-many (WORM) logging, digital signature hashing of session archives, and configurable retention policies. Integration with enterprise systems is supported via OPC UA (IEC 62541) and RESTful API endpoints for bidirectional communication with LIMS (e.g., LabVantage, Thermo Fisher SampleManager) and MES platforms. Batch reports generated automatically include metadata such as operator ID, calibration timestamps, sensor drift logs, and deviation annotations—all structured to meet Annex 11 and ALCOA+ principles.

Applications

• Accelerated process development (APD) for monoclonal antibody and recombinant protein expression in CHO and HEK293 cell lines.
• Strain screening and media optimization studies requiring high-throughput parallel bioreactor runs with synchronized parameter logging.
• Training and education in bioprocess engineering curricula, where intuitive interface design reduces learning curve for students and new technicians.
• QC release testing of cell banking materials under controlled, documented conditions satisfying USP and Ph. Eur. 5.2.12 requirements.
• Supporting Quality by Design (QbD) initiatives through Design Space mapping using automated ramp-and-hold profiles and DoE-driven parameter sweeps.

FAQ

Is the ez2-Control compatible with non-Applikon bioreactors?
Yes—when interfaced via standard 4–20 mA analog signals or Modbus RTU/TCP, though full feature parity (e.g., auto-calibration, vessel-specific PID tuning) requires Applikon hardware integration.
Does it support electronic batch records (EBR)?
It generates structured, timestamped data streams suitable for ingestion into validated EBR systems; however, full EBR functionality (e.g., electronic signatures, workflow orchestration) must be implemented at the enterprise application layer.
What cybersecurity certifications does it hold?
The device conforms to IEC 62443-3-3 SL2 requirements for secure product development lifecycle and includes factory-default security hardening (disabled telnet/FTP, encrypted boot partition, signed firmware updates).
Can historical data be migrated to cloud storage?
Yes—via scheduled SFTP push to AWS S3, Azure Blob, or on-premise NAS, with optional AES-256 encryption in transit and at rest.
Is validation support included with purchase?
Getinge provides comprehensive validation documentation (URS, FRS, DQ/IQ/OQ protocols), vendor-executed qualification services, and training for internal validation teams upon request.
