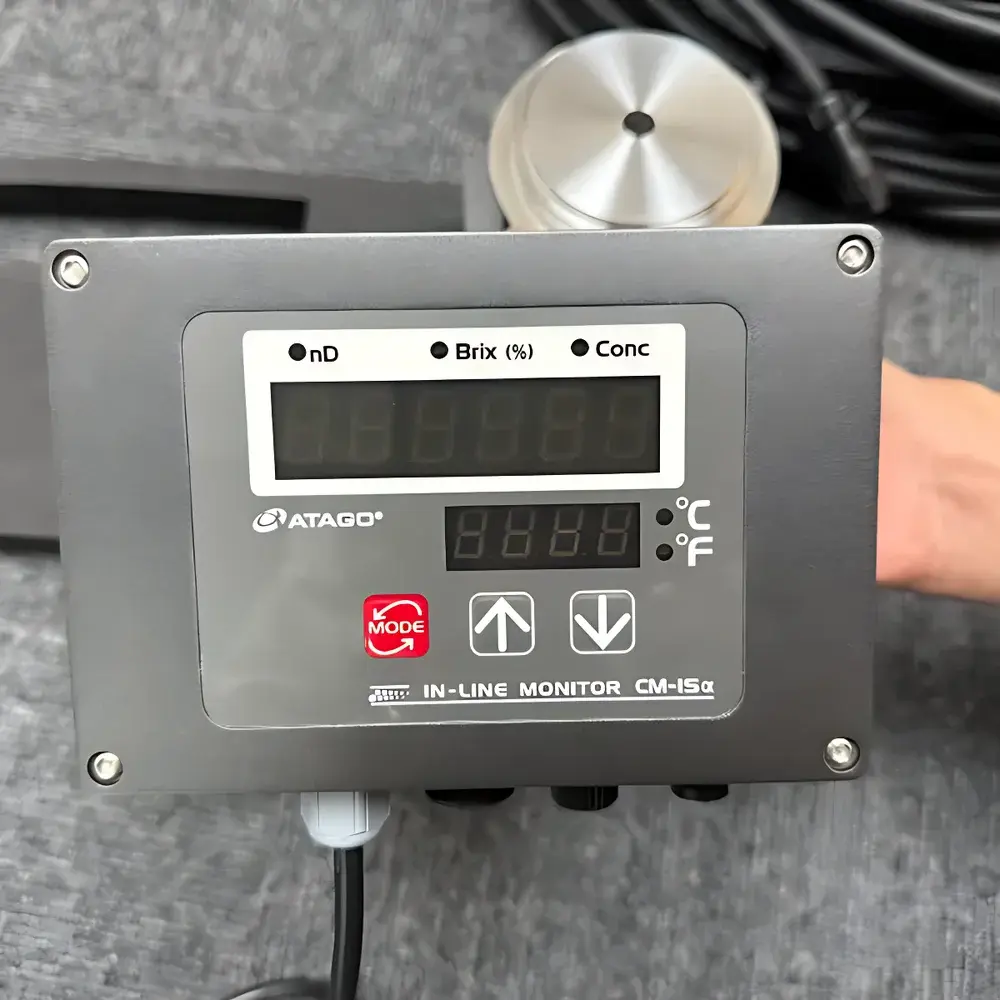

ATAGO CM-Isα-DMF Intrinsically Safe Online Refractometer for DMF Concentration Monitoring
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | CM-Isα-DMF |
| Explosion Protection Rating | Ex ia IIB T3 Ga TA |
| Measurement Principle | Refractive Index-Based Concentration Determination |
| Application | Real-time In-line DMF (N,N-Dimethylformamide) Solution Concentration Monitoring |
| Compliance | ATEX/IECEx Certified for Zone 0/1 Hazardous Areas |
| Enclosure Rating | IP67 |
| Process Connection | Clamp or Flange (DN25/DN40 Options Available) |
| Operating Temperature Range | −10 to 80 °C (Process Fluid) |
| Output Signal | 4–20 mA (HART Optional), RS-485 (Modbus RTU), Analog Voltage (0–5/0–10 V) |
| Material of Wetted Parts | 316L Stainless Steel, Sapphire Prism, FKM Seals |
Overview
The ATAGO CM-Isα-DMF is an intrinsically safe, industrial-grade online refractometer engineered specifically for continuous, real-time concentration monitoring of N,N-dimethylformamide (DMF) solutions in process streams. It operates on the fundamental optical principle of refractive index measurement: as DMF concentration changes in aqueous or solvent-based mixtures, the refractive index shifts predictably and linearly within defined compositional ranges. This relationship—calibrated against certified reference standards—is leveraged to deliver high-reproducibility concentration values without sample extraction, chemical reagents, or system downtime. Designed for integration into closed-loop process control systems, the CM-Isα-DMF enables automated feedback to dosing pumps, valves, or DCS/SCADA platforms, supporting consistent product quality, reduced batch variability, and improved resource efficiency in synthesis, purification, and recycling operations.
Key Features
- Intrinsically safe certification per IEC 60079-0, -11 and EN 60079-11: Ex ia IIB T3 Ga TA — approved for continuous operation in Zone 0 (gas/vapor) hazardous locations.

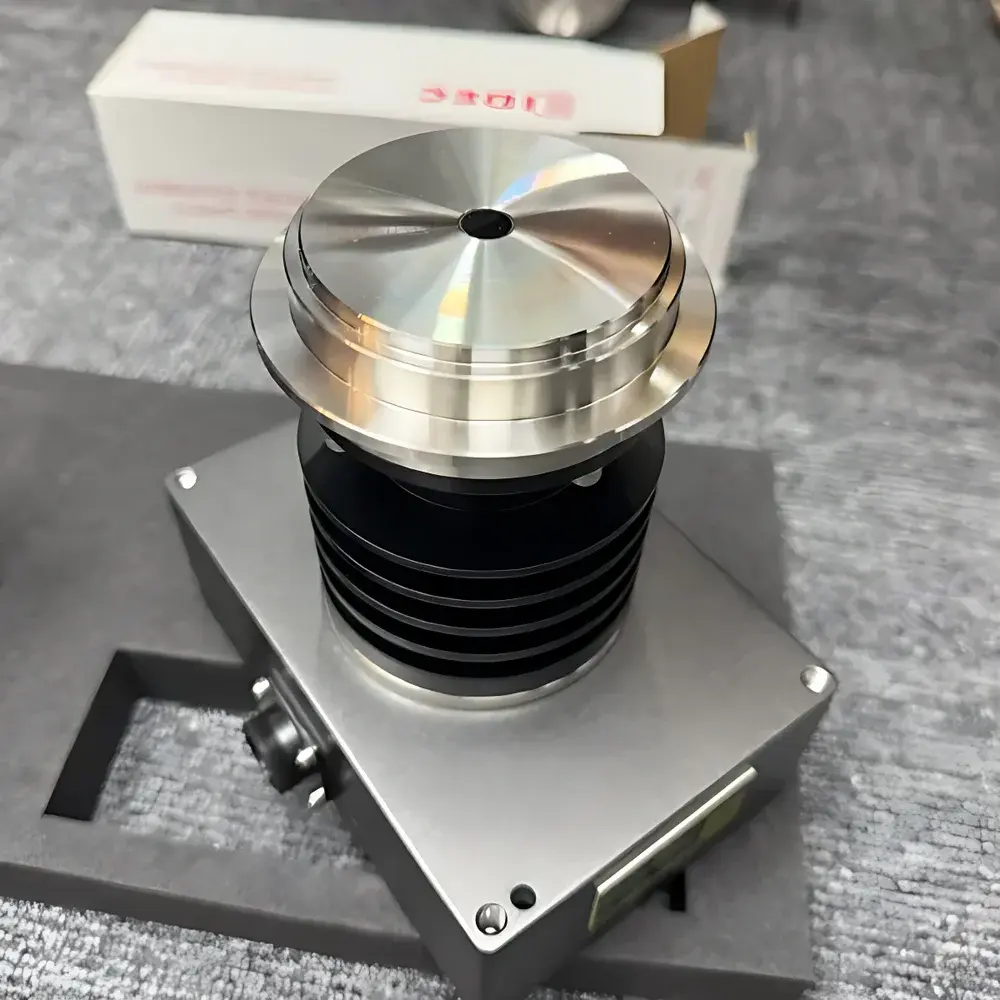

- Optical sensing head with sapphire prism (Mohs hardness 9) and 316L stainless steel body, resistant to corrosion, abrasion, and thermal shock under aggressive DMF process conditions.
- Temperature-compensated measurement algorithm using integrated Pt100 RTD sensor, minimizing drift across ambient and process temperature fluctuations (−10 to 80 °C).
- Zero-maintenance optical path design: no moving parts, no consumables, no recalibration required under stable installation and clean process conditions.
- Configurable analog (4–20 mA HART) and digital (RS-485 Modbus RTU) outputs for seamless integration with PLCs, DCS, or MES systems.
- IP67-rated electronics housing with optional explosion-proof junction box for field-mounted deployment in humid, dusty, or washdown environments.
Sample Compatibility & Compliance
The CM-Isα-DMF is validated for use with homogeneous DMF–water mixtures and DMF–organic solvent blends (e.g., DMF–toluene, DMF–THF) where refractive index remains a monotonic function of concentration. It is not intended for suspensions, emulsions, or highly turbid media that scatter incident light. The instrument complies with international safety and electromagnetic compatibility directives including ATEX 2014/34/EU, IECEx Scheme, and EMC Directive 2014/30/EU. Its intrinsic safety design satisfies requirements for GLP-compliant data acquisition in regulated pharmaceutical manufacturing environments, and supports audit-ready traceability when paired with compliant data logging software.
Software & Data Management
While the CM-Isα-DMF operates autonomously as a field transmitter, ATAGO provides PC-based configuration software (RefractoLink™) for initial setup, span calibration verification, and firmware updates via USB or RS-232. All configuration parameters—including measurement range, output scaling, damping time, and alarm thresholds—are stored non-volatile memory. When integrated into enterprise-level process analytics infrastructure, the device supports time-stamped concentration data export in CSV or OPC UA format. For FDA-regulated facilities, optional validation documentation packages (IQ/OQ protocols) and 21 CFR Part 11–compliant electronic signature modules are available upon request.
Applications
- Continuous monitoring of DMF concentration in pharmaceutical API crystallization and solvent recovery loops.
- Real-time control of DMF content in polyacrylonitrile (PAN) fiber spinning dope preparation.
- Concentration verification during DMF-based membrane casting processes in water treatment and battery separator manufacturing.
- Quality assurance in electronic-grade DMF supply lines for semiconductor photoresist formulation.
- Process optimization in fine chemical synthesis where DMF serves as both solvent and reaction medium (e.g., peptide coupling, Suzuki cross-coupling).
- Environmental compliance tracking of DMF emissions in wastewater pretreatment units prior to biological treatment.
FAQ
What concentration range does the CM-Isα-DMF support for DMF–water solutions?
Standard calibration covers 0–100 wt% DMF; factory calibration points are traceable to NIST-certified standards. Custom range segmentation (e.g., 70–95 wt%) is available for enhanced resolution in narrow operating bands.
Can the sensor be installed in pressurized pipelines?
Yes—rated for static pressures up to 1.0 MPa (10 bar) at 20 °C; derating applies above 50 °C per ASME B16.5 guidelines.
Is cleaning-in-place (CIP) compatible?
The sapphire prism and 316L wetted surface tolerate standard CIP cycles using NaOH, nitric acid, or hydrogen peroxide solutions; mechanical scrubbing is prohibited.
How often is verification recommended?
Annual verification against a certified reference solution is recommended under ISO/IEC 17025–accredited QA programs; frequency may increase based on risk assessment per ICH Q9 principles.
Does ATAGO provide installation support for hazardous area classification?
Yes—application engineers assist with zone classification mapping, cable routing compliance (e.g., conduit fill, grounding), and documentation alignment with local authority requirements (e.g., NEC Article 500, UK DSEAR).
