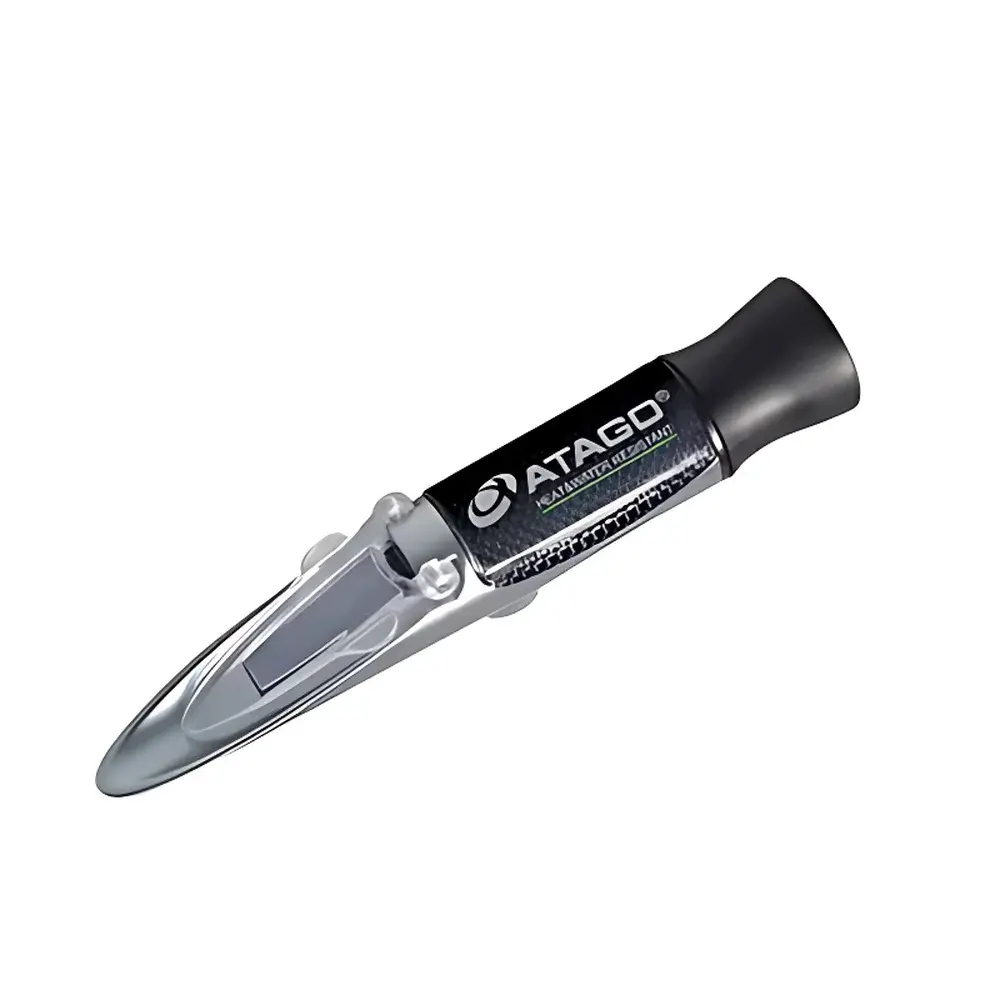

ATAGO MASTER-80H Analog Handheld Refractometer

Overview

The ATAGO MASTER-80H is a precision-engineered analog handheld refractometer designed specifically for high-Brix applications in food processing and quality control laboratories. Based on the fundamental optical principle of total internal reflection, the instrument measures the refractive index of liquid or semi-solid samples—directly correlating to soluble solids concentration expressed as % Brix. Unlike digital units requiring power or temperature stabilization, the MASTER-80H leverages robust mechanical optics and built-in automatic temperature compensation (ATC) across the standard operating range (10–40 °C), ensuring consistent readings without external calibration at each use. Its hardened prism assembly—chemically resistant to organic acids commonly found in fruit-based products—makes it uniquely suited for routine analysis of viscous, acidic, or particulate-laden materials such as jams, pastes, bean fillings, and concentrated syrups where conventional refractometers may suffer from corrosion or residue adhesion.

Key Features

• Hardened, acid-resistant prism optimized for high-Brix, high-acidity matrices including fruit jams and sweet bean pastes
• Automatic Temperature Compensation (ATC) mechanism eliminates manual correction for ambient thermal drift within 10–40 °C
• Mechanically stable analog scale with 0.5% Brix minimum division and ±0.5% Brix accuracy (traceable to NIST-traceable sucrose standards)
• IP65-rated housing (excluding eyepiece) provides dust-tight integrity and resistance to low-pressure water jets—ideal for humid production environments
• Compact form factor (130 g, 3.2 × 3.4 × 16.8 cm) enables one-handed operation and rapid field deployment without external power or software dependencies
• Dedicated daylight plate (RE-2315-60M, optional) enhances contrast under variable ambient lighting conditions common in factory settings

Sample Compatibility & Compliance

The MASTER-80H is validated for direct measurement of opaque, viscous, or thermally sensitive samples that cannot be reliably analyzed using flow-cell or digital benchtop refractometers. Its reinforced prism surface tolerates repeated contact with acidic fruit derivatives (e.g., pectin-rich jam formulations, pH 3.2–3.8), minimizing surface degradation over extended service life. While not compliant with FDA 21 CFR Part 11 due to its analog nature, the instrument supports GLP/GMP-aligned workflows when used with documented calibration procedures: traceable sucrose reference standards (RE-110030 through RE-110060, certified ±0.03–±0.05% Brix) and master standard LB (RE-2100-83N) for inter-laboratory consistency. Calibration verification intervals are defined per internal SOPs—typically before each shift or after every 20 measurements—ensuring metrological continuity aligned with ISO/IEC 17025 guidance for non-automated measurement systems.

Software & Data Management

As a fully analog instrument, the MASTER-80H does not incorporate embedded firmware, connectivity interfaces, or data logging capabilities. This architecture ensures operational reliability in electrically noisy industrial zones and eliminates cybersecurity vulnerabilities associated with networked devices. All measurement records must be manually transcribed into laboratory notebooks or LIMS-compatible spreadsheets. For audit readiness, users are advised to retain calibration logs—including date, operator ID, standard lot number, observed deviation, and corrective action—consistent with ISO 9001 Clause 7.1.5 and ASTM D1218-22 Annex A1 requirements for manual optical instrumentation. Optional accessories such as the trace-sample prism cover (RE-2311-58M) facilitate repeatable sample application volumes (≈0.3 mL), improving inter-operator reproducibility during manual entry.

Applications

• Concentration monitoring of fruit preserves, marmalades, and confectionery fillings during cooking and filling stages
• In-process quality verification of sweetened bean pastes (e.g., anko, dorayaki fillings) prior to packaging
• Batch release testing of high-Brix syrups (e.g., glucose-fructose blends, invert sugar solutions) in beverage concentrate manufacturing
• Raw material screening of dried fruit pulps and dehydrated purees where moisture content correlates strongly with Brix
• Teaching laboratories demonstrating classical refractometry principles without dependency on electronic infrastructure

FAQ

Does the MASTER-80H require battery power or external electronics?

No. It is a purely optical-mechanical instrument with no electrical components.
Can it measure samples below 30% Brix?

No. The scale is physically limited to 30.0–80.0% Brix; lower concentrations require models such as the MASTER-53M or PAL series.
Is the ATC system adjustable or user-serviceable?

No. The bimetallic ATC element is factory-integrated and sealed; recalibration requires authorized ATAGO service centers.
How often should calibration standards be replaced?

Sucrose reference solutions have a shelf life of 24 months unopened; once opened, use within 6 months under refrigerated, contamination-controlled storage.
Is the IP65 rating applicable to the entire unit?

No—IP65 applies only to the main body housing. The eyepiece lens assembly is not sealed and must be protected from direct water exposure.
