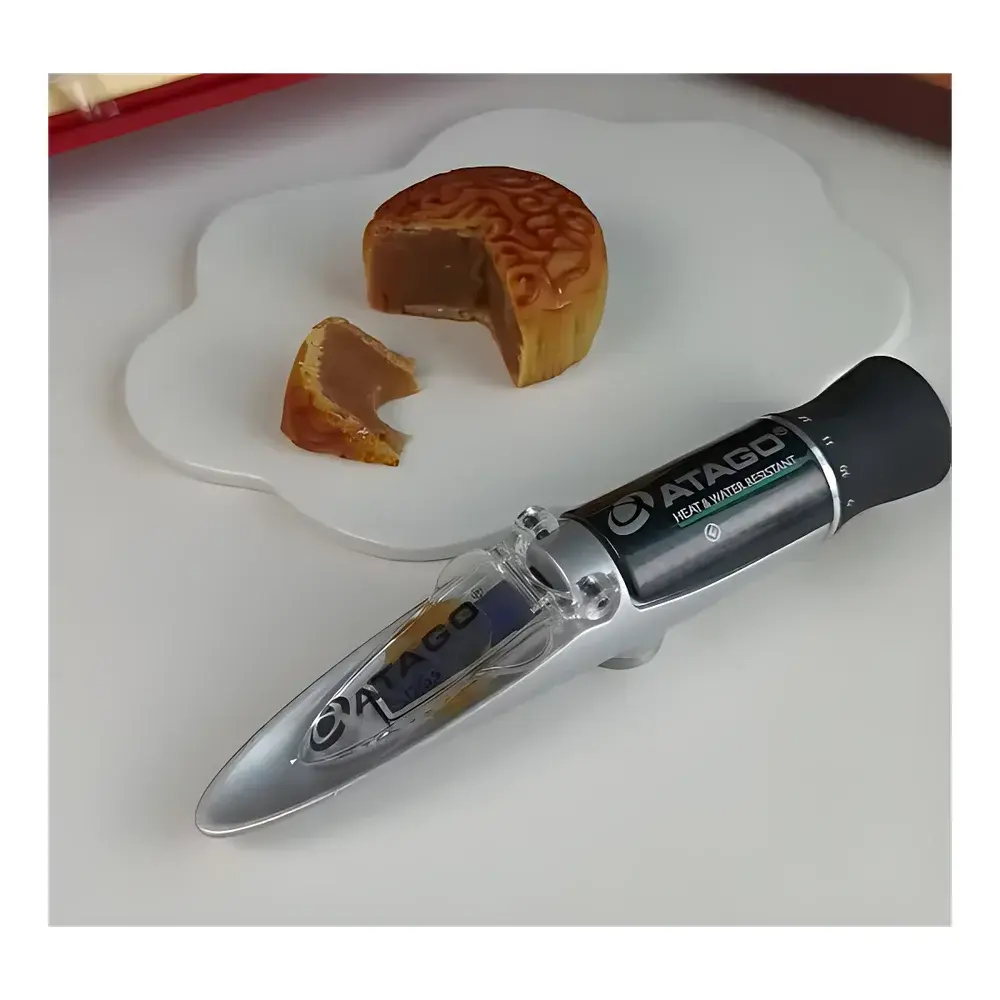

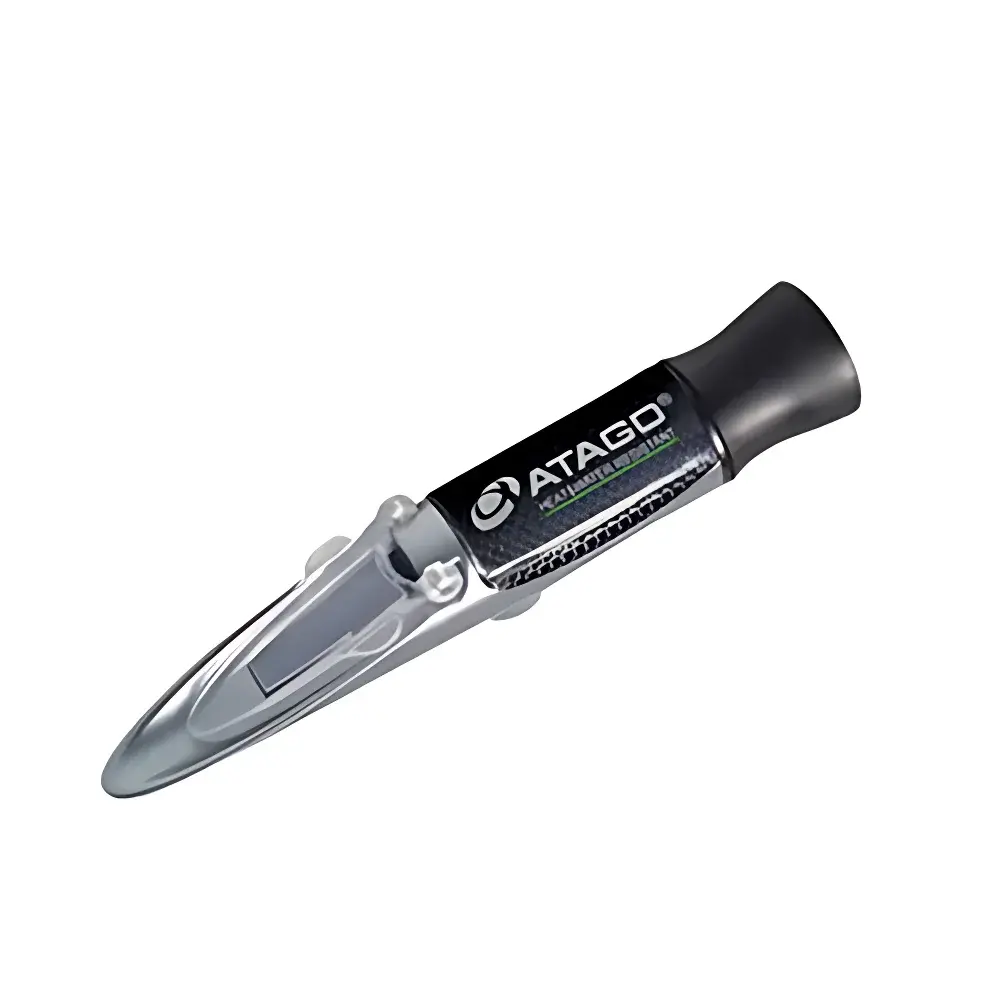

ATAGO MASTER-93H High-Brix Handheld Refractometer for Paste and Filling Applications
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | MASTER-93H |
| Product Type | Handheld Refractometer |
| Temperature Compensation | Automatic (ATC) |
| Measurement Range | Brix 45.0–93.0% |
| Resolution | 0.5% Brix |
| Accuracy | ±0.5% Brix (±0.25% with ATC) |
| Dimensions | 3.2 × 3.4 × 16.8 cm |
| Weight | 130 g |
Overview
The ATAGO MASTER-93H is a purpose-engineered handheld refractometer designed specifically for high-Brix, viscous food pastes and fillings—such as fruit jams, red bean paste, lotus seed paste, chocolate ganache, and caramelized nut spreads—commonly encountered in bakery, confectionery, and traditional Asian pastry manufacturing. It operates on the principle of critical-angle refractometry: incident light passes through a sample placed on the sapphire-coated prism surface, and the resulting refraction angle is optically converted into a Brix concentration reading via calibrated internal optics. Unlike general-purpose refractometers, the MASTER-93H features an extended high-range optical path optimized for dense, opaque, and thermally stable samples where conventional low-Brix instruments saturate or yield unreliable readings. Its automatic temperature compensation (ATC) mechanism—based on a built-in thermistor—adjusts readings across 10–40 °C to maintain traceable accuracy without external calibration baths or manual correction tables. This ensures compliance with routine quality control workflows under ambient production-floor conditions.
Key Features
- Specialized high-Brix optical system (45.0–93.0% Brix) with enhanced signal-to-noise ratio for viscous, particulate-laden, or semi-opaque fillings
- Sapphire-coated measurement prism offering superior scratch resistance and chemical inertness against acidic or sugary matrices
- True automatic temperature compensation (ATC) across 10–40 °C, delivering ±0.25% Brix repeatability when used within specified thermal range
- Compact ergonomic design (130 g, 3.2 × 3.4 × 16.8 cm) enabling one-handed operation and rapid field deployment in central kitchens, R&D labs, and inline QC stations
- No battery or digital display required—fully analog optical readout ensures zero drift, long-term stability, and immunity to electromagnetic interference
- Calibration verified using NIST-traceable sucrose standards; compatible with ISO 2173:2003 and AOAC Official Method 932.12 for soluble solids determination
Sample Compatibility & Compliance
The MASTER-93H is validated for direct measurement of non-homogeneous, heat-stable pastes with minimal sample volume (≤0.3 mL). Its robust prism geometry accommodates high-viscosity materials without requiring dilution, heating, or filtration—critical for preserving flavor integrity and avoiding measurement artifacts from thermal degradation or phase separation. The instrument meets essential regulatory expectations for food-grade instrumentation: prism surface complies with FDA 21 CFR 177.2420 for indirect food contact; housing material is IP54-rated for dust and splash resistance; and its mechanical construction adheres to GLP-aligned verification protocols (e.g., documented calibration intervals, operator training records, and logbook traceability). While not electronically audit-trail capable, its analog architecture inherently satisfies FDA 21 CFR Part 11 “exclusion criteria” for non-computerized systems used in GMP environments.
Software & Data Management

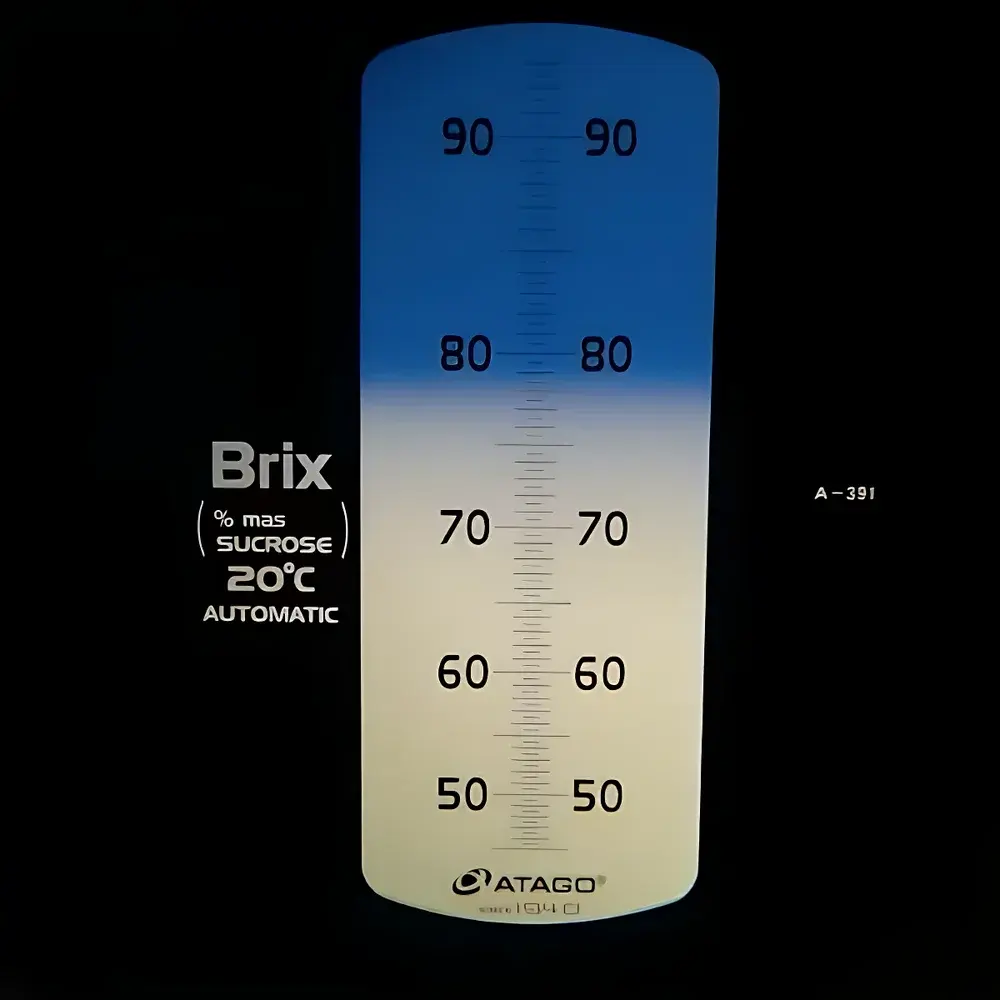

As a fully analog optical instrument, the MASTER-93H does not incorporate firmware, software, or data connectivity. All measurements are interpreted visually via the ocular scale, eliminating dependency on power sources, firmware updates, or cybersecurity configurations. This architecture supports lean QC documentation practices: users record readings manually in paper-based or electronic batch records aligned with ISO 9001:2015 Clause 8.5.2 (Identification and traceability) and HACCP Principle 4 (Monitoring procedures). For laboratories integrating digital workflows, optional third-party image-capture attachments (e.g., smartphone adapters with scale overlays) may be employed to generate timestamped visual records—though such add-ons fall outside ATAGO’s certified validation scope.
Applications
- Real-time Brix verification during jam concentration, paste cooking, and sugar-boiling stages in industrial bakeries
- Batch release testing of lotus seed or mung bean pastes prior to packaging, ensuring consistency across seasonal raw material variations
- R&D formulation development for low-moisture confections where water activity (aw) correlates strongly with Brix-derived soluble solids
- Supplier qualification audits for high-sugar fillings supplied to contract manufacturers serving global retail brands
- Educational use in food science curricula for teaching fundamental principles of solution density, refractive index, and colligative properties
FAQ
Does the MASTER-93H require battery power or electronic components?
No—it is a purely optical, analog instrument with no electronics, batteries, or digital displays.
Can it measure samples above 60 °C?
Yes, but only if the sample has been cooled to ≤40 °C before application; exceeding the ATC operational range invalidates compensation accuracy.
Is calibration fluid included with the instrument?
A single-use 50% Brix sucrose reference solution (Cat. No. 2442) is available separately; factory calibration certificate is provided with each unit.
How often should the prism be cleaned between measurements?
After every sample—using lint-free tissue and distilled water or ethanol, followed by air drying—to prevent cross-contamination and residue buildup.
Is the MASTER-93H compliant with ISO/IEC 17025 for accredited testing laboratories?
It may be used within accredited scopes when incorporated into a validated method, supported by documented uncertainty budgets, periodic verification, and staff competency assessment per ISO/IEC 17025:2017 Clause 6.4.
