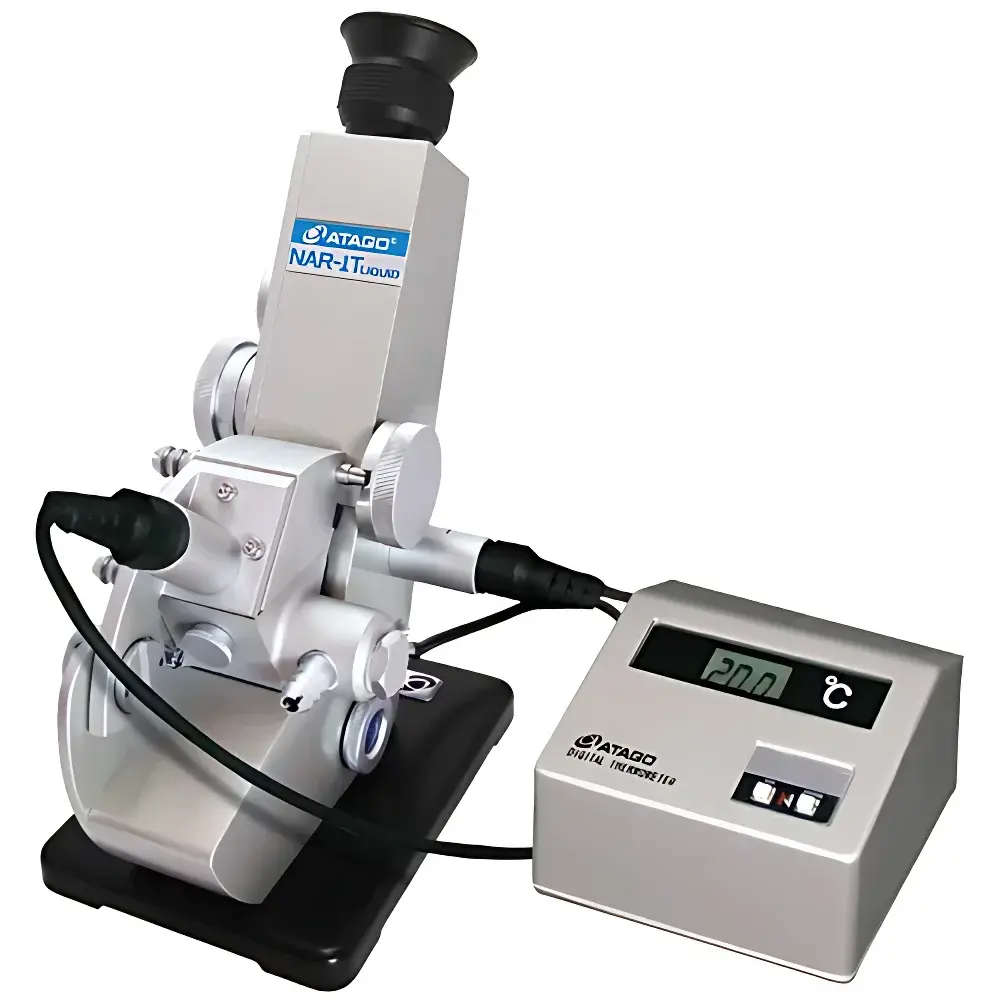

ATAGO NAR-1T LIQUID Abbe Refractometer
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | NAR-1T LIQUID |
| Type | Benchtop Abbe Refractometer |
| Temperature Control | Yes |
| Digital Display | No |
| Refractive Index Range | 1.3000–1.7000 |
| Brix Range | 0.0–95.0% |
| Refractive Index Accuracy | ±0.0002 |
| Brix Accuracy | ±0.1% |
| Temperature Range | 5–50°C |
| Temperature Accuracy | ±0.2°C |
| Dimensions (main unit) | 13×18×23 cm |
| Weight (main unit) | 1.8 kg |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 5 VA |
Overview
The ATAGO NAR-1T LIQUID Abbe Refractometer is a precision optical instrument engineered for the accurate determination of refractive index (nD) and Brix concentration in transparent and semi-transparent liquid samples. Based on the classical Abbe principle—utilizing total internal reflection at the prism-sample interface—the instrument delivers high reproducibility and long-term stability without requiring complex calibration routines. Its optical design incorporates a high-quality double-Abbe prism system with temperature-compensated illumination, enabling reliable measurements under controlled thermal conditions. Designed specifically for liquid-phase analysis, the NAR-1T LIQUID is widely deployed in quality control laboratories across chemical manufacturing, pharmaceutical formulation, food & beverage processing, and academic research environments where trace-level compositional verification is essential.
Key Features
- Benchtop Abbe configuration with integrated temperature-controlled sample stage (5–50°C), ensuring measurement consistency per ISO 21542 and ASTM D1218 compliance protocols

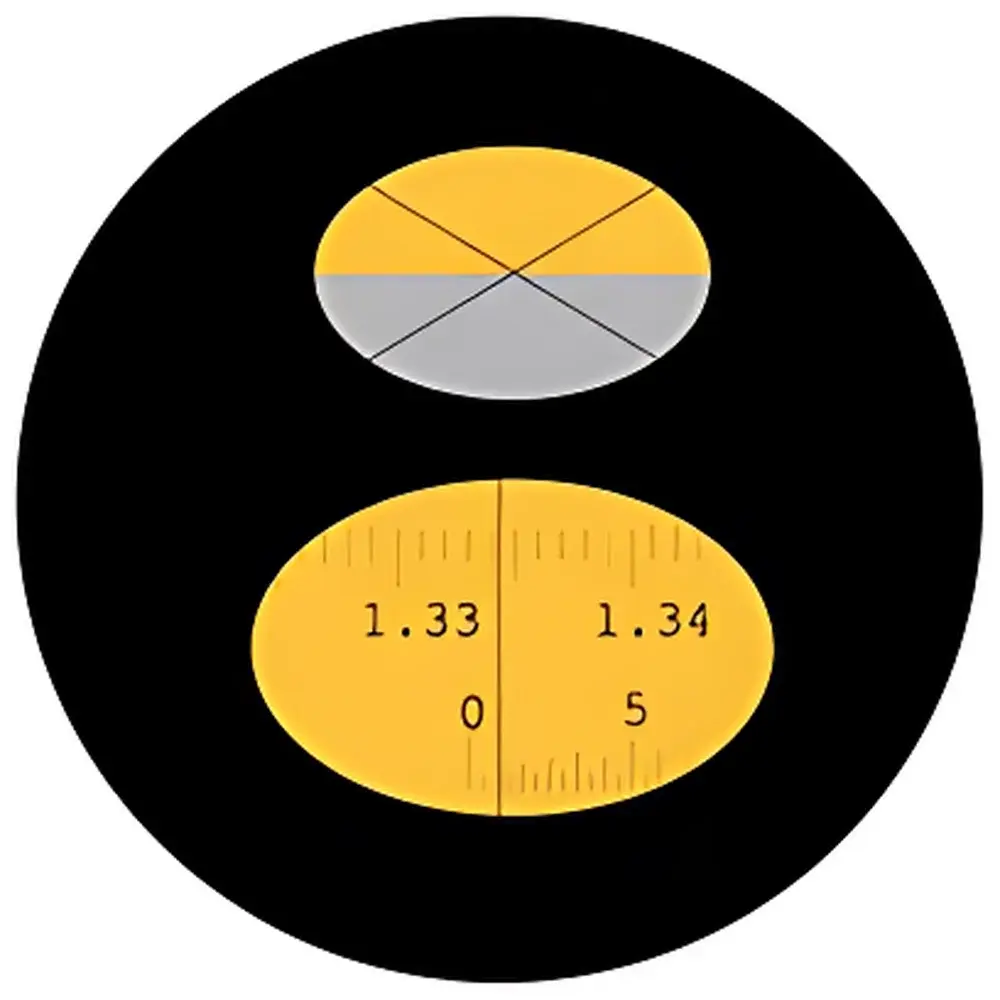

- Manual analog scale reading with vernier-assisted interpolation—optimized for operator precision and minimal parallax error
- High-stability optical path featuring fused silica prisms and collimated sodium-D line (589.3 nm) illumination
- Refractive index resolution of 0.001 and Brix resolution of 0.5%, supporting fine-grained differentiation between closely related formulations
- Robust mechanical architecture with vibration-dampened base and ergonomic sample well geometry for repeatable droplet placement
- Low-power operation (5 VA) compatible with universal AC input (100–240 V, 50/60 Hz), suitable for regulated laboratory power environments
Sample Compatibility & Compliance
The NAR-1T LIQUID accommodates a broad spectrum of homogeneous liquids—including organic solvents, aqueous electrolyte solutions, polymer dispersions, glycol-based coolants, and syrup-like formulations—provided they are optically clear or mildly turbid (no suspended particulates >5 µm). It is not intended for opaque suspensions, emulsions, or volatile low-boiling-point solvents without vapor-trap accessories. The instrument conforms to fundamental metrological requirements outlined in ISO 1042 (volumetric glassware reference), JIS K 0061 (refractometer testing methods), and supports GLP documentation workflows through manual logbook integration. While it does not feature electronic data export, its stable analog output enables direct correlation with certified reference standards traceable to NIST SRM 1484 (refractive index standards).
Software & Data Management
The NAR-1T LIQUID operates as a standalone optical instrument without embedded firmware or digital connectivity. All readings are captured visually via calibrated ocular scales, eliminating software dependency and associated cybersecurity or validation overhead. Users maintain measurement integrity through standardized SOPs—including prism cleaning protocols (using lens-grade acetone and lint-free wipes), temperature equilibration wait times (>3 min after setpoint adjustment), and dual-operator verification for critical QC batches. For laboratories operating under FDA 21 CFR Part 11 or EU Annex 11 requirements, manual entry into validated LIMS or ELN systems—accompanied by signed hardcopy records—is fully supported and routinely audited in pharmaceutical and contract manufacturing settings.
Applications
- Quantitative verification of solvent purity in fine chemical synthesis (e.g., acetone, ethanol, THF)
- Concentration monitoring of process streams in paint & coating resin production
- Brix-based sugar content validation in flavor concentrate and syrup manufacturing
- Refractive index profiling during polymerization reaction endpoint detection
- Educational demonstration of dispersion relationships and Cauchy equation fitting in undergraduate physics labs
- Field-deployable verification of antifreeze glycol concentration in automotive coolant service
FAQ
Does the NAR-1T LIQUID support automatic temperature compensation (ATC)?
No—it features active temperature control via an external Peltier-regulated stage but requires manual input of observed temperature for nD correction using standard Cauchy or Gladstone–Dale equations.
Can this refractometer measure solid or powdered samples?
Not directly. It is optimized for liquid samples only; solids require melting or dissolution into a compatible solvent prior to analysis.
Is calibration traceable to national standards?
Yes—users calibrate using certified refractive index standards (e.g., distilled water at 20°C: nD = 1.3330, or bromonaphthalene: nD = 1.6580), which are available with NIST-traceable certificates.
What maintenance is required for long-term optical accuracy?
Annual verification of prism flatness and lamp spectral output is recommended; routine cleaning with reagent-grade isopropanol and optical-grade tissue prevents residue-induced drift.
How does this model differ from the NAR-2T series?
The NAR-1T LIQUID lacks digital display and automated Brix conversion logic—offering greater mechanical simplicity and reduced failure modes, ideal for regulated environments prioritizing auditability over automation.
