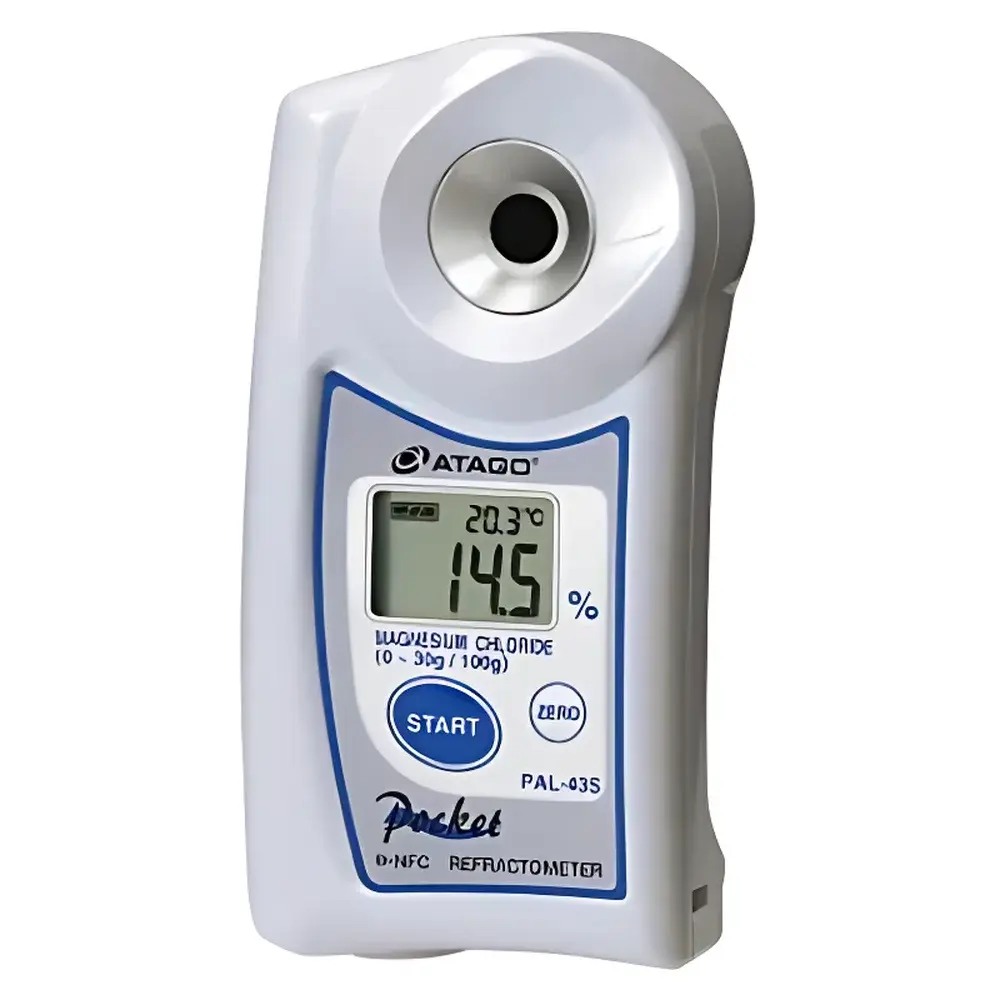

ATAGO PAL-43S Digital Handheld Refractometer for Magnesium Chloride (Brine) Concentration

Overview

The ATAGO PAL-43S is a compact, field-deployable handheld refractometer engineered specifically for the rapid, on-site quantification of magnesium chloride (MgCl₂) concentration in brine solutions. It operates on the fundamental optical principle of total internal reflection: as light passes through a sample placed on the prism surface, its refractive index—directly correlated to solute concentration—is measured and converted into a mass percentage (w/w %) of MgCl₂ using a pre-calibrated algorithm traceable to ATAGO’s certified reference standards. Unlike generic salt refractometers, the PAL-43S employs a chemically specific calibration curve optimized for MgCl₂ aqueous systems, ensuring high reproducibility across typical industrial brine matrices—including deicing solutions, food-grade卤水 (marinades and curing brines), and electrolyte formulations. Its built-in Automatic Temperature Compensation (ATC) mechanism maintains measurement integrity across ambient conditions from 10 °C to 40 °C without external thermostating, eliminating manual correction factors required by non-compensated analog units.

Key Features

• Dedicated MgCl₂ scale with 0.0–30.0% w/w range, covering critical concentrations used in road deicing (typically 15–25%), tofu coagulation (5–12%), and fermented food brining (8–20%)
• ±0.2% accuracy (at 20 °C) validated per ISO 21748:2017 guidelines for refractometric measurement uncertainty
• 0.1% resolution digital display with backlight for low-light environments (e.g., cold storage rooms or outdoor winter conditions)
• IP65-rated enclosure ensures dust-tightness and resistance to water jets—suitable for washdown environments in food processing facilities
• Prism constructed from high-transmittance sapphire glass for scratch resistance and long-term optical stability
• Low-power design with two AAA batteries providing >10,000 measurements per set under typical usage

Sample Compatibility & Compliance

The PAL-43S is validated for homogeneous aqueous MgCl₂ solutions containing no suspended solids, oils, or high-viscosity additives that may interfere with prism contact or light transmission. It is routinely deployed in QC labs and production lines adhering to HACCP, ISO 22000, and FDA Food Code §3-202.11 for brine-based food preparation. While not certified for GLP/GMP audit trails, its calibration protocol aligns with ASTM D1152–18 (Standard Test Method for Hydrochloric Acid) for refractometric verification of halide-based solutions. Users are advised to recalibrate daily using ATAGO-certified MgCl₂ standard solution (Cat. No. 4443-STD) prior to critical measurements.

Software & Data Management

As a standalone optical instrument, the PAL-43S does not feature Bluetooth, USB, or data logging capabilities. All measurements are displayed in real time on the integrated LCD screen and must be manually recorded. This architecture intentionally prioritizes operational simplicity, regulatory transparency, and minimal validation burden—making it suitable for environments where electronic data capture is either unnecessary or subject to stringent 21 CFR Part 11 controls. For laboratories requiring traceable digital records, ATAGO recommends pairing the PAL-43S with externally validated SOPs for manual entry into LIMS or ELN platforms.

Applications

• Routine verification of MgCl₂ concentration in liquid deicing agents prior to application on airport runways and municipal roads
• In-process control of brine strength during tofu and soy product coagulation, where MgCl₂ concentration directly influences gel firmness and yield
• Batch consistency monitoring in meat and poultry curing operations using MgCl₂-based marinades
• Field testing of industrial brine coolants and heat-transfer fluids in HVAC and refrigeration maintenance
• Educational use in food science and analytical chemistry laboratories for teaching refractive index–concentration relationships

FAQ

Is the PAL-43S calibrated for other salts such as NaCl or CaCl₂?
No. The PAL-43S uses a MgCl₂-specific calibration curve. Using it for NaCl or CaCl₂ will produce inaccurate results due to differing molecular refraction coefficients.
Can I measure hot or frozen brine samples?
Measurements must be performed at stable temperatures between 10 °C and 40 °C. Samples outside this range require equilibration; freezing damages the prism and battery compartment.
How often should I clean the prism surface?
Wipe immediately after each measurement with lens tissue and distilled water. Avoid alcohol or abrasive cleaners, which degrade the anti-reflective coating.
Does ATAGO provide NIST-traceable calibration documentation?
Yes—certificates of calibration (traceable to JCSS, Japan’s national metrology institute) are available upon request for Cat. No. 4443-STD reference standards.
Is the PAL-43S compliant with EU RoHS and REACH directives?
Yes. Full material declarations and compliance statements are included in the technical datasheet (Rev. E, 2023).
