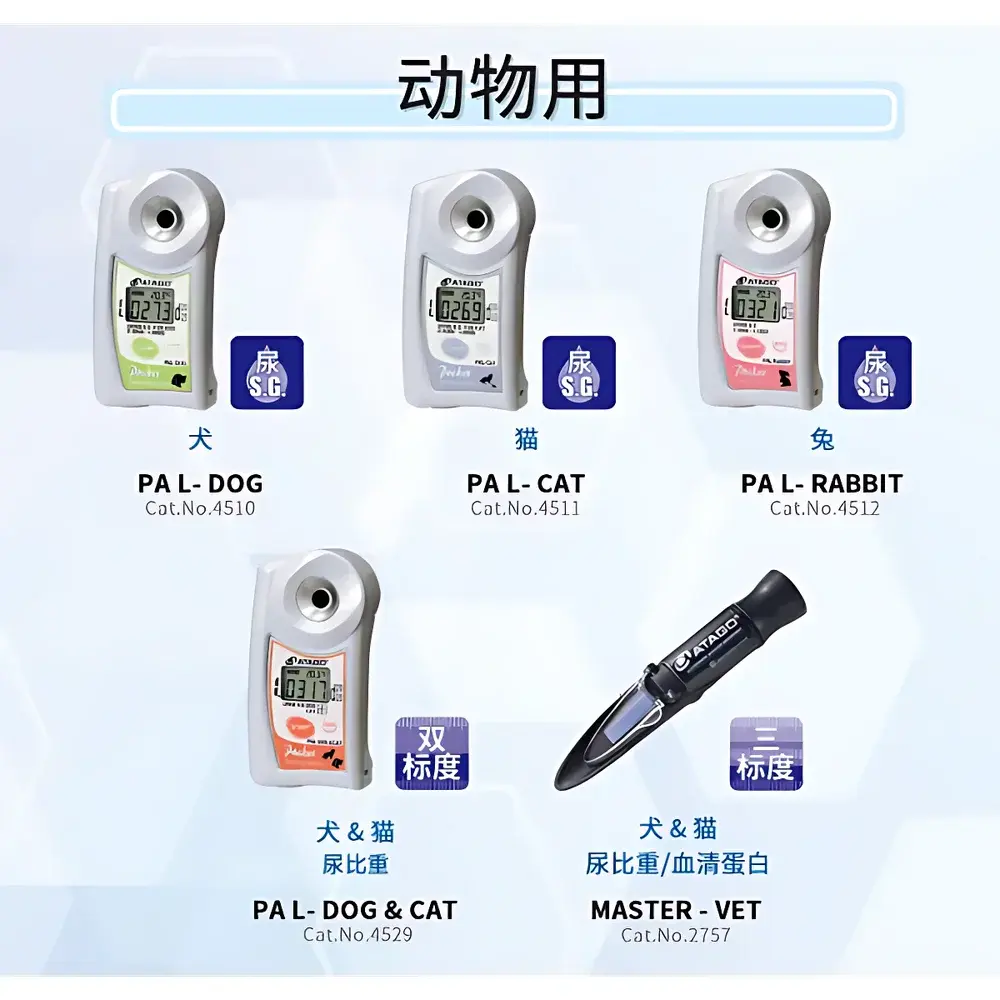

ATAGO PAL-DOG & CAT Veterinary Urinometer (Refractometer for Canine and Feline Urine Specific Gravity)

Overview

The ATAGO PAL-DOG & CAT is a handheld, temperature-compensated clinical refractometer engineered specifically for rapid, non-invasive assessment of urine specific gravity (USG) in companion animals—primarily dogs and cats. It operates on the fundamental optical principle of refractive index measurement: as dissolved solutes (e.g., urea, creatinine, glucose, electrolytes) increase in urine, light passing through the sample bends to a greater degree, resulting in a higher refractive index that correlates directly with specific gravity. This correlation is calibrated per species-specific physiological norms—canine USG typically ranges from 1.015–1.045 under normal hydration, while feline USG commonly spans 1.035–1.060 due to evolutionary adaptations for water conservation. The PAL-DOG & CAT integrates ATAGO’s proprietary Abbe-type prism optics and high-stability analog-to-digital conversion circuitry to deliver repeatable, operator-independent readings without reagents, dilution, or external calibration. Its compact form factor and robust mechanical design support point-of-care use in veterinary clinics, mobile practices, and responsible home monitoring environments where early detection of renal dysfunction, diabetes insipidus, or prerenal azotemia is clinically indicated.

Key Features

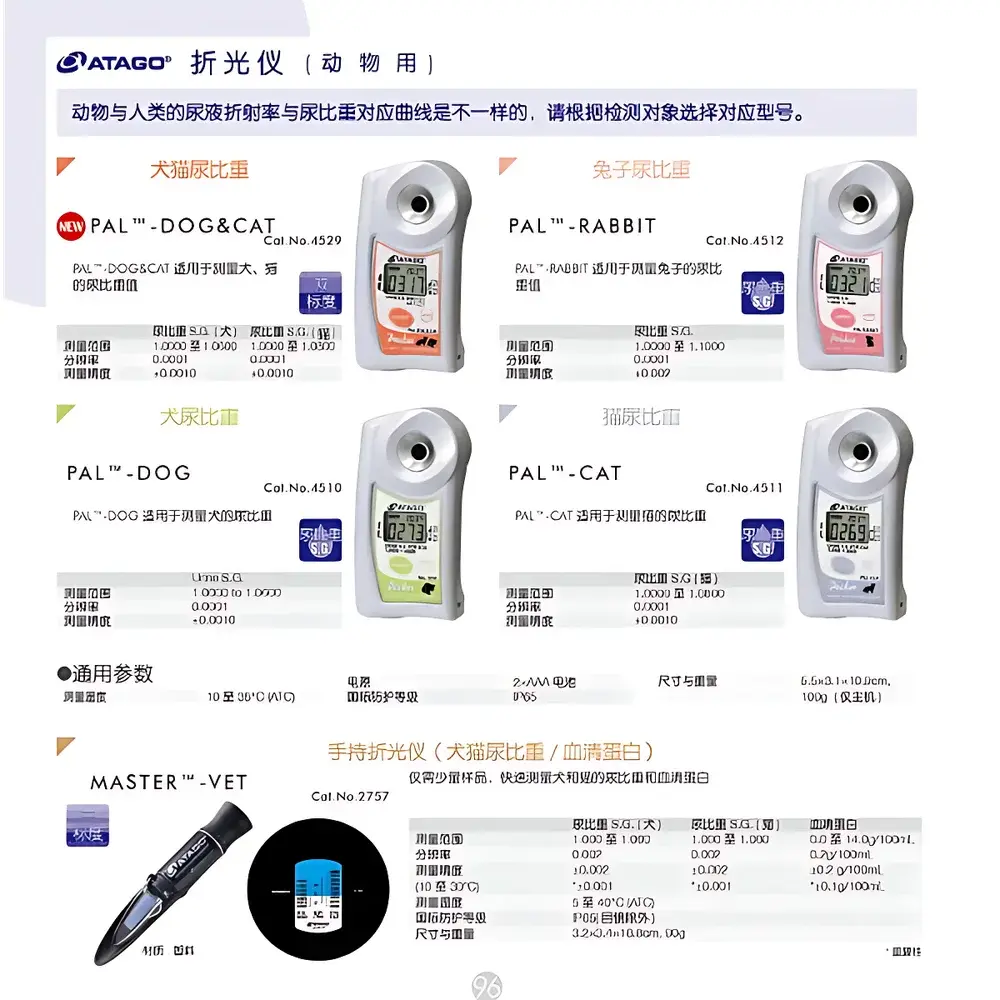

• Species-specific dual-range scale: Optimized optical calibration for canine (1.0000–1.0600) and feline (1.0000–1.0800) urine matrices, minimizing interpolation error inherent in universal refractometers.
• Automatic Temperature Compensation (ATC): Built-in thermistor continuously adjusts refractive index readings across 10–35°C ambient range—eliminating manual correction tables and reducing thermal drift during sequential patient assessments.
• High-resolution digital display: 0.0001 resolution enables detection of subtle USG shifts (e.g., <0.002 change) associated with early-stage concentrating defects or post-diuretic recovery.
• IP65-rated enclosure: Dust-tight and protected against low-pressure water jets—suitable for disinfection protocols using alcohol wipes or quaternary ammonium solutions without compromising internal optics or electronics.
• Battery-powered portability: Operates on two standard AAA cells with >10,000 measurements per set—ideal for field diagnostics, shelter triage, or multi-location practice workflows.
• ATAGO’s 80-year optical heritage: Precision-ground BK7 glass prism, factory-traceable calibration against NIST-traceable reference standards, and ISO 9001-certified manufacturing in Japan.

Sample Compatibility & Compliance

The PAL-DOG & CAT accepts undiluted, uncentrifuged fresh urine specimens (minimum 0.3 mL). It is validated for use with common interferents including moderate hematuria (3+ on dipstick) may require dilution and correction per manufacturer guidelines. The device complies with IEC 61010-1 (electrical safety for laboratory equipment) and meets essential requirements of the EU Medical Device Regulation (MDR 2017/745) as a Class I non-invasive diagnostic aid. While not intended for quantitative regulatory submission, its measurement traceability aligns with CLIA-waived testing principles when used within defined veterinary clinical decision thresholds (e.g., USG 1.060 in cats warrants investigation of hyperadrenocorticism or dehydration).

Software & Data Management

As a standalone analog-digital hybrid instrument, the PAL-DOG & CAT does not feature Bluetooth, USB, or onboard data logging. However, its deterministic output supports seamless integration into existing veterinary practice management systems (PMS) via manual entry or barcode-assisted documentation. Readings are inherently audit-ready: each value reflects a direct physical property (refractive index) governed by Snell’s law—not algorithmic estimation—ensuring full transparency for GLP/GCP-aligned recordkeeping. For institutions requiring electronic data capture, ATAGO recommends pairing the device with third-party digital loggers compliant with FDA 21 CFR Part 11 (e.g., validated tablet-based clinical note applications with electronic signature and time-stamped metadata).

Applications

• Baseline renal function screening during wellness exams in geriatric or at-risk patients (e.g., chronic kidney disease staging per IRIS guidelines).
• Differential diagnosis of polyuria/polydipsia (PU/PD): distinguishing nephrogenic vs. central diabetes insipidus based on fixed low USG versus appropriate concentration response.
• Monitoring response to fluid therapy in acute kidney injury or post-anesthetic recovery.
• Assessing urinary concentrating capacity in breeds predisposed to hereditary nephropathies (e.g., English Cocker Spaniels, Maine Coons).
• Supporting interpretation of serum creatinine and BUN values—low USG concurrent with elevated azotemia strongly suggests intrinsic renal failure rather than prerenal causes.
• Research applications in comparative nephrology studies involving controlled hydration protocols or pharmacokinetic evaluation of diuretics.

FAQ

How often should I calibrate the PAL-DOG & CAT?
Calibration is required before first use and daily prior to clinical sessions using ATAGO’s certified URINE REFERENCE STANDARD (Cat. No. 4528) or distilled water (for zero-point verification at 1.0000). Recalibration is mandatory after exposure to extreme temperatures, physical shock, or cleaning agents beyond recommended protocols.
Can this refractometer measure urine pH or glucose?
No. The PAL-DOG & CAT measures only refractive index-derived specific gravity. Urine pH and glucose require separate electrochemical or enzymatic assays (e.g., dipstick urinalysis or benchtop analyzers).
Is the device suitable for exotic species such as rabbits or ferrets?
While not formally validated for non-canine/feline species, empirical use in small mammals may yield qualitative trends—but species-specific reference intervals and clinical interpretation must be established independently by the attending veterinarian.
What does IP65 rating mean for clinical use?
IP65 certifies full protection against dust ingress and resistance to water projected from a 6.3 mm nozzle at 30 kPa pressure for 3 minutes—enabling safe surface decontamination between patients without disassembly or optical recalibration.
Does ATAGO provide traceable calibration documentation?
Yes. Each unit ships with a factory calibration certificate referencing NIST-traceable standards. Optional annual recalibration services are available through ATAGO’s authorized service centers in North America, EMEA, and APAC regions, with full ISO/IEC 17025-compliant reports.
